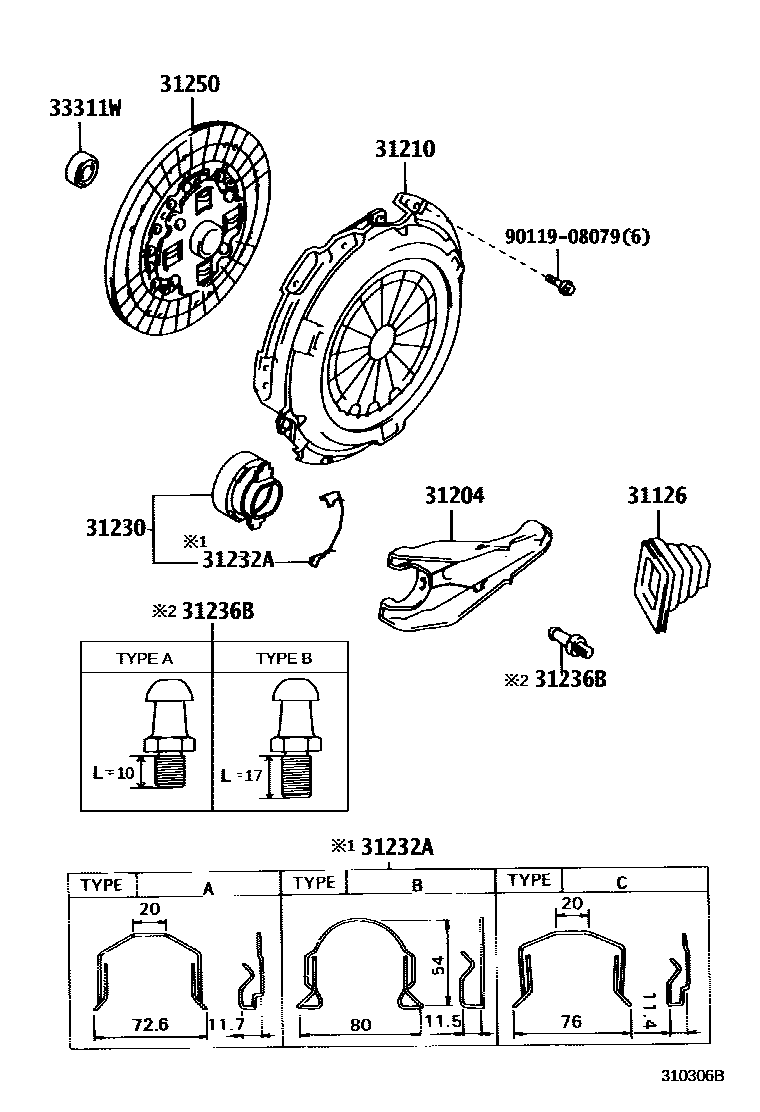

CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
31232ACLIP, RELEASE BEARING HUB
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B:REFER TO ILLUSTRATION
TYPE C:REFER TO ILLUSTRATION
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
31236BSUPPORT, RELEASE FORK
TYPE B
TYPE A
31250DISC ASSY, CLUTCH
NEW ZEALAND SPEC
33311WBEARING (FOR INPUT SHAFT)
9011908079
9 parts on this diagram · 2 diagrams in section
