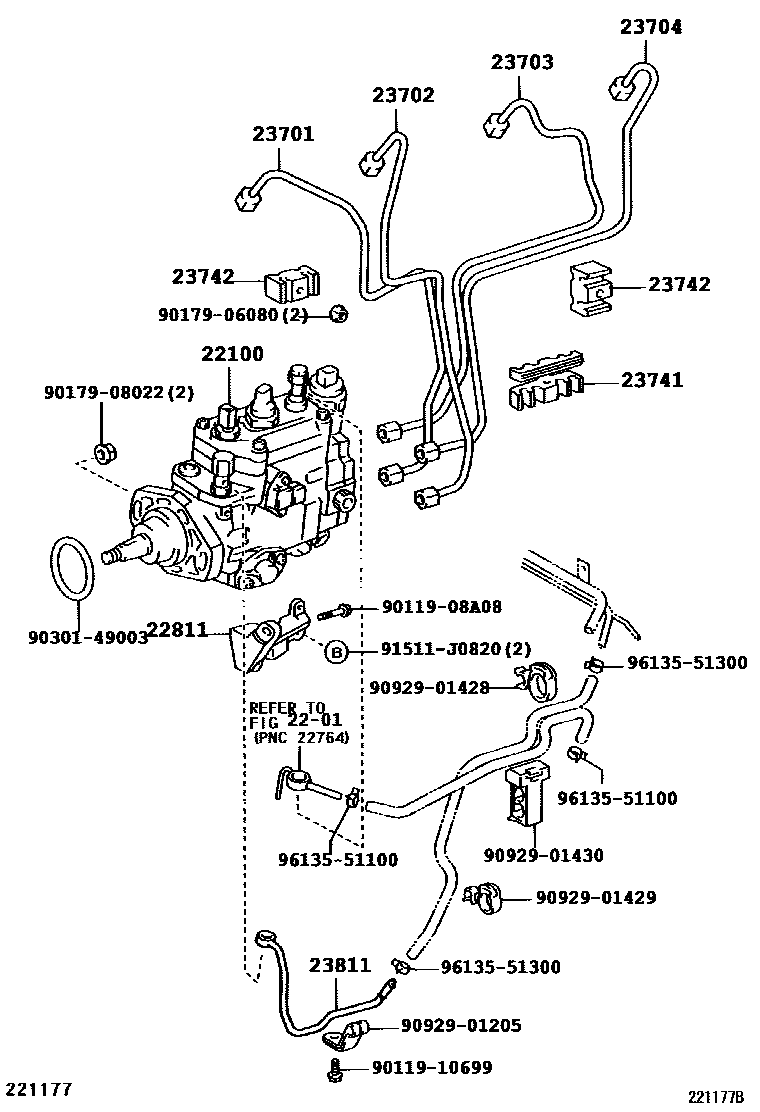

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1

2201

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54710i3L..LN106,130..LHD..CBU¥279,000199508-199708

BRAZIL SPEC & W(TACHO METER PICK UP)

main22100-54710i3L..LN107..GEN¥279,000199703-199911

W/O(HIGH ALTITUDE COMPENSATOR) & W(TACHO METER)

main22100-54850i3L..LN106,111..GEN¥271,000198808-199708

sub22100-54860¥279,000

main22100-54850i3L..LN106..RHD..TW1..GEN;3L..LN106..RHD..GEN..IV3¥271,000198808-199108

NEW ZEALAND SPEC & W(TACHO METER PICK UP)

sub22100-54860¥279,000

main22100-54860i3L..LN106,111,130..ARL¥279,000198808-199909

W(POWER STEERING) OR W(TACHO METER)

main22100-54860i3L..LN130;3L..LN135..LHD;3L..LN10#,111..ARL¥279,000199403-199511

main22100-54870i3L..LN106,111,135..GEN¥303,000198808-199708

W(HIGH ALTITUDE COMPENSATOR)

sub22100-54880¥314,000

main22100-54880i3L..LN106..T1..GEN..CBU;3L..LN106..LHD..T1..IV3;3L..LN106,111..LHD..(DCB,XTR)¥314,000198808-199708

W(TACHO METER PICK UP & HIGH ALTITUDE COMPENSATOR)

main22100-54880i3L..LN106..T1..GEN..CBU;3L..LN106..LHD..T1..IV3;3L..LN106,111..LHD..(DCB,XTR)¥314,000199108-199708

W(TACHO METER PICK UP)

main22100-54880i3L..LN135..RHD;3L..LN10#,111..ARL¥314,000199403-199812

main22100-54880i3L..LN135¥314,000198904-199007

W(HIGH ALTITUDE COMPENSATOR & TACHO METER)

main22100-54880i3L..LN13#..GEN¥314,000199007-199511

W(HIGH ALTITUDE COMPENSATOR)

main22100-5B030i3L..LN106..RHD..T1..GEN..CBU¥274,000199508-199909

MALAYSIA SPEC & W(POWER STEERING)

main22100-5B030i3L..LN106..LHD..T1..CBU¥274,000198808-199909

HONGKONG SPEC

main22100-5B030i3L..LN106..RHD..GEN..CBU¥274,000198808-198904

MALAYSIA SPEC

main22100-5B030i3L..LN106..RHD..GEN..IV3¥274,000198808-199008

HONGKONG SPEC & W(POWER STEERING)

main22100-5B030i3L..LN106..RHD..T1..GEN..CBU¥274,000198904-199508

MALAYSIA SPEC OR HONGKONG SPEC

main22100-5B030i3L..LN107..STD¥274,000199703-199911

W/O(HIGH ALTITUDE COMPENSATOR)

main22100-5B510i3L..LN111..ARL..CBU¥307,000199612-199708

THAILAND SPEC

main22100-5B610i3L..LN107..GEN¥318,000199703-199911

W(TACHO METER PICK UP & HIGH ALTITUDE COMPENSATOR)

main22100-5B740i3L..LN106¥323,000199708-199909

W(TACHO METER PICK UP & HIGH ALTITUDE COMPENSATOR)

main22100-5D130i3L..LN107¥408,000199911-200106

W(TACHO METER PICK UP & HIGH ALTITUDE COMPENSATOR)

main22100-5D160i3L..LN107..STD¥359,000199911-200106

W/O(HIGH ALTITUDE COMPENSATOR)

sub22100-5D170¥367,000

main22100-5D170i3L..LN107..DLX,SR5¥367,000199911-200106

W/O(HIGH ALTITUDE COMPENSATOR)

main22100-5D170i3L..LN107..DLX,SR5¥367,000199911-200106

W/O(HIGH ALTITUDE COMPENSATOR) & W(TACHO METER)

main22100-5D200i5L..LN205¥409,000200106-200412

W(HIGH ALTITUDE COMPENSATOR)

main22100-5D220i5L..LN205¥368,000200106-200412

W/O(HIGH ALTITUDE COMPENSATOR)

main22100-67120i1KZTE..KZN205¥342,000200108-200412

22811STAY, INJECTION PUMP, NO.1

main22811-54041i3L..LN10#,111,13#¥860198808-199804

sub22811-54042¥530

main22811-54042i5L..LN205¥530199804-200412

main22811-67010i1KZTE..KZN205¥2,190200108-200412

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54110i3L..LN106,111,135¥2,730198808-198908

sub23701-54140¥1,710

main23701-54140i3L..LN10#,111,13#¥1,710198908-200412

main23701-67021i1KZTE..KZN205¥1,680200108-200412

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54110i3L..LN106,111,135¥2,730198808-198908

sub23702-54140¥1,710

main23702-54140i3L..LN10#,111,13#¥1,710198908-200412

main23702-67021i1KZTE..KZN205¥1,680200108-200412

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54090i3L..LN106,111¥2,730198808-198903

sub23703-54091¥2,730

main23703-54091i3L..LN106,111,135¥2,730198903-198908

sub23703-54100¥1,710

main23703-54100i3L..LN10#,111,13#¥1,710198908-200412

main23703-67031i1KZTE..KZN205¥1,680200108-200412

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54090i3L..LN106,111,135¥2,730198808-198908

sub23704-54100¥1,710

main23704-54100i3L..LN10#,111,13#¥1,710198908-200412

main23704-67020i1KZTE..KZN205¥1,680200108-200412

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i3L..LN10#,111,13#¥1,330198808-199607

NO.1

main23741-54030i5L..LN205¥550200106-200412

main23741-54030i3L..LN10#,111¥550199607-200106

NO.1

main23741-56010i3L..LN10#,111,13#¥450198808-200106

NO.2

main23741-64030i1KZTE..KZN205¥550200108-200412

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010i3L..LN10#,111,13#¥1,330198808-199607

main23742-67010i1KZTE..KZN205¥380200108-200412

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54150i3L..LN106,111,13#¥2,700198808-199108

sub23811-54151¥2,690

main23811-54151i3L..LN10#,111,13#¥2,690199108-200412

main23811-67050i1KZTE..KZN205¥2,120200108-200412

9011908A08

main90119-08A08¥170

9011910699

main90119-10699¥90

9017906080

main90179-06080¥80

9017908022

main90179-08022¥220

9030149003

main90301-49003¥170

9092901205

main90929-01205¥380

9092901428

main90929-01428¥280

9092901429

main90929-01429¥200

9092901430

main90929-01430¥450

91511J0820

main91511-J0820¥130

9613551100

main96135-51100¥130

9613551300

main96135-51300¥120

22 parts on this diagram · 3 diagrams in section
