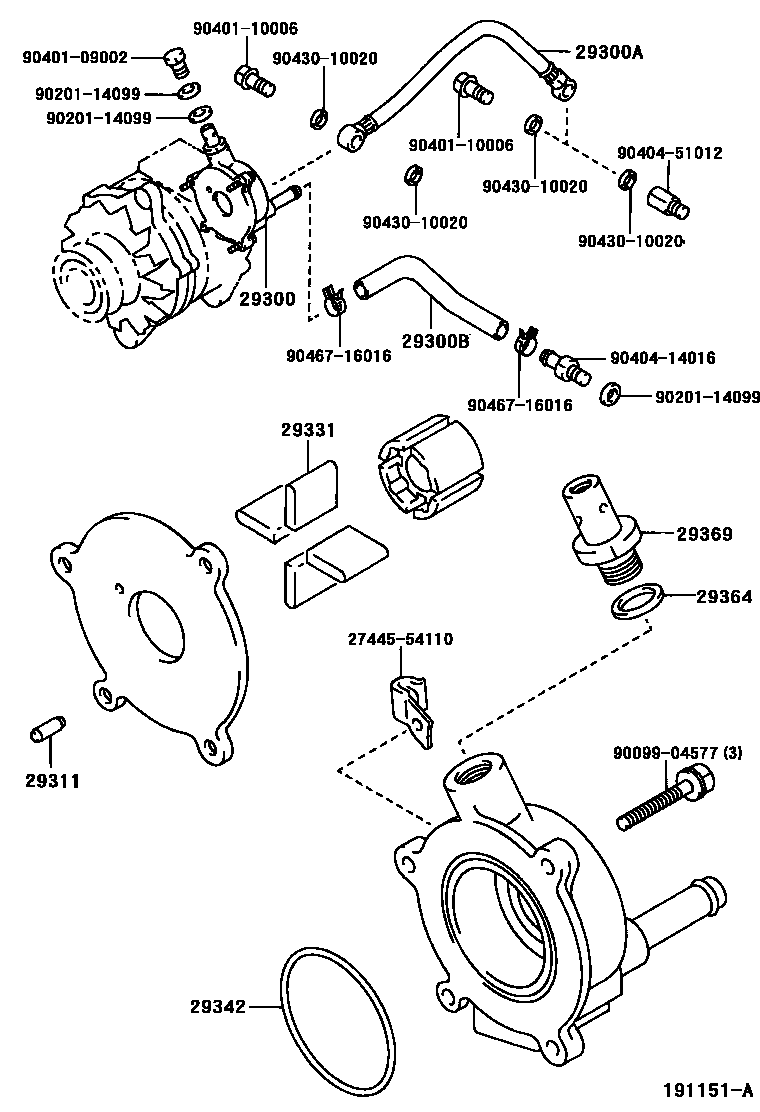

VACUUM PUMP

0001 1 0004 1 0006 1 0007 1

29300PUMP ASSY, VACUUM

main29300-54090i3L..LN106,111,135199008-199101

main29300-54091i3L..LN10#,111,13#..GEN199108-200106

main29300-54110i3L..LN130199008-199108

main29300-54140i3L..LN10#,111..ARL199606-199805

main29300-54180i5L..LN205200106

main29300-67020i1KZTE..KZN205200108

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02077i3L..LN106,111,13#198808-199008

main90923-02110i3L..LN130199008-199108

main90923-02118i3L..LN10#,111,130..ARL199301-199812

main90923-02120i5L..LN205200106-200412

29300BHOSE, VACUUM PUMP OIL OUTLET

main29611-54030i3L..LN106,111,135199008-199108

main29611-54050i5L..LN205200106

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010i3L..LN106,111,135199008-199108

29331BLADE, VACUUM PUMP, A

main29331-54130×5i5L..LN205200106

main29331-56070×4i3L..LN107..ARL199508-199812

NEW ZEALAND SPEC

main29331-64030×3i3L..LN130199008-199108

main29331-67020×5i1KZTE..KZN205200108

29342PACKING, VACUUM PUMP

main29342-64030i3L..LN10#,111,130..ARL199108-199812

main29342-67020i1KZTE..KZN205200108

NO.1

main29342-68010×2i1KZTE..KZN205200108

NO.2

main96740-02063i3L..LN10#,111,13#..GEN199108-200106

29364WASHER, VACUUM PUMP

main29364-66010i3L..LN10#,111,13#198808-200106

29369VALVE SUB-ASSY, CHECK

main29369-56070i3L..LN107..ARL199508-199812

NEW ZEALAND SPEC

main29369-64030i3L..LN10#,111,130..ARL199108-199812

2744554110

main27445-54110

9009904577

main90099-04577

9020114099

main90201-14099

9040109002

main90401-09002

9040110006

main90401-10006

9040414016

main90404-14016

9040451012

main90404-51012

9043010020

main90430-10020

9046716016

main90467-16016

17 parts on this diagram · 4 diagrams in section
