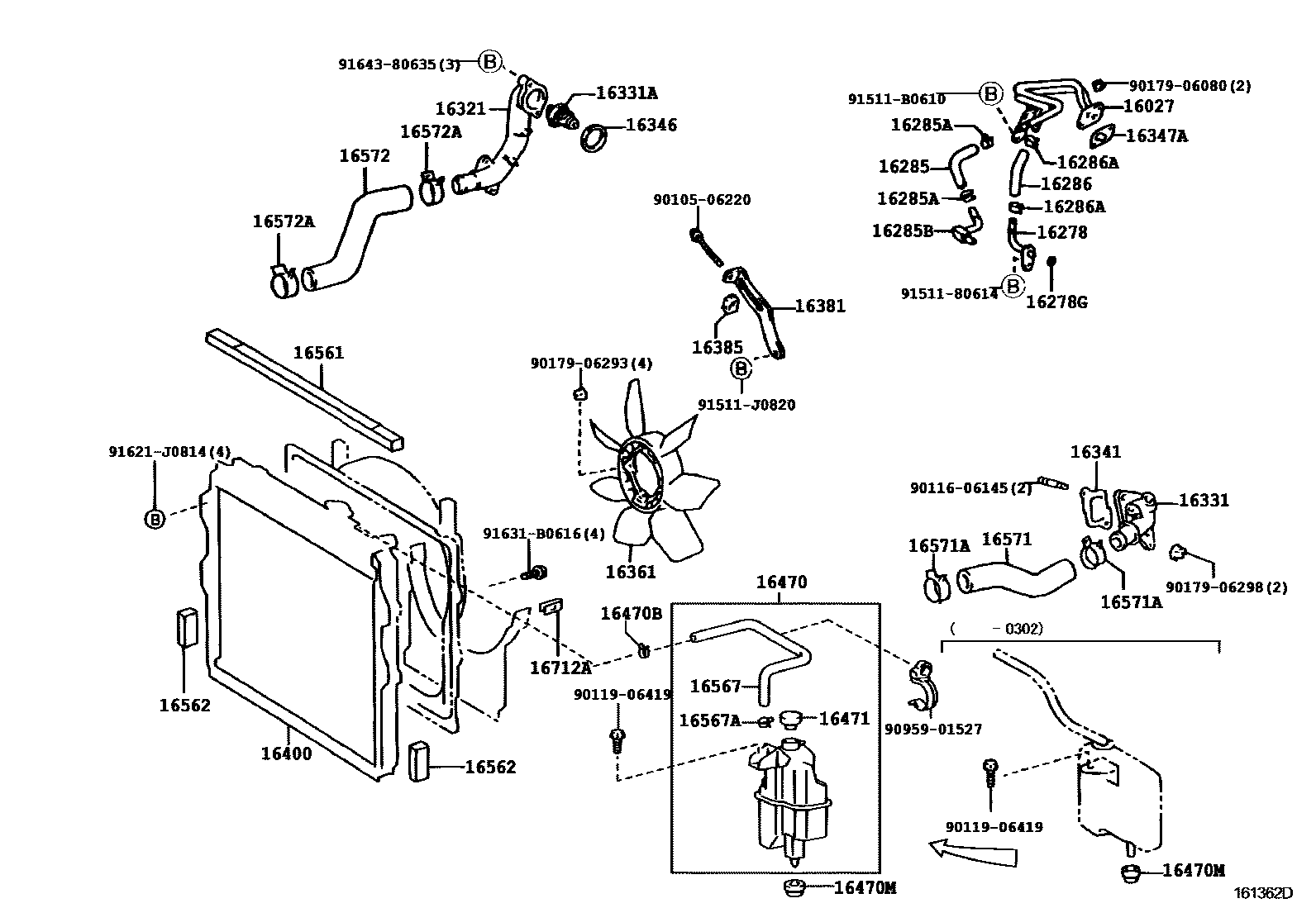

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

16027PIPE SUB-ASSY, TURBO WATER, NO.1

main16027-67011i1KZTE..KZN205200108-200412

16278PIPE, WATER BY-PASS, NO.2

main16278-67010i1KZTE..KZN205200108-200412

main16278-73011i4YE..YN130198908-199008

16278GRING, O(FOR WATER BY-PASS NO.2 PIPE)

main96761-24010i1KZTE..KZN205200108-200412

16285HOSE, TURBO WATER, NO.2

main16285-67010i1KZTE..KZN205200108-200412

16285ACLIP(FOR TURBO WATER HOSE NO.2)

main90467-15022i1KZTE..KZN205200108-200412

16285BUNION(FOR TURBO WATER HOSE NO.2)

main90405-10044i1KZTE..KZN205200108-200412

16286HOSE, TURBO WATER, NO.3

main16284-67020i1KZTE..KZN205200108-200412

16286ACLIP(FOR TURBO WATER HOSE NO.3)

main90467-15022i1KZTE..KZN205200108-200412

16321INLET, WATER

main16321-0K010i1KZTE..KZN205200108-200412

(L)

main16321-65010i3VZE..VZN130199008-199207

sub16321-65030

main16321-65030i3VZE..VZN130199207-199511

main16321-67011i1KZTE..KZN205200108-200412

(J)

sub16321-0K010

main16321-71010i4Y#..YN106,13#198808-199708

16331OUTLET, WATER

main16331-35041i22RE..RN106199401-199909

main16331-35050i22R..RN105,110,13#198808-199009

sub16331-35051

main16331-35051i22R..RN10#,110,13#199009-199909

main16331-54090i3L..LN10#,111,13#198808-200010

main16331-54210i5L..LN205200010-200412

main16331-65011i3VZE..VZN130199008-199108

main16331-65020i3VZE..VZN130199108-199511

main16331-67020i1KZTE..KZN205200108-200412

main16331-71010i4Y..YN106,135198808-199708

main16331-73010i4YE..YN130198908-199008

16331ATHERMOSTAT

main16340-54010i5L..LN205200105-200412

*WAX 88-100

main16340-54010i3L..LN10#,111,13#199505-200105

*WAX 88-100,KUZEH

main16340-54040i3L..LN10#,111,13#199505-200105

*WAX 82-95,THAILAND SPEC

main90916-03046i4Y..YN106199201-199708

*WAX 82-95

main90916-03069i4Y#..YN106,13#198808-199201

*WAX 82-95

sub90916-03046

main90916-03072i3L..LN10#,111,13#199108-199303

*WAX 88-100

sub90916-03099

main90916-03078i22R#..RN10#,110,13#198808-199909

*WAX 88-100

main90916-03079i3VZE..VZN130199008-199511

*WAX 82-95

main90916-03099i3L..LN106,111,13#198808-199505

*WAX 88-100

main90916-03119i1KZTE..KZN205200108-200202

*WAX 76-90

main90916-03121i1KZTE..KZN205200202-200412

*WAX 71-85

16341GASKET, WATER OUTLET

main16341-05020i5L..LN205200301-200412

(L)

main16341-35010i3L..LN10#,111198808-200301

main16341-35010i5L..LN205200301-200412

(J)

main16341-54030i3L..LN10#,111,13#198808-199110

sub16341-54040

main16341-54040i3L..LN10#,111,13#199110-199505

main16341-65010i3VZE..VZN130199008-199511

sub16341-35010

main16341-67020i1KZTE..KZN205200108-200412

main16341-71010i4Y#..YN106,13#198808-198912

sub16341-71011

main16341-71011i4Y#..YN106,13#198912-199706

main16341-73010i4Y..YN106199707-199708

16346GASKET, THERMOSTAT

main16346-67010i1KZTE..KZN205200108-200412

sub16346-30010

16347AGASKET(FOR TURBO WATER PIPE)

main16347-67010i1KZTE..KZN205200108-200412

16361FAN

main16361-38010i22R#..RN10#,110,13#198808-199909

main16361-44032i4Y..YN106,135198808-199708

main16361-54040i3L..LN10#,111,13#198808-200106

main16361-54131i5L..LN205200106-200412

main16361-65010i3VZE..VZN130199008-199308

main16361-65020i3VZE..VZN130199308-199511

main16361-67040i1KZTE..KZN205200108-200412

main16361-73010i4Y..YN135198904-199108

W(AIR CONDITIONER)

16381BAR, FAN BELT ADJUSTING

main16381-35010i22R..RN10#,13#..(DLX,SR5)..(GEN,V)198808-199408

main16381-35021i22RE..RN106;22R..RN10#,110,130..RHD199108-199909

main16381-54060i3L..LN10#,111,13#..GEN199108-199809

T=3.2

sub16381-54061

main16381-54060i3L..LN106,111,13#198808-199108

sub16381-54061

main16381-54060i3L..LN107..ARL199508-199809

NEW ZEALAND SPEC,T=3.2

sub16381-54061

main16381-54061i3L..LN10#..GEN199809-200105

T=4.5

main16381-54061i3L..LN107..ARL199809-199812

NEW ZEALAND SPEC,T=4.5

main16381-54061i3L..LN107200105-200106

main16381-54120i3L..LN10#,111,130..ARL199108-199809

T=3.2

sub16381-54121

main16381-54120i3L..LN130199008-199108

sub16381-54121

main16381-54121i5L..LN205200106-200412

main16381-54121i3L..LN107..ARL199809-199812

T=4.5

main16381-65010i3VZE..VZN130199008-199511

main16381-67020i1KZTE..KZN205200108-200412

main16381-71010i4Y..YN106,135198808-199408

main16381-73011i4YE..YN130198908-199708

16385SLIDER, FAN BELT ADJUSTING

main16385-67010i1KZTE..KZN205200108-200412

main16385-71010i4Y..YN106198908-199708

16400RADIATOR ASSY

main16400-35350i22RE..RN106199401-199909

main16400-35370i22R..RN135..GEN;22R..RN10#,110,130198808-199909

main16400-35520i22R..RN135..V198907-199511

sub16400-35530

main16400-54630i3L..LN106,111,135198808-199604

sub16400-5B500

main16400-54640i3L..LN111,130..ARL198808-199008

W(POWER STEERING)

sub16400-5B510

main16400-54640i3L..LN106..RHD..T1..GEN..CBU198904-199008

MALAYSIA SPEC OR W(POWER STEERING) OR W(TACHO METER) OR HONGKONG SPEC

sub16400-5B510

main16400-54640i3L..LN106..RHD..T1..GEN..CBU198904-199604

W(POWER STEERING) OR W(TACHO METER) OR HONGKONG SPEC

sub16400-5B510

main16400-54640i3L..LN106..RHD..GEN..CBU199008-199508

HONGKONG SPEC

sub16400-5B510

main16400-54640i3L..LN106..RHD..GEN..IV3198904-199604

W(TACHO METER)

sub16400-5B510

main16400-54640i3L..LN135..RHD;3L..LN10#,111,130..ARL199008-199604

sub16400-5B510

main16400-54640i3L..LN106..RHD..T1..GEN..CBU199508-199604

MALAYSIA SPEC

sub16400-5B510

main16400-5B500i3L..LN10#,111..GEN199604-200106

main16400-5B510i3L..LN106..RHD..TW1..GEN199604-199909

W(POWER STEERING) OR W(TACHO METER) OR HONGKONG SPEC

main16400-5B510i3L..LN106..RHD..TW1..GEN199604-199909

MALAYSIA SPEC

main16400-5B510i3L..LN10#,111..ARL199604-199812

W(TACHO METER)

main16400-65041i3VZE..VZN130..5F199008-199108

sub16400-65070

main16400-65061i3VZE..VZN130..4FC199008-199108

sub16400-65070

main16400-65100i3VZE..VZN130..5F199108-199511

sub16400-65120

main16400-65120i3VZE..VZN130..4FC199108-199511

main16400-73200i4Y..YN106,135198808-199708

sub16400-35350

main16400-73380i4YE..YN130198908-199008

main16410-67190i1KZTE..KZN205200302

16470TANK ASSY, RADIATOR RESERVE

main16470-35100i22R..RN10#,110,13#199108-199909

main16470-35110i22RE..RN106199401-199909

main16470-54120i3L..LN106,111,13#198808-200106

main16470-54250i3L..LN13#199108-199511

main16470-65010i3VZE..VZN130199008-199108

main16470-65020i3VZE..VZN130199108-199511

main16470-67040i1KZTE..KZN205200302-200303

sub16470-67050

main16470-67050i1KZTE..KZN205200303

main16470-72030i4Y#..YN106,13#198808-199108

sub16470-35100

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i22R#..RN10#,110,13#198808-200106

main96135-51300i1KZTE..KZN205200302-200412

16470MGROMMET

main90480-25025i5L..LN205200106

16471CAP SUB-ASSY, RESERVE TANK

main16401-53010i1KZTE..KZN205200302-200412

sub16475-51010

main16405-35010i22RE..RN106199401-199909

main16405-35040i3VZE..VZN130199008-199511

main16405-54180i3L..LN10#,111,13#198808-200106

main16405-71010i4Y#..YN106,13#198808-199909

16561SEAL, RADIATOR TO SUPPORT, NO.1

main16561-54030i5L..LN205200106

16562SEAL, RADIATOR TO SUPPORT, NO.2

main16562-67010i1KZTE..KZN205200108

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-67010i1KZTE..KZN205200302-200412

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main96135-51300i1KZTE..KZN205200302-200412

16571HOSE, RADIATOR, INLET

main16571-35070i22R..RN10#,110,13#198808-199909

main16571-35180i22RE..RN106199401-199909

main16571-54270i3L..LN10#,111,13#198808-200106

main16571-54590i5L..LN205200106

main16571-65011i3VZE..VZN130199008-199511

main16571-67120i1KZTE..KZN205200108

main16571-71030i4Y#..YN106,13#198808-199708

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-41008i1KZTE..KZN205200204-200412

main90467-37003i3L..LN10#,111,13#198808-200106

main90467-37005i5L..LN205200106

main90467-41002i1KZTE..KZN205200108-200204

sub90466-41008

16572HOSE, RADIATOR, OUTLET

main16572-35060i22R..RN105,110,130198808-199108

main16572-35100i22R..RN135198907-199108

main16572-35120i22RE..RN106199401-199909

main16572-35140i22R..RN135..GEN;22R..RN10#,110,130199108-199909

main16572-35160i22R..RN135..V199108-199511

main16572-54260i3L..LN106,111,135198808-200106

main16572-54270i3L..LN106..RHD..GEN..IV3198904-199812

W(POWER STEERING) OR W(TACHO METER),NO.1

main16572-54270i3L..LN106,111..RHD198808-199008

W(POWER STEERING),NO.1

main16572-54270i3L..LN106..RHD..T1..GEN..CBU198904-199008

MALAYSIA SPEC OR W(POWER STEERING) OR W(TACHO METER),NO.1

main16572-54270i3L..LN111,130..ARL198908-199909

NO.1

main16572-54270i3L..LN135..RHD;3L..LN10#,111,130..ARL199008-199508

MALAYSIA SPEC,NO.1

main16572-54270i3L..LN106..RHD..TW1..GEN198904-199909

W(POWER STEERING) OR W(TACHO METER) OR HONGKONG SPEC,NO.1

main16572-54690i5L..LN205200106

main16572-65010i3VZE..VZN130199008-199511

main16572-67120i1KZTE..KZN205200108

main16572-71031i4Y#..YN106,13#198808-199708

main16573-54080i3L..LN106,111..RHD198808-198904

W(POWER STEERING),NO.2

sub16573-54081

main16573-54081i3L..LN106..RHD..T1..GEN..CBU198908-199909

NO.2

main16573-54081i3L..LN106..RHD..T1..GEN..CBU199008-199508

MALAYSIA SPEC,NO.2

main16573-54081i3L..LN106..ARL;3L..LN135..RHD198904-199008

W(POWER STEERING),NO.2

main16573-54081i3L..LN106..RHD..GEN..IV3198904-199812

W(POWER STEERING) OR W(TACHO METER),NO.2

main16573-54081i3L..LN106..RHD..TW1..GEN198904-199909

W(POWER STEERING) OR W(TACHO METER) OR HONGKONG SPEC,NO.2

main16573-54081i3L..LN106..RHD..T1..GEN..CBU198904-199008

MALAYSIA SPEC OR W(POWER STEERING) OR W(TACHO METER),NO.2

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-41008i1KZTE..KZN205200204-200412

main90467-37001i4Y..YN106198808-198809

TYPE A

sub90467-37003

main90467-37002i3L..LN10#,111,13#198808-199705

RADIATOR SIDE

sub90467-37005

main90467-37002i3L..LN10#,111,13#198808-199705

TYPE B

sub90467-37005

main90467-37002i22R..RN105,110,13#199001-199108

sub90467-37005

main90467-37003i4Y#..YN106,13#198809-199708

TYPE A

main90467-37005i5L..LN205200106

main90467-37005i3L..LN10#,111199705-200106

RADIATOR SIDE

main90467-37005i4Y..YN106199705-199708

TYPE B

main90467-38001i3VZE..VZN130198808-199909

sub90466-38001

main90467-41001i3L..LN10#,111,13#198808-200106

ENGINE SIDE

main90467-41002i1KZTE..KZN205200108-200204

sub90466-41008

16712SHROUD, FAN, NO.2

main16712-35010i22R..RN135198907-198908

main16712-35011i22R..RN135..V198908-199511

main16712-54050i4Y#..YN106,13#198808-199909

main16712-54200i3L..LN106..RHD;3L..LN107,111,13#;3L..LN106..LHD..T1199408-200106

W(AIR CONDITIONER)

main16712-54200i3L..LN10#,111,13#198808-199909

main16712-65010i3VZE..VZN130199008-199511

16712ACLIP

main90468-06092i5L..LN205200106

9010506220

main90105-06220

9011606145

main90116-06145

9011906419

main90119-06419

9017906080

main90179-06080

9017906293

main90179-06293

9017906298

main90179-06298

9095901527

main90959-01527

9151180614

main91511-80614

91511B0610

main91511-B0610

91511J0820

main91511-J0820

91621J0814

main91621-J0814

91631B0616

main91631-B0616

9164380635

main91643-80635

45 parts on this diagram · 9 diagrams in section
