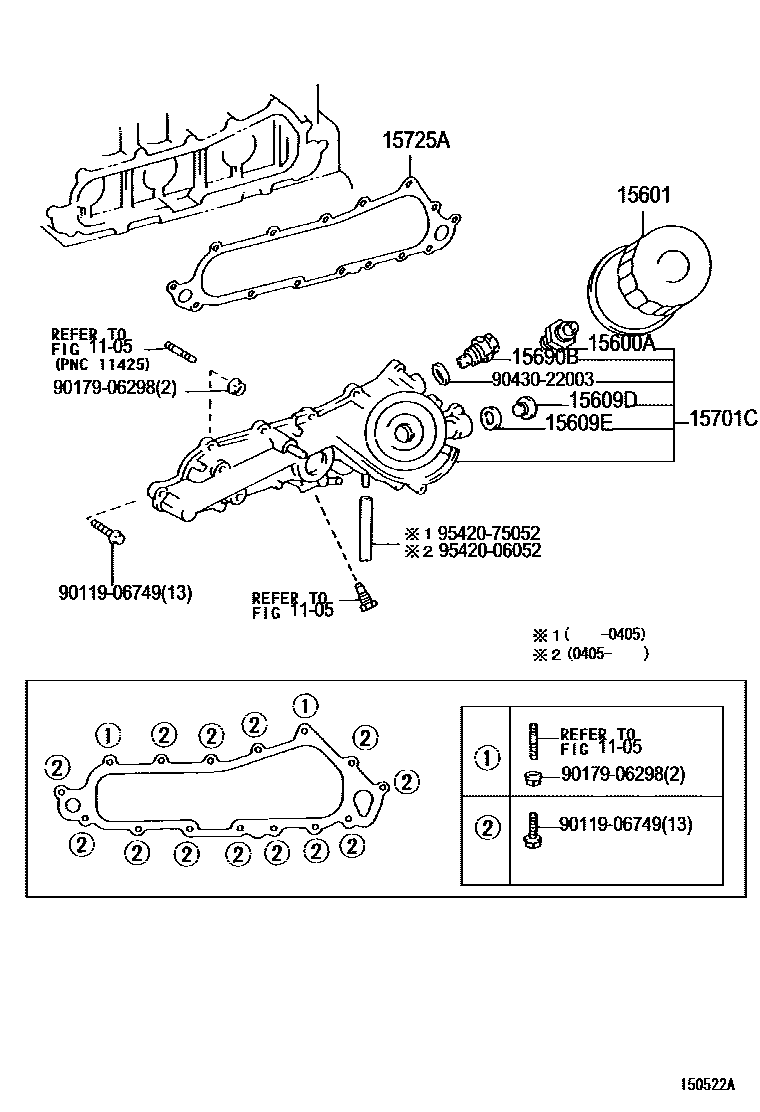

OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54010i3L..LN106,111,13#198808-198910

main15116-54021i1KZTE..KZN205200108-200412

main90404-19011i3L..LN10#,111,13#198910-200412

main90404-19013i3VZE..VZN130199008-199511

main90404-20173i22R#..RN10#,110,13#198808-199909

15601FILTER SUB-ASSY, OIL

main15600-41010i5L..LN205198808-200412

sub90915-40002

main15601-33021i4Y#..YN106,13#198808-199708

main15601-44011i22R..RN135;22R..RN10#,130..LHD198808-199909

sub90915-40002

sub90915-03002

main90915-03002i3VZE..VZN130199008-199204

sub90915-20001

main90915-20001i22RE..RN106;22R..RN10#,110,130..RHD199204-199909

sub90915-20003

main90915-30002i1KZTE..KZN205200108-200412

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54042i3L..LN10#,111,13#198808-199509

main15609-54043i5L..LN205199509-200412

main15609-71011i4Y#..YN106,13#198808-199708

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i1KZTE..KZN205200108-200412

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main15134-67020i1KZTE..KZN205200108-200412

15690BVALVE ASSY, OIL COOLER RELIEF

main15690-64010i1KZTE..KZN205200108-200412

sub15690-64011

15701CCOVER SUB-ASSY, OIL COOLER

main15701-67030i1KZTE..KZN205200108-200405

sub15701-67031

sub95420-06052

sub95421-06060

main15701-67031i1KZTE..KZN205200405-200412

15725AGASKET, OIL COOLER COVER

main15725-67010i1KZTE..KZN205200108-200412

9011906749

main90119-06749

9017906298

main90179-06298

9043022003

main90430-22003

9542006052

main95420-06052

9542075052

main95420-75052

14 parts on this diagram · 5 diagrams in section
