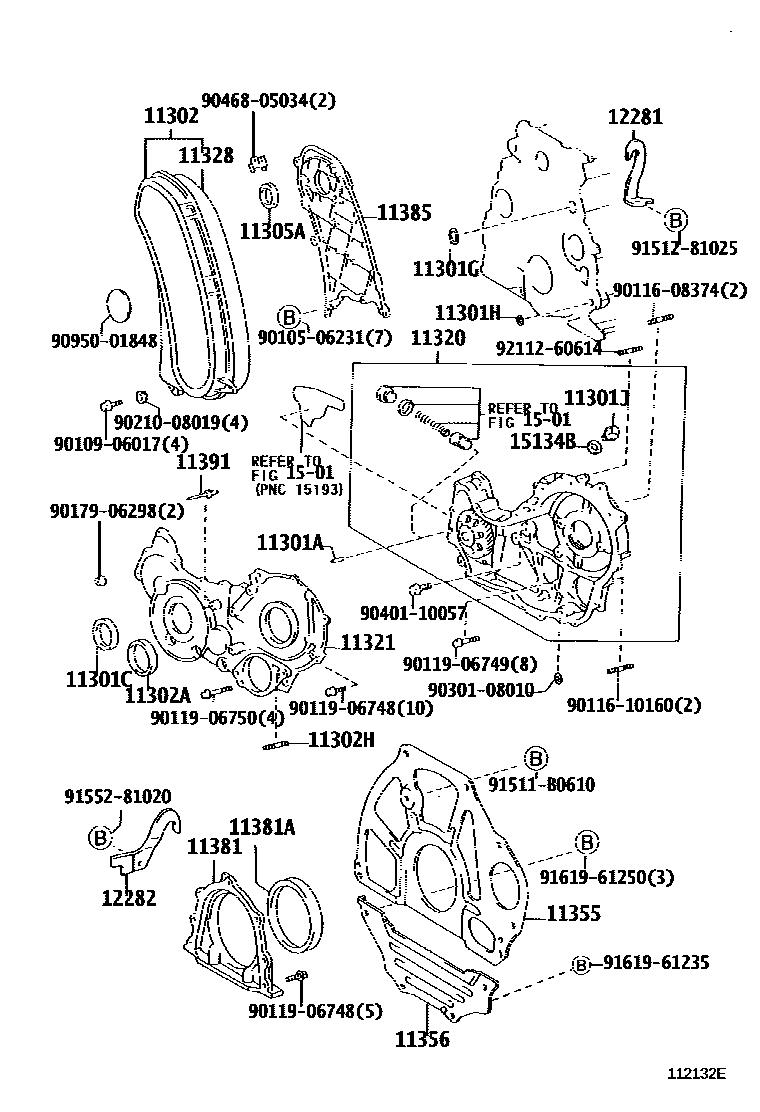

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-71010i4Y#..YN106,13#198808-199708

main11311-54050i3L..LN106,111,13#198808-199108

sub11311-54051

main11311-54051i3L..LN10#,111,13#199108-199505

sub11311-54052

sub15115-54022

main11311-54052i5L..LN205199505-200312

main11311-54060i5L..LN205200312-200412

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-06001i4Y#..YN106,13#198808-199708

L=14,OD=6

main90250-08120i1KZTE..KZN205200108-200412

L=18,OD=8

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42012i3L..LN106,111,13#198808-199102

main90311-42026i3L..LN10#,111,13#199102-199401

main90311-42030i3L..LN10#,111,13#199401-199605

sub90311-42031

main90311-42031i3L..LN10#,111199605-200412

main90311-50017i1KZTE..KZN205200108-200412

sub90311-50051

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

main90301-22007i1KZTE..KZN205200108-200412

11301HRING, O(FOR TIMING GEAR CASE, LOWER)

main90301-09018i1KZTE..KZN205200108-200412

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90341-18015i1KZTE..KZN205200108-200412

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-35010i22R#..RN10#,110,13#198808-199909

main11302-65010i3VZE..VZN130199008-199511

main11302-67020i1KZTE..KZN205200108-200412

main11321-05010i5L..LN205200312-200412

(L)

main11321-54020i5L..LN205200312-200412

(J)

sub11321-54021

main11321-54020i3L..LN10#,111,13#198808-200312

sub11321-54021

main11321-71010i4Y#..YN106,13#198808-199708

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-42019i4Y#..YN106,13#198808-199708

sub90311-42036

main90311-45006i22R..RN105,110,13#198808-199006

sub90311-45011

main90311-45011i22R..RN10#,110,13#199006-199311

sub90311-45014

main90311-45014i22R#..RN10#,110,13#199311-199909

main90311-58006i1KZTE..KZN205200108-200412

11302HBOLT, STUD(FOR TIMING GEAR COVER)

main90116-08376i1KZTE..KZN205200108-200412

sub90116-08377

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-32001i3L..LN106,111,13#198808-199102

sub90311-32018

main90311-32017i3L..LN10#,111,13#199102-199703

sub90311-32020

main90311-32019i3L..LN10#,111199703-200412

11320CASE ASSY, TIMING GEAR

main11320-67010i1KZTE..KZN205200108-200412

11321CASE, TIMING GEAR

main11321-67032i1KZTE..KZN205200108-200412

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-05010i5L..LN205200301-200412

(L)

main11328-35020i22R..RN105,110,13#198808-199003

sub11328-35030

main11328-35030i22R#..RN10#,110,13#199003-199909

main11328-54020i3L..LN106,111198808-198904

sub11328-54021

main11328-54021i5L..LN205200301-200412

(J)

main11328-54021i3L..LN10#,111,13#198904-200301

main11328-67020i1KZTE..KZN205200108-200412

main11328-71011i4Y#..YN106,13#198808-198912

sub11328-71012

main11328-71012i4Y#..YN106,13#198912-199708

11355PLATE, REAR END

main11355-35010i22R#..RN10#,110,13#198808-199909

main11355-54030i5L..LN205199703-200412

main11355-54070i3L..LN107..ARL;3L..LN106,111,13#198808-199909

main11355-65010i3VZE..VZN130199008-199405

sub11355-65011

main11355-65011i3VZE..VZN130199405-199511

main11355-67010i1KZTE..KZN205200108-200412

main11355-71010i4Y..YN106,135198808-199708

main11355-71021i4YE..YN130198908-199008

11356PLATE, REAR END, NO.2

main11356-67030i1KZTE..KZN205200108

11381RETAINER, ENGINE REAR OIL SEAL

main11381-05010i5L..LN205200106-200412

main11381-38010i22R#..RN10#,110,13#198808-199909

main11381-54020i3L..LN10#,111,13#198808-199909

sub11381-54030

sub90116-08404

main11381-62010i3VZE..VZN130199008-199511

main11381-67020i1KZTE..KZN205200108-200412

main11381-71010i4Y#..YN106,13#198808-199708

11381ASEAL, ENGINE REAR OIL

main90311-80003i4Y#..YN106,13#198808-199004

sub90311-80009

main90311-80004i22R..RN105,110,13#198808-199006

sub90311-80010

main90311-80009i4Y#..YN106,13#199004-199708

sub90311-80014

main90311-80010i22R#..RN10#,110,13#199006-199909

main90311-85004i3L..LN106,111,13#198808-199102

sub90311-85006

main90311-85006i3L..LN10#,111,13#199102-199208

sub90311-85009

main90311-85007i3L..LN10#,111,13#199209-199703

main90311-85008i3L..LN10#,111199703-200412

main90311-92004i3VZE..VZN130199008-199104

sub90311-92006

main90311-92006i3VZE..VZN130199104-199511

sub90311-92009

main90311-95008i1KZTE..KZN205200108-200412

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54020i3L..LN10#,111,13#198808-200412

main11382-67010i1KZTE..KZN205200108-200412

11391POINTER, TIMING

main11391-54020i3L..LN10#,111,13#198808-200412

main11391-67010i1KZTE..KZN205200108-200412

12281HANGER, ENGINE, NO.1

main12281-67070i1KZTE..KZN205200108-200412

12282HANGER, ENGINE, NO.2

main12282-54060i3L..LN10#,111199606-200412

main12282-67030i1KZTE..KZN205200108-200412

1501

15134BGASKET, OIL PUMP RELIEF VALVE

main15134-67010i1KZTE..KZN205200108-200412

9010506231

main90105-06231

9010906017

main90109-06017

9011608374

main90116-08374

9011610160

main90116-10160

9011906748

main90119-06748

9011906749

main90119-06749

9011906750

main90119-06750

9017906298

main90179-06298

9021008019

main90210-08019

9030108010

main90301-08010

9040110057

main90401-10057

9046805034

main90468-05034

9095001848

main90950-01848

91511B0610

main91511-B0610

9151281025

main91512-81025

9155281020

main91552-81020

9161961235

main91619-61235

9161961250

main91619-61250

9211260614

main92112-60614

42 parts on this diagram · 7 diagrams in section
