WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-89131iRN58..SR5;LN50,51,55,56,60,61,65,RN67,YN50,51,55,56,57,58,60,63,65,67..RHD198308-199807

sub85110-89141

main85110-89132iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198308-199201

sub85110-89142

main85110-89139iRN61198712-198903

85160LINK ASSY, WINDSHIELD WIPER

main85160-89120iRN58..SR5;LN50,51,55,56,60,61,65,RN67,YN50,51,55,56,57,58,60,63,65,67..RHD198308-199807

main85160-89121iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198308-199201

sub85160-89122

main85160-89124iRN61198712-198903

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08075iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

sub90179-08204

85190ARM ASSY, WINDSHIELD WIPER

main85190-89130iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,55,56,57,60,63,65,67..RHD..(4F,4FC,4H,5F)..(ARL,GEN,SA)198308-199807

RH

main85190-89131iLN55,56,65,YN56,65,67..RHD..EUR198308-198808

RH

main85190-89132iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198308-199201

LH

main85210-89101iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,55,56,57,60,63,65,67..RHD..(4F,4FC,4H,5F)198308-199807

LH

main85210-89102iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198308-199201

RH

85192COVER, WINDSHIELD WIPER ARM

main85192-89101iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198308-199201

RH

main85192-89101iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,55,56,57,60,63,65,67..RHD..(4F,4FC,4H,5F)198308-199807

LH

main85192-89130iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198308-199201

LH

main85192-89130iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,55,56,57,60,63,65,67..RHD..(4F,4FC,4H,5F)198308-199807

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-22440iLN55,56,65,YN56,65,67..RHD..EUR198308-198808

RH

sub85220-22510

main85220-22450iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198308-199201

sub85212-60030

main85220-22470iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,55,56,57,60,63,65,67..RHD..(4F,4FC,4H,5F)198308-199807

LH

sub85220-22481

main85220-22470iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,55,56,57,60,63,65,67..RHD..(4F,4FC,4H,5F)198308-199807

RH

sub85220-22481

85221BLADE, WINDSHIELD WIPER

main85221-10070iYN58..4F;YN58..SR5,STD;LN51,56,61,65,YN50,51,55,56,57,6#..RHD..(4F,4FC,4H,5F)..(ARL,GEN,SA)198704-199807

RH

sub85214-12H90

main85221-10070iYN58..4F;YN58..SR5,STD;LN51,56,61,65,YN50,51,55,56,57,6#..RHD..(4F,4FC,4H,5F)198704-199807

LH

sub85214-12H90

main85221-22090iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198308-199201

sub85214-12H90

main85221-22090iLN55,56,65,YN56,65,67..RHD..EUR198308-198808

RH

sub85214-12H90

main85221-89103iLN5#,6#,YN50,51,55,56,57,58,60,63,65,67..RHD198308-198704

LH

sub85214-12H90

main85221-89103iLN5#,6#,YN50,51,55,56,57,58,60,63,65,67..RHD..(ARL,GEN,SA)198308-198704

RH

sub85214-12H90

9009900913

main90099-00913

9011906151

main90119-06151

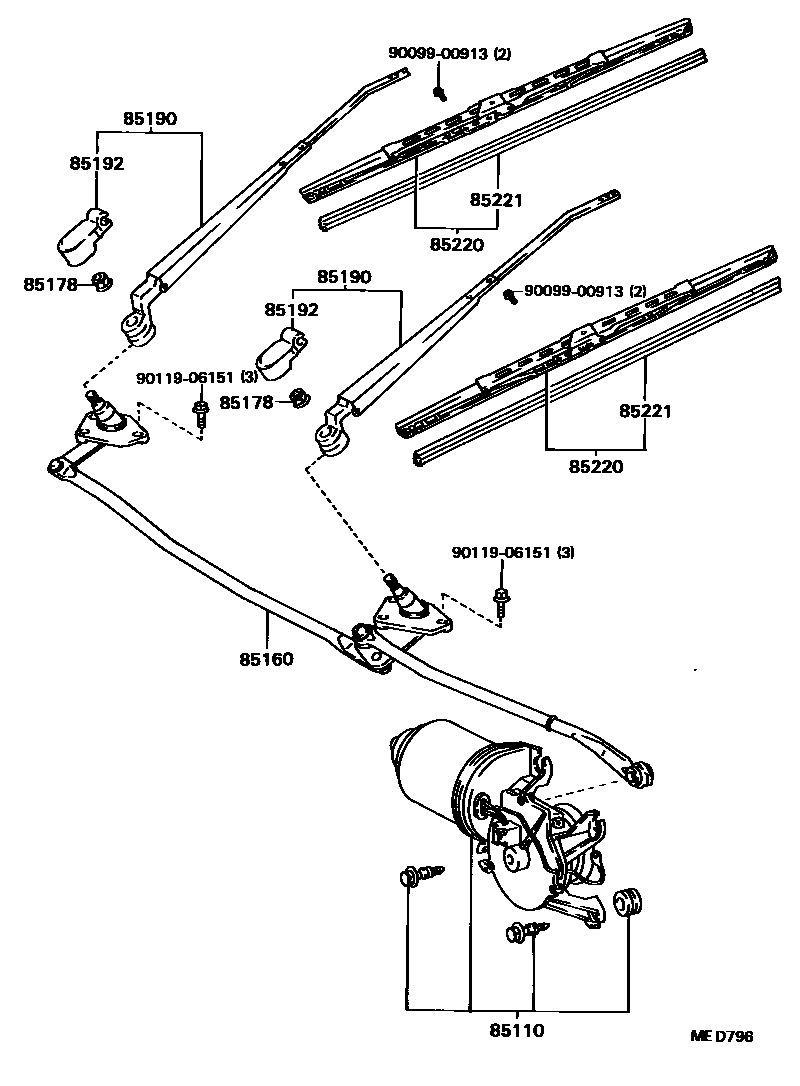

9 parts on this diagram · 1 diagram in section
