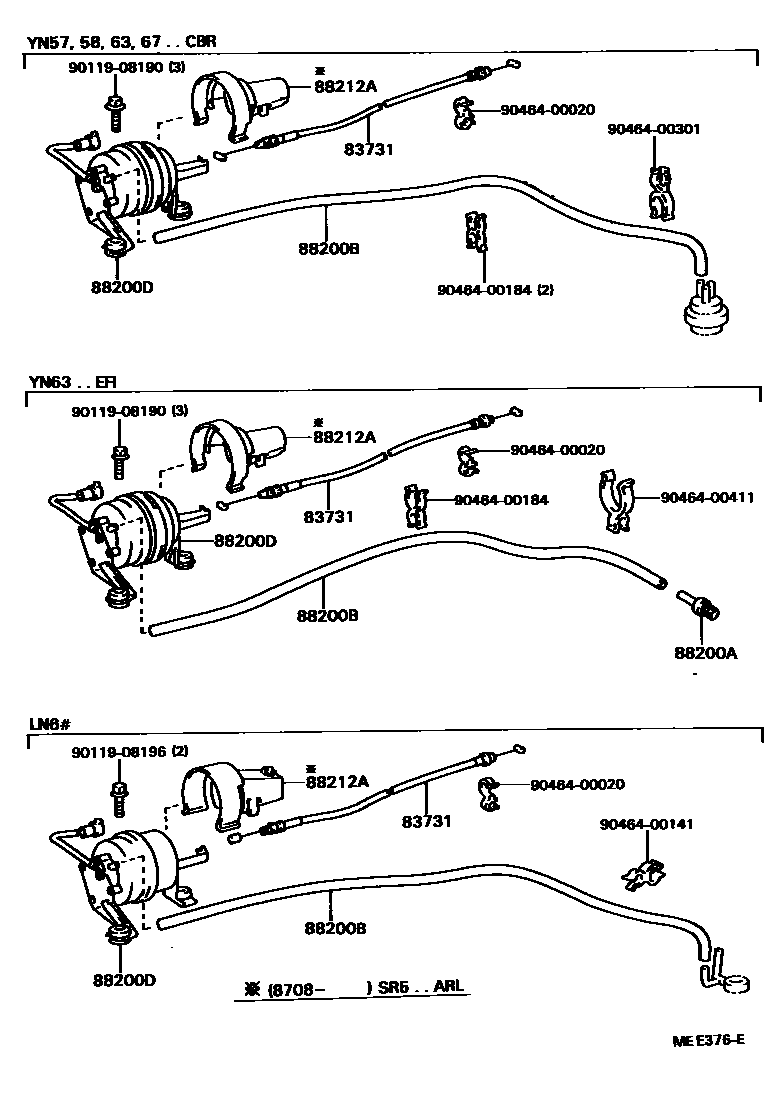

CRUISE CONTROL (AUTO DRIVE)

0001 1 0003 1

83731CABLE, CRUISE CONTROL

main83731-35020iLN60..ARL198403-198508

main83731-35021iLN61..SR5198508-198608

main83731-35070iLN6#..SR5198608-198708

main83731-35100iYN57,6#..SR5..ARL198608-198708

main83731-35120iYN58,6#..SR5..ARL198708-198903

main83731-35130iLN6#..SR5198708-198903

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90404-51010iYN63..EFI198608-198903

88200BHOSE, CRUISE CONTROL VACUUM

main90999-92003iLN6#..SR5198803-198903

*H,L=510,MARK=#*

main90999-92004iYN63..EFI198803-198903

*H,L=800,MARK=#*

main90999-92004iYN63..EFI198803-198903

L=950

main95411-19960iLN6#..SR5198403-198803

*H,L=510,MARK=#*

sub90999-92003

main95411-19995iYN57,58,6#..SR5..ARL..CBR198608-198803

*H,L=950,MARK=#*

sub90999-92004

main95411-19995iYN63..EFI198608-198803

*H,L=800,MARK=#*

sub90999-92004

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-35040iLN60..ARL198403-198508

sub88200-35210

main88200-35041iLN61..SR5198508-198608

sub88200-35042

main88200-35080iYN57,6#..SR5..ARL198608-198708

sub88200-35081

main88200-35110iLN6#..SR5198608-198708

sub88200-35111

main88200-35130iYN58,6#..SR5..ARL198708-198902

sub88200-35131

main88200-35131iYN63..SR5..ARL198902-198903

main88200-35140iLN6#..SR5198708-198902

sub88200-35141

main88200-35141iLN61..SR5198902-198903

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-12070iLN6#..SR5198708-198903

main88212-35070iYN58,6#..SR5..ARL198708-198903

9011908190

main90119-08190

9011908196

main90119-08196

9046400020

main90464-00020

9046400141

main90464-00141

9046400184

main90464-00184

9046400301

main90464-00301

9046400411

main90464-00411

12 parts on this diagram · 2 diagrams in section
