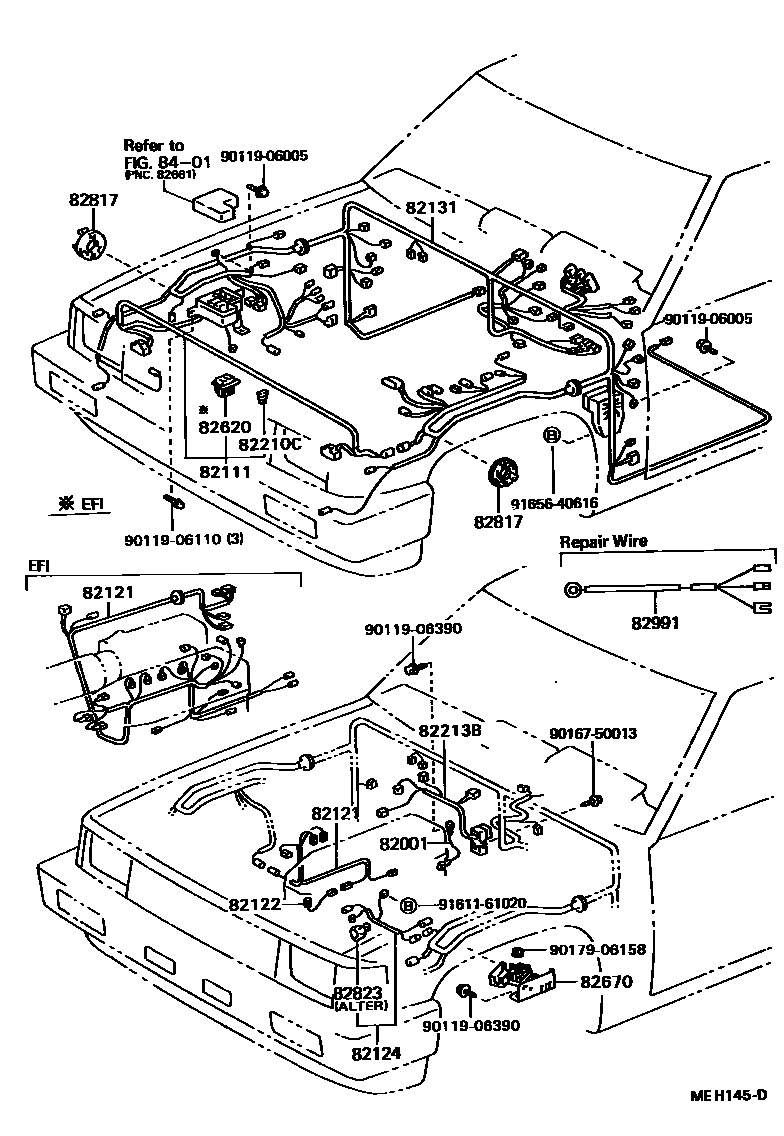

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

82001CABLE, BOND, NO.1

main90980-07108iRN50,55,61198601-199807

ENGINE HANGER-DASH PANEL

main90980-07224iYN56,65198508-198608

ENGINE-FENDER APRON,RH

main90980-07225iRN67,YN55,57,58,65,67;RN58,YN50,51,52,56,60,62,63..T1,WG198308-199807

ENGINE HANGER-DASH PANEL

82111WIRE, ENGINE ROOM MAIN

main82111-89104iYN50,55,56,57,60,63,65,67..RHD198308-198608

main82111-89105iRN5#,YN5#,6#..LHD198308-198608

main82111-89108iLN55,56,65..RHD..EUR198308-198508

main82111-89109iLN55,56,65..RHD..EUR198308-198508

W/*FH

main82111-89110iLN56..EUR..IV;LN56..TW..EUR;LN55,65..LHD..EUR198308-198608

main82111-89111iLN56..EUR..IV;LN55,65..LHD..EUR198308-198508

W/*FH

main82111-89112iLN5#,6#..RHD..(ARL,GEN,SA)198308-198408

main82111-89113iLN50,55,65..LHD..GEN198308-198408

main82111-89117iLN56,65..RHD..EUR198508-198608

W/*FH

main82111-89118iLN56..EUR..IV;LN56..TW..EUR;LN65..LHD..EUR198508-198608

W/*FH

main82111-89119iLN56,6#..RHD..(ARL,EUR)198508-198608

main82111-89121iLN5#,6#..RHD..(ARL,GEN,SA)198408-198508

main82111-89122iLN5#,65..LHD..GEN198408-198608

main82111-89126iRN61198712-198903

main82111-89127iYN50,51,55,56,57,58,6#..RHD..CBR198608-199807

W/ALTERNATOR=12V 40A

main82111-89128iRN5#,YN50,52,55,56,57,6#..LHD198608-199201

main82111-89129iYN63..EFI198608-198903

main82111-89131iLN56,6#..RHD..(ARL,EUR)198608-199201

main82111-89132iLN65..RHD..EUR198608-198808

W/*FH

main82111-89133iLN51,56,65..RHD..(GEN,SA)198608-199807

main82111-89134iLN56,65..LHD..EUR198608-198912

W/ALTERNATOR=12V 55A

main82111-89135iLN56,65..LHD..EUR198608-198912

W/ALTERNATOR=12V 55A & *FH

main82111-89136iLN5#,65..LHD..GEN198608-199201

main82111-89140iYN56,67..LHD..EUR198608-198808

W/ALTERNATOR=12V 55A

main82111-89141iLN56,65..LHD..EUR198608-198912

W/ALTERNATOR=12V 60A

main82111-89142iLN56,65..LHD..EUR198608-198912

W/ALTERNATOR=12V 60A & *FH

main82111-89143iYN56,67..RHD..EUR198608-198808

W/ALTER.=12V 40A,ENGLAND SPEC

main82111-89144iLN65..RHD..EUR198608-198808

W/ALTER.=12V 55A,ENGLAND SPEC

main82111-89145iLN65..RHD..EUR198608-198808

ALTER.=55A & *FH,ENGLAND SPEC

82121WIRE, ENGINE

main82121-89115iLN55,65..EUR;LN56..EUR..IV;LN56..TW..EUR;LN56..RHD..EUR198308-198608

main82121-89116iLN56,6#..5F..ARL;LN56..LHD..RCB..EUR..CBU198508-198608

main82121-89118iLN5#,60,65..(DLX,STD)..(GEN,SA)198308-198608

main82121-89119iLN56..LHD..EUR..CBU;LN5#,6#..MTM..(ARL,GEN,SA)198308-198508

W/*TAC OR HAC

main82121-89120iLN56..4FC198308-198508

main82121-89138iLN56..4FC198508-198608

main82121-89147iRN5#198601-198808

main82121-89152iLN56,6#..5F..(ARL,EUR)198608-199201

main82121-89153iLN56..4FC198608-198808

main82121-89156iLN51,56,65..GEN,SA198608-199807

main82121-89171iYN63..EFI198608-198903

main82121-89191iRN61198712-198808

main82121-89226iRN61198808-198809

main82121-89246iRN61198809-198903

82122WIRE, ENGINE, NO.2

main82122-89102iRN61198712-198808

main82122-89104iLN56,6#..RHD..(ARL,EUR)198508-199201

main82124-89114iRN61198808-198903

82124WIRE, ENGINE, NO.4

main82124-89103iYN58..4F;YN58..SR5,STD;YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..CBR198308-199807

main82124-89107iRN5#198601-198808

main82124-89109iLN51,56,65..GEN,SA198608-199807

main82124-89111iRN61198712-198903

main82124-89112iYN63..EFI198608-198903

82131WIRE, COWL

main82131-3G800iYN67..SA199105-199109

main82131-3G801iYN67..SA199109-199807

main82131-89243iYN55,57,65..MTM..STD..ARL198308-198408

main82131-89244iYN57,65..5F..SR5..ARL198308-198508

main82131-89245iYN57..4FC..STD198308-198408

main82131-89246iYN57..4FC..SR5198308-198408

main82131-89247iYN56,65..RHD..EUR198308-198608

main82131-89248iYN50,55,57,65..RHD..4F..GEN198308-198508

main82131-89249iYN57..SR5..GEN198308-198508

main82131-89250iYN50,55,57,65..SA198401-198408

main82131-89251iYN57..SR5..SA198401-198408

W/RHEOSTAT CONTROL

main82131-89252iYN56,65..LHD..EUR198308-198608

main82131-89253iYN56,65..LHD..EUR..CBU198404-198408

W/HEADLAMP CLEANER

main82131-89254iYN50,55,57,6#..LHD..STD..GEN198308-198508

main82131-89255iYN50,55,57,6#..LHD..GEN198308-198508

CLOCK,LIGHTER,*HEA(W/O RADIO)

main82131-89256iYN50,52,55,57,6#..DLX..ME198308-198408

*GUS

main82131-89257iYN50,52,55,57,6#..DLX..ME198308-198408

W/*TIS,*GUS

main82131-89258iYN50,52,55,57,6#..ME198308-198401

W/FR SEAT BELT

main82131-89259iYN50,52,55,57,6#..ME198308-198401

W/*TIS & FR SEAT BELT

main82131-89268iLN55,56,65..RHD..EUR198308-198508

main82131-89269iLN55,65..ARL198308-198408

main82131-89270iLN56..ARL198308-198408

main82131-89271iLN5#,6#..RHD..STD..GEN198308-198508

main82131-89272iLN55,56..SR5198308-198508

main82131-89273iLN50,55..SA198401-198408

main82131-89274iLN56..EUR..IV;LN55,65..LHD..EUR198308-198508

main82131-89275iLN55,65..LHD..EUR..CBU198404-198408

W/HEADLAMP CLEANER

main82131-89276iLN5#,65..LHD..GEN198308-198508

main82131-89277iLN5#,65..LHD..GEN198308-198508

W/*TIS OR *RWD

main82131-89287iYN60..ARL198403-198408

main82131-89288iYN60..SR5..ME198403-198408

main82131-89290iLN60..ARL198403-198408

main82131-89291iLN60..ARL198403-198408

W/*CRC

main82131-89294iYN50,52,55,57,6#..DLX..ME198401-198408

main82131-89295iYN50,55..ME198408-198508

W/*TIS

main82131-89320iYN55,57,65..MTM..STD..ARL198408-198508

main82131-89321iYN57..4FC..STD198408-198508

main82131-89326iYN60..ARL198408-198508

main82131-89327iYN60..SR5..ME198408-198508

main82131-89336iLN56,65..5F..ARL;LN56..LHD..EUR..CBU198408-198508

main82131-89337iLN56..4FC198408-198508

main82131-89341iLN60..ARL198408-198508

main82131-89342iLN60..ARL198408-198508

W/*CRC

main82131-89352iYN52,57,6#..DLX..ME198408-198508

main82131-89353iYN52,57,6#..DLX..ME198408-198508

W/*TIS

main82131-89355iYN57..4FC..SR5198408-198508

main82131-89356iYN65..LHD;YN56..LHD..CBU198508-198608

NORWAY SPEC

main82131-89357iLN65..LHD..EUR198410-198508

NORWAY SPEC

main82131-89389iYN55,57,67..MTM..ARL198508-198608

main82131-89390iYN57,67..5F..SR5..ARL198508-198608

W/O *CRC,W/*RWD OR DECK LAMP

main82131-89391iYN57,67..5F..SR5..ARL198508-198608

W/*CRC

main82131-89392iYN57..4FC198508-198608

main82131-89393iYN57..4FC..SR5198508-198608

W/*CRC

main82131-89395iYN67..SA198508-198608

main82131-89397iYN50,55,57,67..RHD..STD..GEN198508-198608

main82131-89398iYN57..SR5..GEN198508-198608

main82131-89399iYN63..ARL198508-198608

main82131-89400iYN63..SR5..ARL198508-198608

W/*CRC

main82131-89401iYN50,55,57..LHD..STD198508-198608

main82131-89403iYN50,55,57..LHD..STD198508-198608

W/RADIO(W/O *TIS);CLOCK,LIGHTER,*HEA(W/O *TIS)

main82131-89404iYN50,52,55,57,67..ME198508-198608

*GUS

main82131-89405iYN50,52,55,57,60,67..ME198508-198608

main82131-89406iYN50,52,55,57,60,67..ME198508-198608

W/*TIS

main82131-89407iYN63..ME198508-198608

main82131-89412iLN56,65..5F..ARL;LN56..LHD..RCB..EUR..CBU198508-198608

main82131-89413iLN56..4FC198508-198608

main82131-89414iLN61198508-198608

main82131-89415iLN61..SR5198508-198512

W/*CRC

main82131-89416iYN50,52,55,57,65..ME198411-198508

W/RADIO(W/O *TIS)

main82131-89417iYN50,52,55,57,65..ME198411-198508

W/*TIS OR *RWD

main82131-89424iLN56,65..RHD..EUR198508-198608

main82131-89426iLN5#,65..RHD..STD..GEN198508-198608

main82131-89427iLN56..SR5198508-198608

main82131-89428iLN56..EUR..IV;LN56..TW..EUR;LN65..LHD..EUR198508-198608

main82131-89429iLN56..EUR..IV;LN56..TW..EUR;LN65..LHD..EUR198508-198608

W/HEADLAMP CLEANER

main82131-89430iLN65..LHD..EUR198508-198608

NORWAY SPEC

main82131-89431iLN5#,65..LHD..GEN198508-198608

main82131-89432iLN5#,65..LHD..GEN198508-198608

W/*TIS OR *RWD

main82131-89435iRN5#198601-198608

main82131-89436iRN5#198601-198608

W/*TIS

main82131-89438iLN61..SR5198512-198608

W/*CRC OR MOTOR ANTENNA

main82131-89471iYN50,55,57,67..RHD..MTM..GEN198608-199201

main82131-89472iYN57..SR5..GEN198608-198808

W/*RWD

main82131-89473iYN57..4FC..GEN198608-198808

main82131-89475iYN50,55,57,67..LHD..GEN198608-199201

main82131-89476iYN57..DLX..GEN198608-198808

W/*RWD

main82131-89479iYN67..SA198608-199105

main82131-89480iYN52,57,67..ME198608-198703

main82131-89481iYN55,57,67..MTM..ARL198608-198708

main82131-89483iYN57,67..5F..SR5..ARL198608-198708

W/*CRC,*RWD OR DECK LAMP

main82131-89485iYN57..4FC..ARL198608-198708

main82131-89486iYN56,67..RHD..EUR198608-198708

main82131-89487iYN56,67..LHD..EUR198608-198808

main82131-89488iYN56,67..LHD..EUR198608-198708

W/HEADLAMP CLEANER

main82131-89489iYN56,67..LHD..EUR198608-198708

NORWAY SPEC

main82131-89495iYN63..ME198608-198703

main82131-89497iYN63..ARL..CBR198608-198708

main82131-89499iYN63..EFI198608-198808

main82131-89500iRN5#198608-198808

main82131-89505iLN5#,65..RHD..GEN198608-199201

main82131-89507iLN5#,65..LHD..GEN198608-198912

main82131-89508iLN56,65..XTR..GEN198608-198808

W/*RWD

main82131-89511iLN56,65..5F..ARL;LN56..RCB..EUR..CBU198608-198808

main82131-89512iLN65..SR5198608-198808

W/*CRC

main82131-89513iLN56..4FC198608-198808

main82131-89514iLN65..RHD..EUR198608-198708

main82131-89515iLN56,65..LHD..EUR198608-198912

main82131-89516iLN56,65..LHD..EUR198708-198912

W/*AIC

main82131-89517iLN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65..LHD..EUR198608-198708

NORWAY SPEC

main82131-89522iLN61198608-198808

main82131-89537iYN56,67..RHD..EUR198608-198708

ENGLAND SPEC

main82131-89538iLN65..RHD..EUR198608-198708

ENGLAND SPEC

main82131-89590iYN58..IV;YN56,67..ARL;YN58..5F..ARL..CBU198708-198808

main82131-89591iYN58,67..5F..SR5..ARL198708-198808

W/*CRC,*RWD OR DECK LAMP

main82131-89593iYN63..ARL..CBR198708-198808

main82131-89594iYN56,67..LHD..EUR198708-198808

W/*AIC

main82131-89595iYN52,57,67..ME198703-198808

main82131-89596iYN63..ME198703-198808

main82131-89598iYN56,67..RHD..EUR198708-198808

main82131-89599iYN56,67..RHD..EUR198708-198808

ENGLAND SPEC

main82131-89600iYN56,67..LHD..EUR198708-198808

W/LIGHT REMINDER RELAY

main82131-89601iYN56,67..LHD..EUR198708-198808

W/HEADLAMP CLEANER

main82131-89602iYN56,67..LHD..EUR198708-198808

NORWAY SPEC

main82131-89603iLN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65..LHD..EUR198708-198808

W/LIGHT REMINDER RELAY

main82131-89604iLN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65..LHD..EUR198708-198808

W/HEADLAMP CLEANER

main82131-89605iLN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65..LHD..EUR198708-198808

NORWAY SPEC

main82131-89606iLN65..RHD..EUR198708-198808

main82131-89607iLN65..RHD..EUR198708-198808

ENGLAND SPEC

main82131-89608iLN56..SR5198708-198808

W/RHEOSTAT

main82131-89609iRN61198712-198808

main82131-89742iRN61198808-198903

main82131-89743iLN65..SA198808-199807

main82131-89750iYN63..ME198808-198903

main82131-89751iYN63..EFI198808-198903

main82131-89752iYN63..ARL..CBR198808-198903

main82131-89755iLN61198808-198903

82210CFUSIBLE LINK

main90982-08188iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

30A,TERM.:FEMALE,PNK,30A

main90982-08189iRN61,YN63..EFI198608-198903

40A,TERM.:FEMALE,GRN,40A

main90982-08190iYN58..4F;YN58..SR5,STD;RN50,55,YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..CBR198308-199807

60A,TERM.:FEMALE,YEL,60A

main90982-08202iLN50,51,55,56,60,61,65198308-199807

60A,TERM.:MALE,YEL,60A

main90982-08203iLN50,51,55,56,60,61,65,RN61,YN63..DSL,EFI198308-199807

80A,TERM.:MALE,BLK,80A

82213BWIRE, HEATER

main82213-89101iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,YN50,51,55,56,57,60,63,65,67..RHD..(4F,4FC,4H,5F)198308-199807

main82213-89102iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198308-199201

main82213-89106iRN61198712-198903

82620BLOCK ASSY, FUSIBLE LINK

main82620-30020iLN5#,6#198308-198604

main82620-89101iLN51,56,61,65,RN61,YN63..DSL,EFI198604-199807

82670BLOCK ASSY, JUNCTION, NO.1

main82670-89102iRN61198712-198903

main82670-89103iYN63..EFI198608-198903

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-16020×2iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

82823CAP, TERMINAL, NO.1

main82823-12020iYN58..4F;YN58..SR5,STD;LN51,56,61,65,RN50,55,YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..(CBR,DSL)198711-199807

ALTERNATOR

main82823-17010iRN61,YN63..EFI198608-198903

ALTERNATOR

main82823-22020iLN5#,6#,RN5#,YN5#,60,63,65,67..CBR,DSL198308-198711

ALTERNATOR

82991WIRE, FUSIBLE LINK REPAIR

main82991-89101iRN58..SR5;RN50,55,67,YN5#,6#..CBR198308-199807

main82991-89102iLN50,51,55,56,60,61,65198308-199807

main82991-89103iRN61,YN63..EFI198608-198903

8401

9011906005

main90119-06005

9011906110

main90119-06110

9011906390

main90119-06390

9016750013

main90167-50013

9017906158

main90179-06158

9161161020

main91611-61020

9165640616

main91656-40616

21 parts on this diagram · 8 diagrams in section
