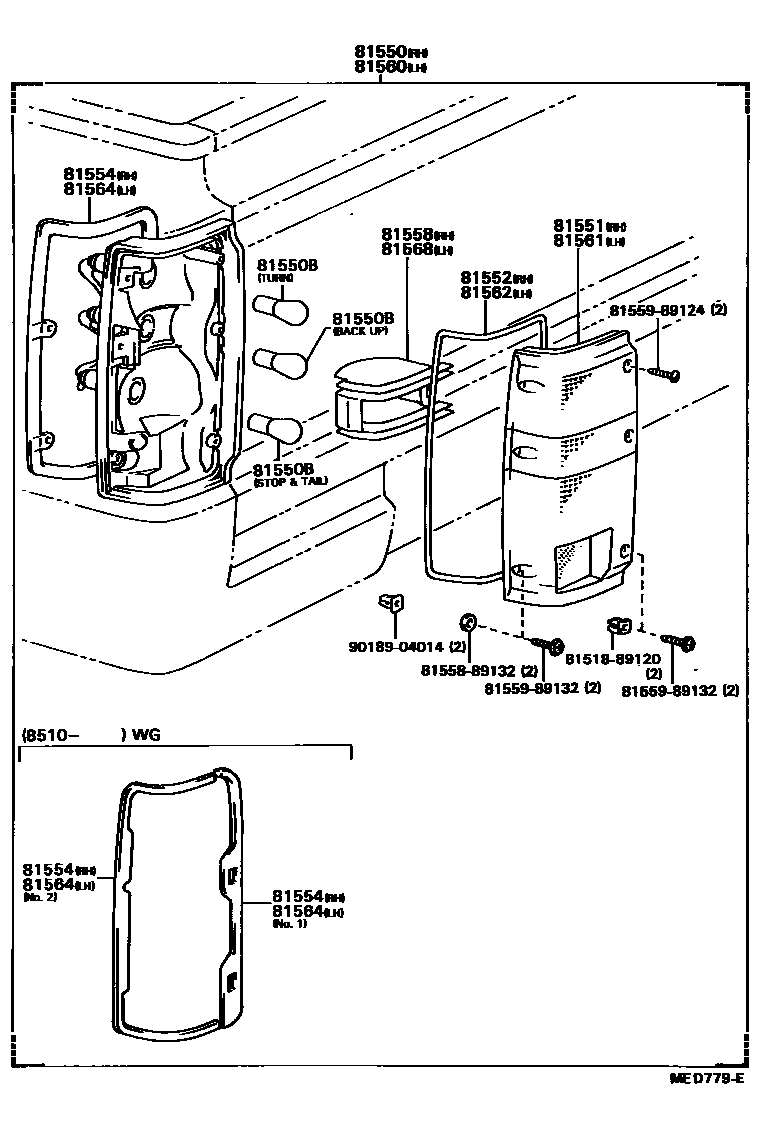

REAR COMBINATION LAMP

0001 1GEN=COSTARICA SPEC 0004 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-39815iLN55,YN56..EUR198308-198401

sub81550-80215

main81550-39825iLN5#,6#,YN50,55,57,6#..(T1,TW)..(ARL,GEN,SA)..CBU198308-198401

sub81550-80216

main81550-39835iLN55,YN50,52,55,57,6#..DLX,SR5198308-198401

CHROME PLATED

sub81550-80217

main81550-39845iLN55,YN55..T3;LN50,55,65,YN50,55,57,65..GEN..IV198308-198402

sub81550-80219

main81550-39855iLN55,56,65,YN55,56,57,58,65,67..ARL..IV198308-198808

sub81550-89139

main81550-39865iLN65,YN65..EUR198308-198401

sub81550-80218

main81550-39875iLN60,61,YN60,63..ARL198403-198903

sub81550-89142

main81550-39885iLN60,YN60..SR5198403-198608

CHROME PLATED

sub81550-89143

main81550-80215iLN55,56,YN56..EUR198401-198708

sub81550-89148

main81550-80216iLN56,65,YN55,57,67..LHD..GEN..IV198608-198808

COSTARICA SPEC

sub81550-89146

main81550-80216iYN65..4F..GEN..CBU;YN65..(ARL,SA)..CBU;LN5#,6#,YN50,55,57,60..(T1,TW)..(ARL,GEN,SA)..CBU198401-199201

sub81550-89146

main81550-80217iYN57..LHD..4F;YN57..(4FC,5F)..(DLX,SR5);LN55,YN50,52,55,6#..(T1,TW)..(DLX,SR5)198401-199201

CHROME PLATED

sub81550-89147

main81550-80217iLN56,YN57..DLX..IV198608-198808

COSTARICA SPEC,CHROME PLATED

sub81550-89147

main81550-80218iLN65,YN67..EUR;YN65..5F..(EUR,GEN)198401-198708

sub81550-89151

main81550-80219iLN55,56,YN55..T3;YN57..5F..STD..GEN..IV198402-199201

sub81550-89152

main81550-89143iYN63..ME198608-198903

CHROME PLATED

main81550-89146iLN56,65..RHD..GEN..IV198801-198808

COSTARICA SPEC

main81550-89157iLN51,56,65,RN58,YN51,56,58..RCB..SA198708-199807

main81550-89159iLN67,RN67,YN67..SA198708-199807

main81550-89162iRN61198712-198903

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iYN65..5F..(EUR,GEN);LN55,56,65,RN61,YN56,67..EUR198308-199807

12V 21W,12V 21W(TURN OR BACK UP)

main99132-11230iYN65..4F;YN65..ARL;LN5#,6#,RN5#,YN50,52,55,56,57,58,60,62,63,67..ARL,GEN,ME198308-199201

12V 23W,12V 23W(TURN OR BACK UP)

main99132-21210iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

12V 21/5W,12V 21/5W(STOP & TAIL)

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLN55,56,YN55..T3198308-199201

main81551-26040iLN55,56,65,YN55,56,57,58,65,67..ARL..IV198308-198808

sub81551-60180

main81551-89131iYN65..4F..CBU;YN65..ARL..CBU;LN5#,6#,RN5#,YN50,52,55,56,57,58,60,62,63,67..(T1,TW,WG)..(ARL,GEN,ME)..CBU198308-199201

sub81559-89157

main81551-89131iLN56,65,YN55,57,67..LHD..GEN..IV198608-198808

COSTARICA SPEC

sub81559-89157

main81551-89132iLN5#,YN50,51,55,56,57,58..SA198308-198708

sub81551-89157

main81551-89141iYN65,67..SA198308-198708

sub81551-89159

main81551-89157iLN56,RN61,YN56..EUR198708-198912

main81551-89159iLN65,YN67..EUR198708-199807

main81559-89157iLN51,56,65,RN58,YN51,56,58..RCB..SA198708-199807

main81559-89157iLN56,65..RHD..GEN..IV198801-198808

COSTARICA SPEC

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-25060iLN55,56,YN55..T3198308-199201

main81552-26040iLN55,56,65,YN55,56,57,58,65,67..ARL..IV198308-198808

main81552-89131iLN56,65..RHD..GEN..IV198608-198808

COSTARICA SPEC

main81552-89131iLN55,56,65,RN61,YN56,65,67..EUR198308-199807

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-89143iLN61,RN61,YN63198510-198903

NO.1

main81554-89140iLN60,61,YN60,63..WG198403-198510

main81554-89143iLN61,RN61,YN63198510-198903

NO.2

81558SHADE, REAR COMBINATION LAMP, NO.1 RH

main81557-25060iLN55,56,YN55..T3198308-199201

main81557-26040iLN55,56,65,YN55,56,57,58,65,67..ARL..IV198308-198808

main81557-89131iLN5#,65,67,RN58,67,YN50,51,55,56,57,58,65,67..SA198308-199807

main81557-89131iLN56,65,YN55,57,67..LHD..GEN..IV198608-198808

COSTARICA SPEC

81560LAMP ASSY, REAR COMBINATION, LH

main81560-39775iLN55,YN56..EUR198308-198401

sub81560-80220

main81560-39785iLN5#,6#,YN50,55,57,6#..(T1,TW)..(ARL,GEN,SA)..CBU198308-198401

sub81560-80221

main81560-39795iLN55,YN50,52,55,57,6#..DLX,SR5198308-198401

CHROME PLATED

sub81560-80222

main81560-39805iLN55,YN55..T3;LN50,55,65,YN50,55,57,65..GEN..IV198308-198402

sub81560-80224

main81560-39815iLN55,56,65,YN55,56,57,58,65,67..ARL..IV198308-198808

sub81560-89139

main81560-39825iLN65,YN65..EUR198308-198401

sub81560-80223

main81560-39835iLN60,61,YN60,63..ARL198403-198903

sub81560-89142

main81560-39845iYN60,63..SR5..ME198403-198608

CHROME PLATED

sub81560-89143

main81560-80220iLN5#,YN50,51,55,56,57,58..SA198401-198708

sub81560-89148

main81560-80221iRN5#,YN52,57..4F..ME198611-198808

STD PACKAGE

sub81560-89146

main81560-80221iYN65..4F..GEN..CBU;YN65..(ARL,SA)..CBU;LN5#,6#,YN50,55,57,60..(T1,TW)..(ARL,GEN,SA)..CBU198401-199201

sub81560-89146

main81560-80221iLN56,65,YN55,57,67..LHD..GEN..IV198608-198808

COSTARICA SPEC

sub81560-89146

main81560-80222iLN56,YN57..DLX..IV198608-198808

COSTARICA SPEC,CHROME PLATED

sub81560-89147

main81560-80222iLN56,65,RN5#,YN50,52,55,57,58,60,65,67..(T1,TW)..(DLX,SR5)..(ARL,GEN,ME)..CBU198401-199201

CHROME PLATED

sub81560-89147

main81560-80223iYN65,67..SA198401-198708

sub81560-89151

main81560-80224iLN55,56,YN55..T3;YN57..5F..STD..GEN..IV198402-199201

sub81560-89152

main81560-89143iYN63..ME198608-198903

CHROME PLATED

main81560-89146iLN56,65..RHD..GEN..IV198801-198808

COSTARICA SPEC

main81560-89157iLN51,56,65,RN58,YN51,56,58..RCB..SA198708-199807

main81560-89159iLN67,RN67,YN67..SA198708-199807

main81560-89162iRN61198712-198903

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLN55,56,YN55..T3198308-199201

main81561-26040iLN55,56,65,YN55,56,57,58,65,67..ARL..IV198308-198808

sub81561-60080

main81561-89131iYN65..4F..CBU;YN65..ARL..CBU;LN5#,6#,RN5#,YN50,52,55,56,57,58,60,62,63,67..(T1,TW,WG)..(ARL,GEN,ME)..CBU198308-199201

sub81569-89157

main81561-89131iLN56,65,YN55,57,67..LHD..GEN..IV198608-198808

COSTARICA SPEC

sub81569-89157

main81561-89132iLN5#,YN50,51,55,56,57,58..SA198308-198708

sub81561-89157

main81561-89141iYN65,67..SA198308-198708

sub81561-89159

main81561-89157iLN56,RN61,YN56..EUR198708-198912

main81561-89159iLN65,YN67..EUR198708-199807

main81569-89157iYN58..4F;YN58..SR5..SA;LN51,56,65,YN51,56..(4H,5F)..SA198708-199807

main81569-89157iLN56,65..RHD..GEN..IV198801-198808

COSTARICA SPEC

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-89131iLN55,56,65,RN61,YN56,65,67..EUR198308-199807

main81552-89131iLN56,65,YN55,57,67..LHD..GEN..IV198608-198808

COSTARICA SPEC

main81562-25040iLN55,56,YN55..T3198308-199201

main81562-26040iLN55,56,65,YN55,56,57,58,65,67..ARL..IV198308-198808

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-89143iLN61,YN63198510-198903

NO.1

main81564-89140iLN60,61,YN60,63..WG198403-198510

main81564-89143iLN61,YN63198510-198903

NO.2

81568SHADE, REAR COMBINATION LAMP, NO.1 LH

main81557-25060iLN55,56,YN55..T3198308-199201

main81557-26040iLN55,56,65,YN55,56,57,58,65,67..ARL..IV198308-198808

main81557-89131iLN56,65,YN55,57,67..LHD..GEN..IV198608-198808

COSTARICA SPEC

main81557-89131iLN5#,6#,YN50,52,55,57,6#..(T1,TW,WG)..(ARL,GEN,ME,SA)..CBU198308-199807

8151889120SHADE, FRONT TURN SIGNAL LAMP, RH

main81518-89120

8155889132SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-89132

8155989124MOULDING, REAR COMBINATION LAMP, RH

main81559-89124

8155989132MOULDING, REAR COMBINATION LAMP, RH

main81559-89132

9018904014

main90189-04014

16 parts on this diagram · 2 diagrams in section
