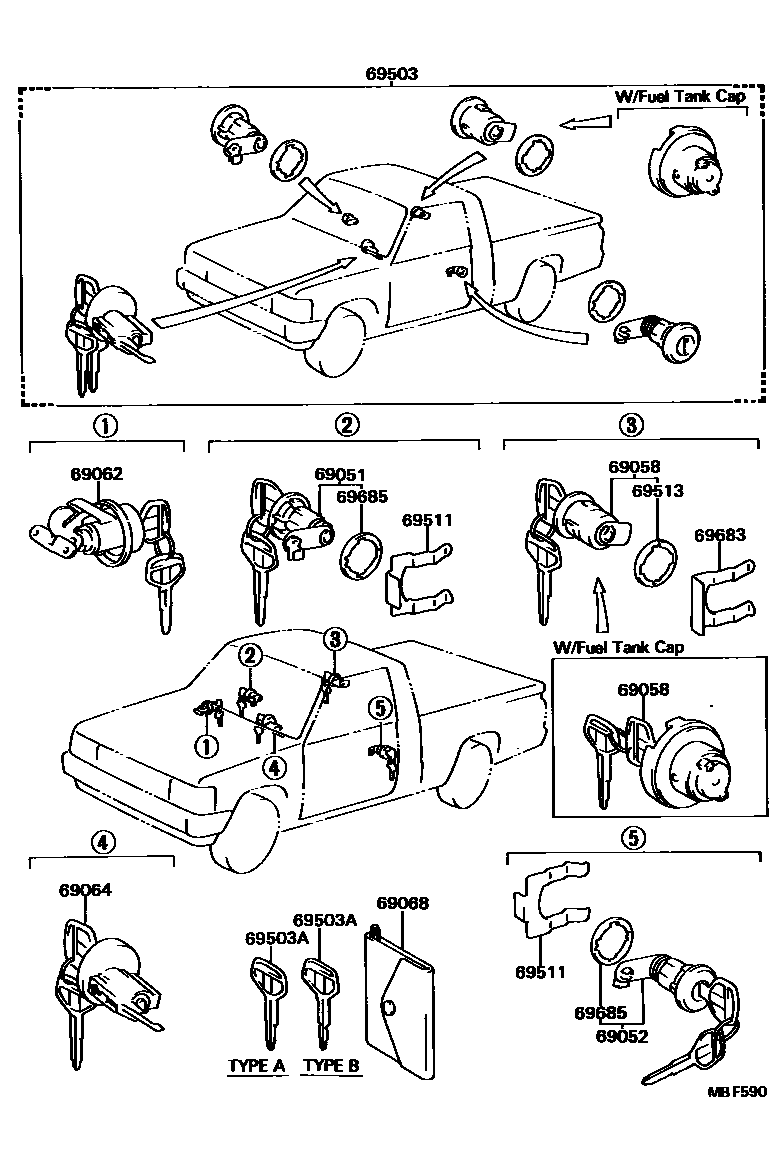

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-89111iLN56..LHD..RCB..EUR..CBU;LN5#,6#,RN5#,YN5#,6#..ARL,GEN,ME,SA198308-199807

sub69051-89118

main69051-89112iRN61198712-199807

main69051-89113iLN55,56,65,YN56,65,67..EUR198308-199807

main69051-89118iLN5#,65,67,RN58,YN51,56,58,67..SA198808-199807

sub69051-89113

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-89111iLN56..LHD..RCB..EUR..CBU;LN5#,6#,RN5#,YN5#,6#..ARL,GEN,ME,SA198308-198903

sub69052-89118

main69052-89112iRN61198712-198903

main69052-89113iLN55,56,65,YN56,65,67..EUR198308-199807

main69052-89118iLN5#,65,67,RN58,YN51,56,58,67..SA198808-199807

sub69052-89112

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-35150iLN57..TW199508-199807

main69058-89102iLN55,56,65..EUR..IV198403-199807

PORTUGAL SPEC

sub69058-25010

main69058-89102iLN5#..SA198308-199807

sub69058-25010

main69058-89105iLN5#,6#,YN5#,6#..T1..(ARL,EUR,GEN,ME)..CBU198308-198406

sub69058-89113

main69058-89107iLN65,YN57,58,65,67..SR5..ARL198308-199807

W/FUEL LID OPENER

main69058-89108iYN57,67..TW..GEN198312-199201

sub69058-89204

main69058-89109iLN55,56,65..TW198312-199807

sub69058-35150

main69058-89110iRN61198712-198903

main69058-89111iLN60,61,YN60,63..WG198403-198903

W/FUEL LID OPENER

sub69058-89110

main69058-89112iLN50,51,55,56,60,65,RN50,55,YN50,52,55,56,57,58,60,62,65,67..T1..(ARL,EUR,GEN,ME)..CBU198403-199807

sub69058-89113

main69058-89202iYN58..4F;YN58..SR5;YN51,56,67..RCB..(4H,5F)..SA198808-199807

sub69058-60071

main69058-89203iLN5#,65,67..SA198808-199807

sub69058-95406

main69058-89204iRN58,YN67..TW..SA198808-199807

main69058-95400iYN50,55,56,57,58,65,67..T1..IV198308-199807

sub69058-60071

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-89102-03iLN50,55,6#,YN50,52,55,57,6#..GEN,ME198308-198608

GRAY,GRAY,TRIM1#

sub69056-89102

main69056-89102-03iLN56..SR5198404-198408

THAILAND SPEC,GRAY,GRAY,TRIM1#

sub69056-89102

main69056-89102-04iYN50,55,60,63,67..ME198308-198608

BLUE,BLUE,TRIM8#

sub69056-89102

main69056-89102-04iLN56..SR5198404-198408

THAILAND SPEC,BLUE,BLUE,TRIM8#

sub69056-89102

main69056-89102-05iYN58..SR5..SA198608-199807

BEIGE,BEIGE,TRIM4#

sub69056-89102

main69056-89102-06iYN50,55,60,63,67..ME198308-198608

BROWN,BROWN,TRIM4#

sub69056-89102

main69056-89102-06iLN56..SR5198404-198408

THAILAND SPEC,BROWN,BROWN,TRIM4#

sub69056-89102

main69056-89102-13iYN6#..ME198608-199807

GRAY,GRAY,TRIM1#

sub69056-89102

main69056-89102-14iLN51,56,65,YN50,55,57,67..GEN198608-199807

BLUE,BLUE,TRIM8#

sub69056-89102

main69056-89103iRN50,55,YN52,57..ME198508-199807

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-89107iLN56..LHD..RCB..EUR..CBU;LN5#,6#,RN5#,YN5#,6#..ARL,GEN,ME,SA198308-198708

sub69057-89108

main69057-89109iLN56..EUR..IV;LN56..TW..EUR;LN56..RHD..EUR;LN56..DLX..EUR;LN55,65,YN56,65,67..EUR198308-198708

sub69057-95708

main69057-89110iRN50,55,YN52,57,6#..ME198708-199807

sub69057-95717

main69057-89111iRN61198712-199807

sub69057-95715

main69057-89112iLN56,65,YN56,67..EUR198708-199807

sub69057-95715

main69057-89113iLN5#,6#,YN50,55,57,6#..ARL,GEN198708-198903

sub69057-89111

main69057-89201iYN58..4F;YN58..SR5;LN51,56,65,YN51,56,67..(4H,5F)..SA198808-199807

sub69057-95715

69068COVER SUB-ASSY, KEY

main84041-89102iLN5#,6#,RN5#,61,YN5#,6#198308-199508

69503CYLINDER SET, LOCK

main69005-35060iLN57..TW199508-199807

main69005-89139iLN56..LHD..RCB..EUR..CBU;LN5#,60,65,RN5#,YN50,52,55,57,60,62,65,67..T1..(ARL,GEN,ME)..CBU198308-198708

main69005-89140iYN55..T3198308-198708

main69005-89141iLN5#..SA198308-198708

main69005-89144iLN56..TW..EUR;LN56..DLX..EUR;LN56..RHD..EUR;LN55,65,YN56,65,67..EUR..CBU198308-198708

main69005-89146iLN5#,65,RN5#,YN50,52,55,57,60,62,65,67..LHD..T1..(GEN,ME)..CBU198308-198708

W/FUEL LID OPENER

main69005-89149iLN55,56,65,YN56,65,67..EUR..IV198308-198708

main69005-89150iLN5#,65,YN50,55,57,65..(ARL,GEN)..IV198308-198403

main69005-89152iLN60,61,YN60,63..WG198403-198708

W/FUEL LID OPENER

main69005-89154iLN60,61,YN60,63..WG198403-198708

main69005-89158iRN55,YN55,57,65,67..TW..(ARL,GEN,ME,SA)198312-198708

main69005-89159iLN55,56,65..TW..(ARL,GEN)198312-198708

main69005-89160iLN55,56,65..EUR..IV198403-198708

PORUTUGAL SPEC

main69005-89161iLN56,65..TW..EUR198508-198708

main69005-89162iYN65,67..TW..EUR198508-198708

main69005-89164iYN65,67..EUR..IV198510-198708

SWITZERLAND SPEC

main69005-89172iLN51,56,65,YN50,55,56,57,58,67..T1..(ARL,GEN)..CBU198708-199807

main69005-89173iYN55,56,57,58,67..T1..(ARL,GEN)..IV198708-199807

main69005-89174iLN56,65..T1..(ARL,GEN)..IV198708-199807

main69005-89175iLN5#,65,YN50,55,57,67..LHD..T1..GEN..CBU198708-199201

W/FUEL LIDOPENER

main69005-89175iLN65,YN58,67..SR5..ARL198708-199807

W/FUEL LID OPENER

main69005-89176iLN61,YN63..ARL198708-198903

main69005-89177iLN61,YN63..ARL198708-198903

W/FUEL LID OPENER

main69005-89178iYN55,57,58,67..TW..(ARL,GEN,SA)198708-199201

main69005-89179iLN56,65..TW..(ARL,GEN)198708-199807

main69005-89180iLN56,65,YN56,67..EUR..CBU198708-199807

main69005-89181iLN56,65,YN67..EUR..IV198708-199807

main69005-89182iYN67..TW..EUR198708-199807

main69005-89183iLN56,65..TW..EUR198708-199807

main69005-89184iYN67..EUR..IV198708-199807

SWITZERLAND SPEC

main69005-89185iLN56,65..EUR..IV198708-199807

PORUTUGAL SPEC

main69005-89189iRN61198712-199807

main69005-89191iRN50,55,YN52,57,67..RCB..ME198708-199807

main69005-89192iRN50,55,YN52,57,67..RCB..ME198708-199807

W/FUEL LID OPENER

main69005-89193iYN63..ME198708-199807

main69005-89194iYN63..ME198708-199807

W/FUEL LID OPENER

main69005-89195iRN55,YN57,67..TW..ME198708-199807

main69005-89222iYN58..4F;YN58..SR5;YN51,56,67..RCB..(4H,5F)..SA198808-199807

main69005-89223iLN5#,65,67..SA198808-199807

main69005-89224iRN58,YN67..TW..SA198808-199807

69503AKEY, BLANK

main90999-00066iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,YN50,51,52,55,56,57,6#..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)198308-199807

MASTER KEY,TYPE A

sub90999-00085

main90999-00066iLN55,56,65..EUR..IV198403-199807

MASTER KEY,PORTUGAL SPEC,TYPE A

sub90999-00085

main90999-00066iYN65,67..EUR..IV198510-199807

MASTER KEY,SWITZERLAND SPEC

sub90999-00085

main90999-00091iLN55,56,65,YN56,65,67..EUR198308-199807

MASTER KEY,W(*70),TYPE B

sub90999-00086

main90999-00104iRN61198712-198903

MASTER KEY,W(*68),W/PROTECTOR

sub90999-00212

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-89101iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-12020iLN50,51,55,56,60,61,65,RN50,55,61,YN50,52,55,56,57,58,6#..(T1,WG)..(ARL,EUR,GEN,ME)..CBU198308-199807

69683CLAMP, FUEL LOCK CYLINDER

main69681-89102iLN50,51,55,56,60,61,65,RN50,55,YN50,52,55,56,58,6#..(ARL,EUR,GEN,ME)..CBU198308-199807

main69681-89102iLN55,56,65..EUR..IV198403-199807

PORTUGAL SPEC

main69681-89103iLN60,61,RN61,YN60,63..WG198403-198903

W/FUEL LID OPENER

69685PAD, LOCK CYLINDER

main69513-32010iYN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

12 parts on this diagram · 2 diagrams in section
