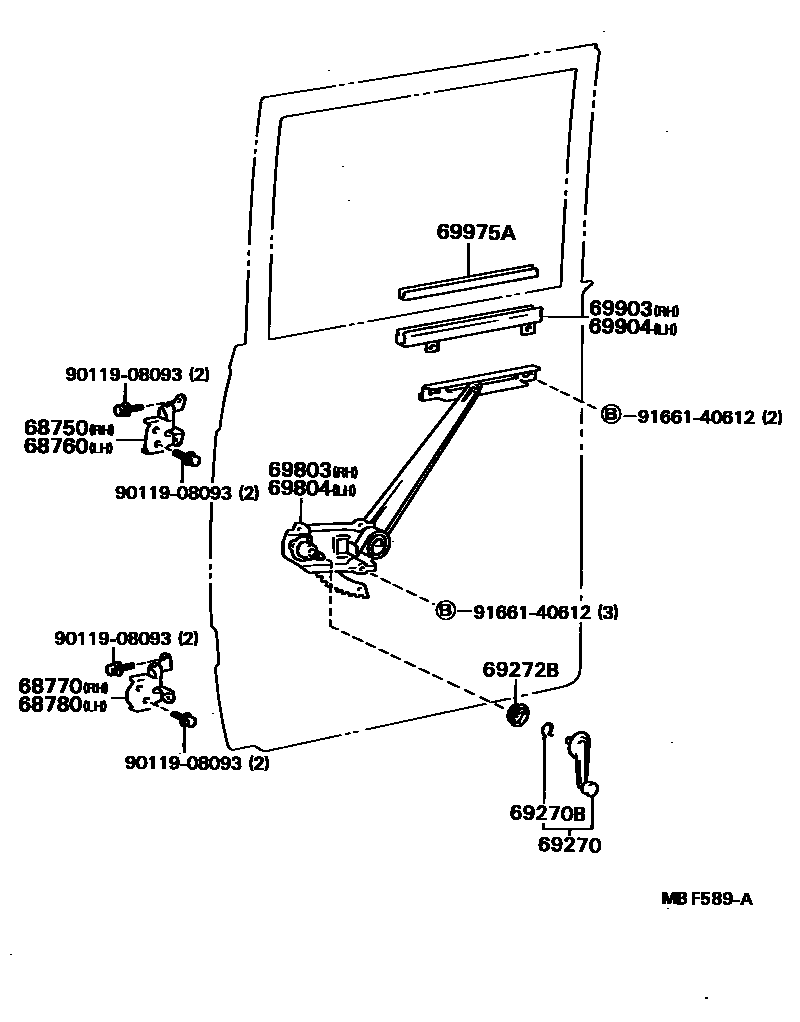

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20050iLN55,56,65,RN55,YN55,57,58,65,67..TW198312-199807

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20040iLN55,56,65,RN55,YN55,57,58,65,67..TW198312-199807

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-20040iLN55,56,65,RN55,YN55,57,58,65,67..TW198312-199807

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-20040iLN55,56,65,RN55,YN55,57,65,67..TW198312-199807

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-13×2iLN55,56,65,YN55,57,65..TW198312-198508

GRAY,GRAY,TRIM1#

sub69260-16010

main69260-10040-14×2iLN56,65,YN55,57,65,67..TW..(ARL,EUR,GEN,SA)198508-198608

BLUE,BLUE,TRIM8#

sub69260-16010

main69260-10040-56×2iLN56,65,YN55,57,65,67..TW..(ARL,EUR,GEN,SA)198508-198608

BROWN,BROWN,TRIM4#

sub69260-16010

main69260-22020-23×2iRN55,YN57..TW..ME198508-198608

GRAY,GRAY,TRIM1#

sub69260-14030

main69260-22020-24×2iRN55,YN57..TW..ME198508-198608

BLUE,BLUE,TRIM8#

sub69260-14030

main69260-22020-33×2iRN55,YN57..TW..DLX198708-199807

GRAY,GRAY,TRIM1#

sub69260-14030

main69260-22020-34×2iRN55,YN57..TW..DLX198708-199807

BLUE,BLUE,TRIM8#

sub69260-14030

main69260-22020-35×2iRN55,YN57..TW..DLX198708-199807

BEIGE,BEIGE,TRIM4#

sub69260-14030

main69260-22020-36×2iRN55,YN57..TW..ME198508-198608

BROWN,BROWN,TRIM4#

sub69260-14030

main69260-89104-03×2iYN67..TW..ME198608-199807

GRAY,GRAY,TRIM1#

main69260-89104-04×2iLN56,65,YN55,57,58,67..TW..(ARL,EUR,GEN,SA)198608-199807

BLUE,BLUE,TRIM8#

main69260-89104-05×2iYN67..TW..ME198608-199807

BEIGE,BEIGE,TRIM4#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iLN55,56,65,RN55,YN55,57,58,65,67..TW198312-199807

sub90520-01274

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69266-22010×2iLN55,56,65,YN55,57,65..TW198312-198508

main69266-22010-08×2iLN56,65,YN55,57,65,67..TW..(ARL,EUR,GEN,SA)198508-198608

NATURAL,NATURAL WHITE

main69268-16010×2iYN67..TW..ME198608-199807

sub69268-20020

main69272-30010-08×2iRN55,YN57..TW..DLX198508-199807

NATURAL,NATURAL WHITE

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-89102iLN55,56,57,65,RN55,58,YN55,57,58,65,67..TW198312-199807

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-89102iLN55,56,57,65,RN55,58,YN55,57,58,65,67..TW198312-199807

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-89103iLN55,56,57,65,RN55,58,YN55,57,58,65,67..TW198312-199807

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-89103iLN55,56,57,65,RN55,58,YN55,57,58,65,67..TW198312-199807

69975AFILLER, REAR DOOR GLASS CHANNEL

main69971-89104×2iLN55,56,57,65,RN55,58,YN55,57,58,65,67..TW198312-199807

sub69971-35020

9011908093

main90119-08093

9166140612

main91661-40612

14 parts on this diagram · 1 diagram in section
