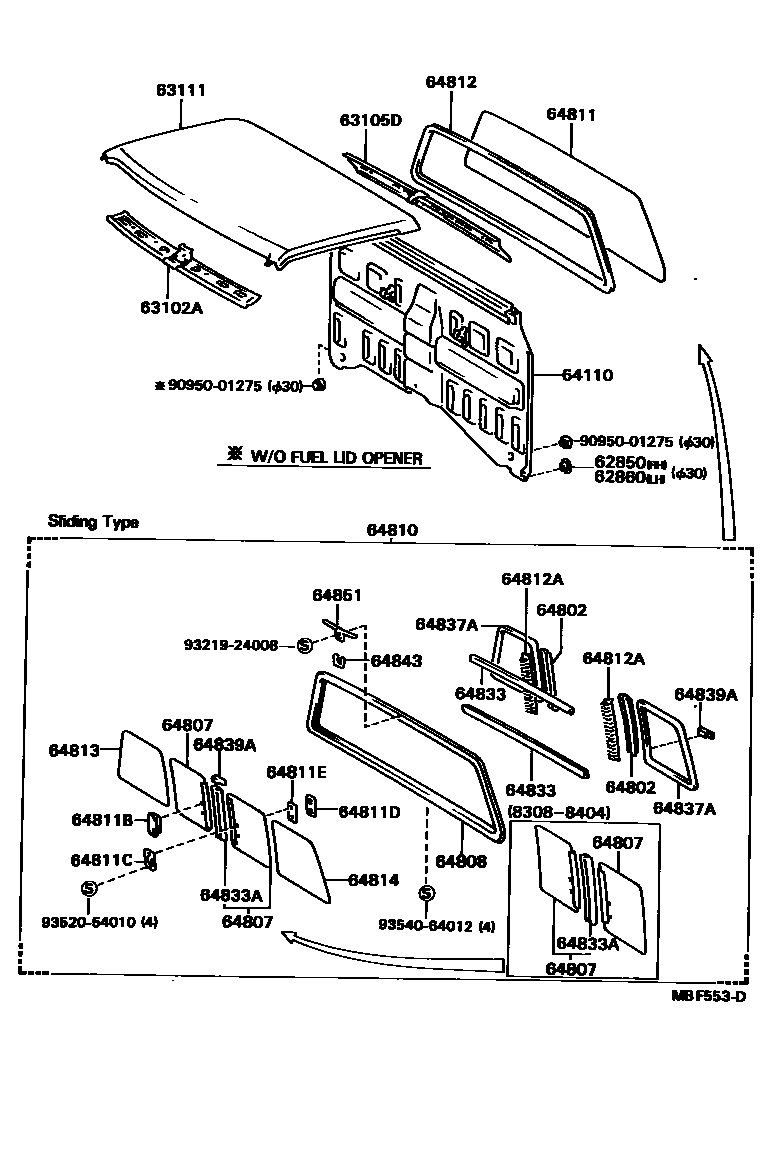

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1

62850VALVE ASSY, ROOM PRESSURE RELIEF, RH

main62850-89101iLN50,51,55,56,60,65,RN5#,67,YN5#,60,62,65,67..RCB,XTR198308-199807

62860VALVE ASSY, ROOM PRESSURE RELIEF, LH

main62850-89101iLN50,51,55,56,60,65,RN5#,67,YN5#,60,62,65,67..RCB,XTR198308-199807

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-89102iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..RCB,XTR198308-199807

main63102-89103iLN60,61,RN61,YN60,63..WG198312-199807

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63141-89103iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-89101iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..RCB198308-199807

main63105-89102iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

main63105-89103iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

main63105-89104iLN60,61,RN61,YN60,63..WG198403-198903

main63105-89105iLN60,61,RN61,YN60,63..SR5198403-198903

W/MOON ROOF

sub63105-89104

63111PANEL, ROOF

main63111-89109iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..RCB198308-199807

main63111-89111iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

main63111-89112iLN65,YN57,58,65,67..SR5..ARL198309-198808

W/MOON ROOF

main63111-89113iLN65,YN57,58,65,67..SR5..ARL198309-198808

W/DECK LAMP

main63111-89114iLN65,YN57,58,65,67..SR5..ARL198309-198808

W/MOON ROOF & DECK LAMP

main63111-89115iLN55,56,57,65,RN55,58,67,YN55,57,58,65,67..TW198312-199807

main63111-89116iLN60,61,RN61,YN60,63..WG198403-198903

main63111-89117iLN60,61,RN61,YN60,63..SR5198403-198903

W/MOON ROOF

64110PANEL ASSY, FRONT BODY BACK

main64101-89121iLN5#,60,65,67,RN5#,67,YN5#,60,62,65,67..RCB198308-199807

main64101-89123iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

sub64101-89122

main64101-89124iLN55,65,YN55,65..TW..(GEN,ME)198312-198608

sub64101-89128

main64101-89125iLN65,YN57,67..RHD..TW..GEN198508-198608

NEW ZEALAND SPEC

sub64101-89129

main64101-89125iLN55,56,65,YN57,65..TW..ARL198312-198508

sub64101-89129

main64101-89126iLN56,65,YN57,67..TW..ARL198508-198608

sub64101-89130

main64101-89128iLN56,65,RN55,YN55,57,67..TW..(GEN,ME)198608-199201

sub64101-89129

main64101-89129iLN56,57,65,RN58,67,YN67..TW..(EUR,SA)198608-199807

NEW ZEALAND SPEC

main64101-89130iLN56,65,YN57,58,67..TW..ARL198608-198808

64802FRAME SUB-ASSY, BACK WINDOW FIX

main64881-89104iLN56,65,YN55,57,67..TW..GEN198308-199807

*STY

main64881-89105iLN55,56,65,YN57,58,65,67..XTR..(ARL,GEN)198309-199807

*STY

64807GLASS SUB-ASSY, BACK WINDOW SLIDE

main64807-89105iYN57..4F..(GEN,ME);LN55..(SR5,STD)..GEN;LN50,6#,YN50,52,55,6#..(DLX,STD)..(GEN,ME)198308-198404

*STY,RH,*TEM,T=3.5

sub64807-89115

main64807-89106iYN57..4F..(GEN,ME);LN55..(SR5,STD)..GEN;LN50,6#,YN50,52,55,6#..(DLX,STD)..(GEN,ME)198308-198404

*STY,LH,*TEM,T=3.5

sub64807-89116

main64807-89107iYN57..4F..(GEN,ME);LN55..(SR5,STD)..GEN;LN50,6#,YN50,52,55,6#..(DLX,STD)..(GEN,ME)198308-198404

*STY,RH,*TT,T=3.5

sub64807-89117

main64807-89108iYN57..4F..(GEN,ME);LN55..(SR5,STD)..GEN;LN50,6#,YN50,52,55,6#..(DLX,STD)..(GEN,ME)198308-198404

*STY,LH,*TT,T=3.5

sub64807-89118

main64807-89109iLN55,YN57,65..XTR198309-198404

*STY,RH,*TEM,T=3.5

sub64807-89119

main64807-89110iLN55,YN57,65..XTR198309-198404

*STY,LH,*TEM,T=3.5

sub64807-89120

main64807-89111iLN55,YN57..XTR..GEN198309-198404

*STY,RH,*TT,T=3.5

sub64807-89121

main64807-89112iLN55,YN57..XTR..GEN198309-198404

*STY,LH,*TT,T=3.5

sub64807-89122

main64807-89115iLN56,65,YN55,57,67..TW..GEN198404-199807

*TEM,T=3.5,*STY,RH

sub64807-89117

main64807-89116iLN56,65,YN55,57,67..TW..GEN198404-199807

*TEM,T=3.5,*STY,LH

sub64807-89118

main64807-89117iRN58,YN58..SR5..SA198404-199807

*TT,T=3.5,*STY,RH

main64807-89118iLN56,65,YN55,57,67..TW..GEN198404-199807

*TT,T=3.5,*STY,LH

main64807-89119iLN55,56,65,YN57,58,65,67..XTR..(ARL,GEN)198404-199807

*TEM,T=3.5,*STY,RH

main64807-89120iLN55,56,65,YN57,58,65,67..XTR..(ARL,GEN)198404-199807

*TEM,T=3.5,*STY,LH

main64807-89121iLN55,56,65,YN57..XTR..GEN198404-199807

*TT,T=3.5,*STY,RH

main64807-89122iLN55,56,65,YN57..XTR..GEN198404-199807

*TT,T=3.5,*STY,LH

64808CHANNEL SUB-ASSY, BACK WINDOW SLIDE GLASS

main64808-89103iLN56,65,YN55,57,67..TW..GEN198308-199807

*STY

main64808-89104iLN55,56,65,YN57,58,65,67..XTR..(ARL,GEN)198309-199807

*STY

64810WINDOW ASSY, BACK

main64810-89104iYN58..4F;YN51,67..DLX..SA198308-199807

*STY,*TEM GLASS

sub64810-89105

main64810-89105iLN56,65,YN55,57,67..TW..GEN198308-199807

*STY,*TT GLASS

main64810-89106iLN55,56,65,YN57..XTR..GEN198309-199807

*STY,*TT GLASS

main64810-89108iLN55,56,65,YN57,58,65,67..XTR..(ARL,GEN)198309-199807

*STY,*TEM GLASS

64811GLASS, BACK WINDOW

main64801-89101iLN55,56,65,YN57,58,65,67..XTR..(ARL,GEN)198309-199807

*TEM,T=3.5,W/DEFOGGER

main64801-89102iLN55,56,65,YN57..XTR..GEN198309-199807

*TT,T=3.5,W/DEFOGGER

main64811-89119iYN57..STD;YN57..TW..ME;YN57..RCB..(DLX,SR5);YN50,52,55,6#..DLX,STD;LN5#,6#,YN56..(T1,T3,TW)..(SR5,STD)198308-199807

*TEM,T=3.5

sub64811-89120

main64811-89120iLN65..TW..DLX;YN57..DLX..ME;YN57..STD..(GEN,ME);LN56,65..(SR5,STD)..GEN;LN51,60,RN50,55,YN50,52,55,60,62,65,67..(DLX,STD)..(GEN,ME)198308-199807

*TT,T=3.5

main64811-89121iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

*TEM,T=3.5

sub64801-89101

main64811-89122iLN55,56,65,YN57..XTR..GEN198309-199807

*TT,T=3.5

sub64801-89102

64811BLOCK ASSY, BACK WINDOW

main69370-89102iLN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)198308-199807

*STY

64811CCATCH, BACK WINDOW LOCK

main69374-89102iYN57,65,67..5F..SA198308-199807

*STY

64811DRETAINER, BACK WINDOW

main69375-89102iLN5#,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)198308-199807

*STY

64811EPACKING, BACK WINDOW LOCK

main69376-89102iLN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)198308-199807

*STY

64812WEATHERSTRIP, BACK WINDOW GLASS, NO.1

main64812-89106iLN55,56,65,RN55,67,YN55,57,58,65,67..TW198308-199807

main64812-89107iLN55,56,65,YN56,57,58,65,67..XTR198309-199807

64812AWEATHERSTRIP, BACK WINDOW GLASS, NO.2

main64834-89101iLN56,65,YN55,57,67..TW..GEN198805-199807

*STY

main64837-89102iYN57,65,67..5F..SA198308-198805

*STY

sub64834-89101

main64837-89104iLN55,56,65,YN57,58,65,67..XTR..(ARL,GEN)198309-199807

*STY

64813GLASS, BACK WINDOW CORNER, RH

main64813-89101iYN57..4F..(GEN,ME);LN55..(SR5,STD)..GEN;LN50,6#,YN50,52,55,6#..(DLX,STD)..(GEN,ME)198308-199807

*TEM,T=3.5,*STY

sub64813-89102

main64813-89102iLN56,65,YN55,57,67..TW..GEN198308-199807

*TT,T=3.5,*STY

main64813-89103iLN55,56,65,YN57,58,65,67..XTR..(ARL,GEN)198309-199807

*TEM,T=3.5,*STY

main64813-89104iLN55,56,65,YN57..XTR..GEN198309-199807

*TT,T=3.5,*STY

64814GLASS, BACK WINDOW CORNER, LH

main64814-89101iYN57,65..5F..SA198401-198502

*TEM,T=3.5,*STY,*TEM,T=3.5

sub64814-89102

main64814-89101iYN57,65,67..RCB..5F..SA198308-199807

*TEM,T=3.5,*STY

sub64814-89102

main64814-89102iLN56,65,YN55,57,67..TW..GEN198308-199807

*TT,T=3.5,*STY

main64814-89103iLN55,56,65,YN57,58,65,67..XTR..(ARL,GEN)198309-199807

*TEM,T=3.5,*STY

sub64814-89104

main64814-89104iLN55,56,65,YN57..XTR..GEN198309-199807

*TT,T=3.5,*STY

64833WEATHERSTRIP, BACK WINDOW CHANNEL

main64833-89104iRN50,55,YN52,57,67..DLX..ME198308-199807

*STY,LWR

main64833-89105iYN57,65,67..5F..SA198308-199807

*STY,UPR

64833AWEATHERSTRIP, BACK WINDOW CENTER CHANNEL

main64833-89106iYN57,65..5F..SA198308-198404

*STY

main64833-89107iLN55,YN57,65..XTR198309-198404

*STY

main64833-89110iYN57..ME;LN65..TW..DLX;YN57..STD..GEN;LN56,65..(SR5,STD)..GEN;LN51,60,RN5#,YN50,52,55,60,62,65,67..(DLX,STD)..(GEN,ME)198404-199807

*STY

main64833-89111iLN55,56,65,YN57,58,65,67..XTR..(ARL,GEN)198404-199807

*STY

64837AWEATHERSTRIP, BACK WINDOW CORNER

main64837-89101iYN57..4F..(GEN,ME);LN55..(SR5,STD)..GEN;LN50,6#,YN50,52,55,6#..(DLX,STD)..(GEN,ME)198308-199807

*STY

main64837-89103iLN55,56,65,YN57,58,65,67..XTR..(ARL,GEN)198309-199807

*STY

64839APACKING, BACK WINDOW

main64839-89102iLN5#,RN58,YN51,58,67..(4F,5F)..SA198308-199807

*STY,LWR

main64839-89103iLN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)198308-199807

*STY,UPR RH

main64839-89104iYN57,65,67..5F..SA198308-199807

*STY,UPR LH

64843WEATHERSTRIP, BACK WINDOW CHANNEL

main64833-89109iLN5#,60,65,RN5#,YN50,52,55,57,60,62,65,67..(T1,T3,TW)..(GEN,ME)198308-199807

*STY

64851STOP, BACK WINDOW SLIDE GLASS

main64851-89102iLN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)198308-199807

*STY

9095001275

main90950-01275

9321924008

main93219-24008

9352054010

main93520-54010

9354064012

main93540-64012

30 parts on this diagram · 4 diagrams in section
