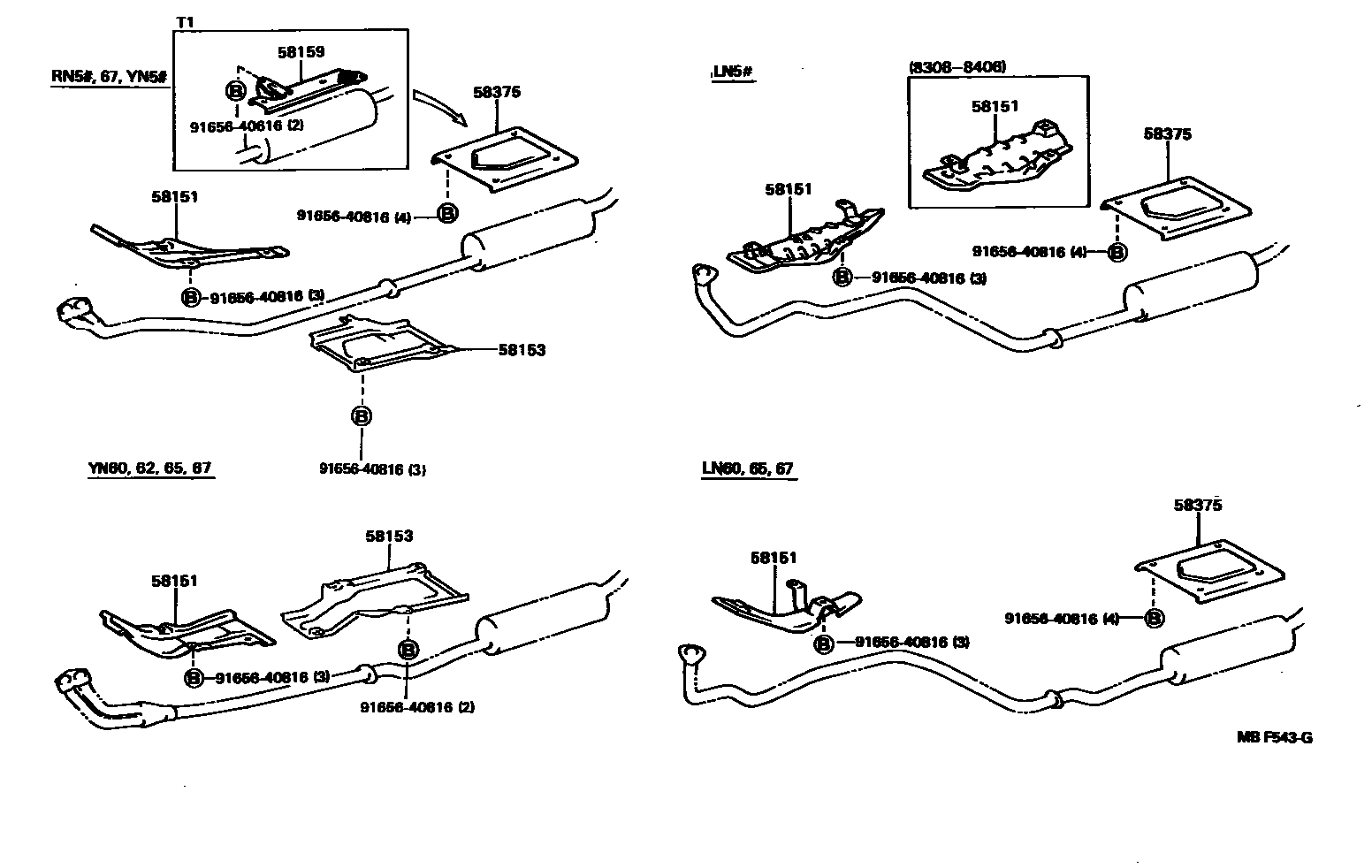

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-89104iLN60,65,67198308-199807

main58041-89105iLN5#198308-198408

sub58041-89106

main58041-89106iLN51,56198408-199807

main58151-89102iRN67,YN60,65,67198308-199807

main58151-89106iYN58..4F;YN58..SR5,STD;RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main58151-89108iRN61,YN63198508-198903

main58151-89109iLN61198508-199807

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58042-89101iLN60..ARL198506-198508

main58153-89104iLN60..ARL198403-198506

main58153-89106iYN63..EFI198608-198903

main58153-89108iYN58..TW198708-198808

58159INSULATOR, MAIN MAFFLAR HEAT

main58043-89101iRN58,67..RCB198601-199807

main58221-89104iLN61,RN61,YN63198608-198903

main58327-89105iLN60,61,YN60,63..WG198403-198608

sub58221-89104

58375INSULATOR, REAR FLOOR HEAT, NO.1

main58322-89102iLN55,56,57,65,RN55,58,67..TW198312-199807

9165640616

main91656-40616

9165640816

main91656-40816

6 parts on this diagram · 2 diagrams in section
