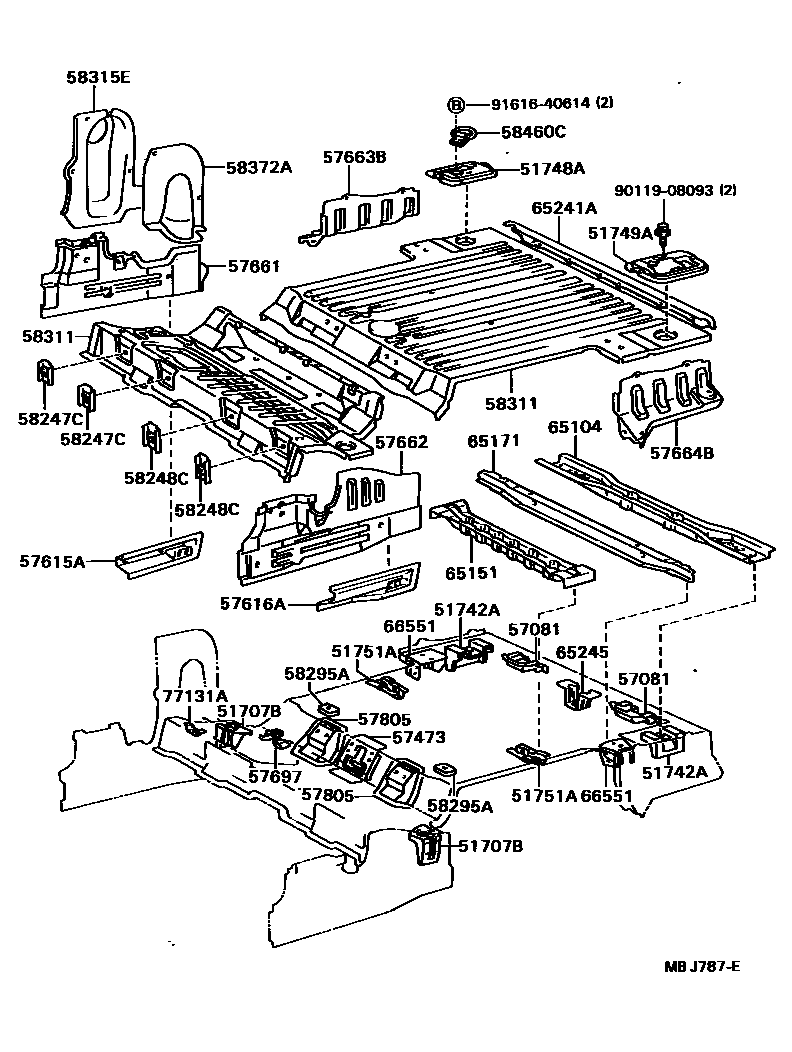

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51707BBRACKET SUB-ASSY, CAB MOUNTING, NO.4

main51707-89103iLN60,61,RN61,YN60,63..WG198403-198903

RH

main51708-89103iLN60,61,RN61,YN60,63..WG198403-198903

LH

51742ABRACKET, REAR BODY MOUNTING, NO.2

main51742-89101iLN60,61,RN61,YN60,63..WG198403-198903

51748AGUSSET, BODY SUPPORT BRACKET, NO.2 RH

main51748-89101iLN60,61,RN61,YN60,63..WG198403-198903

51749AGUSSET, BODY SUPPORT BRACKET, NO.2 LH

main51749-89101iLN60,61,RN61,YN60,63..WG198403-198903

51751ABRACKET, BODY SUPPORT, NO.1

main51751-89101iLN60,61,RN61,YN60,63..WG198403-198903

RH

main51752-89101iLN60,61,RN61,YN60,63..WG198403-198903

LH

57081BRACKET SUB-ASSY, REAR BUMPER MOUNTING

main57081-89101iLN60,61,RN61,YN60,63..WG198403-198903

57473REINFORCEMENT, REAR SEATBACK HINGE

main57473-89101iLN60,61,RN61,YN60,63..WG198403-198903

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-89101iLN60,61,RN61,YN60,63..WG198403-198903

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-89101iLN60,61,RN61,YN60,63..WG198403-198903

57661PANEL, REAR FLOOR SIDE, FRONT RH

main57661-89101iLN60,61,RN61,YN60,63..WG198403-198903

57662PANEL, REAR FLOOR SIDE, FRONT LH

main57662-89101iLN60,61,RN61,YN60,63..WG198403-198903

57663BPANEL, REAR FLOOR SIDE, REAR RH

main57663-89101iLN60,61,RN61,YN60,63..WG198403-198903

57664BPANEL, REAR FLOOR SIDE, REAR LH

main57664-89101iLN60,61,RN61,YN60,63..WG198403-198903

57697RETAINER, REAR SEAT CUSHION

main57697-89101iLN60,61,RN61,YN60,63..WG198403-198903

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-89101iLN60,61,RN61,YN60,63..WG198403-198903

58247CREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-89101iLN60,61,RN61,YN60,63..WG198403-198903

58248CREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-89101iLN60,61,RN61,YN60,63..WG198403-198903

58295AREINFORCEMENT, SEAT BELT ANCHOR FLOOR

main58295-89101iLN60,61,RN61,YN60,63..WG198403-198903

58311PAN, REAR FLOOR

main58211-89106iLN60,61,RN61,YN60,63..WG198403-198903

FR

main58311-89110iLN60,61,RN61,YN60,63..WG198403-198903

RR

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-89102iLN61,YN63198705-198903

58372AHOUSING, FUEL INLET PIPE

main58372-89102iLN60,61,RN61,YN60,63..WG198403-198903

58460CSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-89101iLN61,RN61,YN63198508-198903

65104SILL SUB-ASSY, CROSS, NO.4

main65104-35010iLN60,61,RN61,YN60,63..WG198403-198903

65151SILL CROSS, NO.1

main65151-89115iLN60,61,RN61,YN60,63..WG198403-198903

65171SILL ASSY, CROSS, NO.3

main65171-89110iLN60,61,RN61,YN60,63..WG198403-198903

65241ASILL, REAR CROSS

main65241-89116iLN60,61,RN61,YN60,63..WG198403-198903

65245BRACKET, TORSION BAR GUIDE

main65245-89101iLN60,61,RN61,YN60,63..WG198403-198903

66551RETAINER, ROLL OVER BAR

main66551-89101iLN60,61,RN61,YN60,63..WG198403-198903

77131ABRACKET, FUEL INLET PIPE SUPPORT

main77131-89101iLN60,61,RN61,YN60,63..WG198403-198903

9011908093

main90119-08093

9161640614

main91616-40614

31 parts on this diagram · 2 diagrams in section
