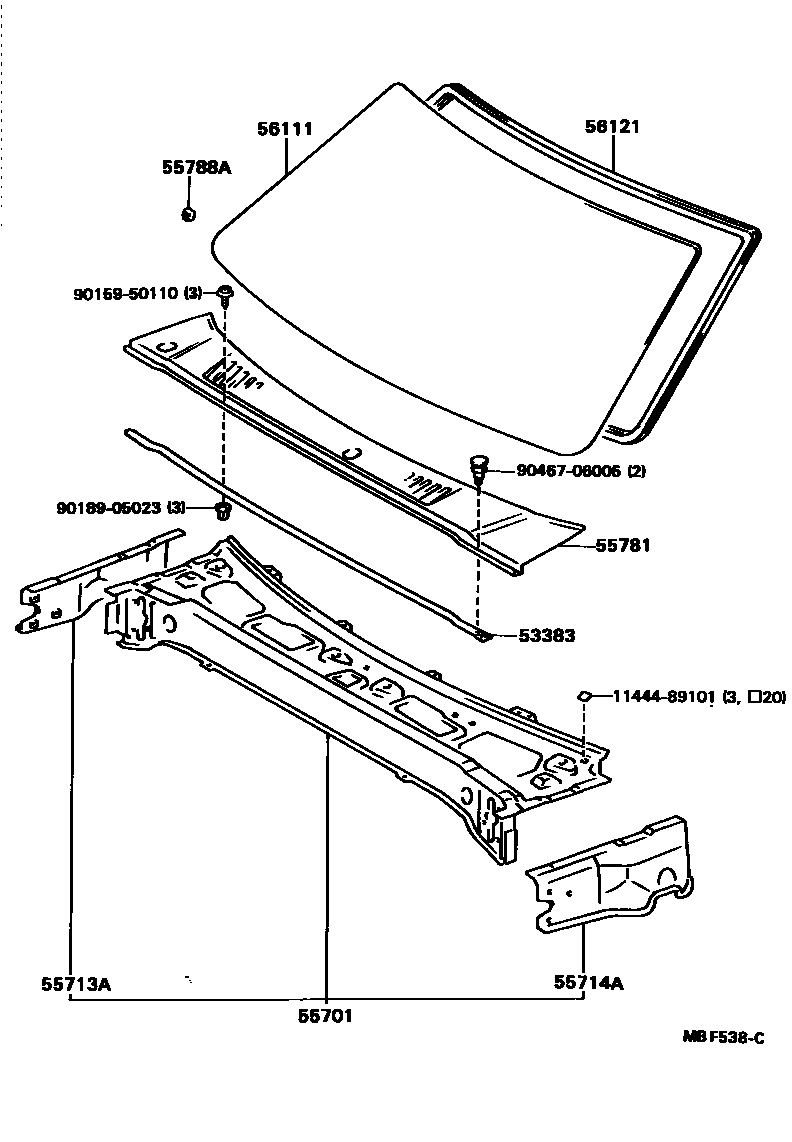

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1 0004 1

53383SEAL, HOOD TO COWL TOP

main53383-89105iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

55701PANEL SUB-ASSY, COWL

main55700-89114iYN50,55,56,57,60,63,65,67..RHD198308-199807

main55700-89115iLN50,51,55,56,60,61,65..RHD198308-199807

main55700-89116iYN55,57,67..LHD..TW198308-198512

sub55700-89120

main55700-89117iLN56,65..LHD..TW198308-198512

sub55700-89121

main55700-89120iYN50,52,55,56,57,6#..LHD..(T1,T3,WG)198508-199807

main55700-89121iLN51,56,65..LHD198508-199807

main55700-89122iRN5#..RCB198601-198808

main55700-89123iRN61198712-198903

main55700-89126iRN55..TW198601-198808

main55700-89128iYN63..ARL198608-199807

55713APANEL, COWL TOP SIDE, RH

main55713-89104iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

55714APANEL, COWL TOP SIDE, LH

main55714-89105iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

55781LOUVER, COWL VENTILATOR

main55781-89101iLN50,51,55,56,65,RN50,55,61,YN50,52,55,56,57,6#..LHD198308-199807

main55781-89102iRN58..SR5;LN50,51,55,56,60,61,65,RN67,YN50,51,55,56,57,58,60,63,65,67..RHD198308-199807

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-89101iLN5#,6#,YN5#,6#198308-198402

56111GLASS, WINDSHIELD

main56111-89125iLN56..EUR..IV;LN56..LHD..GEN;LN56..RHD..(EUR,GEN);LN50,51,55,6#,YN5#,6#..(T1,T3,TW)..(EUR,GEN,ME)198308-198808

*ZT,T=5.0,*ZT,T=5.0

sub56111-89130

main56111-89126iLN51,56,60,65,YN50,55,57,60,62,65,67..GEN198308-199807

*TZT,T=5.0,BLUE,*TZT,T=5.0,BLUE

sub56111-89131

main56111-89128iRN50,55,YN50,52,55,57,60,65,67..(DLX,STD)..ME198308-199807

*LAM,T=5.3,*LAM,T=5.3,TOP SHADE

sub56111-89131

main56111-89129iLN65,YN57,58,65,67..SR5..ARL198309-198808

*LAM,T=5.3,*LAM,T=5.3,TOP SHADE

main56111-89130iYN51,56..4H..SA198308-199807

*LAM,T=5.3,*LAM,T=5.3

sub56111-89131

main56111-89131iYN58..SR5..SA198308-199807

*TL,T=5.3,*TL,T=5.3,TOP SHADE

main56111-89131iYN65..5F..GEN198407-198608

*TL,T=5.3,*SA,*TL,T=5.3,TOP SHADE,BLUE

main56111-89132iLN60,61,YN60,63..ARL198403-198903

*LAM,T=5.3,*LAM,T=5.3

sub56111-89133

main56111-89133iLN60,61,YN60,63..SR5..ARL198403-198903

*LAM,T=5.3,*LAM,T=5.3,W/TOP SHADE

sub56111-89135

main56111-89135iRN61198403-198903

*TL,T=5.3,*TL,T=5.3,W/TOP SHADE

main56111-89136iYN60..SR5..ME198403-198408

*TL,T=4.7,BRONZE

sub56111-89137

main56111-89137iYN60,63..SR5..ME198408-198903

*LAM,T=5.3,BRONZE,*TL,T=5.3,BRONZE

56121WEATHERSTRIP, WINDSHIELD

main56121-89117iRN50,55,YN52,57..STD..ME198308-199807

main56121-89118iLN50,55,6#,YN50,55,57,6#..(DLX,STD)..GEN198308-199807

W/MOULDING

main56121-89118iLN51,56..5F..STD198404-198408

THAILAND SPEC,W/MOULDING

main56121-89118iRN5#,YN50,52,55,57,60,65,67..DLX..ME198308-199807

1144489101PLUG, HOLE

main11444-89101

9015950110

main90159-50110

9018905023

main90189-05023

9046706005

main90467-06005

12 parts on this diagram · 4 diagrams in section
