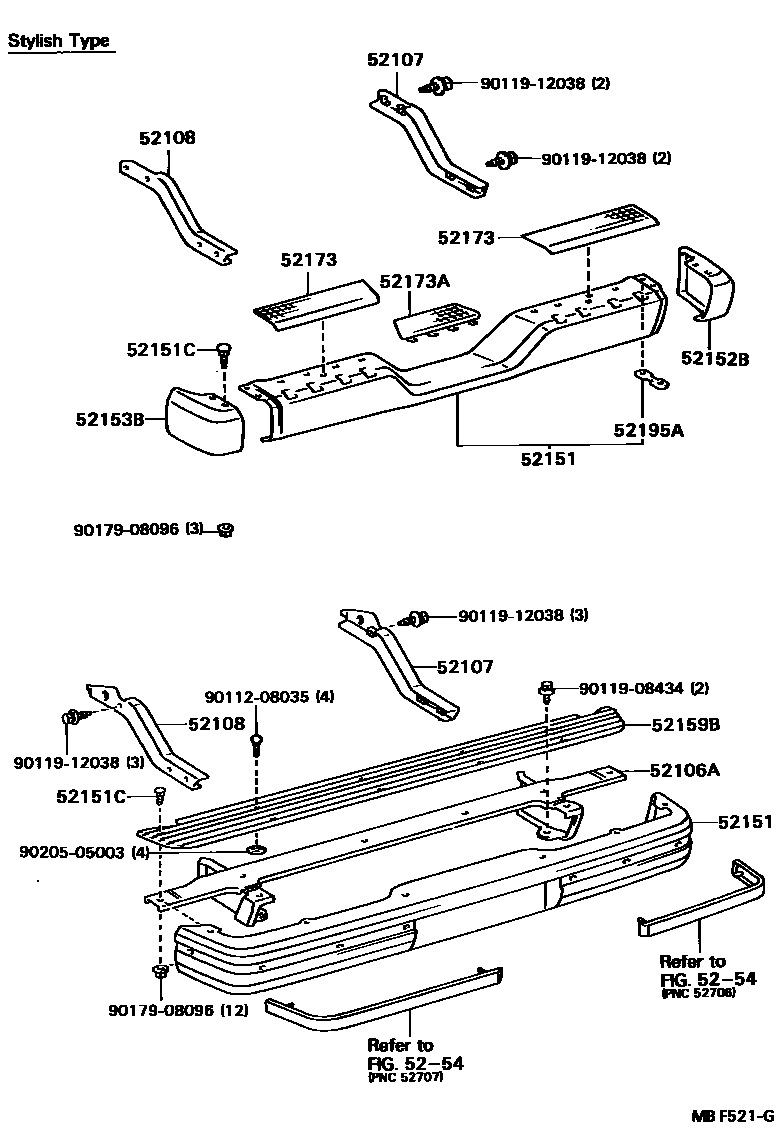

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52106AREINFORCEMENT SUB-ASSY, REAR BUMPER

main52106-89104iRN50,55,YN52,57..ME198608-199807

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-89108iLN60,61,RN61,YN60,63..WG198403-198903

main52181-89109iLN51,60,RN50,YN50,52,60,62..RCB..(GEN,ME)..CBU198308-199807

STYLISH TYPE

main52181-89110iLN56,65,RN55,YN55,57,65,67..T1..RCB..(GEN,ME)198308-199807

STYLISH TYPE

main52181-89111iYN60..DLX198308-198601

PIPE TYPE

main52181-89112iLN65,YN65,67..TW..(ARL,ME)198308-199807

PIPE TYPE

main52181-89115iLN60,61,YN60,63..ARL198403-198903

STEP TYPE

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-89108iLN60,61,RN61,YN60,63..WG198403-198903

main52182-89106iLN50,60,YN50,52,60..RCB..(GEN,ME)..CBU198308-199807

STYLISH TYPE

main52182-89107iLN55,65,YN55,57,65..T1..RCB..(GEN,ME)..CBU198308-199807

STYLISE TYPE

main52182-89107iLN56..LHD..RCB..EUR..CBU;LN55,56,YN55,57..STD..ARL..CBU198308-199807

STYLISH TYPE

main52182-89108iYN60..DLX198308-198601

PIPE TYPE

main52182-89109iLN65,YN65,67..TW..(ARL,ME)198308-199807

PIPE TYPE

main52182-89112iLN60,61,YN60,63..ARL198403-198903

STEP TYPE

52151BUMPER ASSY, REAR

main52105-89105iLN60,61,YN60,63..ARL198403-198608

sub52105-35904

main52105-89106iYN60,63..SR5..ME198404-199807

main52105-89106iLN60,YN60..SR5198403-198404

CHROME PLATED

main52105-89107iLN60,YN60..ARL198403-198404

STEP TYPE

main52105-89109iLN60,YN60..ARL198403-198404

STEP TYPE,CHROME PLATED

main52105-89110iLN60,61,YN60,63..ARL198404-198608

STEP TYPE

main52105-89111iRN50,55,YN52,57..ME198608-199807

STYLISH TYPE,CHROME PLATED

main52105-89112iLN61,YN63..ARL198608-198903

main52105-89114iLN61,YN63..ARL198608-198903

STEP TYPE

main52105-95111iLN65,YN65,67..TW..(ARL,ME)198308-199807

PIPE TYPE

main52150-89105iLN50,55,6#,YN50,52,55,57,6#..T1..(GEN,ME)..CBU198308-198312

STYLISH TYPE,CHROME PLATED

sub52150-89108

sub52159-89102

main52150-89106iLN55,56,YN55,57..STD..ARL..CBU198308-198312

STYLISH TYPE,PAINTED

sub52150-89109

sub52159-89102

main52150-89108iYN67..ME198312-199807

STYLISH TYPE,CHROME PLATED

main52150-89109iLN56..LHD..RCB..EUR..CBU;LN55,56,YN55,57..STD..ARL..CBU198312-198608

STYLISH TYPE,PAINTED

main52150-89110iLN65,YN65..EUR198509-198608

STYLISH TYPE,PAINTED

main52150-89111iLN5#,65,67,RN58,67,YN51,58,67..5F..SA198608-199807

STYLISH TYPE,PAINTED

main52150-89112iRN50,55,YN52,57..4F..ME198610-199807

STYLISH TYPE,PAINTED

main52150-89112iLN65,YN67..EUR..CBU198608-198808

STYLISH TYPE

52151CBOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER)

main90112-08035iLN5#,60,65,RN5#,YN50,52,55,57,60,62,65,67..(T1,TW)..(GEN,ME)..CBU198308-199807

STYLISH TYPE,CHROME PLATED

main90112-08035iRN61198403-198903

CHROME PLATED

main90112-08035iYN60,63..SR5..ME198404-198903

main90112-08050iLN65,YN65..EUR198308-198608

STYLISH TYPE,PAINTED

main90112-08050iLN60,61,YN60,63..ARL198403-198608

STEP TYPE

main90112-08065iLN5#,65,YN50,55,57,67..RHD..(T1,TW)..GEN..CBU198608-199807

STYLISH TYPE,PAINTED

52152BEXTENSION, REAR BUMPER, RH

main52106-89102iLN60,61,RN61,YN60,63..WG198403-198903

RR

main52106-89103iLN60,61,YN60,63..ARL198403-198903

STEP TYPE,RR

main52152-89104iLN65,YN65..EUR198308-199807

STYLISH TYPE,CHROME PLATED

main52152-89105iYN57..RHD..GEN..CBU198308-198608

STYLISH TYPE,PAINTED

main52152-89106iLN60,61,RN61,YN60,63..WG198403-198903

FR

main52152-89107iLN65,YN65..EUR198509-198608

STYLISH TYPE,PAINTED

main52152-89108iLN5#,65,YN50,55..LHD..(T1,TW)..GEN..CBU198608-198708

STYLISH TYPE,PAINTED

main52152-89108iLN5#,65,YN50,55,57,67..RHD..(T1,TW)..GEN..CBU198608-199807

STYLISH TYPE

main52152-89109iLN65,YN67..EUR..CBU198608-199807

STYLISH TYPE

52153BEXTENSION, REAR BUMPER, LH

main52107-89101iLN60,61,RN61,YN60,63..WG198403-198903

RR

main52107-89102iLN60,61,YN60,63..ARL198403-198903

STEP TYPE,RR

main52153-89104iLN65,YN65..EUR198308-199807

STYLISH TYPE,CHROME PLATED

main52153-89105iYN57..RHD..GEN198308-198608

STYLISH TYPE,PAINTED

main52153-89105iLN65,YN65,67..RHD..RCB..GEN..CBU198402-198608

SYYLISH TYPE,PAINTED

main52153-89106iLN60,61,RN61,YN60,63..WG198403-198903

FR

main52153-89107iLN65,YN65..EUR198509-198608

STYLISH TYPE,PAINTED

main52153-89108iLN65,YN57,58,67..SR5..ARL198608-199807

STYLISH TYPE

main52153-89109iRN50,55,YN52,57..4F..ME198608-199807

STYLISH TYPE

52159BPLATE, REAR BUMPER

main52159-89104iRN50,55,YN52,57..ME198608-199807

52173PLATE, REAR BUMPER, SIDE

main52163-89101iLN51,56,65,YN50,55,57,67..(T1,TW)..GEN..CBU198308-199807

STYLISH TYPE,RH

main52163-89101iLN60,61,YN60,63..ARL198403-198903

STEP TYPE,RH

main52163-89103iLN65,YN65,67..TW..(ARL,ME)198309-199807

PIPE TYPE,RH

main52163-95110iLN65,YN6#..ARL,ME198308-198309

PIPE TYPE,RH

main52164-89101iLN51,56,65,YN50,55,57,67..(T1,TW)..GEN..CBU198308-199807

STYLISH TYPE,LH

main52164-89101iLN60,61,YN60,63..ARL198403-198903

STEP TYPE,LH

main52164-89102iLN65,YN65,67..TW..(ARL,ME)198309-199807

PIPE TYPE,LH

main52164-95110iLN65,YN6#..ARL,ME198308-198309

PIPE TYPE,LH

52173APLATE, REAR BUMPER

main52159-89102iYN67..ME198312-199807

STYLISH TYPE

52195ASPACER, REAR BUMPER EXTENSION

main52195-89101iYN57..GEN..IV198308-198407

STYLISH TYPE

main52195-89103iLN60,YN60..ARL198403-198501

STEP TYPE

5254

9011208035

main90112-08035

9011908434

main90119-08434

9011912038

main90119-12038

9017908096

main90179-08096

9020505003

main90205-05003

17 parts on this diagram · 4 diagrams in section
