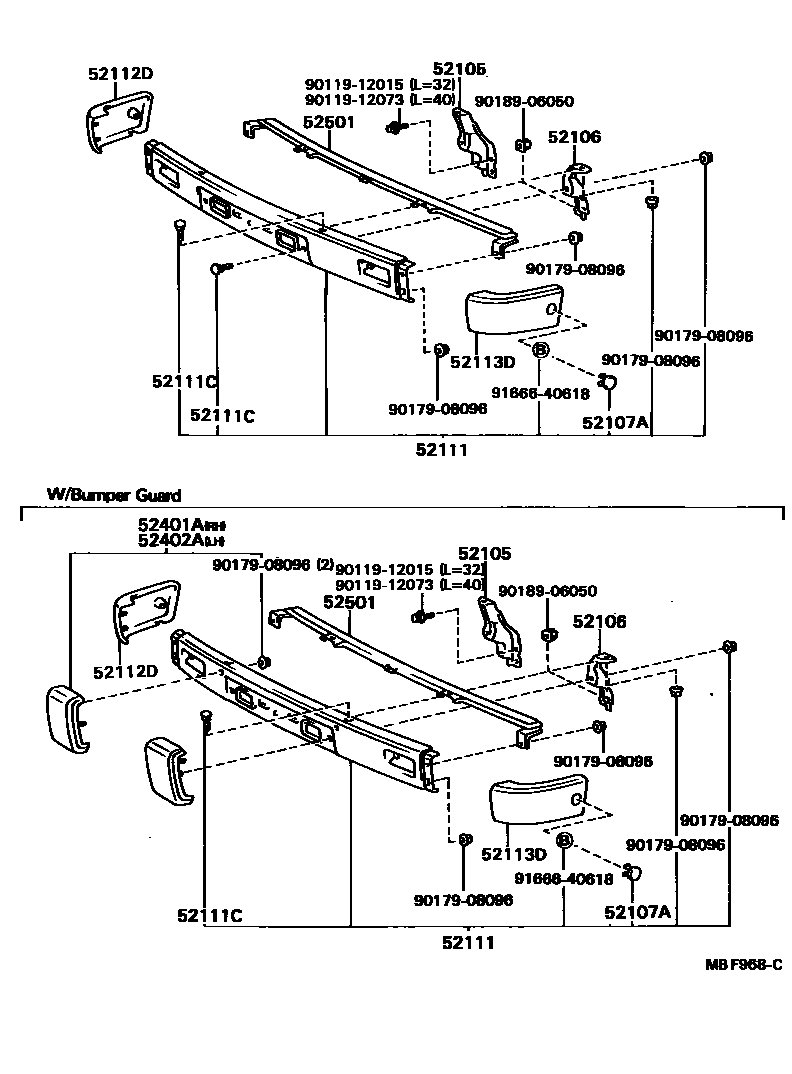

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0005 1

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-89105iLN5#,6#,YN5#,6#198308-198408

sub52011-89108

main52011-89108iLN5#,60,65,RN5#,YN5#,60,62,65,67198408-198608

main52011-89108iLN65,67,RN67,YN67198608-199807

PERU SPEC

main52011-89111iLN61,RN61,YN63198508-198903

main52011-89112iYN58..4F;YN58..SR5,STD;LN51,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198608-199807

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-89105iLN5#,6#,YN5#,6#198308-198408

sub52012-89108

main52012-89108iLN5#,60,65,RN5#,YN5#,60,62,65,67198408-199807

main52012-89108iYN57..LHD..STD..GEN198608-199201

PERU SPEC

main52012-89111iLN61,RN61,YN63198508-198903

main52012-89113iYN58..4F;YN58..SR5,STD;LN51,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198608-199807

52107ACOVER, FRONT BUMPER ARM HOLE

main52127-89101iLN5#,6#,YN5#,6#198308-199807

main52127-89101iYN57..ARL,GEN,SA198508-198608

CHROME PLATED

main52127-89101iYN57..LHD..STD..GEN198608-199201

PERU SPEC

52111BUMPER ASSY, FRONT

main52101-89101iYN55..GEN198608-199807

CHROME PLATED

main52101-89102iLN57..TW198608-199807

main52101-89104iLN57..RCB198608-199807

sub52101-89102

main52101-89105iRN50,55,YN52,57..ME198608-199807

CHROME PLATED

main52101-89105iRN50,55,YN52,57..ME198608-199807

CHROME PLATED,W/BUMPER GUARD

main52101-89106iLN56,YN56..LHD..EUR198608-199807

W/HEADLAMP CLEANER

main52111-39445iLN55,YN56..EUR198308-198407

sub52111-39555

main52111-39455iYN57..DLX..SA198308-198608

sub52111-89128

main52111-39455iYN57..LHD..STD..GEN198608-199201

PERU SPEC

sub52111-89128

main52111-39465iLN55,YN56..LHD..EUR198308-198608

W/HEADLAMP CLEANER

sub52111-89129

main52111-39475iLN65,YN65..LHD..EUR198308-198608

W/HEADLAMP CLEANER

sub52111-89132

main52111-39495iLN55,56,YN57..DLX..GEN198308-198608

sub52111-89135

main52111-39505iLN55,56,YN57..SR5198308-198608

sub52111-89136

main52111-39515iLN50,55,YN50,55,57..GEN198308-198608

CHROME PLATED

sub52111-89139

main52111-39515iYN50,55..ME198308-198601

sub52111-89139

main52111-39525iLN60,61,YN60,63,65,67..SR5..ARL198308-198608

sub52111-89140

main52111-39535iLN6#,YN6#..STD198308-198608

sub52111-89144

main52111-39545iYN60,63,65,67..ME198308-198611

CHROME PLATED

sub52111-89146

main52111-39555iLN55,56,YN56..EUR198407-198608

sub52111-89134

main52111-39565iLN5#,YN50,55,57..GEN198308-198608

CHROME PLATED,W/BUMPER GUARD

sub52111-89148

main52111-39565iRN5#,YN50,52,55,57..ME198308-198608

W/BUMPER GUARD

sub52111-89148

main52111-89146iYN6#..ME198611-199807

CHROME PLATED

main52111-89157iLN65,YN67..LHD..EUR198608-199807

W/HEADLAMP CLEANER

sub52111-35900

main52111-89158iLN6#,YN6#..ARL,EUR,GEN,SA198608-199807

main52111-89164iLN61,YN63..ARL198708-198903

main52111-89165iYN63..ME198708-199807

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08035iLN51,56,60,61,65,YN50,55,57,58,6#..ARL,GEN198308-199807

CHROME PLATED

main90112-08035iLN50,55,YN50,55,57..GEN198308-198608

CHROME PLATED,W/BUMPER GUARD

main90112-08038iLN55,56,YN57..DLX..GEN198308-198608

main90112-08050iLN5#,6#,YN50,55,56,57,6#..(SR5,STD)..(ARL,EUR,GEN,SA)198308-198608

main90112-08050iYN57..LHD..STD..GEN198608-199201

PERU SPEC

main90112-08065iRN58..SR5;LN51,56,61,65,RN67,YN50,51,55,56,57,58,6#..ARL,EUR,GEN,SA198608-199807

52112DEXTENSION, FRONT BUMPER, RH

main52102-89103iYN52,57..ME198508-198608

W/BUMPER GUARD

main52102-89103iLN5#,YN5#198308-198508

main52102-89103iYN57..LHD..STD..GEN198608-199201

PERU SPEC

main52102-89106iLN60,61,65,RN6#,YN6#198308-199807

main52102-89107iYN52,57..ME198508-198605

sub52102-89109

main52102-89109iYN52,57..ME198605-198608

52113DEXTENSION, FRONT BUMPER, LH

main52103-89103iYN57..LHD..STD..GEN198608-199201

PERU SPEC

main52103-89103iLN5#,YN5#198308-198508

main52103-89103iYN57..ARL,GEN,SA198508-198608

W/BUMPER GUARD

main52103-89106iLN60,61,65,RN6#,YN6#198308-199807

main52103-89107iYN52,57..ME198508-198605

sub52103-89109

main52103-89109iYN52,57..ME198605-198608

52401AGUARD SUB-ASSY, FRONT BUMPER, RH

main52401-39045iLN5#,YN50,55,57..STD..GEN198308-198608

sub52401-89103

main52401-89103iLN51,56,YN50,55,57..STD..GEN198608-199807

main52401-89104iLN51,56,YN50,52,55,57..GEN,ME198608-199807

52402AGUARD SUB-ASSY, FRONT BUMPER, LH

main52402-39015iLN5#,YN50,55,57..STD..GEN198308-198608

sub52402-89101

main52402-89102iLN51,56,YN50,52,55,57..GEN,ME198608-199807

52501FILLER SUB-ASSY, FRONT BUMPER

main52501-89102iLN5#,6#,RN5#,YN5#,6#198308-198608

sub52501-89104

main52501-89104iLN61,65,RN6#,YN6#198608-199807

main52501-89104iYN57..LHD..STD..GEN198608-199201

PERU SPEC

9011912015

main90119-12015

9011912073

main90119-12073

9017908096

main90179-08096

9018906050

main90189-06050

9166640618

main91666-40618

15 parts on this diagram · 4 diagrams in section
