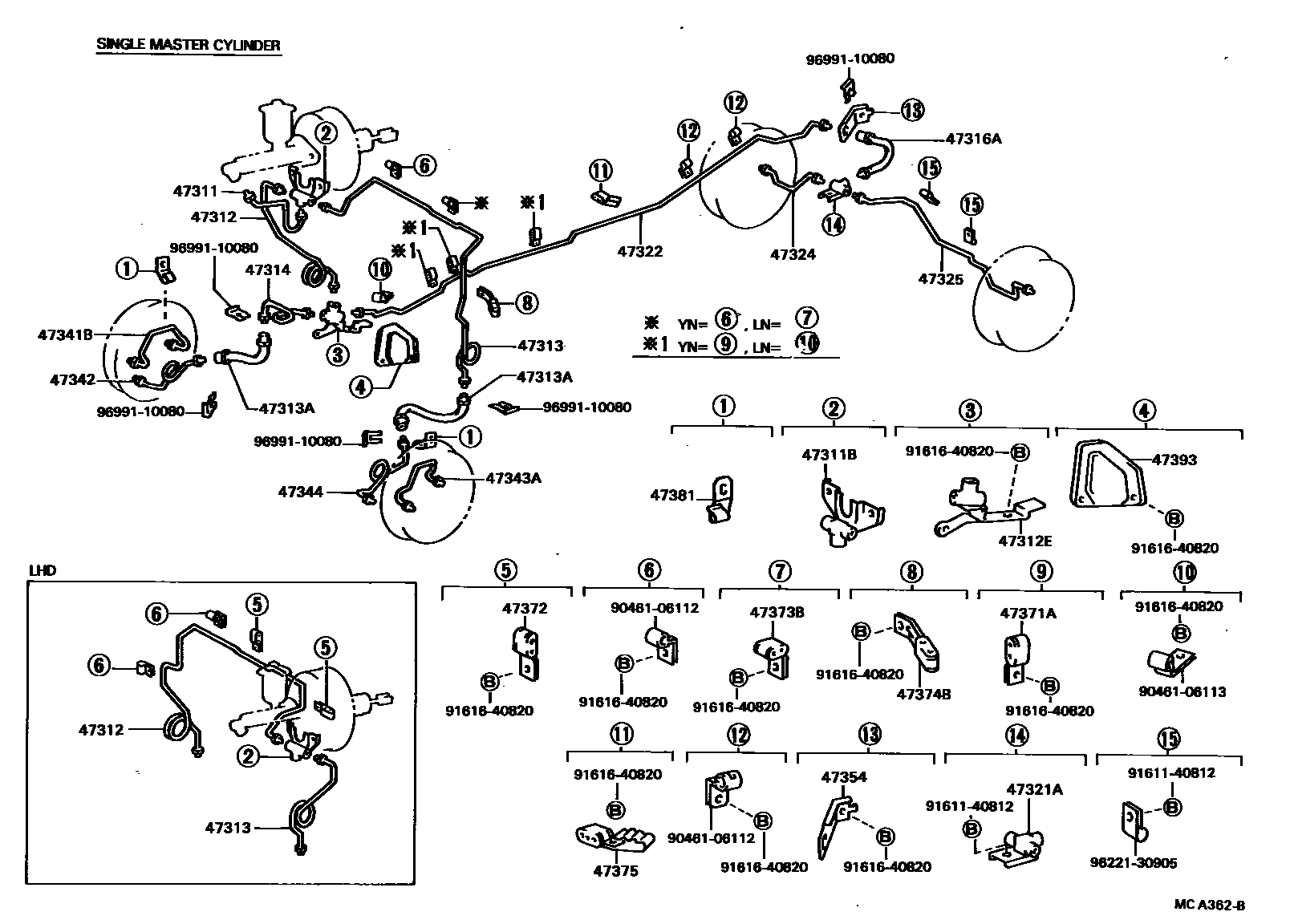

BRAKE TUBE & CLAMP

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

47311TUBE, FRONT BRAKE, NO.1

main47311-35270iYN6#..RHD198608-199807

FR DISC BRAKE

main47311-35270iLN61198608-198903

main47311-35290iYN57..SR5..ARL198308-198608

main47311-35320iLN5#,YN50,55,57..GEN198308-198608

SINGLE M/C

main47311-35330iLN5#,YN50,55,57..GEN198408-199201

TANDEN M/C,FR DRUM

main47311-35330iLN5#,YN50,55,57..GEN198308-199201

FR DRUM BRAKE

main47311-35330iYN57..SR5..(GEN,SA)198308-198403

TANDEM MASTER CYLINDER

main47311-35330iLN50,55,YN50,52,55,57..GEN,ME198403-198408

TANDEM M/C,FR DRUM

main47311-35350iLN6#,YN60,63,65,67..RHD198308-199807

FR DISC BRAKE

main47311-35370iLN65,RN61,YN6#..LHD198308-199201

FR DISC BRAKE

main47311-35400iYN57..SR5..(GEN,SA)198403-199807

TANDEM M/C,FR DISC

main47311-35430iRN5#198601-198808

main47311-35450iRN67;RN58..SR5199407-199807

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90413-10058iYN6#..RHD198608-199807

main90413-10067iLN50,55,YN50,55,57..GEN198308-198608

SINGLE MASTER CYLINDER

main90413-10111iLN5#,6#,RN5#,YN50,52,55,56,6#198308-199807

47312TUBE, FRONT BRAKE, NO.2

main47312-35390iLN55,56,YN56..LHD..EUR198308-199201

main47312-35400iLN5#,YN50,55,57..RHD..GEN198308-199201

W/TANDEM MASTER CYLINDER

main47312-35410iLN5#,YN50,52,55,57..LHD..(GEN,ME)198308-199201

W/TANDEM MASTER CYLINDER

main47312-35420iYN57..SR5..ARL198308-198508

main47312-35430iLN55,56,YN57,58..TW..ARL198308-199407

W/TANDEM MASTER CYLINDER

main47312-35430iYN65..5F..GEN198407-198508

*SA

main47312-35430iLN5#,6#199407-199807

main47312-35440iLN60,65,YN65,67..RHD..GEN198308-199407

main47312-35450iLN65,YN60,65,67..LHD..(GEN,ME)198308-199201

main47312-35480iLN65,YN65..LHD..EUR198308-199201

main47312-35490iLN50,55,YN50,55,57..RHD..GEN198308-198608

W/SINGLE MASTER CYLINDER

main47312-35500iLN5#,YN50,55,57..LHD..GEN198308-198608

W/SINGLE MASTER CYLINDER

main47312-35600iLN61,YN63..ARL198508-198903

main47312-35610iRN58,67,YN5#199407-199807

main47312-35630iRN61198712-198903

main47312-35660iYN63..ME198508-198903

main47312-35680iYN57..SR5..ARL198508-198608

main47312-35710iRN5#198601-198808

main47312-35730iYN57..SR5..ARL198608-198708

main47312-35790iLN61198608-198903

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10108iLN5#,60,65,RN5#,YN50,52,55,57,60,62,65,67..GEN,ME198308-199201

W/TANDEM MASTER CYLINDER

main90412-10108iYN57..SR5..ARL198308-198608

main90412-10135iYN63..ME198508-198903

main90413-10153iLN50,55,YN50,55,57..GEN198308-198608

W/SINGLE MASTER CYLINDER

main90413-10188iRN61198508-198808

main90413-10233iRN61198808-198903

main90415-10006iYN57..SR5..SA;LN5#,YN50,55,56,57..(DLX,STD)..(ARL,EUR,SA)198308-199807

main90415-10006iYN65..5F..GEN198407-198508

*SA

47313TUBE, FRONT BRAKE, NO.3

main47313-35270iRN5#198601-198808

main47313-35280iYN57..SR5..(GEN,SA)198308-199407

W/TANDEM MASTER CYLINDER

main47313-35280iLN5#199407-199807

main47313-35290iLN5#,YN50,52,55,56,57..LHD198308-199201

main47313-35300iYN57..SR5..ARL198308-198508

main47313-35310iLN67198308-199807

main47313-35320iLN65,YN60,62,65,67..LHD198308-199201

main47313-35330iLN50,55,YN50,55,57..RHD..GEN198308-198608

W/SINGLE MASTER CYLINDER

main47313-35340iLN5#,YN50,55,57..LHD..GEN198308-198608

W/SINGLE MASTER CYLINDER

main47313-35400iLN61,YN63..ARL198508-198608

main47313-35410iRN61,YN63..LHD198508-198903

main47313-35430iRN67199407-199807

main47313-35460iLN61198608-198903

main47313-35470iYN57..SR5..ARL198508-198608

main47313-35490iYN63..ARL198608-198903

main47313-35500iYN57..SR5..ARL198608-198708

main47313-35660iRN58..SR5199407-199807

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02383iLN60,65,67,RN67,YN60,62,65,67198308-199807

main90947-02446iYN57..DLX,STD198308-199001

sub90947-02447

main90947-02447iYN51,58;LN51,56,RN58,YN55,56,57..SR5,STD198308-199807

main90947-02588iRN61,YN63198812-198903

sub96950-33555

main96950-33555iLN61,RN61,YN63198508-198812

47314TUBE, FRONT BRAKE, NO.4

main47314-35170iLN5#,YN50,55,56..ARL,EUR,GEN,SA198308-199807

main47314-35180iLN60,65,67,RN67,YN60,65,67..ARL,EUR,SA198308-199807

main47314-35180iYN65..5F..GEN198407-198508

*SA

main47314-35240iLN61,YN63..ARL198508-198903

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02488iLN5#,RN5#,YN50,52,55,57..GEN,ME198508-199201

main90947-02589iLN6#,RN6#,YN6#198812-199807

main96940-34305iLN5#,YN50,55,56,57..ARL,EUR,SA198308-198812

main96940-34305iYN58..4F;YN58..SR5,STD;LN51,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198608-199807

W/LSPV OR LSP&BV

main96940-34605iYN57..RHD..RCB..5F..GEN198502-199201

THAI LAND SPEC,L=460

main96940-34805iLN6#,YN6#198308-198508

47321TUBE, REAR BRAKE, NO.1

main47321-35210iYN57..SR5..(GEN,SA);YN57..RHD..(DLX,STD);LN5#,60,65,YN50,51,55,56,58,60,65,67..RHD198308-199807

main47321-35220iLN5#,YN50,52,55,56,57..LHD198308-199201

main47321-35230iYN57..SR5..ARL198308-198508

main47321-35240iLN61,YN63..ARL198508-198903

main47321-35250iLN65,YN60,62,65,67..LHD198308-199201

main47321-35310iRN61198712-198903

main47321-35350iYN63..ME198508-198903

main47321-35370iLN61198608-198903

main47321-35380iYN57..SR5..ARL198508-198608

main47321-35420iRN5#198601-198808

main47321-35430iYN57..SR5..ARL198608-198708

main47321-35530iRN67;RN58..SR5199407-199807

47321AWAY(FOR REAR BRAKE TUBE)

main90413-10152iLN5#,YN5#198308-198508

main90413-10162iLN60,61,65,RN6#,YN6#198308-199807

main90413-10198iYN58..4F;YN58..SR5,STD;LN51,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198508-199807

47322TUBE, REAR BRAKE, NO.2

main47322-35180iLN56,YN55..RHD..T1..GEN..CBU198510-198608

THAILAND SPEC

main47322-35180iLN5#,RN5#,YN5#..RCB,XTR198608-199807

W/LSPV OR LSP&BV

main47322-35180iLN55,56,YN55,56,57..RCB..(ARL,EUR,SA)198308-198608

main47322-35200iLN56,YN55,57..(RCB,XTR)..GEN198408-198608

TANDEM M/C & W/O DSPV OR LSPV

main47322-35200iYN55,57..RCB..ME198308-198608

main47322-35200iLN55,YN55,57..(RCB,XTR)..GEN198308-198408

TANDEM M/C,W/O DSPV

main47322-35210iLN51,RN50,YN50,52..GEN,ME198608-199201

W/LSPV

main47322-35210iLN51,YN50..RHD..GEN198510-198608

THAILAND SPEC

main47322-35210iLN50,51,YN50..SA198308-198608

main47322-35220iLN50,YN50..GEN198308-198408

TANDEM M/C,W/O DSPV

main47322-35220iLN51,YN50..GEN198408-198608

TANDEM M/C,W/O DSPV OR LSPV

main47322-35220iYN50,52..ME198308-198508

TANDEM.M/C,W/O DSPV

main47322-35240iLN51,YN50..GEN198308-198608

SINGLE M/C

main47322-35250iLN56,YN55,57..(RCB,XTR)..GEN198308-198608

SINGLE M/C

main47322-35260iLN55,56,RN55,YN55,57..(RCB,XTR)..(GEN,ME)198308-198608

W/DSPV

main47322-35280iLN50,51,RN50,YN50,52..GEN,ME198308-198608

W/DSPV

main47322-35300iLN60,65,67,RN67,YN60,62,65,67198308-199807

main47322-35310iLN55,56,RN55,YN55,57..TW..(GEN,ME)198312-198608

W/DSPV

main47322-35320iLN55,56,YN57..TW..(ARL,EUR)198312-198608

main47322-35320iLN56,57,RN55,58,YN55,57,58..TW198608-199807

W/LSPV OR LSP&BV

main47322-35330iLN56,YN55,57..TW..GEN198508-198608

W/O LSPV

main47322-35330iLN56,YN55,57..TW..4F198312-198508

main47322-35340iLN55,56,YN55,57..TW..GEN198312-198608

SINGLE M/C

main47322-35400iLN61,RN61,YN63198508-198903

47324TUBE, REAR BRAKE, NO.4

main47324-35060iLN5#,YN50,52,55,56198308-198508

main47324-35070iYN57..SR5..ARL198308-198508

main47324-35080iLN6#,YN6#198308-198508

main47324-35100iLN61,RN61,YN63198508-198903

main47324-35110iLN65,67,RN67,YN60,62,65,67198508-199807

main47324-35120iYN57..SR5..(GEN,SA)198508-199807

main47324-35130iYN57..SR5..ARL198508-198708

47325TUBE, REAR BRAKE, NO.5

main47325-35070iYN57..SR5..(GEN,SA)198308-198508

main47325-35080iYN57..SR5..ARL198308-198508

main47325-35090iLN6#,YN6#198308-198508

main47325-35110iLN61,RN61,YN63198508-198903

main47325-35120iLN65,67,RN67,YN60,62,65,67198508-199807

main47325-35130iYN57..SR5..(GEN,SA)198508-199807

main47325-35140iYN57..SR5..ARL198508-198708

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47342-35010iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-199201

main47342-35020iLN50,55,YN50,52,55,57..GEN,ME198308-199201

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47341-35030iLN60,65,YN60,62,65,67198308-198811

FR DISC BRAKE

sub47341-35120

main47341-35040iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-199201

FR DRUM BRAKE

main47341-35080iLN5#,YN50,55,57..GEN198308-199201

FR DRUM BRAKE

main47341-35090iLN5#,RN5#,YN5#198308-198811

FR DISC BRAKE

sub47341-35110

main47341-35100iLN61,RN61,YN63198508-198903

main47341-35110iLN5#,RN58,YN5#198811-199807

FR DISC BRAKE

main47341-35120iLN6#,RN67,YN6#198811-199807

FR DISC BRAKE

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47342-35010iLN65,YN62,67..GEN198308-199201

main47342-35020iLN50,55,YN50,52,55,57..GEN,ME198308-199201

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47343-35030iLN60,65,YN60,62,65,67198308-198811

FR DISC BRAKE

sub47343-35120

main47343-35040iLN6#,YN6#..(DLX,STD)..(GEN,ME)198308-199201

FR DRUM BRAKE

main47343-35080iLN5#,YN50,55,57..GEN198308-199201

FR DRUM BRAKE

main47343-35090iRN5#,YN50,51,52,55198308-198811

FR DISC BRAKE

sub47343-35110

main47343-35100iLN61,RN61,YN63198508-198903

main47343-35110iLN5#,RN58,YN5#198811-199807

FR DISC BRAKE

main47343-35120iLN6#,RN67,YN6#198811-199807

FR DISC BRAKE

47354BRACKET, FRONT FLEXIBLE HOSE

main47354-35070iYN57..SR5..ARL198308-199807

47371ACLAMP, BRAKE TUBE, NO.1

main47371-35020iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198308-199201

DASH PANEL SIDE

main47371-35030iLN5#,RN58,YN50,51,55,56,57,58..RHD198308-199807

SIDE RAIL SIDE

main47371-35040iRN61,YN63..EFI198608-198903

47372CLAMP, BRAKE TUBE, NO.2

main47372-35010iYN65..5F..GEN198407-198508

*SA

main47372-35010iLN55,56,65,YN56,65,67..LHD..EUR198308-199807

47373BCLAMP, BRAKE TUBE, NO.3

main47371-35050iYN6#..CBR198308-199407

SIDE RAIL SIDE

main47371-35060iRN61,YN63..EFI198608-198903

main47372-35020iLN6#198308-199508

SIDE RAIL SIDE

main47373-35010iLN5#..RHD198308-199508

DASH PANEL SIDE

main47373-35010iLN5#,67199508-199807

47374BCLAMP, BRAKE TUBE, NO.4

main47373-35020iLN61,YN63..5F198508-198903

SIDE RAIL SIDE

main47373-35030iRN61,YN63..EFI198608-198903

SIDE RAIL SIDE

main47374-35010iLN5#,6#,RN58,67,YN50,51,55,56,57,58,60,63,65,67..RHD198308-199807

DASH DANEL SIDE

47375CLAMP, BRAKE TUBE, NO.5

main47375-35010iYN58..4F;YN58..T1..(SR5,STD);RN50,55,YN50,51,52,55,56,57..(RCB,XTR)..(4F,4FC,4H,5F)198308-199807

main47375-35030iRN55,58,YN55,57,58..TW198312-199807

main47375-35040iLN55,56,57..TW198312-199807

main47375-35050iLN50,51,55,56..RCB,XTR198308-199807

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-35020iLN50,55,YN50,52,55,57..GEN,ME198308-199807

RH

main47382-35010iLN51,56,YN50,55,57..GEN198308-199807

LH

47393INSULATOR, BRAKE TUBE HEAT

main47393-35050iLN5#198308-198508

sub47393-35051

main47393-35051iLN51,56198508-199807

main47393-35060iLN60,65,67198308-199807

main47393-35070iYN62,67198508-199407

main47393-35080iLN61198508-198903

main47393-35100iRN61,YN63198608-198903

9046106112

main90461-06112

9046106113

main90461-06113

9161140812

main91611-40812

9161640820

main91616-40820

9622130905

main96221-30905

9699110080

main96991-10080

31 parts on this diagram · 11 diagrams in section
