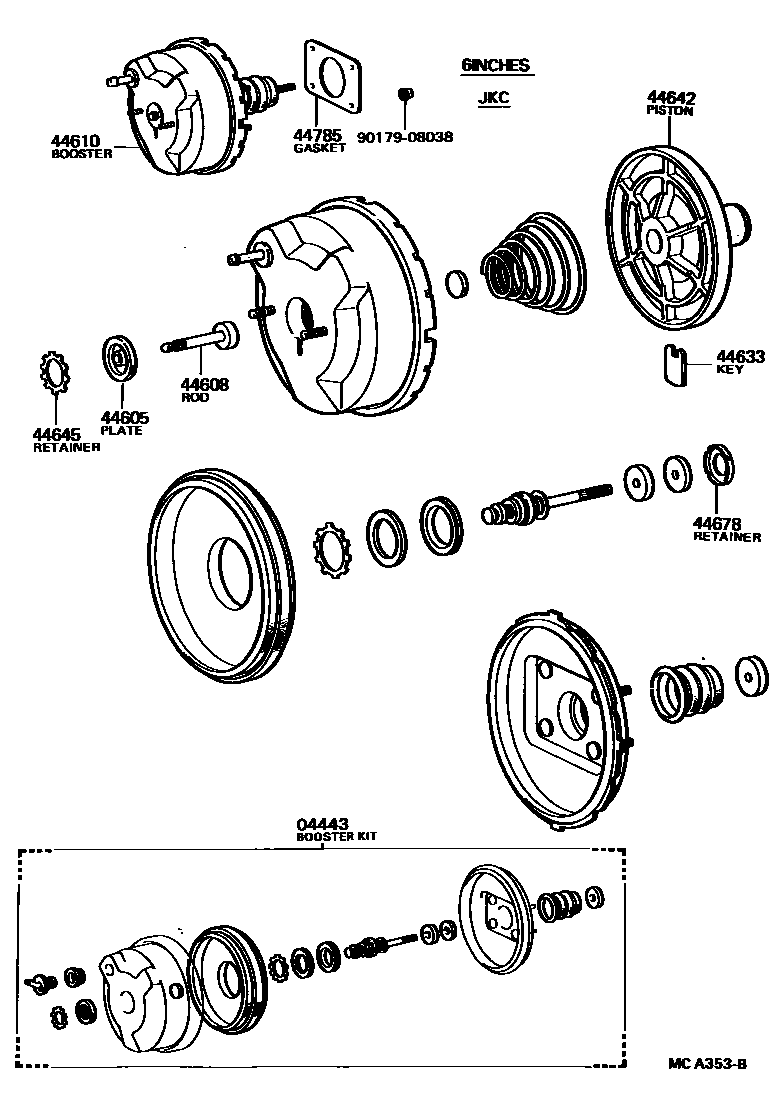

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0008 1 0009 1

04443BOOSTER KIT, BRAKE

main04443-16080iYN50,55,56,57,6#..RHD198308-198408

AISIN,8INCHES,FR DISC

sub04443-16081

main04443-16081iYN57..SR5..(GEN,SA)198603-199407

AISIN,8INCHES,FR DISC

main04443-35240iLN5#..LHD..GEN198308-198608

AISIN,6INCHES

main04443-35280iYN65..RHD..GEN198308-198408

AISIN,8INCHES,FR DRUM

sub04443-35440

main04443-35290iYN6#..LHD..4F198308-198408

AISIN,8INCHES,FR DRUM

sub04443-35490

main04443-35300iYN6#..LHD198308-198408

AISIN,8INCHES,FR DISC

sub04443-35460

main04443-35310iLN65..LHD..GEN198308-198408

AISIN,8INCHES,FR DRUM

sub04443-35470

main04443-35320iLN5#,6#198308-198408

AISIN,8INCHES,FR DISC

sub04443-35480

main04443-35330iYN50,55,57..LHD..GEN198308-198608

AISIN,6INCHES

main04443-35360iYN50,55,57..RHD..GEN198308-198608

JKC,6INCHES

main04443-35370iLN5#..RHD..GEN198308-198608

JKC,6INCHES

main04443-35390iYN50,55,57..LHD..GEN198308-199201

JKC,8INCHES,FR DRUM

main04443-35400iYN50,55,57..RHD..GEN198308-199201

JKC,8INCHES,FR DRUM

main04443-35410iYN5#..LHD..(EUR,ME)198308-198408

JKC,8INCHES,FR DISC

main04443-35420iLN5#..LHD..GEN198308-199201

JKC,8INCHES,FR DRUM

main04443-35440iYN65,67..RHD..GEN198408-199201

AISIN,8INCHES,FR DRUM

main04443-35450iYN50,55,56,57,65,67..RHD198408-198603

AISIN,8INCHES,FR DISC

sub04443-16081

main04443-35460iYN50,52,55,56,57,60,62,65,67..LHD198408-199201

AISIN,8INCHES,FR DISC

main04443-35470iLN5#,60,65..RHD..GEN198408-199201

AISIN,8INCHES,FR DRUM

main04443-35480iLN5#,60,65198408-199201

AISIN,8INCHES,FR DISC

main04443-35490iYN6#..LHD..4F198408-199201

AISIN,8INCHES,FR DRUM

main04443-35530iYN63..ARL198508-198903

main04443-35540iYN63..ME198508-198903

AISIN,9INCHES

main04443-35550iLN61198508-198903

AISIN,8INCHES

main04443-35590iYN57..SR5..ARL198508-198608

AISIN,9INCHES

main04443-35610iRN5#198601-198808

AISIN,9INCHES

main04443-35620iYN57..SR5..ARL198608-198708

AISIN,9INCHES

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-10080iLN5#,YN55,57..GEN198912-199201

main44605-22021iLN5#,YN50,55,57..GEN198308-198912

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iLN5#,6#,RN5#,61,YN5#,6#198408-199201

AISIN,8INCHES OR 9INCHES

main44606-12520iYN56..RHD;LN5#,6#,YN50,52,55,57,6#198308-198408

AISIN,8INCHES

main44606-20460iLN5#,YN50,55,57..LHD..GEN198308-198608

AISIN,6INCHES

sub44606-35100

main44608-14040iLN50,55,YN50,55,57..RHD..GEN198308-198608

JKC,6INCHES

main44608-32020iYN50,52,55,57..GEN,ME198308-199201

JKC,8INCHES

44610BOOSTER ASSY, BRAKE

main44610-35440iYN65..RHD..GEN198308-198408

AISIN,8INCHES,FR DRUM

sub44610-35650

main44610-35450iYN6#..LHD..4F198308-198408

AISIN,8INCHES,FR DRUM

sub44610-35660

main44610-35460iYN50,55,56,57,6#..RHD198308-198408

AISIN,8INCHES,FR DISC

sub44610-35670

main44610-35470iYN50,52,55,57..LHD198308-198408

AISIN,8INCHES,FR DISC

sub44610-35680

main44610-35480iLN50,55,6#..RHD..GEN198308-198408

AISIN,8INCHES,FR DRUM

sub44610-35690

main44610-35490iLN65..LHD..GEN198308-198408

AISIN,8INCHES,FR DRUM

sub44610-35700

main44610-35500iLN5#,6#..RHD198308-198408

AISIN,8INCHES,FR DISC

sub44610-35710

main44610-35510iLN50,55,65..LHD198308-198408

AISIN,8INCHES,FR DISC

sub44610-35720

main44610-35540iYN50,55,57..RHD..GEN198308-198608

JKC,6INCHES

main44610-35550iYN50,55,57..LHD..GEN198308-198608

AISIN,6INCHES

main44610-35560iLN5#..RHD..GEN198308-198608

JKC,6INCHES

main44610-35570iLN50,55..LHD..GEN198308-198608

AISIN,6INCHES

main44610-35590iYN50,52,55,57..LHD198308-198408

JKC,8INCHES,FR DRUM

sub44610-35740

main44610-35600iYN50,55,57..RHD..GEN198308-198408

JKC,8INCHES,FR DRUM

sub44610-35730

main44610-35610iYN5#..LHD..(EUR,ME)198308-198408

JKC,8INCHES,FR DISC

sub44610-35680

main44610-35620iLN5#..LHD..GEN198308-199201

JKC,8INCHES,FR DRUM

main44610-35650iYN65,67..RHD..GEN198408-199201

AISIN,8INCHES,FR DRUM

main44610-35660iYN62,67..LHD..GEN198408-199201

AISIN,8INCHES,FR DRUM

main44610-35670iYN57..SR5..(GEN,SA)198408-199407

AISIN,8INCHES,FR DISC

main44610-35680iYN50,52,55,56,57,60,62,65,67..LHD198408-199201

AISIN,8INCHES,FR DISC

main44610-35690iLN5#,60,65..RHD..GEN198408-199201

AISIN,8INCHES,FR DRUM

main44610-35700iLN65..LHD..GEN198408-199201

AISIN,8INCHES,FR DRUM

main44610-35710iLN5#,6#..RHD198408-199807

AISIN,8INCHES,FR DISC

main44610-35720iLN5#,65..LHD198408-199201

AISIN,8INCHES,FR DISC

main44610-35730iYN50,55,57..RHD..GEN198408-199201

JKC,8INCHES,FR DRUM

main44610-35740iYN50,52,55,57..LHD198408-199201

JKC,8INCHES,FR DRUM

main44610-35770iYN63..ARL198508-198903

AISIN,9INCHES

main44610-35780iYN63..ME198508-198903

AISIN,9INCHES

main44610-35790iLN61198508-198903

AISIN,8INCHES

main44610-35840iYN57..SR5..ARL198508-198608

AISIN,9INCHES

main44610-35860iRN5#198601-198808

AISIN,9INCHES

main44610-3D010iYN57..SR5..ARL198608-198708

AISIN,9INCHES

main44610-3D070iRN61198712-198903

AISHIN,9INCHES

main44610-3D650iRN67;RN58..SR5199407-199807

main44610-3D660iYN5#199407-199807

44633KEY, BOOSTER VALVE PLUNGER

main44633-22020iLN5#,YN50,55,57..RHD..GEN198308-198608

JKC,6INCHES

main44633-28130iLN5#..LHD..GEN198308-199201

JKC,8INCHES

44642PISTON, BRAKE BOOSTER

main44642-12520iLN61,RN61,YN63198508-198903

main44642-14190iLN5#,YN50,55,57..LHD..GEN198308-198608

AISIN,6INCHES

main44642-16050iLN5#,65,YN50,51,52,55,56,58,60,62,65,67198308-199201

AISIN,8INCHES

main44642-20080iLN5#,YN50,55,57..RHD..GEN198308-198608

JKC,6INCHES

main44642-27120iLN50,55..RHD..GEN198308-199201

AISIN,8INCHES,FR DRUM

main44642-32010iRN5#198508-199201

main44642-32030iYN57..SR5..ARL198608-198708

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iLN5#,YN50,55,57..LHD..GEN198308-198608

AISIN

main44645-10080iLN5#,YN55,57..GEN198912-199201

main44645-22020iLN5#,YN50,55,57..GEN198308-198912

JKC

44678RETAINER, BOOSTER AIR CLEANER

main44678-22020iLN5#,YN50,55,57..RHD..GEN198308-198608

44785GASKET, BRAKE BOOSTER

main44785-35020iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

9017908038

main90179-08038

10 parts on this diagram · 8 diagrams in section
