BRAKE PEDAL & BRACKET

0001 1 0002 1

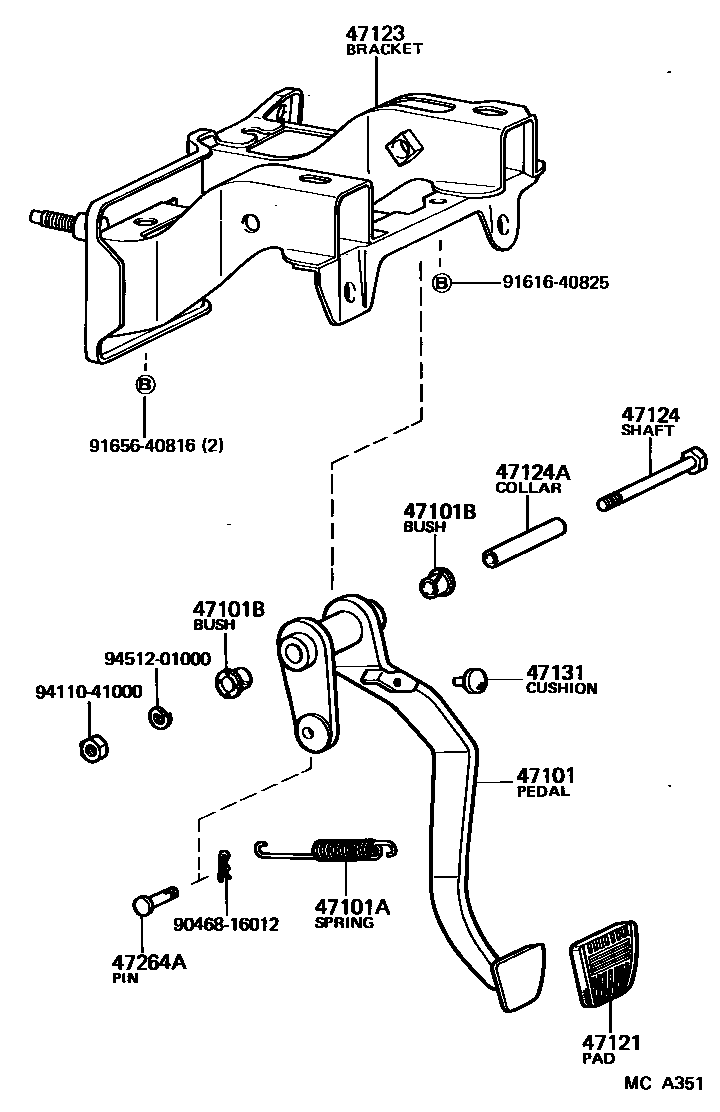

47101PEDAL SUB-ASSY, BRAKE

main47101-35200iLN5#,6#,YN50,51,56,57,58,60,63,65,67..RHD..MTM198308-199807

main47101-35210iLN56,YN57,63..4FC198308-199201

main47101-35220iLN5#,65,YN5#,6#..LHD198308-198508

main47101-35250iLN5#,65,RN5#,61,YN50,52,55,56,57,62,63,65,67..LHD198508-199201

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14021iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

47121PAD, BRAKE PEDAL

main31321-14020iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..MTM198308-199807

main47121-12011iLN56,YN57,63..4FC198308-198903

sub47121-12020

47123BRACKET, BRAKE PEDAL

main55106-89118iLN5#,65,YN5#,6#..LHD198308-198508

main55106-89120iLN5#,6#,YN50,55,56,57,6#..RHD..MTM..(ARL,GEN,SA)198308-199807

main55106-89121iLN56,YN57..4FC198308-198808

main55106-89122iLN5#,65,RN5#,61,YN63..LHD198508-199201

PLANT=A51-A54

main55106-89125iLN5#,65,RN5#,YN50,52,55,56,57,62,65,67..LHD198508-199201

PLANT=P11

main55106-89127iLN65,YN56..RHD..EUR198708-199201

47124SHAFT, BRAKE PEDAL

main90101-10480iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198308-199201

sub91552-81090

main91121-51060iLN5#,6#,RN58,67,YN50,51,55,56,57,58,60,63,65,67..RHD198308-199807

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-35030iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198308-199201

main90387-10003iLN5#,6#,RN58,67,YN50,51,55,56,57,58,60,63,65,67..RHD198308-199807

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

47264APIN(FOR PUSH ROD)

main47148-35010iLN5#,6#,RN58,67,YN5#,67199201-199807

main90249-10064iLN5#,6#,RN5#,61,YN5#,6#198308-199201

9046816012

main90468-16012

9161640825

main91616-40825

9165640816

main91656-40816

9411041000

main94110-41000

9451201000

main94512-01000

14 parts on this diagram · 2 diagrams in section
