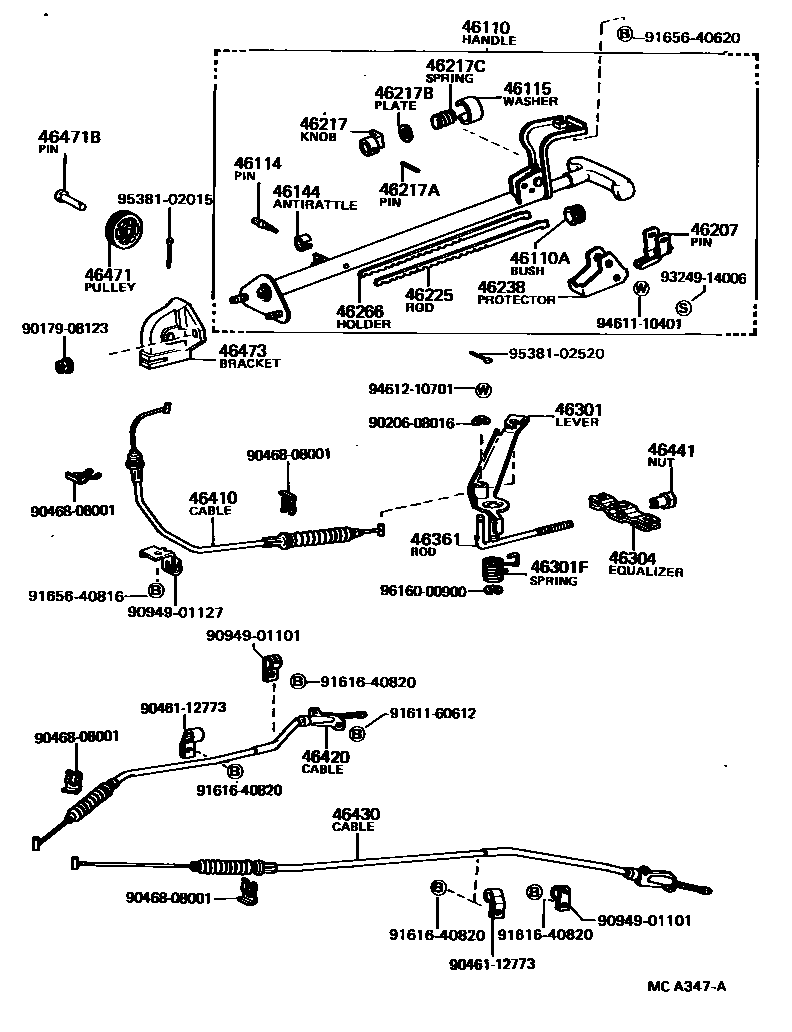

PARKING BRAKE & CABLE

0001 1NEW ZEALAND SPEC 0002 1NEW ZEALAND SPEC 0003 1 0005 1

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46110-35150iLN5#,6#,YN50,55,56,57,65..RHD..(EUR,GEN,SA)198308-198408

main46110-35160iLN50,55,65,YN5#,6#..LHD198308-198408

main46110-35170iLN55,56,6#,YN55,57,6#..ARL198308-198508

NEW ZEALAND SPEC

main46110-35180iLN5#,65,RN5#,61,YN50,52,55,56,57,6#..LHD198408-199201

main46110-35190iLN5#,6#,YN50,51,55,56,57,58,60,63,65,67..RHD198408-199407

46110ABUSH OR RING, O (FOR PARKING BRAKE PLUNGER)

main90386-12048iLN5#,6#,RN5#,61,YN5#,6#198308-199407

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLN5#,6#,RN5#,61,YN5#,6#198308-199407

46115WASHER, PARKING BRAKE PLUNGER

main46115-35010iLN55,56,65,YN55,57,65..ARL198308-198309

NEW ZEALAND SPEC

sub46115-36010

main46115-36010iLN55,YN57..RHD..GEN198309-198408

NEW ZEALAND SPEC

46144ANTI-RATTLE, PARKING BRAKE PLUNGER

main46144-20010iLN5#,6#,RN5#,61,YN5#,6#198308-199407

46207PIN SUB-ASSY, PLUNGER LOCK

main46207-35010iLN65,YN65..RHD..RCB..GEN198308-198408

NEW ZEALAND SPEC

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-35010iLN65,YN65..RHD..RCB..GEN198308-198408

NEW ZEALAND SPEC

46217APIN, SLOTTED SPRING(FOR PARKING BRAKE RELEASE ROD KNOB)

main90254-02002iLN65,YN65..RHD..RCB..GEN198308-198408

NEW ZEALAND SPEC

46217BWASHER, PLATE(FOR PARKING BRAKE RELEASE ROD KNOB)

main90201-12017iLN65,YN65..RHD..RCB..GEN198308-198408

NEW ZEALAND SPEC

46217CSPRING, COMPRESSION(FOR PARKING BRAKE RELEASE ROD KNOB)

main90501-10023iLN65,YN65..RHD..RCB..GEN198308-198408

NEW ZEALAND SPEC

46225ROD, PARKING BRAKE PAWL RELEASE

main46225-35030iLN65,YN65..RHD..RCB..GEN198308-198408

NEW ZEALAND SPEC

46238PROTECTOR, PLUNGER LOCK PIN

main46238-35010iLN65,YN65..RHD..RCB..GEN198308-198408

NEW ZEALAND SPEC

46266HOLDER, PLUNGER LOCK PIN

main46266-35010iLN65,YN65..RHD..RCB..GEN198308-198408

NEW ZEALAND SPEC

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-35120iLN5#,RN5#,YN50,52,55,56,57..LHD198308-199201

main46301-35130iLN5#,RN58,YN50,51,55,56,57,58..RHD198308-199807

main46301-35140iLN6#,RN67,YN6#198308-199807

main46301-35150iLN61,RN61,YN63198508-198903

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-32008iLN5#,RN58,YN50,51,55,56,57,58..RHD198308-199807

main90508-32018iLN5#,RN5#,YN50,52,55,56,57..LHD198308-199201

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main46341-35030iLN60,61,65,RN6#,YN6#198308-199807

46361ROD, PARKING BRAKE PULL

main46361-35050iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-35230iLN55..LHD..5F;YN52,56,57..LHD198308-199807

main46410-35240iLN5#..RHD198308-199201

main46410-35250iLN65,YN65,67..LHD198308-199201

main46410-35260iYN60,62..LHD198308-198608

main46410-35270iRN67,YN60,63,65,67..RHD198308-199807

main46410-35280iYN60..ARL198403-198508

main46410-35290iLN6#..RHD198308-199807

main46410-35300iLN60198308-198508

main46410-35320iYN50,55..LHD198308-199201

main46410-35340iRN61,YN63..LHD198508-198903

main46410-35350iYN63..ARL198508-198903

main46410-35360iLN61198508-199201

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-35200iYN57..SR5..ARL198308-198508

sub46420-35201

main46420-35201iYN57..SR5..ARL198508-199201

main46420-35230iYN57..DLX,STD198308-199807

main46420-35240iLN50,51,RN50,YN50,51,52198308-199201

main46420-35250iLN60,65,YN60,62,65,67..T1,TW198308-199807

main46420-35280iLN60,YN60..SR5198403-198508

main46420-35310iLN61,RN61,YN63198508-198903

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-35170iYN57..SR5..ARL198308-198508

sub46430-35171

main46430-35171iYN57..SR5..ARL198508-198708

main46430-35200iLN55,56,RN55,YN55,56,58198308-199807

main46430-35210iLN50,51,RN50,YN50,52198308-199201

46441NUT, WIRE ADJUSTING, NO.1

main46441-30030iLN60,61,65,RN6#,YN6#198308-199807

main46441-35010iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

46471PULLEY, WIRE

main46471-20010iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-08070iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

46473BRACKET, PULLEY

main46473-35020iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

9017908123

main90179-08123

9020608016

main90206-08016

9046112773

main90461-12773

9046808001

main90468-08001

9094901101

main90949-01101

9094901127

main90949-01127

9161160612

main91611-60612

9161640820

main91616-40820

9165640620

main91656-40620

9165640816

main91656-40816

9324914006

main93249-14006

9461110401

main94611-10401

9461210701

main94612-10701

9538102015

main95381-02015

9538102520

main95381-02520

9616000900

main96160-00900

40 parts on this diagram · 4 diagrams in section
