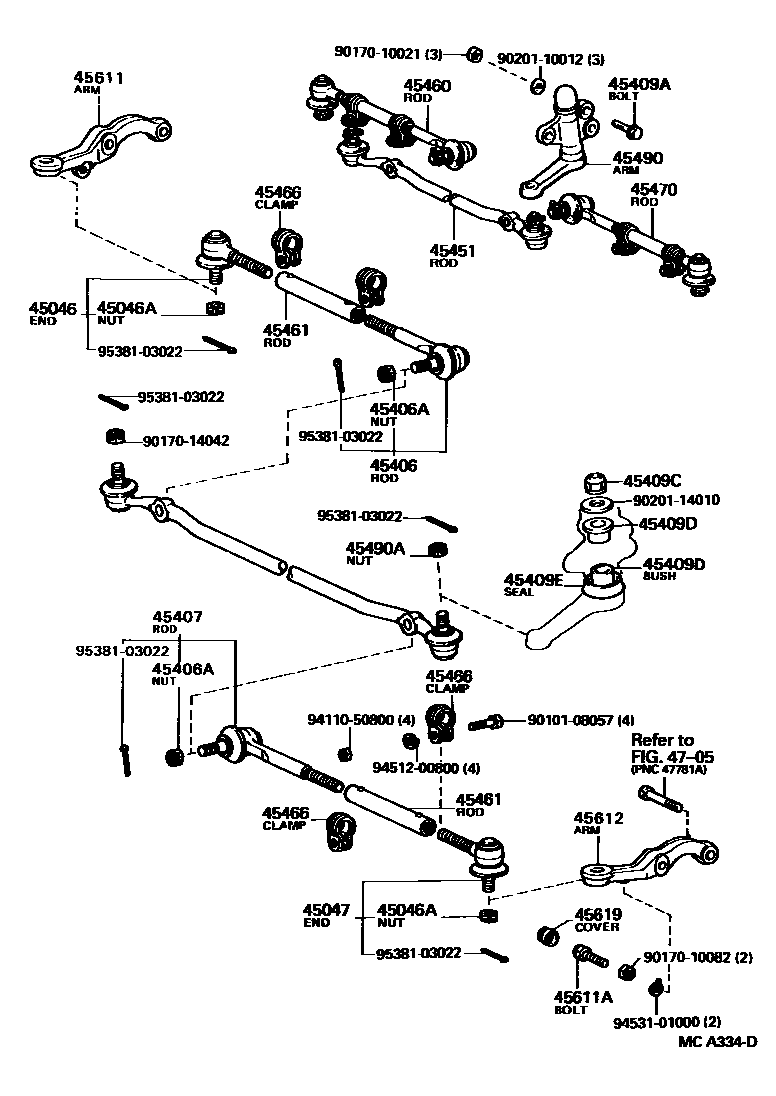

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1POWER STEERING 0014 1POWER STEERING

04371FSPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT)

main04371-10011×2iLN6#,YN6#198308-198508

45046END SUB-ASSY, TIE ROD, RH

main45046-29125iLN61,RN61,YN63198508-198903

sub45046-39235

main45046-35080iLN6#,YN6#198308-199407

sub45046-35H00

main45046-39165iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

sub45046-39375

main45046-39256iLN67,RN67199407-199807

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iLN5#,6#,RN5#,6#,YN5#,6#198308-199508

45047END SUB-ASSY, TIE ROD, LH

main45046-29125iLN61,RN61,YN63198508-198903

sub45046-39235

main45046-39165iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

sub45046-39375

main45047-35050iLN6#,YN6#198308-199407

sub45047-35H00

main45047-39156iLN67,RN67199407-199807

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-35170iLN5#,YN50,51,55,56,57,58..ARL,EUR,GEN,SA198608-199201

RIGID STRG

main45201-35180iYN57..SR5..ARL198308-198808

W/POWER STRG

main45210-22050iLN6#,YN60,63,65,67..ARL,ME,SA198308-199201

W/TILT & COLLAPSIBLE STRG

main45210-35090iRN5#,YN50,52,55,57..ME198308-199201

COLLAPSIBLE STRG

main45210-35100iYN6#..ME198308-198508

COLLAPSIBLE STRG,W/O TILT STRG

main45210-35101iYN60,63,67..ME198508-198808

COLLAPSIBLE STRG,W/O TILT STRG

main45210-35110iLN6#,YN65;YN60..DLX;YN60..ARL,GEN198308-198508

RIGID STRG,W/O TILT STRG

main45210-35111iLN65,YN67..ARL,EUR,GEN,SA198608-199201

RIGID STRG,W/O TILT STRG

45201ABEARING(FOR STEERING MAIN SHAFT)

main45225-35010iYN6#..ME198308-198508

LWR,COLLAPSIBLE STRG

main45225-60010iRN61198711-198903

LWR

main90363-18001iLN55,56,YN57..SR5198308-199201

UPR,W/TILT STRG

main90363-28001iLN55,56,YN57..SR5198308-199201

CTR,W/TILT STRG

main90363-30007iLN60,65,YN60,65198308-199201

LWR,RIGID STRG

main90369-43004iRN5#,YN50,52,55,57..ME198308-199201

LWR

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

T=1.20,LWR

main90520-17269iLN5#,6#,RN5#,6#,YN5#,6#198308-199807

T=1.20,UPR

45201DRING(FOR STEERING MAIN SHAFT)

main96151-04700iLN6#,YN6#198308-198508

RIGID STRG

main96152-00300iYN60,63,65,67..ME198308-198608

COLLAPSIBLE STRG

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45201-35160iYN57..SR5..ARL198308-198808

W/POWER & TILT STRG

main45201-35200iLN55,56,YN57..SR5198308-199201

W/TILT STRG

main45220-35040iRN5#,YN50,52,55,57..ME198308-199201

main45220-35080iLN6#,YN65;YN60..DLX;YN60..ARL,GEN198308-198508

RIGID STRG,W/O POWER STRG

main45220-35090iYN65..SA;LN60,YN6#..SR5..ARL198308-198508

W/POWER STRG

main45220-35100iYN6#..ME198402-198508

COLLAPSIBLE STRG,W/OPOWER STRG

main45220-35110iYN60..SR5..ME198403-198508

W/POWER & COLLAPSIBLE STRG

main45220-35120iRN61198712-198903

main45220-35130iLN61,YN63..ARL198508-198903

main45220-35140iYN60,67..ME198508-198808

W/COLLAPSIBLE STRG

main45220-35150iLN65,YN62,65,67198508-198608

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-35180iLN55,56,YN57..SR5198308-199201

W/TILT STRG

main45205-35190iLN5#,RN58,YN5#199201-199807

main45205-35200iLN6#,YN65;YN60..DLX;YN60..ARL,GEN198308-198508

RIGID STRG

main45205-35201iLN6#,YN67199201-199807

main45205-35210iLN6#,YN6#..ARL,SA198308-198508

W/TILT & RIGID STRG

main45205-35211iLN65,YN62,67..LHD..GEN198508-199201

W/TILT & RIGID STRG

main45870-35060iRN5#,YN50,52,55,57..ME198308-199201

COLLAPSIBLE STRG

main45870-35070iRN5#,YN50,52,55,57..ME198308-199201

W/TILT & COLLAPSIBLE STRG

main45870-35080iYN6#..ME198308-198508

W/TILT & COLLAPSIBLE STRG

main45870-35081iYN60,63,67..ME198508-198903

W/TILT & COLLAPSIBLE STRG

main45870-35090iYN6#..ME198308-198508

COLLAPSIBLE STRG

main45870-35091iYN60,63,67..ME198508-198903

COLLAPSIBLE STRG

45205ERING, SNAP(FOR STEERING COLUMN TUBE)

main90521-01002iYN50,52,55,57,6#..ME198308-198508

main90521-01003iRN61198712-198903

45219YOKE, STEERING SLIDING

main45219-35010iLN6#,YN6#198308-198508

45230COUPLING ASSY, FLEXIBLE

main45230-35020iLN5#,RN5#,YN5#198308-199108

main45230-35040iLN6#,YN6#198308-198508

main45230-35060iYN51,56,58199108-199201

45231CBEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT)

main37402-10020×8iLN6#,YN6#198308-198508

45231DRING, HOLE SNAP(FOR STEERING MAIN SHAFT)

main90521-22011×4iLN6#,YN6#198308-198508

T=1.20

main90521-22012×4iLN6#,YN6#198308-198508

T=1.25

main90521-22013×4iLN6#,YN6#198308-198508

T=1.30

45244YOKE, STEERING WORM

main45244-60020iLN6#,YN6#198308-198508

45253COVER, STEERING COLUMN HOLE

main45025-35050iLN65,YN6#..LHD198308-198508

RIGID STRG

main45025-35051iLN65,YN6#..LHD198508-198608

RIGID STRG

main45025-35060iLN6#,YN6#..RHD198308-198508

main45025-35061iLN6#,RN67,YN67199201-199807

main45025-35070iYN6#..ME198308-198508

COLLAPSIBLE STRG

main45025-35071iRN61198712-198903

main45025-35080iYN50,55..4H198308-198510

main45025-35081iYN50,51,55,56..4H198510-199201

main45025-35090iLN5#,YN50,55,56,57..RHD..(4F,4FC,5F)198308-198510

main45025-35091iLN5#,YN50,51,55,56,57,58..RHD..(4F,4FC,5F)198510-199201

main45025-35100iLN5#,YN50,55,56,57..LHD..(EUR,GEN)198608-199201

RIGID STRG

main45025-35110iRN5#,YN50,52,55,57..ME198308-199201

COLLAPSIBLE STRG

45254SHIELD, STEERING COLUMN HOLE

main45254-35010iLN65,RN61,YN6#..LHD198308-199201

main45254-35020iLN6#,RN67,YN60,63,65,67..RHD198308-199807

main45254-35030iLN5#,RN58,YN50,51,55,56,57,58..RHD198308-199807

main45254-35040iLN5#,RN5#,YN50,52,55,56,57..LHD198308-199201

45255PLATE, STEERING COLUMN HOLE COVER

main45255-35010iRN50,55,YN50,52,55,57..ME198308-199807

main45255-35020iYN6#..ME198308-198508

main45255-35021iRN61198712-198903

45255AGROMMET OR RING, O(FOR STEERING COLUMN CLAMP)

main90301-60122iRN61198712-198903

45263RING, STEERING COLUMN, NO.1

main45263-32010iYN6#..ME198308-198508

45275BRACKET, STEERING COLUMN, UPPER

main45280-28040iLN55,56,YN57..SR5198308-198708

W/TILT STRG

main45280-28041iLN65,YN6#..ARL,SA198708-199201

W/TILT STRG

sub45280-28090

main45280-28060iLN5#,65,YN50,55,57,60,62,65,67..LHD..GEN198408-198708

W/TILT STRG

main45280-28061iLN5#,65,YN50,55,57,67..LHD..GEN198708-199201

W/TILT STRG

main45280-35140iLN5#,65,RN5#,YN5#,60,62,65,67..LHD198308-198608

main45280-35141iLN5#,RN5#,YN50,52,55,56,57..LHD198708-199201

main45280-35150iLN5#,6#,YN50,55,56,57,63,65,67..RHD198308-198608

main45280-35151iLN5#,6#,RN58,YN5#,67199201-199807

main45280-35160iYN60,63,65,67..ME198308-198708

W/COLLAPSIBLE STRG

main45280-35161iYN6#..ME198708-199201

W/COLLAPSIBLE STRG

main45280-35170iRN5#,YN50,52,55,57,60,63,65,67..ME198308-198708

W/TILT & COLLAPSIBLE STRG

main45280-35171iRN61198712-198903

45281HOUSING, STEERING COLUMN

main45286-35190iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD..(4F,4FC,5F)198308-198608

UPR

main45286-35190-03iLN61,YN63..ARL198608-199201

UPR,GRAY,GRAY,TRIM1#

main45286-35190-04iLN5#,65,YN50,51,56,57,58,67..RHD..(4F,4FC,5F)198608-199201

UPR,BLUE,BLUE,TRIM8#

main45286-35190-05iLN5#,6#,YN50,51,55,56,57,58,67..RHD..(4F,4FC,5F)198608-199201

UPR,BEIGE,BEIGE,TRIM4#

main45286-35200iYN50,55..4H198308-198608

UPR

main45286-35200-03iYN51,56..4H198608-199108

UPR,GRAY,GRAY,TRIM1#

main45286-35200-04iYN51,55,56..4H198608-199108

UPR,BLUE,BLUE,TRIM8#

main45286-35200-05iYN51,55,56..4H198608-199108

UPR,BEIGE,BEIGE,TRIM4#

main45286-35210-03iYN51,56..STD199108-199201

UPR,GRAY,GRAY

main45286-35210-04iYN51,56..STD199108-199201

UPR,BLUE,BLUE

main45286-35210-05iYN51,56..STD199108-199201

UPR,BEIGE,BEIGE

main45286-35220iLN5#,65,RN5#,YN5#,6#..LHD198308-198608

UPR

main45286-35220-03iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198608-199201

UPR,GRAY,GRAY,TRIM1#

main45286-35220-04iLN5#,65,RN5#,YN50,52,55,56,57,67..LHD198608-199201

UPR,BLUE,BLUE,TRIM8#

main45286-35220-05iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198608-199201

UPR,BEIGE,BEIGE,TRIM4#

main45286-35230iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

UPR,W/TILT STRG

main45286-35230-03iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

UPR,W/TILT STRG,GRAY,GRAY,TRIM1#

main45286-35230-04iLN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME)198608-199201

UPR,W/TILT STRG,BLUE,BLUE,TRIM8#

main45286-35230-05iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

UPR,W/TILT STRG,BEIGE,BEIGE,TRIM4#

main45286-35240iLN55,56,YN57..SR5198308-198608

UPR,W/TILT STRG

main45286-35240-03iLN6#,YN58,6#..RHD..(DLX,SR5)198608-199201

UPR,W/TILT STRG GRAY,GRAY,TRIM1#

main45286-35240-04iLN5#,6#,RN58,67,YN5#,67199201-199807

UPR,BLUE(TRIM8),W(TILT STEERING),BLUE

main45286-35240-05iLN6#,YN58,6#..ARL,SA198608-199201

UPR,W/TILT STRG,BEIGE,BEIGE,TRIM4#

main45287-35140iLN55,56,YN57..SR5198308-198608

LWR,W/TILT STRG

main45287-35140-03iLN6#,YN58,6#..RHD..(DLX,SR5)198608-199201

LWR,W/TILT STRG,GRAY,GRAY,TRIM1#

main45287-35140-04iLN5#,6#,RN58,67,YN5#,67199201-199807

LWR,BLUE(TRIM8),W(TILT STEERING),BLUE

main45287-35140-05iLN6#,YN58,6#..ARL,SA198608-199201

LWR,W/TILT STRG,BEIGE,BEIGE,TRIM4#

main45287-35150iLN5#,6#,YN50,55,56,57,60,63,65,67..RHD..(4F,4FC,5F)198308-198608

LWR

main45287-35150-03iLN61,YN63..ARL198608-198903

LWR,GRAY,GRAY,TRIM1#

main45287-35150-04iLN5#,6#,RN58,67,YN5#,67199201-199807

LWR,BLUE(TRIM8),BLUE

main45287-35150-05iLN5#,6#,YN50,51,55,56,57,58,67..RHD..(4F,4FC,5F)198608-199201

LWR,BEIGE,BEIGE,TRIM4#

main45287-35160iYN50,55..4H198308-198608

LWR

main45287-35160-03iYN51,56..STD..(ARL,SA)198608-199201

LWR,GRAY,GRAY,TRIM1#

main45287-35160-04iYN51,55,56..STD..(ARL,SA)198608-199201

LWR,BLUE,BLUE,TRIM8#

main45287-35160-05iYN51,55,56..STD..(ARL,SA)198608-199201

LWR,BEIGE,BEIGE,TRIM4#

main45287-35170iLN5#,65,RN5#,YN5#,6#..LHD198308-198608

LWR

main45287-35170-03iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198608-199201

LWR,GRAY,GRAY,TRIM1#

main45287-35170-04iLN5#,65,RN5#,YN50,52,55,56,57,67..LHD198608-199201

LWR,BLUE,BLUE,TRIM8#

main45287-35170-05iLN5#,65,RN5#,YN50,52,55,56,57,6#..LHD198608-199201

LWR,BEIGE,BEIGE,TRIM4#

main45287-35180iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198308-198608

LWR,W/TILT STRG

main45287-35180-03iLN5#,65,RN5#,YN50,52,55,57,6#..LHD..(GEN,ME)198608-199201

LWR,W/TILT STRG,GRAY,GRAY,TRIM1#

main45287-35180-04iLN5#,65,RN5#,YN50,52,55,57,67..LHD..(GEN,ME)198608-199201

LWR,W/TILT STRG,BLUE,BLUE,TRIM8#

main45287-35180-05iRN61198712-198903

LWR,BEIGE,BEIGE,TRIM4#

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35021iLN5#,RN5#,YN5#198608-199807

main45292-35030iLN6#,YN6#198308-198508

RIGID STRG

main45292-60030iYN6#..ME198308-198508

COLLAPSIBLE STRG

main45292-60050iYN63..ARL;LN6#,YN60,62,65,67198508-198608

RIGID STRG

45406ROD SUB-ASSY, TIE, RH

main45406-39115iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main45406-39135iLN61,RN61,YN63198508-198903

sub45406-39185

45406ANUT, CASTLE(FOR TIE ROD)

main90171-14042×2iLN5#,RN58,YN5#198903-199807

45407ROD SUB-ASSY, TIE, LH

main45406-39115iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main45406-39135iLN61,RN61,YN63198508-198903

sub45406-39185

45409ABOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING)

main90101-10113×3iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

*10-1.25PX93-25

45409CNUT(FOR IDLER ARM SUPPORT)

main94184-61400iLN5#,61,RN5#,61,YN5#,63198308-198903

45409DBUSH(FOR IDLER ARM)

main90385-18068×2iLN5#,61,RN5#,61,YN5#,63198308-198808

main90386-18002×2iLN5#,61,RN58,61,YN5#,63198808-199807

45409ESEAL, DUST(FOR IDLER ARM SUPPORT)

main90304-31012iLN5#,61,RN5#,61,YN5#,63198308-198903

45451ROD, STEERING RELAY

main45450-39105iLN5#,YN51,56,58199108-199807

main45450-39115iYN57..SR5..ARL198308-198708

W/POWER STEERING

main45450-39125iLN5#,RN5#,YN50,52,55,56,57..LHD198308-199201

main45451-39015iRN61,YN63..LHD198508-198903

sub45451-39145

main45451-39025iLN61,YN63..ARL198508-198903

sub45451-39135

45460ROD ASSY, TIE, RH

main45460-39205iLN60,65,YN60,62,65,67198308-198701

main45460-39215iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main45460-39245iLN61,RN61,YN63198508-198903

sub45460-39335

main45460-39255iLN65,RN67,YN67198701-199508

45461ROD, STEERING TIE

main45461-35100iLN60,65,YN60,62,65,67198308-198701

main45461-35120iLN6#,RN67,YN67198701-199807

main45465-35020×2iLN5#,RN5#,YN5#198308-199211

main45465-35030iLN61,RN61,YN63198508-198903

main45465-35050×2iLN5#,RN58,YN5#199211-199807

45466CLAMP, TIE ROD END

main45466-30020×4iYN58..4F;YN58..SR5,STD;LN50,51,55,56,61,RN50,55,61,YN50,51,52,55,56,57,63..4F,4FC,4H,5F198308-199807

main45466-55010×2iLN60,65,YN60,62,65,67198308-198701

main45466-55020×2iLN6#,RN67,YN67198701-199807

45470ROD ASSY, TIE, LH

main45460-39215iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

main45470-39055iLN61,RN61,YN63198508-198903

sub45460-39335

45490ARM ASSY, STEERING IDLER

main45490-35130iLN5#,RN58,YN50,51,55,56,57,58..RHD198308-199807

main45490-35140iLN5#,RN5#,YN50,52,55,56,57..LHD198308-199201

main45490-39245iRN61,YN63..LHD198508-198808

main45490-39255iLN61,YN63..ARL198508-198808

main45490-39325iRN61,YN63..LHD198808-198903

sub45490-39355

main45490-39335iLN61,YN63..ARL198808-198903

sub45490-39345

45490ANUT, CASTLE(FOR IDLER ARM)

main90171-12028iYN58..4F;YN58..SR5,STD;LN50,51,55,56,61,RN50,55,61,YN50,51,52,55,56,57,63..4F,4FC,4H,5F198308-199807

45611ARM, STEERING KNUCKLE, RH

main45601-35070iLN6#,RN67,YN60,63,65,67..RHD198308-199807

main45611-35120iLN5#,RN5#,YN5#198308-199108

main45611-35130iLN61,RN61,YN63198508-198903

main45611-35160iLN5#,RN58,YN5#199108-199807

main45612-35140iLN65,YN60,62,65,67..LHD198308-199201

45611ABOLT, KNUCKLE STOPPER

main90106-10032×2iLN5#,RN5#,YN5#198308-199807

main90106-12011×2iLN6#,RN67,YN67199311-199807

main90106-12022×2iLN6#,RN61,YN6#198508-199311

45612ARM, STEERING KNUCKLE, LH

main45601-35081iLN65,YN60,62,65,67..LHD198308-199201

main45612-35120iYN57199108-199201

main45612-35130iLN6#,RN67,YN60,63,65,67..RHD198308-199807

main45612-35150iLN61,RN61,YN63198508-198903

main45612-35180iLN5#,RN58,YN5#199108-199807

45619COVER, KNUCKLE STOPPER

main45619-14020×2iLN5#,RN5#,YN5#198308-199308

main45619-35030×2iLN51,56,YN5#199308-199807

main45619-36010×2iLN6#,RN61,YN6#198511-199311

45635ASUPPORT, INTER LINK JOINT PROTECTOR

main45635-35011iLN6#,YN6#..RHD198308-198508

main45635-35021iLN65,YN6#..LHD198308-198508

main45635-35030iLN61,YN63..ARL198508-199201

main45635-35040iRN61,YN63..LHD198508-198903

main45635-35050iLN6#,RN67,YN67199201-199807

main45635-35060iLN65,YN60,62,65,67..LHD198508-199201

45636PROTECTOR, INTERMEDIATE LINK JOINT, UPPER

main45636-35011iLN6#,YN6#198308-198508

main45636-35020iLN61,65,RN6#,YN6#198508-199807

45807BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

main45082-35030iYN50,52,55,57,6#..ME198308-198501

W/TILT STRG

main45082-35031iRN5#,YN50,52,55,57..ME198501-199201

W/TILT STRG

main45082-35040iYN60,63,65,67..ME198501-198903

W/TILT STEERING

main45807-35070iRN5#,YN50,52,55,57,60,63,65,67..ME198308-199201

main45807-35080iLN55,YN57..SR5198308-198501

main45807-35081iLN5#,65,YN50,55,57,60,62,65,67..LHD..GEN198501-199201

45874BPROTECTOR, STEERING COLUMN, NO.1

4705

9010108057

main90101-08057

9011908139

main90119-08139

9011910212

main90119-10212

9011910291

main90119-10291

9016450048

main90164-50048

9017008008

main90170-08008

9017010021

main90170-10021

9017010082

main90170-10082

9017014042

main90170-14042

9020110012

main90201-10012

9020114010

main90201-14010

9111151032

main91111-51032

9161140616

main91611-40616

9161640820

main91616-40820

9165640820

main91656-40820

9165660620

main91656-60620

9331514012

main93315-14012

9411050800

main94110-50800

9451200800

main94512-00800

9451201000

main94512-01000

9453101000

main94531-01000

9538103022

main95381-03022

69 parts on this diagram · 14 diagrams in section
