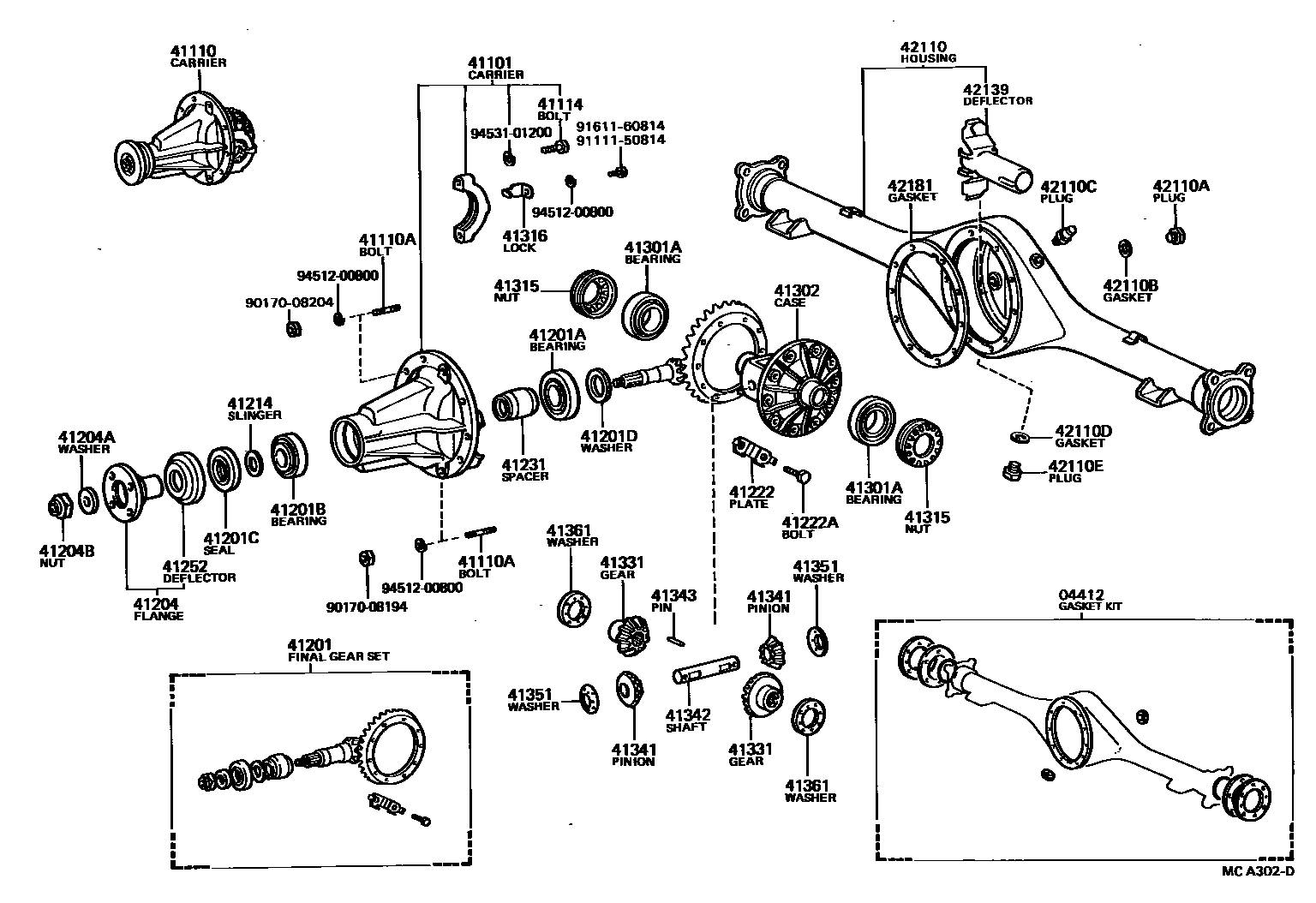

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-25060iLN61,65,RN67,YN6#198508-199807

main04412-26010iYN58..4F;YN58..SR5,STD;LN51,56,RN50,55,61,YN50,51,52,55,56,57..4F,4FC,4H,5F198508-199807

main04412-35010iLN5#,YN5#198308-198508

main04412-35051iLN6#,YN6#198308-198508

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-35030iLN6#,YN6#..ARL,EUR198308-199807

sub41101-35031

sub90116-08329

main41101-35031iLN67199508-199807

main41101-35040iLN60,65,YN6#..GEN,ME,SA198308-198905

sub41101-35041

sub90116-08329

main41101-35040iLN56,YN6#..ARL198308-198408

W/DIFF R=4.875

sub41101-35041

sub90116-08329

main41101-35041iLN65,RN67,YN67..GEN,SA198905-199807

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-26070iLN56..4FC198408-198508

R=39:8=4.875,W/LSD

sub41110-26071

main41110-35082iYN6#..ARL198308-198508

*FGR=39:8=4.875,R=39:8=4.875

sub41110-35083

main41110-35083iLN56..4FC198508-198808

*FGR=39:8=4.875,R=39:8=4.875

sub41110-35084

sub90116-08329

main41110-35084iLN65,RN67,YN67..GEN,SA198905-199807

*FGR=39:8=4.875,R=39:8=4.875

sub41110-35085

main41110-35170iYN57..4FC..SR5;LN5#,YN52,57..MTM198308-198508

R=43:10=4.300

sub41110-35171

main41110-35180iYN50,55,56;YN57..4FC..STD198308-198508

R=41:9=4.556

sub41110-35181

main41110-35190iLN56..4FC198308-198508

R=39:8=4.875

sub41110-35191

main41110-35201iRN61198711-198903

*FGR=41:10=4.100,R=41:10=4.100

sub41110-35202

sub90116-08329

main41110-35202iLN57199508-199807

*FGR=41:10=4.100,R=41:10=4.100

sub41110-26430

main41110-35211iLN5#,YN52,57,58..MTM198508-198905

*FGR=43:10=4.300,R=43:10=4.300

sub41110-35212

sub90116-08329

main41110-35212iLN51,56,RN58,YN57,58198905-199807

*FGR=43:10=4.300,R=43:10=4.300

sub41110-35213

main41110-35220iLN65,YN65..EUR198308-198608

R=41:9=4.556

sub41110-35221

main41110-35221iYN67..EUR198508-199807

*FGR=41:9=4.555,R=41:9=4.556

sub41110-35222

sub90116-08329

main41110-35222iLN67199508-199807

*FGR=41:9=4.555,R=41:9=4.555

sub41110-3D260

main41110-35240iYN57..4FC..SR5;LN56..LHD..EUR..CBU;LN5#,YN57..MTM..(ARL,GEN)198308-198508

R=43:10=4.300,W/LSD

sub41110-35241

main41110-35250iYN57..4FC..STD198308-198508

R=41:9=4.556,W/LSD

sub41110-35251

main41110-35301iYN58..5F..STD198708-199201

*FGR=43:10=4.300,R=43:10=4.300 W/LSD

sub41110-35302

sub90116-08329

main41110-35301iYN57..4FC..SR5;LN5#,YN57..MTM..(ARL,GEN)198508-198903

*FGR=43:10=4.300,R=43:10=4.300,W/LSD

sub41110-35302

sub90116-08329

main41110-35310iLN65,YN65..LHD..EUR198308-198508

R=41:9=4.556,W/LSD

sub41110-35311

main41110-35311iLN65,YN56,67..LHD..EUR198508-199012

*FGR=41:9=4.555,R=41:9=4.556,W/LSD

sub41110-35312

sub90116-08329

main41110-35311iYN56..ARL198708-199201

*FGR=41:9=4.555,R=41:9=4.555 W/LSD

sub41110-35312

sub90116-08329

main41110-35330iYN65..TW..SA198308-198508

R=39:8=4.875,W/LSD

sub41110-35331

main41110-35331iLN65,YN62,67..GEN198508-199508

*FGR=39:8=4.875,R=39:8=4.875,W/LSD

sub41110-35332

sub90116-08329

main41110-35410iRN5#198601-198905

*FGR=39:10=3.900,R=39:10=3.900

sub41110-35411

sub90116-08329

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08226iLN5#,6#,YN5#,6#198308-198510

S=14 & 14,L=42,L=28

main90116-08233iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#198510-199807

S=14 & 14,L=42,L=28

main90116-08235iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

S=12 & 15,L=34,L=22

sub90116-08418

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12053iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-29455iYN57..4FC..SR5;LN5#,YN52,57..MTM198308-198408

N=43:10

sub41201-29526

main41201-29475iYN50,55,56;YN57..4FC..STD198308-198408

N=41:9

sub41201-29536

main41201-29495iLN6#..ARL198408-198508

N=41:9

sub41201-29536

main41201-29516iRN50,55198601-199807

*FGR=39:10=3.900,N=39:10

sub41201-29517

sub41204-35081

sub41214-26011

main41201-29525iYN57..4FC..SR5;LN5#,YN52,57..MTM198408-198508

N=43:10

sub41201-29526

main41201-29526iYN58..SR5..ARL198508-199807

*FGR=43:10=4.300,N=43:10

sub41201-29796

sub41204-35081

sub41214-26011

main41201-29535iYN50,55,56;YN57..4FC..STD198408-198508

N=41:9

sub41201-29536

main41201-29536iYN67..EUR198608-198808

*FGR=41:9=4.556

sub41201-29537

sub41204-35081

sub41214-26011

main41201-29536iYN56..ARL198508-199807

*FGR=41:9=4.556,N=41:9

sub41201-29537

sub41204-35081

sub41214-26011

main41201-39396iLN56..ARL198308-198408

N=39:8

sub41201-39696

main41201-39416iLN6#,YN6#..GEN,ME,SA198308-198408

N=39:8

sub41201-39696

main41201-39676iRN61198711-199807

*FGR=41:10=4.100,N=41:10

sub41201-39677

sub41204-35081

sub41214-26011

main41201-39685iLN56..4FC198408-198508

N=39:8

sub41201-39696

main41201-39695iLN6#,YN6#..GEN,ME,SA198408-198508

N=39:8

sub41201-39696

main41201-39696iLN56..4FC198508-199003

*FGR=39:8=4.875,N=39:8

sub41201-39697

main41201-39697iLN65,RN67,YN67199003-199807

*FGR=39:8=4.875,N=39:8

sub41201-29817

sub41204-35081

sub41214-26011

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35044iLN51,56,61,65,RN50,55,61,YN5#,6#198508-199807

main97609-32307iLN5#,6#,YN5#,6#198308-198508

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30008iLN5#,6#,YN5#,6#198308-198508

main90366-30022iLN51,56,61,65,RN50,55,61,YN5#,6#198508-199807

sub90366-30078

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38035iLN51,56,61,65,RN61,YN5#,6#198808-199807

sub90311-38047

main90311-38133iLN5#,YN5#198308-198508

sub90311-38047

main90311-38134iLN5#,6#,RN5#,61,YN5#,6#198308-198808

sub90311-38047

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=1.70,T=1.70

main90201-35498iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=1.73,T=1.73

main90201-35499iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=1.76,T=1.76

main90201-35500iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=1.79,T=1.79

main90201-35501iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=1.82,T=1.82

main90201-35502iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=1.85,T=1.85

main90201-35503iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=1.88,T=1.88

main90201-35504iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=1.91,T=1.91

main90201-35505iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=1.94,T=1.94

main90201-35506iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=1.97,T=1.97

main90201-35507iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=2.00,T=2.00

main90201-35508iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=2.03,T=2.03

main90201-35509iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=2.06,T=2.06

main90201-35510iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=2.09,T=2.09

main90201-35511iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=2.12,T=2.12

main90201-35512iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=2.15,T=2.15

main90201-35513iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=2.18,T=2.18

main90201-35514iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=2.21,T=2.21

main90201-35515iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=2.24,MARK 01,T=2.24

main90201-35516iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=2.27,MARK 02,T=2.27

main90201-35517iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=2.30,MARK 03,T=2.30

main90201-35518iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

OD=47,T=2.33,MARK 04,T=2.33

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-35040iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-20005iLN5#,6#,RN5#,61,YN5#,6#198308-199308

41204BNUT (FOR REAR DRIVE PINION)

main90179-20001iLN5#,6#,RN5#,61,YN5#,6#198308-199308

main90179-20018iLN51,56,65,YN5#,67199308-199807

OD=37

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-40010iLN5#,6#,YN5#,6#198308-198508

main41231-40011iLN51,56,61,65,RN50,55,61,YN5#,6#198508-199807

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main37341-30010iLN5#,6#,YN5#,6#198308-198408

main41252-35010iLN5#,6#,RN5#,61,YN5#,6#198408-199303

sub41252-35020

main41252-35020iLN51,56,65,YN5#,67199303-199807

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90368-45066iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

main90368-50024iLN56,65,YN56,67..LHD..EUR198308-199201

W/LSD

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41302-35010iLN50,55,YN50,55,57..ARL,GEN198308-199201

W/LSD

sub41302-35040

main41311-40020iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

sub41311-40021

sub90105-11063

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-35010iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010iLN5#,6#,RN5#,61,YN5#,6#198308-199305

main41316-35010iLN51,56,65,YN5#,67199305-199807

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-35010iLN5#,6#,YN5#,6#198308-198408

sub41331-35011

main41331-35011iLN51,56,60,61,65,RN50,55,61,YN5#,6#198408-199807

main41331-35030iLN60,65,YN60,62,65,67..GEN198308-199201

W/LSD

sub41039-34070

41341PINION, REAR DIFFERENTIAL

main41341-35010iLN56,65,YN56,67..LHD..EUR198308-199201

W/LSD

sub41341-14041

main41341-35020iLN51,56,60,61,65,RN50,55,61,YN5#,6#198408-199807

main41341-39020iLN5#,6#,YN5#,6#198308-198408

sub41341-35020

sub41351-30052

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-39610iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06085iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-30051iLN5#,6#,YN5#,6#198308-198408

main41351-30052iLN51,56,60,61,65,RN50,55,61,YN5#,6#198408-199807

main41351-30060iLN56,65,YN56,67..LHD..EUR198308-199201

W/LSD

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-40021iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

T=1.6,T=1.6

main41362-40021iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

T=1.7,T=1.7

main41363-40021iLN50,51,55,56,60,61,65,RN50,55,61,YN5#,6#198308-199807

T=1.8,T=1.8

main90564-50001iLN50,55,YN50,55,57..ARL,GEN198308-199201

T=0.15,W/LSD,T=0.15

main90564-50002iYN56,58..ARL198308-199201

T=0.20,W/LSD,T=0.20

main90564-50003iLN60,65,YN60,62,65,67..GEN198308-199201

T=0.25,W/LSD,T=0.25

main90564-50004iLN5#,YN50,55,57..ARL,GEN198308-199201

T=0.30,W/LSD,T=0.30

main90564-50005iLN60,65,YN60,65..GEN198308-199201

T=0.35,W/LSD,T=0.35

42110HOUSING ASSY, REAR AXLE

main42110-35200iLN6#,YN6#198308-198508

main42110-35220iLN5#,YN5#198308-198508

main42110-35280iYN57..SR5..ARL;LN5#,RN5#,YN50,52,55,57..GEN,ME198508-198608

sub42110-35290

main42110-35280iLN5#,YN50,55,57..GEN198608-199201

W/C ID=20.64

sub42110-35290

main42110-35290iYN58..4F;YN58..SR5,STD;LN51,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198608-199807

W/C ID=22.22

main42110-35290iYN57..SR5..SA;LN5#,YN50,55,56,57..(DLX,STD)..(ARL,EUR,SA)198508-198608

main42110-35290iLN5#,YN50,55..RHD..T1..GEN..CBU198510-198608

THAILAND SPEC

main42110-35310iLN61,RN61,YN63198508-198808

main42110-35311iLN61,RN61,YN63198808-199201

main42110-35320iLN65,YN67..EUR198508-199201

sub42110-35321

main42110-35321iLN65,67,RN67,YN67..ARL,GEN,ME,SA198711-199807

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198808-199807

main90341-18049iLN5#,6#,RN5#,61,YN5#,6#198308-199807

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42139-26010iLN6#,YN6#198308-198508

main42139-35010iLN5#,YN5#198308-198508

main42139-35020iYN51,58;LN51,56,RN58,YN50,55,56,57..SR5,STD198808-199807

sub42139-35050

main42139-40010iLN5#,6#,RN5#,61,YN5#,6#198508-199807

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-35010iLN5#,6#,YN5#,6#198308-198508

main42181-60020iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN5#,6#198508-199807

9017008194

main90170-08194

9017008204

main90170-08204

9111150814

main91111-50814

9161160814

main91611-60814

9451200800

main94512-00800

9453101200

main94531-01200

42 parts on this diagram · 2 diagrams in section
