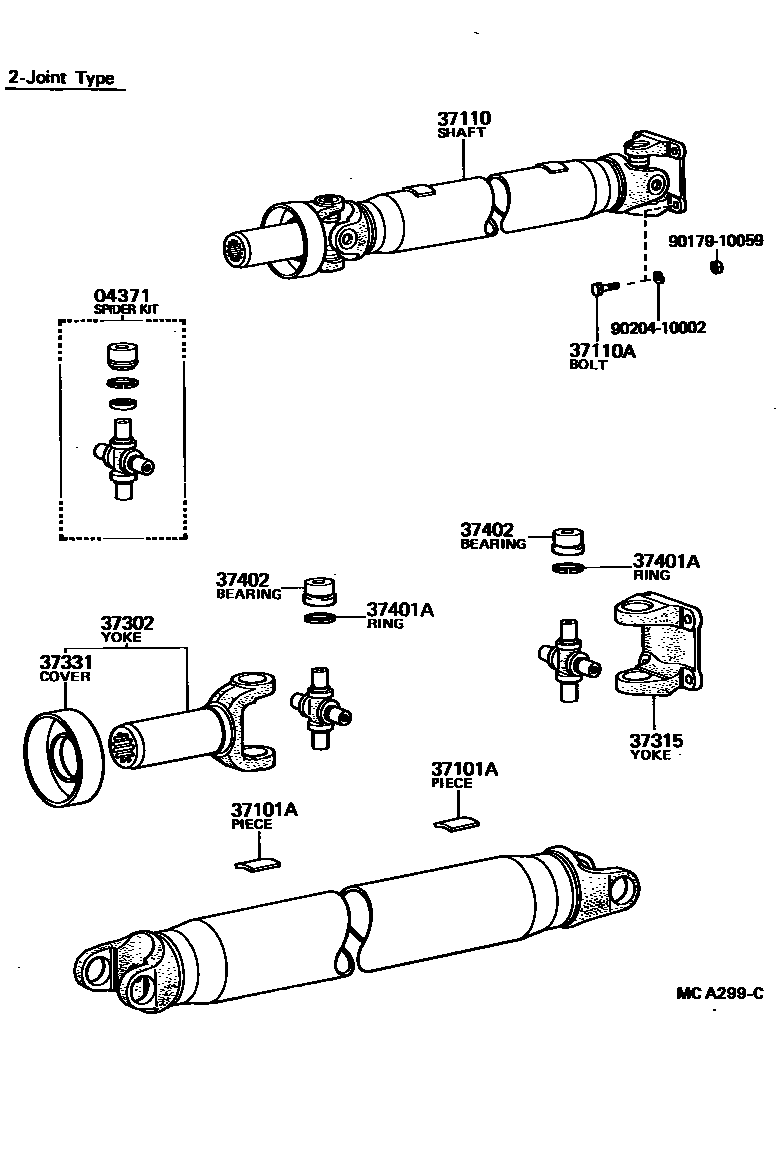

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0004 1 0005 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-25010iLN50,51,55,56,YN5#198308-199807

main04371-30020iRN5#198601-198712

sub04371-30021

main04371-30021iLN57,RN5#198712-199807

sub04371-30040

main04371-35030iLN6#,YN6#198308-198712

sub04371-35031

main04371-35031iLN61,65,RN6#,YN6#198712-199807

sub04371-35050

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01003iLN5#,YN5#198308-198508

8G,T=1.2,10G,SPOT

sub90937-01132

main90937-01004iLN5#,YN5#198308-198508

20G,T=1.2,20G,SPOT

main90937-01005iLN5#,YN5#198308-198508

30G,T=1.2,30G,SPOT

main90937-01029iLN5#,YN5#198308-198508

5G,SPOT

main90937-01030iLN5#,YN5#198308-198508

15G,SPOT

main90937-01031iLN5#,YN5#198308-198508

25G,SPOT

main90937-01132iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

10G,L=20.7,10G,PROJECTION

main90937-01136iLN5#,6#,RN5#,YN5#,6#198308-199807

20G,L=41.4,20G,PROJECTION

main90937-01140iLN5#,YN5#198308-198508

30G,L=62.2,30G,PROJECTION

main90937-01147iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

2G,T=2.0,2G,T=2.0

main90937-01148iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

4G,T=2.0,4G,T=2.0

main90937-01149iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

6G,L=12.4,6G,T=2.0

main90937-01150iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

8G,L=16.6,8G,T=2.0

main90937-01151iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

12G,L=24.9,12G,PROJECTION

main90937-01152iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

14G,L=29.0,14G,PROJECTION

main90937-01153iLN5#,6#,RN5#,YN5#,6#198308-199807

16G,L=33.2,16G,PROJECTION

main90937-01154iLN5#,6#,RN5#,YN5#,6#198308-199807

18G,L=37.3,18G,PROJECTION

main90937-01155iLN5#,6#,RN5#,YN5#,6#198308-199807

22G,L=45.6,22G,PROJECTION

main90937-01156iLN5#,6#,RN5#,YN5#,6#198308-199807

24G,L=49.7,24G,PROJECTION

main90937-01157iLN5#,6#,RN5#,YN5#,6#198308-199807

26G,L=53.9,26G,PROJECTION

main90937-01158iLN5#,6#,RN5#,YN5#,6#198308-199807

28G,L=58.1,28G,PROJECTION

main90937-01184iLN60,61,65,RN6#,YN6#198308-199807

4G,T=1.6,4G

main90937-01191iLN60,61,65,RN6#,YN6#198308-199807

8G,T=1.6,8G

main90937-01192iLN60,61,65,RN6#,YN6#198308-199807

12G,T=4.5,12G

main90937-01193iLN60,61,65,RN6#,YN6#198308-199807

16G,T=4.5,16G

main90937-01194iLN60,61,65,RN6#,YN6#198308-199807

20G,T=4.5,20G

main90937-01198iLN6#,YN6#198308-199807

24G,T=4.5,L=25.1,24G

main90937-01199iLN6#,YN6#198308-199807

28G,T=6,L=22.7,28G

main90937-01200iLN6#,YN6#198308-199807

32G,T=6,L=24.3,48G

main90937-01201iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#198308-199807

30G,T=4.5,L=27.4,30G

main90937-01202iLN60,61,65,RN61,YN6#198308-199807

32G,T=4.5,L=29.2,32G,FR

main90937-01203iLN60,61,65,RN61,YN6#198308-199807

34G,T=4.5,L=31.0,34G,FR

main90937-01204iLN60,61,65,RN61,YN6#198308-199807

36G,T=4.5,L=32.9,36G,FR

main90937-01205iLN60,61,65,RN61,YN6#198308-199807

38G,T=4.5,L=34.7,38G,FR

main90937-01206iLN60,61,65,RN61,YN6#198308-199807

40G,T=4.5,L=36.5,40G,FR

main90937-01207iLN60,61,65,RN61,YN6#198308-199807

42G,T=4.5,L=38.4,42G,FR

main90937-01208iLN60,61,65,RN61,YN6#198308-199807

44G,T=4.5,L=40.2,44G,FR

main90937-01209iLN60,61,65,RN61,YN6#198308-199807

46G,T=4.5,L=42.0,46G,FR

main90937-01210iLN60,61,65,RN61,YN6#198308-199807

48G,T=4.5,L=43.8,48G,FR

main90937-01211iLN60,61,65,RN61,YN6#198308-199807

50G,T=4.5,L=45.7,50G,FR

main90937-01268iLN61,65,RN6#,YN6#198310-199807

36G,L=23.1,T=8.0,36G,RR

main90937-01269iLN6#,RN6#,YN6#198310-199807

40G,L=25.6,40G,RR

main90937-01270iLN61,65,RN6#,YN6#198310-199807

44G,L=22.6,44G,RR

main90937-01271iLN6#,YN6#198310-199807

48G,L=24.6,48G,RR

main90937-01272iLN61,65,RN6#,YN6#198310-199807

52G,L=26.7,52G,RR

main90937-01273iLN6#,YN6#198310-199807

56G,L=28.7,56G,RR

main90937-01274iLN6#,YN6#198310-199807

60G,L=28.7,60G,RR

37110SHAFT ASSY, PROPELLER

main37110-35210iLN50,51,YN50,51,52..4F,4H,5F198308-199807

main37110-35230iLN55,56,YN55,56,57,58198308-199807

main37110-35240iLN60,YN60198308-198508

sub37110-35241

main37110-35241iLN61,RN61,YN60,62,63..5F198508-199201

sub37110-35242

main37110-35250iLN65,67,RN67,YN65,67198308-199807

main37110-35300iLN57,RN58,YN58198601-199807

main37110-35390iYN63..EFI198608-198903

sub37110-35391

main37110-35400iRN50198601-198808

37110ABOLT (FOR PROPELLER SHAFT)

main90105-10085iRN58..SR5;LN50,51,55,56,RN50,55,YN5#198308-199807

*10-1.00PX27-13

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-35010iLN50,51,55,56,YN5#198308-199807

main37302-35030iLN57,RN5#198601-199807

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-35040iLN60,61,65,RN6#,YN6#198308-199807

main37315-35050iLN5#,YN5#198308-199807

37331COVER, SLIDING SHAFT DUST

main37305-35020iLN60,61,65,RN6#,YN6#198308-199807

main37331-30010iYN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F198308-199807

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-26038iLN57,6#,RN5#,6#,YN6#198712-199807

T=2.125,MARK 1,T=2.125

main90520-26040iLN57,6#,RN5#,6#,YN6#198712-199807

T=2.175,MARK 2,T=2.175

main90520-26041iLN57,6#,RN5#,6#,YN6#198712-199807

T=2.225,MARK 3,T=2.225

main90520-26042iLN57,6#,RN5#,6#,YN6#198712-199807

T=2.275,MARK 4,T=2.275

main90520-26043iLN57,6#,RN5#,6#,YN6#198712-199807

T=2.325,MARK 5,T=2.325

main90520-26044iLN57,6#,RN5#,6#,YN6#198712-199807

T=2.375,MARK 6,T=2.375

main90520-26045iLN57,6#,RN5#,6#,YN6#198712-199807

T=2.425,MARK 7,T=2.425

main90520-26046iLN57,6#,RN5#,6#,YN6#198712-199807

T=2.475,MARK 8,T=2.475

main90520-26062iLN57,67,RN58,67,YN58199806-199807

T=2.18-2.20,T=2.18-2.20

sub90520-25049

main90520-26063iLN57,67,RN58,67,YN58199806-199807

T=2.20-2.22,T=2.20-2.22

sub90520-25050

main90520-26064iLN57,67,RN58,67,YN58199806-199807

T=2.22-2.24,T=2.22-2.24

sub90520-25051

main90520-26065iLN57,RN58,67,YN58199806-199807

T=2.24-2.26,T=2.24-2.26

sub90520-25052

main90520-26066iLN57,67,RN58,67,YN58199806-199807

T=2.26-2.28,T=2.26-2.28

sub90520-25053

main90520-26067iLN57,67,RN58,67,YN58199806-199807

T=2.48-2.50,T=2.48-2.50

sub90520-25054

main90520-26068iLN57,67,RN58,67,YN58199806-199807

T=2.50-2.52,T=2.50-2.52

sub90520-25055

main90520-26069iLN57,67,RN58,67,YN58199806-199807

T=2.52-2.54,T=2.52-2.54

sub90520-25056

main90520-26233iLN6#,RN5#,YN6#198308-198712

T=1.50,OD=32.4,T=1.50

main90520-26234iLN6#,RN5#,YN6#198308-198712

T=1.55,T=1.55

main90520-26235iLN6#,RN5#,YN6#198308-198712

T=1.60,T=1.60

main90521-29070iLN50,51,55,56,YN5#198308-199807

T=2.375-2.425,T=2.4

main90521-29071iLN50,51,55,56,YN5#198308-199807

T=2.425-2.475,T=2.45

main90521-29072iLN50,51,55,56,YN5#198308-199807

T=2.475-2.525,T=2.5

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-25020iRN5#,YN5#198308-199110

main37402-30010iLN6#,RN5#,YN6#198308-198712

sub37402-30011

sub90520-26044

main37402-30011iLN6#,RN5#,61,YN6#198712-199807

sub04371-60070

sub04371-60100

main37402-30020iLN6#,RN5#,YN6#198308-198712

RED PAINTED

sub37402-30021

sub90520-26044

main37402-30021iLN5#,6#,RN58,67,YN5#,67198712-199807

RED PAINTED

sub04371-60070

sub04371-60100

9017910059

main90179-10059

9020410002

main90204-10002

11 parts on this diagram · 4 diagrams in section
