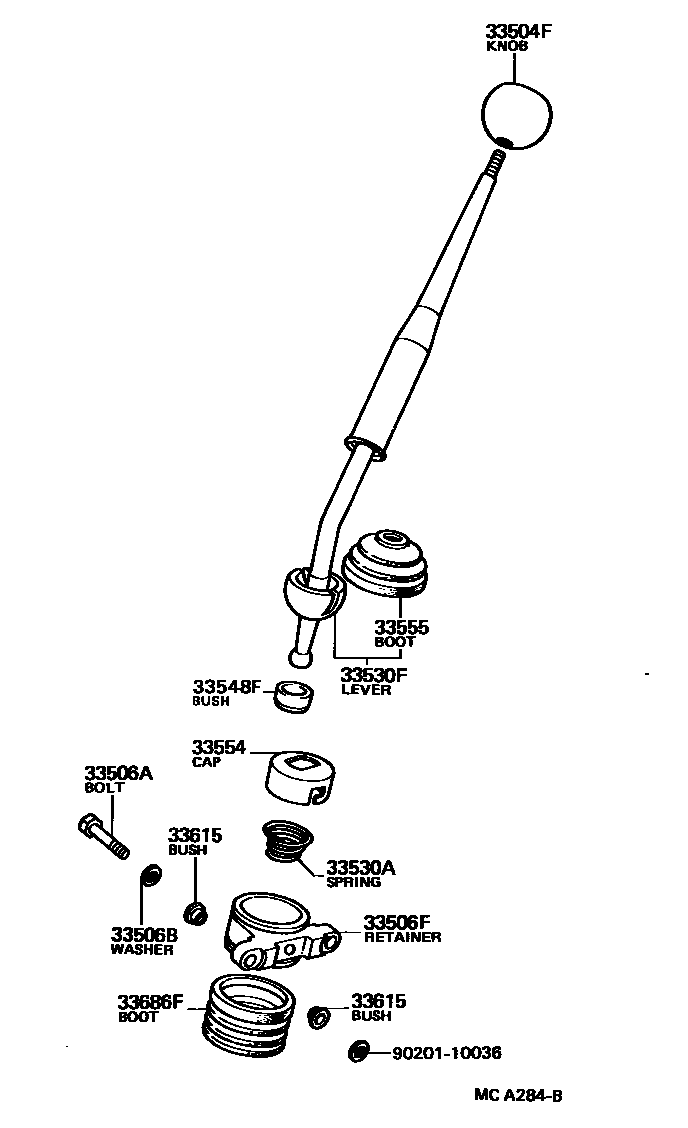

SHIFT LEVER & RETAINER

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-20052-01iLN56,RN61,YN57..5F..SR5198308-199807

URETHANE,BLACK

sub33504-20052

sub33504-14050

main33504-20062-01iLN50,55,RN5#,YN50,52,55,57..4F..(ARL,ME,SA)198308-199407

URETHANE,BLACK

sub33504-20062

sub33504-14040

main33504-22101-01iLN5#,YN50,55..4F..STD198308-199407

BLACK

sub33504-14040

sub33504-22101

main33504-22111-01iLN6#,YN62,63,65,67..(DLX,STD)..(ARL,EUR,GEN)198308-199807

BLACK

sub33504-14050

sub33504-22111

main33542-32010-01iLN56,YN57..4FC198308-198608

BLACK

sub33542-32010

main33542-32010-15iLN56,YN57..4FC198608-199407

BEIGE,DARK BEIGE,TRIM4#

sub33542-32010

main33542-32010-23iYN57..4FC..SR5198608-199201

GRAY,MEDIUM GRAY,TRIM1#

sub33542-32010

main33542-32010-24iLN56,YN57..4FC198608-199407

BLUE,BLUE,TRIM8#

sub33542-32010

main33542-35040-03iYN63..EFI198608-198903

GRAY,GRAY,TRIM1#

main33542-35040-05iYN63..EFI198608-198903

BEIGE,BEIGE,TRIM4#

33506ABOLT (FOR CONTROL SHIFT LEVER RETAINER)

main90109-10042iLN50,55,YN50,55..4F198308-199407

33506BWASHER, PLATE (FOR CONTROL SHIFT LEVER RETAINER)

main90201-13012iLN50,55,YN50,55..4F198308-199407

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-20031iLN50,55,YN50,55..4F198308-199407

main33506-35060iYN58..4F;YN58..5F..(SR5,STD);LN51,56,RN50,55,YN51,52,56,57..4F,5F198308-199807

main33506-35070iRN67198308-199807

main33570-35010iYN57..5F198308-198508

main33570-35020iRN61198712-198903

33530ASPRING, COMPRESSION (FOR SHIFT LEVER)

main90502-26001iYN50,55..RHD..4F198310-199012

main90502-26004iYN50,55..LHD198410-199012

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33501-35200iYN63..EFI198608-198903

main33503-35050iLN56,YN57..4FC198308-199407

main33530-35022iYN57..5F..DLX198308-198508

main33530-35030iYN57..RHD..5F198308-198508

main33530-35040iLN6#,YN6#198308-198508

sub33530-35110

main33530-35050iLN5#,RN5#,YN52,56,57..LHD198308-199407

main33530-35060iYN57..RHD..4F198308-199807

main33530-35080iRN61198712-198903

main33530-35110iLN6#,RN67,YN6#..5F198508-199807

main33541-35063iLN50,55,YN50,55..LHD..4F198308-198411

main33541-35064iYN50,55..LHD198411-199012

main33541-35083iLN50,55,YN50,55..RHD..4F198308-199012

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-30010iLN50,55,YN50,55..4F198308-199012

main33548-31010iLN51,56..MTM198308-199807

33554CAP, SHIFT LEVER

main33554-30012iLN50,55,YN50,55..4F198308-199012

33555BOOT, SHIFT LEVER

main33555-22050iRN61198712-198903

main33555-30030iLN50,55,YN50,55..4F198308-199012

main33555-31011iYN57..5F198308-198508

main33555-35040iLN51,56,YN57..4F198308-199807

main33555-35060iLN56,YN57..4FC198308-198808

main33555-35080iYN63..EFI198608-198903

33615BUSH, CONTROL SHIFT LEVER RETAINER

main33615-20012iLN50,55,YN50,55..4F198308-199012

33686FBOOT, CONTROL SHAFT DUST (FOR FLOOR SHIFT RETAINER)

main33555-30020iLN50,55,YN50,55..4F198308-199407

9020110036

main90201-10036

12 parts on this diagram · 7 diagrams in section
