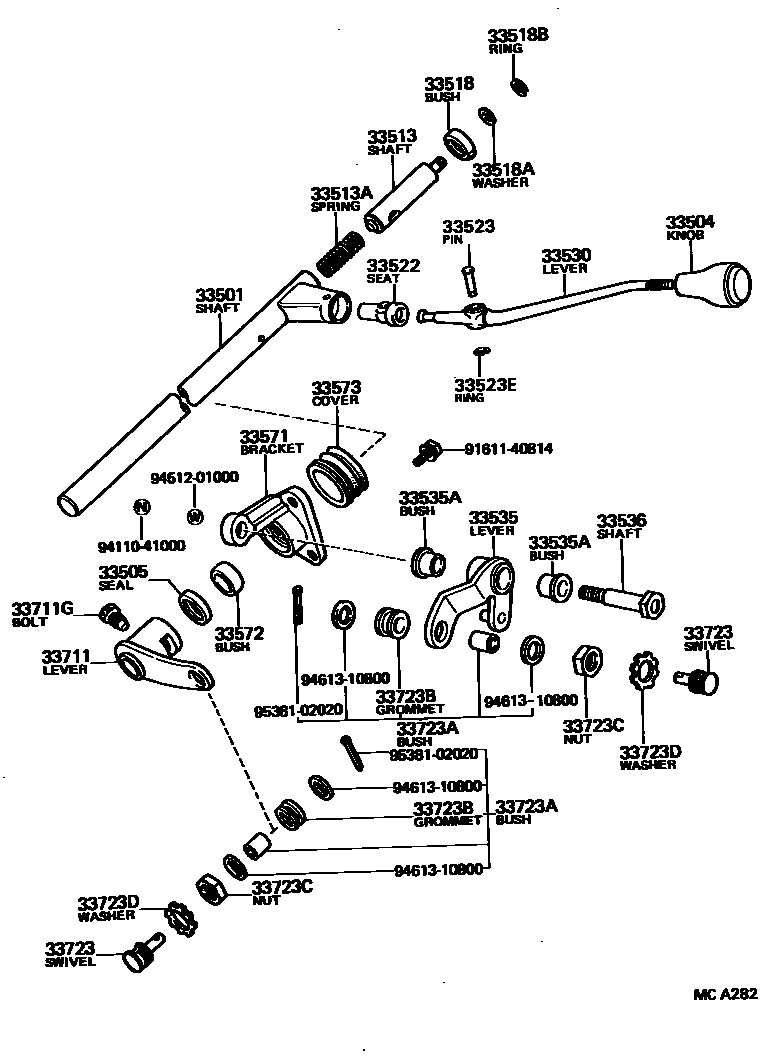

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-35150iYN50,51,55,56..4H198308-199108

main33501-35160iYN51,56..STD199108-199807

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-30110iYN50,51,55,56..4H198308-199807

33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)

main33505-30010iYN50,51,55,56..4H198308-199807

33513SHAFT, CONTROL SHAFT BRACKET, UPPER

main33513-35060iYN50,51,55,56..4H198308-199108

main33513-35070iYN51,56..STD199108-199807

33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)

main90501-14395iYN50,51,55,56..4H198308-199807

33518BUSH, UPPER CONTROL SHAFT PIECE

main33518-35010iYN50,51,55,56..4H198308-199807

33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90201-08056iYN50,51,55,56..4H198308-199807

33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)

main90523-06019iYN50,51,55,56..4H198308-199807

33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)

main33522-36010iYN50,51,55,56..4H198308-199807

33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)

main90249-07001iYN50,51,55,56..4H198308-199807

33523ERING, E (FOR SHIFT LEVER PIN)

main96160-00500iYN50,51,55,56..4H198308-199807

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33541-35220iYN50,51,55,56..4H198308-199807

33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)

main33535-35090iYN50,51,55,56..4H198308-199807

33535ABUSH (FOR CONTROL SELECT LEVER)

main90386-13007×2iYN50,51,55,56..4H198308-199807

33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)

main33536-25010iYN50,51,55,56..4H198308-199807

33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)

main33571-35070iYN50,51,55,56..4H198308-199807

33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)

main33572-35020iYN50,51,55,56..4H198308-199807

33573COVER, CONTROL SHAFT DUST, LOWER

main33577-35010iYN50,55..4H198308-198510

main33577-35020iYN50,51,55,56..4H198510-199807

33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)

main33527-35090iYN50,51,55,56..4H198308-199807

33711GBOLT, CONTROL SHAFT LEVER LOCK

main33218-35010iYN50,51,55,56..4H198308-199807

33723SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)

main33723-12020×2iYN50,51,55,56..4H198308-199807

33723ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90999-99017×2iYN50,51,55,56..4H198308-199807

33723BGROMMET (FOR COLUMN SHIFT CONTROL SHAFT)

main90480-17177×2iYN50,51,55,56..4H198308-199807

33723CNUT, HEXAGON (FOR CONTROL ROD SETTING)

main90170-18159×2iYN50,51,55,56..4H198308-199807

33723DWASHER, TOOTHED (FOR CONTROL ROD SETTING)

main90205-18012×2iYN50,51,55,56..4H198308-199807

9161140814

main91611-40814

9411041000

main94110-41000

9451201000

main94512-01000

9461310800

main94613-10800

9538102020

main95381-02020

30 parts on this diagram · 4 diagrams in section
