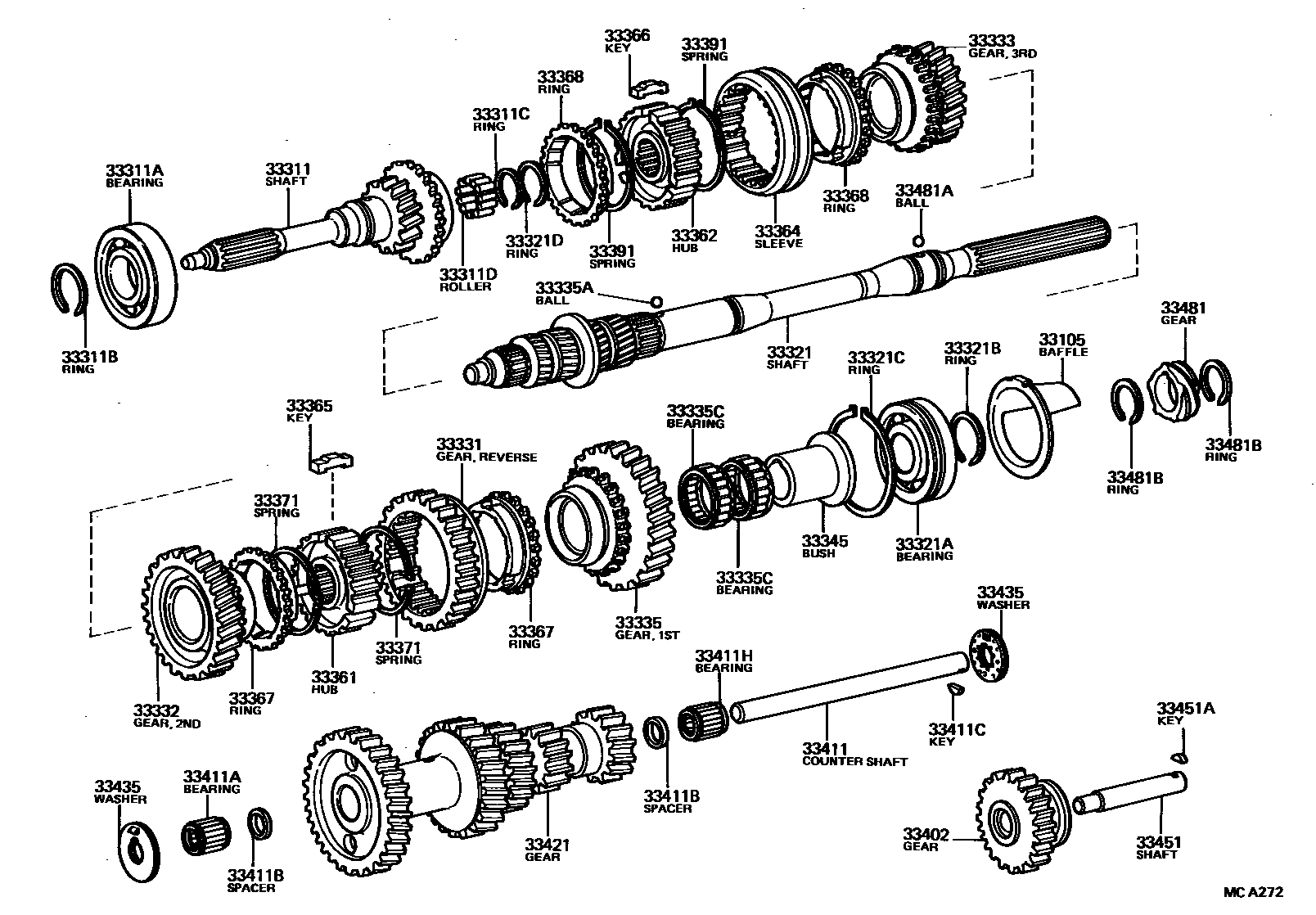

TRANSMISSION GEAR (MTM)
33105BAFFLE SUB-ASSY, EXTENSION HOUSING OIL
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0,T=2.05
T=2.10,MARK 1,T=2.10
T=2.15,MARK 2,T=2.15
T=2.20,MARK 3,T=2.20
T=2.25,MARK 4,T=2.25
T=2.30,MARK 5,T=2.30
T=2.30-2.35,MARK 11,T=2.30
T=2.35-2.40,MARK 12,T=2.35
T=2.05,MARK 1,T=2.05
T=2.10,MARK 2,T=2.10
T=2.15,MARK 3,T=2.15
T=2.20,MARK 4,T=2.20
T=2.25,MARK 5,T=2.25
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.68,MARK 14,T=2.68
T=2.74,MARK 15,T=2.74
T=2.67-2.72,MARK A,T=2.67
T=2.73-2.78,MARK B,T=2.73
T=2.79-2.84,MARK C,T=2.79
T=2.85-2.90,MARK D,T=2.85
T=2.91-2.96,MARK E,T=2.91
T=2.97-3.02,MARK F,T=2.97
T=3.03-3.08,MARK G,T=3.03
T=3.09-3.14,MARK H,T=3.09
T=3.15-3.20,MARK J,T=3.15
T=3.21-3.26,MARK K,T=3.21
T=3.27-3.32,MARK L,T=3.27
T=2.43-2.48,MARK 10,T=2.43
T=2.49-2.54,MARK 11,T=2.49
T=2.55-2.60,MARK 12,T=2.55
T=2.61-2.66,MARK 13,T=2.61
T=1.94
T=2.00
T=2.06
T=2.12
T=2.18
T=2.24
T=2.30
T=2.31-2.36,MARK 8,T=2.36
T=2.37-2.42,MARK 9,T=2.37
T=1.50-1.55,MARK A,T=1.50
T=1.60-1.65,MARK B,T=1.60
T=1.70-1.75,MARK C,T=1.70
T=1.80-1.85,MARK D,T=1.80
T=1.90-1.95,MARK E,T=1.90
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.35,MARK 1,T=1.35
T=1.45,MARK 2,T=1.45
T=1.55,MARK 3,T=1.55
T=1.65,MARK 4,T=1.65
T=1.75,MARK 5,T=1.75
T=1.65,ID=71.1
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.85-1.90,MARK D-1,T=1.85
T=1.95-2.00,MARK E-1,T=1.95
T=1.75-1.80,MARK C-1,T=1.75
T=2.05-2.10,MARK F-1,T=2.05
T=1.86,MARK 11,T=1.86
T=1.92,MARK 12,T=1.92
T=1.98,MARK 13,T=1.98
T=2.04,MARK 14,T=2.04
T=2.10,MARK 15,T=2.10
T=1.50-1.55,MARK A,T=1.50
T=1.60-1.65,MARK B,T=1.60
T=1.70-1.75,MARK C,T=1.70
T=1.80-1.85,MARK D,T=1.80
T=1.90-1.95,MARK E,T=1.90
T=2.00-2.05,MARK F,T=2.00
T=2.05,MARK 0,T=2.05
T=2.10,MARK 1,T=2.10
T=2.15,MARK 2,T=2.15
T=2.20,MARK 3,T=2.20
T=2.25,MARK 4,T=2.25
T=2.30
33332GEAR, 2ND
33333GEAR, 3RD
33335ABALL, 1ST SHIFT RESTRICT
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33345BUSH, 1ST GEAR
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33411COUNTERSHAFT
33411BSPACER(FOR COUNTER GEAR BEARING)
33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)
33435WASHER, COUNTER GEAR CASE SIDE THRUST
RR,T=2.25
RR,T=2.35
RR,T=2.55
RR,T=2.65
T=2.00
T=2.15
T=2.30
T=2.45
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=5,MARK 5X17-19,N=5
N=6,N=6
N=6,MARK 6X18-20,N=6
N=5,MARK 5X17-19,N=5,W(185R14C-8 TIRE)
N=6,MARK 6X18-20,N=6
N=6,MARK 6X21-23,N=6
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.50,OD=33.8
