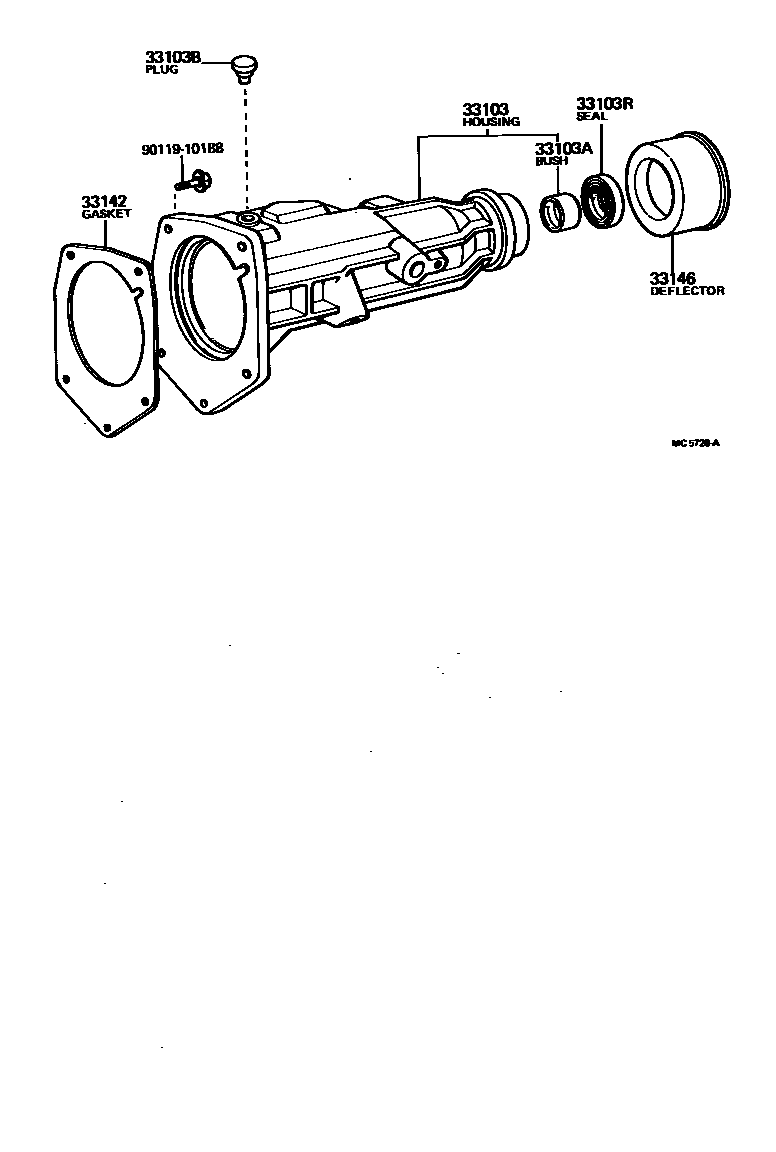

EXTENSION HOUSING (MTM)

0001 1 0003 1 0004 1 0006 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-20101iYN57..5F198308-198508

main33103-35050iYN50,51,55,56..4H198308-198910

sub33103-35051

main33103-35051iYN51,56..STD198910-199108

main33103-35060iLN50,55,YN50,55..4F198308-198910

sub33103-35061

main33103-35061iYN50,55198910-199012

main33103-35090iLN51,56,YN52,57..4F198308-198508

sub33103-35091

sub90119-10186

sub90119-10337

main33103-35091iLN5#,RN5#,YN51,52,56,57,58..4F,5F198508-198808

sub33103-35141

main33103-35141iLN5#,RN58,YN51,57,58..4F,5F198808-199807

main33103-35151iYN51,56..STD199108-199807

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iLN5#,YN50,52,55,57..4F,4H198308-198808

sub90999-73139

main90999-73062iYN57..5F198308-198508

main90999-73120iLN5#,RN58,YN5#198808-199807

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03001iLN50,55,YN50,55..4F198308-199108

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iLN5#,RN58,YN51,56,57,58..4F,5F,5H198808-199807

main90311-38040iYN50,55198609-199108

sub90311-38030

main90311-38043iLN5#,RN5#,YN5#..MTM198308-198609

sub90311-38040

33142GASKET, EXTENSION HOUSING(MTM)

main33138-28020iLN51,56,YN52,57..4F198308-198808

main33142-20020iYN57..5F198308-198508

main33142-26010iYN50,51,55,56..4H198308-199108

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iYN57..5F198308-199807

sub33146-30020

9011910188

main90119-10188

7 parts on this diagram · 4 diagrams in section
