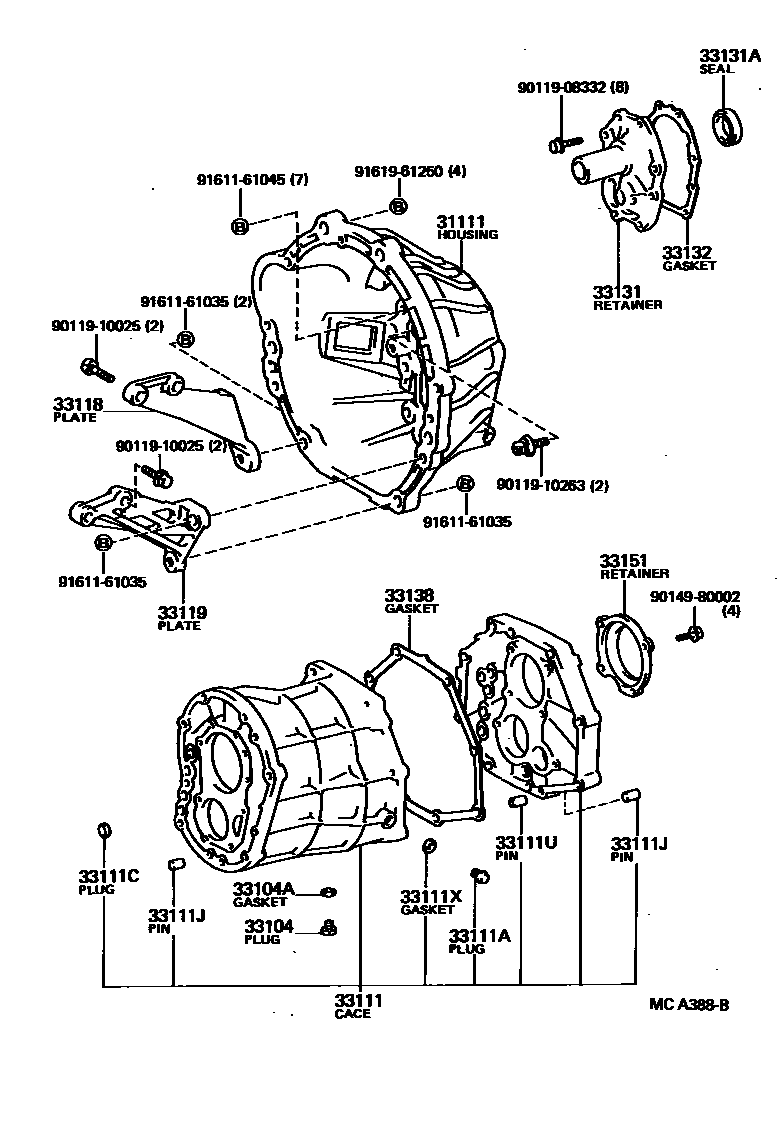

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0009 1

31111HOUSING, CLUTCH

main31111-20171iRN50,55198601-199807

main31111-22111iLN51,56..MTM198308-198808

sub31111-22112

main31111-22113iLN5#198912-199006

sub31111-22114

main31111-22114iLN5#199006-199807

main31111-28010iYN57..5F198308-199108

main31111-30151iLN50,55..4F198308-198408

main31111-30180iYN56,6#198308-199807

main31111-35010iRN61198712-198804

sub31111-35011

main31111-35011iRN67198804-199807

main31111-35030iLN6#198508-198808

sub31111-35031

main31111-35031iLN6#198808-199008

sub31111-35032

main31111-35032iLN6#199008-199807

main31112-22112iLN5#198808-198912

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18021iYN51,56..STD199108-199503

main90341-18022iYN51,56..STD199503-199506

main90341-18032iYN51,56..STD199506-199807

main90341-18057iRN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#..4F,4H,5F198308-199807

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iLN5#,6#,YN5#,6#..MTM198308-198408

sub90430-18008

main90430-18008iRN58..SR5;LN51,56,60,61,65,RN50,55,6#,YN5#,6#..MTM198408-199807

33111CASE, MANUAL TRANSMISSION

main33101-20011iYN57..5F198308-198508

sub33101-30021

main33101-22030iRN61198712-198903

sub33101-22031

main33101-35010iLN51,56..MTM198308-198808

sub33101-35050

main33101-35020iLN6#,YN6#..MTM198308-198808

sub33101-35070

main33101-35050iYN51,58..DLX,SR5;LN51,56,RN58,YN57..SR5,STD198808-199807

sub33101-35051

main33101-35060iYN51,56..STD199108-199807

sub33101-26060

main33101-35070iLN61,65,RN67,YN6#..5F198808-199807

main33111-35031iLN50,55,YN50,55..4F198308-199108

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iRN61198712-198903

main90341-18006iYN58..4F;YN58..5F..(SR5,STD);LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4H,5F198308-199807

main90341-18019iLN60,61,65,RN67,YN6#..MTM198308-199807

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLN5#,6#,YN56,6#..5F198308-199807

OD=14

main90331-20044iYN57..5F198308-198508

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLN51,56,6#,YN52,57,6#..4F198308-199807

L=16,OD=12

main90250-12195iYN57..5F198308-198508

L=35,OD=12

main90334-06017iYN57..5F198308-198508

L=11,OD=6

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iYN51,56..STD199108-199807

L=11,OD=11,OD=11

main90253-13017iYN57..5F198308-198508

L=12,OD=13

main90253-15001iLN5#,6#,YN56,6#..5F198308-198508

L=14,OD=15

main90253-15001iRN58..SR5;LN51,56,61,65,RN50,55,6#,YN51,52,56,57,58,6#..4F,5F,5H198508-199807

L=14,OD=15,OD=15

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18007iLN5#,6#,YN5#,6#..MTM198308-198408

sub90430-18008

main90430-18008iRN58..SR5;LN51,56,RN50,55,61,YN5#..MTM198408-199807

33118PLATE, STIFFENER, RH(MTM)

main33118-22030iRN50,55198601-199807

main33118-25020iLN5#,6#..MTM198308-199807

main33118-28010iYN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F198308-199807

main33118-35020iRN67198712-199807

main33118-35030iLN6#198508-198904

sub33118-35031

main33118-35031iLN6#198904-199807

sub33118-35060

33119PLATE, STIFFENER, LH(MTM)

main33119-22021iRN5#198601-198804

sub33119-22022

main33119-22022iRN50,55198804-199807

main33119-25020iLN51,56,61,65..MTM198308-199807

main33119-28010iYN58..4F;YN58..5F..(SR5,STD);YN50,51,52,55,56,57,6#..4F,4H,5F198308-199807

main33119-30040iLN50,55..4F198308-198408

main33119-35020iRN61198712-198804

sub33119-35021

main33119-35021iRN67198804-199807

33131RETAINER, BEARING, FRONT(MTM)

main33131-20050iLN50,55,YN50,55..4F198308-199108

main33131-22020iRN61198712-198808

sub33131-22021

main33131-22021iRN61198808-198903

main33131-26020iLN51,56,6#,YN52,57,6#..4F198401-199807

main33131-28010iLN50,55,65,YN56,65..5F..(ARL,EUR,GEN)198308-198312

main33131-31010iYN57..5F198308-198508

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30010iLN5#,6#,YN51,57,58,6#..4F,5F198808-199007

sub90311-30014

main90311-30014iLN5#,6#,RN58,67,YN5#,67199007-199807

main90311-30115iRN61198308-198903

main90311-32106iLN50,55,YN50,55..4F198308-199108

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-22010iRN61198712-198808

main33132-28010iLN5#,6#,YN56,6#..5F198308-199807

main33132-30030iLN50,55,YN50,55..4F198308-199108

33138GASKET, INTERMEDIATE PLATE

main33138-28010iLN5#,6#,RN5#,YN51,52,56,57,58,6#..4F,5F198308-198808

main33142-22010iRN61198712-198808

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iRN61198712-198903

main33151-20010iYN57..5F198308-198508

main33151-26010iYN50,51,55,56..4H198308-199108

main33151-28010iLN51,56,6#,YN52,57,6#..4F198308-198808

main33151-35030iLN5#,6#,YN51,56,57,58,6#..4F,5F,5H198808-199807

9011908332

main90119-08332

9011910025

main90119-10025

9011910263

main90119-10263

9014980002

main90149-80002

9161161035

main91611-61035

9161161045

main91611-61045

9161961250

main91619-61250

23 parts on this diagram · 7 diagrams in section
