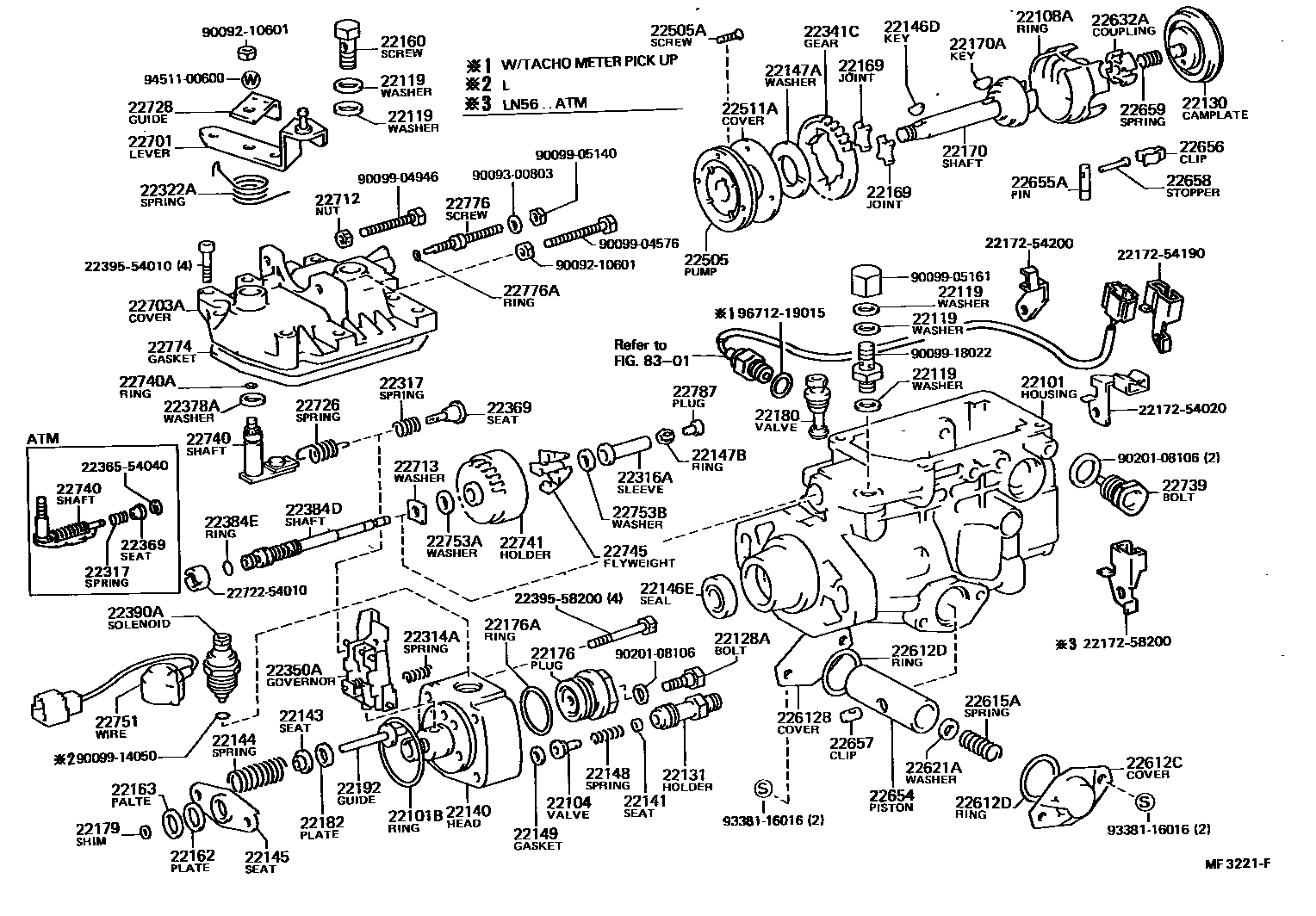

INJECTION PUMP BODY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

22101HOUSING SUB-ASSY, INJECTION PUMP

main22101-54020iL,2L..LN50,55,6#..(DLX,STD)..(EUR,GEN)198308-198408

sub22101-64230

main22101-54120iL,2L..LN50,55,6#..(DLX,STD)..GEN198308-198408

HIGH ALTITUDE SPEC

sub22101-54250

main22101-54120iL..LN50,55..SA198401-198408

sub22101-54250

main22101-54120i2L..LN5#,6#..(DLX,STD)..(GEN,SA)198408-198501

W(*HAC)

sub22101-54250

main22101-54200iL..LN55..RHD..T3198308-199108

W(*HAC & *TAC)

main22101-54200i2L..LN51,56198808-199807

main22101-54200i2L..LN5#..SA198408-198607

W(*TAC)

main22101-54200i2L..LN5#,60,65..(DLX,STD)..(GEN,SA)198501-198607

W(*HAC)

main22101-54230i2L..LN5#,6#..(DLX,STD)..GEN198308-198501

W(*TAC)

sub22101-64250

main22101-54230i2L..LN56..5F..ARL;2L..LN56..LHD..EUR..CBU198408-198504

sub22101-64250

main22101-54240i2L..LN56..4FC198308-198504

sub22101-64160

main22101-54250i2L..LN5#,65..(DLX,STD)..GEN198607-199108

W(*HAC)

main22101-54250i2L..LN5#..SA198607-199110

main22101-54440i2L..LN56,65198707-199508

MALAYSIA SPEC

main22101-54440i2L..LN56,65198712-199508

HONG KONG SPEC

main22101-54440i2L..LN5#,65..STD..(EUR,GEN)198911-199108

main22101-64160i2L..LN56..4FC198504-198808

main22101-64230i2L..LN5#,60,65..(DLX,STD)..(EUR,GEN)198408-198911

sub22101-54770

main22101-64250i2L..LN6#..ARL198501-198912

main22101-64250i2L..LN5#,60,65..(DLX,STD)..GEN198501-199108

W(*TAC)

22101BRING, O(FOR INJECTION PUMP HOUSING)

main90099-14053iL,2L,3L..LN5#,6#198308-199807

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-17010i2L..LN5#,65199005-199508

main22104-54060iL,2L..LN5#,6#198308-199005

main22104-6A290i2L,3L..LN5#,67199508-199807

22108ARING SUB-ASSY, ROLLER

main22108-54010iL,2L,3L..LN5#,6#198308-199807

22119WASHER, AIR BLEEDER NIPPLE

main22119-77020iL,2L..LN5#,6#198308-198705

sub90201-12109

main90201-12109i2L,3L..LN5#,6#198705-199807

22128ABOLT, DISTRIBUTIVE HEAD

main22128-54010iL,2L,3L..LN5#,6#198308-199807

22130CAMPLATE SUB-ASSY, FACE

main22130-54010iL..LN50,55198308-199807

main22130-58200i2L..LN51,56,6#198308-199508

22131HOLDER, DELIVERY VALVE

main22131-54110iL,2L..LN5#,6#198308-199005

main22131-54730i2L..LN5#,65199005-199508

main22190-64740i2L..LN56,65198707-199508

MALAYSIA SPEC

main22190-64740i2L..LN56,65198712-199508

HONG KONG SPEC

main22190-6A290i2L,3L..LN5#,67199508-199807

22140HEAD SUB-ASSY, DISTRIBUTIVE PUMP

main22140-54260iL..LN50,55..ARL,EUR,GEN198308-198311

sub22140-54410

main22140-54410iL..LN50,55198311-198408

main22140-55130i2L..LN5#,65198908-199508

main22140-5B530i2L,3L..LN5#,67199508-199807

main22140-64400i2L..LN51,56,6#198308-198908

22141SEAT, DELIVERY VALVE SPRING

main22141-54010iL,2L..LN5#,6#198308-199508

main22141-54250i2L..LN56,65198707-199508

MALAYSIA SPEC

main22141-54250i2L..LN56,65198712-199508

HONG KONG SPEC

22143SEAT, SPRING UPPER

main22143-54010iL,2L,3L..LN5#,6#198308-199807

22144SPRING, PUMP PLUNGER

main22144-54180iL..LN50,55198308-199807

main22144-54190i2L..LN51,56,60,61,65198308-199807

22145SEAT, SPRING, LOWER

main22145-54010iL,2L..LN5#,6#198308-199807

main22145-54010i2L..LN5#,65..GEN,SA198801-199508

W(*HAC)

main22145-54170i2L..LN51,56,60,65..GEN,SA198308-198801

W(*HAC)

sub22145-54010

22146DKEY(FOR DRIVE GEAR)

main90099-13018iL,2L,3L..LN5#,6#198308-199807

22146ESEAL(FOR DRIVE SHAFT)

main22544-64740i2L,3L..LN5#,6#198607-199807

main90099-15028iL,2L..LN5#,6#198308-198607

sub22544-64740

22147AWASHER, DRIVE SHAFT

main22161-54010iL,2L,3L..LN5#,6#198308-199807

22147BRING, GOVERNOR SLEEVE

main22147-54010iL,2L..LN5#,6#198308-198406

main22147-54290iL,2L,3L..LN5#,6#198406-199807

22148SPRING, DELIVERY VALVE

main22148-54010iL,2L,3L..LN5#,6#198308-199807

22149GASKET, DELIVERY VALVE

main22149-54010iL,2L..LN5#,6#198308-199005

main22149-56351i2L,3L..LN5#,6#199005-199807

22160SCREW SUB-ASSY, OVERFLOW

main22160-64010iL,2L,3L..LN5#,6#198308-199807

22162PLATE, PLUNGER UPPER

main22162-54010iL,2L,3L..LN5#,6#198308-199807

22163PLATE, PLUNGER LOWER

main22163-54010iL,2L,3L..LN5#,6#198308-199807

22169JOINT, RUBBER

main22169-54180iL,2L,3L..LN5#,6#198308-199807

22170SHAFT SUB-ASSY, DRIVE

main22170-54180iL,2L..LN5#,6#198308-199508

main22170-55130i2L,3L..LN5#,67199508-199807

22170AKEY(FOR DRIVE SHAFT)

main90099-13017iL,2L,3L..LN5#,6#198308-199807

22176PLUG, DISTRIBUTIVE HEAD

main22176-54020iL,2L,3L..LN5#,6#198308-199807

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i2L,3L..LN5#,67199508-199807

main90099-14052iL,2L..LN5#,6#198308-199508

sub22193-54772

22179SHIM, PLUNGER ADJUSTING

main22179-54010iL,2L,3L..LN5#,6#198308-199807

T=1.9,T=1.9

main22179-54011iL,2L,3L..LN5#,6#198308-199807

T=2.0,T=2.0

main22179-54012iL,2L,3L..LN5#,6#198308-199807

T=2.1,T=2.1

main22179-54013iL,2L,3L..LN5#,6#198308-199807

T=2.2,T=2.2

main22179-54014iL,2L,3L..LN5#,6#198308-199807

T=2.3,T=2.3

main22179-54015iL,2L,3L..LN5#,6#198308-199807

T=2.4,T=2.4

main22179-54016iL,2L,3L..LN5#,6#198308-199807

T=2.5,T=2.5

main22179-54017iL,2L,3L..LN5#,6#198308-199807

T=2.6,T=2.6

main22179-54018iL,2L,3L..LN5#,6#198308-199807

T=2.7,T=2.7

main22179-54019iL,2L,3L..LN5#,6#198308-199807

T=2.8,T=2.8

main22179-54020iL,2L,3L..LN5#,6#198308-199807

T=2.9,T=2.9

22180VALVE SUB-ASSY, REGULATOR

main22180-54010iL,2L..LN5#,6#198308-199508

main22180-55050i2L,3L..LN5#,67199508-199807

22182PLATE, TAPPET ADJUSTING SHIM

main22182-54010iL,2L,3L..LN5#,6#198308-199807

T=0.5,T=0.5

main22183-54010iL,2L,3L..LN5#,6#198308-199807

T=0.8,T=0.8

main22184-54010iL,2L,3L..LN5#,6#198308-199807

T=1.0,T=1.0

main22185-54010iL,2L,3L..LN5#,6#198308-199807

T=1.2,T=1.2

main22186-54010iL,2L,3L..LN5#,6#198308-199807

T=1.5,T=1.5

main22187-54010iL,2L,3L..LN5#,6#198308-199807

T=1.8,T=1.8

main22188-54010iL,2L,3L..LN5#,6#198308-199807

T=2.0,T=2.0

22192GUIDE SUB-ASSY, PLUNGER SPRING

main22192-54010iL,2L,3L..LN5#,6#198308-199807

22314ASPRING, LEVER SUPPORT

main22314-54010iL,2L,3L..LN5#,6#198308-199807

22316ASLEEVE, GOVERNOR

main22316-54020iL..LN50,55..(DLX,STD)..(EUR,GEN)198308-198406

sub22316-54120

main22316-54112iL..LN50,55..T1..RCB..GEN198406-198408

W(*TAC)

main22316-54112iL..LN55..RHD..T3198406-198408

HIGH ALTITUDE SPEC

main22316-54120iL..LN50,55..GEN198308-198406

HIGH ALTITUDE SPEC

main22316-54120iL..LN50,55..SA198401-198406

main22316-54121iL..LN50,55..SA198406-198408

main22316-54180iL..LN55..RHD..T3198308-198406

W(*TAC)

main22316-54310i2L..LN56,60;2L..LN65..GEN198406-199108

MARK 26

main22316-54350i2L..LN6#..GEN198308-198406

HIGH ALTITUDE SPEC

main22316-54360i2L..LN6#..GEN198406-198408

ID=0.75,HIGH ALTITUDE SPEC

sub22316-6D050

main22316-54360i2L..LN5#,60,65..GEN,SA198408-199508

ID=0.75,W(*HAC)

sub22316-6D050

main22316-58200i2L..LN56,60;2L..LN65..GEN198308-198406

main22316-64640i2L,3L..LN5#,67199508-199807

MARK 23,MARK 23

22317SPRING, GOVERNOR DOMPER

main22317-54010i2L..LN5#,65..EUR,SA198308-199508

K=0.2,L=6.5

main22317-54010i2L..LN5#,60,65..(DLX,STD)..GEN198408-199108

K=0.2,L=6.5,W(*TAC)

main22317-54010i2L..LN56,65198707-199508

K=0.2,L=6.5,MALAYSIA SPEC

main22317-54010i2L..LN56,65198712-199508

K=0.2,L=6.5,HONG KONG SPEC

main22317-54020i2L..LN60;2L..LN65..GEN198308-198903

main22317-54080i2L..LN56..4FC198308-198808

main22317-54470i2L..LN51,56199508-199807

K=0.15,L=7.0,K=0.15,L=7.0

main22317-54730i2L..LN51,56199508-199807

K=0.15,L=7.3,K=0.15,L=7.3

main22317-54870i3L..LN57,67199508-199807

K=0.15,L=6.5,K=0.15,L=6.5

main22317-54870i2L..LN51,56199508-199807

K=0.15,L=6.5

22322ASPRING, RETURN

main22322-54010iL..LN50,55198308-198406

main22322-54132i2L..LN56,65198712-199508

HONG KONG SPEC

main22322-54132iL..LN50,55198406-198408

main22322-54132i2L..LN56,65198707-199508

MALAYSIA SPEC

main22322-54310i2L..LN6#..GEN198308-198406

main22322-54340i2L..LN56,60;2L..LN65..GEN198308-198406

W(*TAC)

sub22322-54346

main22322-54450i2L..LN6#..ARL198406-199108

W(*TAC)

main22322-54450i2L..LN5#,60,65..GEN198408-199108

W(*HAC)

main22322-54470i2L..LN5#,65..EUR,SA198406-198908

sub22322-54730

main23322-54730i2L..LN5#,65..STD..GEN198908-199807

22341CGEAR, GOVERNOR DRIVE

main22341-54010iL,2L,3L..LN5#,6#198308-199807

22350AGOVERNOR ASSY, TORQUE CONTROL

main22350-54060i2L..LN65..GEN;L,2L..LN50,55,60198308-199807

main22350-54080i2L..LN56198308-198311

main22350-54450i2L..LN56..4FC198311-198808

22369SEAT, GOVERNOR SPRING

main22369-54010i2L..LN5#,6#..MTM198308-199807

main22369-54080i2L..LN56198308-198808

sub22369-6A250

22378WASHER, DRAIN SCREW

main22113-77090i2L..LN5#,65..GEN,SA198608-199508

W(*HAC)

main22378-76010iL..LN50,55..SA198401-198408

sub22113-77090

main22378-76010i2L..LN5#,60,65..GEN,SA198408-198608

W(*HAC)

sub22113-77090

main22378-76010iL,2L..LN50,55,6#..GEN198308-198408

HIGH ALTITUDE SPEC

sub22113-77090

22378AWASHER, GOVERNOR THRUST

main22378-64010iL,2L,3L..LN5#,6#198308-199807

22384DSHAFT, GOVERNOR

main22380-54020iL,2L..LN5#,6#198308-199508

main22384-54010i2L,3L..LN5#,67199508-199807

22384ERING, O(FOR GOVERNOR MAIN SHAFT)

main90099-14049iL,2L,3L..LN5#,6#198308-199807

22390ASOLENOID ASSY, FUEL CUT

main22019-6A510i2L..LN5#,65198908-199508

sub22019-6A511

main22390-54110iL,2L..LN5#,6#198308-198908

sub22019-6A510

22505PUMP SUB-ASSY, FUEL FEED

main22505-54010iL,2L,3L..LN5#,6#198308-199807

22505ASCREW(FOR FUEL FEED PUMP)

main90099-00723iL,2L,3L..LN5#,6#198308-199807

22511ACOVER, FEED PUMP

main22511-54020iL,2L..LN5#,6#198308-199508

main22511-58650i2L,3L..LN5#,67199508-199807

22612BCOVER, TIMER

main22612-54010iL,2L..LN5#,6#198308-199106

main22612-56350i2L,3L..LN5#,6#199106-199807

22612CCOVER, TIMER

main22612-54020iL,2L..LN5#,6#198308-198406

main22612-54450iL,2L,3L..LN5#,6#198406-199807

22612DRING, O(FOR TIMER COVER)

main22193-17840i2L,3L..LN5#,67199508-199807

main90099-14051iL,2L..LN5#,6#198308-199311

sub90099-14105

main90099-14105i2L..LN5#,65199311-199508

sub22193-17840

22615ASPRING, TIMER OUTER

main22615-54020iL..LN50,55198308-198408

sub22615-54180

main22615-54030i2L..LN51,56,6#198308-199508

CW=7.1,C.W=7.1

main22615-54180i2L..LN51,56,6#198308-199508

K=3.00,L=37.3,C.W=8.6

main22615-54180i2L,3L..LN5#,67199508-199807

K=3.00,L=37.3,K=3.00, L=37.3

main22615-54490i2L..LN51,56199508-199807

K=2.50,L=38.2,K=2.50, L=38.2

main22615-54730i2L..LN51,56199508-199807

K=2.70,L=39.2,K=2.70, L=39.2

main22615-5B010i3L..LN57,67199508-199807

K=2.80,L=38.1,K=2.80, L=38.1

main22615-64010i2L..LN51,56,6#198308-199508

K=3.30,L=37.1,C.W=7.9

main22615-64010i3L..LN57,67199508-199807

K=3.30,L=37.1,K=3.30

22621AWASHER, TIMER ADJUSTING

main22621-54010iL,2L..LN5#,6#198308-199508

T=0.5,T=0.5

main22622-54010iL,2L..LN5#,6#198308-199807

T=1.0,T=1.0

main22624-54010iL,2L..LN5#,6#198308-199807

T=0.2,T=0.2

main22624-54803i2L,3L..LN5#,67199508-199807

T=0.7,T=0.7

main22624-54805i2L,3L..LN5#,67199508-199807

T=0.9,T=0.9

main22624-54806i2L,3L..LN5#,67199508-199807

T=0.3,T=0.3

22632ACOUPLING, INJECTION PUMP

main22632-54010iL,2L,3L..LN5#,6#198308-199807

22654PISTON, TIMER

main22654-54010iL,2L..LN5#,6#198308-199508

main22654-54770i2L..LN51,56199508-199807

main22654-54850i3L..LN57,67199508-199807

main22654-55030i2L..LN56,65198707-199508

MALAYSIA SPEC

22655APIN, TIMER SLIDE

main22655-54010iL,2L,3L..LN5#,6#198308-199807

22656CLIP, TIMER

main22656-17840i2L,3L..LN5#,67199508-199807

main22656-54010iL,2L..LN5#,6#198308-199508

sub22656-17840

22657CLIP, TIMER

main22657-54010iL,2L,3L..LN5#,6#198308-199807

22658STOPPER, TIMER

main22658-17840i2L,3L..LN5#,67199508-199807

NO.1

main22658-54010iL,2L..LN5#,6#198308-199508

NO.1

sub22658-17840

main22658-54450iL,2L,3L..LN5#,6#198406-199807

NO.2

22659SPRING, COUPLING

main22659-64150iL,2L,3L..LN5#,6#198308-199807

22701LEVER SUB-ASSY, ADJUSTING

main22701-54042iL,2L..LN5#,6#..ARL,EUR,GEN198308-198406

NO MARK

main22701-54043iL,2L..LN5#,6#..ARL,EUR,GEN198308-198406

MARK 0

main22701-54120iL..LN50,55..SA198401-198406

NO MARK

sub22701-56350

main22701-54120iL,2L..LN50,55,6#..GEN198308-198406

HIGH ALTITUDE SPEC,NO MARK

sub22701-56350

main22701-54121iL,2L..LN50,55,6#..GEN198308-198406

MARK 0

sub22701-56351

main22701-54451iL,2L,3L..LN5#,6#198406-199807

MARK 130, TYPE 1

main22701-54452iL,2L,3L..LN5#,6#198406-199807

MARK 131, TYPE 2

22703ACOVER SUB-ASSY, GOVERNOR

main22703-17080i2L..LN5#,65..EUR,GEN198908-199108

main22703-54020iL,2L..LN5#,6#..ARL,EUR,GEN198308-198406

main22703-54132i2L..LN5#,6#..MTM..(ARL,EUR,GEN)198607-198908

8908

main22703-54132iL,2L..LN5#,6#..ARL,EUR,GEN198406-198607

main22703-54141iL..LN50,55..SA198401-198408

main22703-54141i2L..LN5#,6#..GEN,SA198408-198411

W(*HAC)

main22703-54141iL,2L..LN50,55,6#..GEN198308-198408

HIGH ALTITUDE SPEC

main22703-54350i2L..LN5#,60,65..GEN,SA198411-198509

W(*HAC)

main22703-54351i2L..LN5#,65..GEN,SA198509-199508

W(*HAC)

main22703-54351i2L,3L..LN5#,67199508-199807

main22703-54450i2L..LN56..4FC198607-198808

22712NUT, ROCK

main22775-77121iL,2L,3L..LN5#,6#198308-199807

22713WASHER, GOVERNOR GEAR ADJUSTING

main22713-54010iL,2L,3L..LN5#,6#198308-199807

T=1.05,T=1.05

main22714-54010iL,2L,3L..LN5#,6#198308-199807

T=1.25,T=1.25

main22715-54010iL,2L,3L..LN5#,6#198308-199807

T=1.45,T=1.45

main22716-54010iL,2L,3L..LN5#,6#198308-199807

T=1.65,T=1.65

main22717-54010iL,2L,3L..LN5#,6#198308-199807

T=1.85,T=1.85

22726SPRING, SPEED CONTROL

main22726-54060iL..LN50,55198308-198408

main22726-54260i2L..LN60;2L..LN65..GEN198308-199108

C.W=14.2

main22726-54310i3L..LN57,67199508-199807

main22726-54310i2L..LN60;2L..LN65..GEN198308-199108

C.W=15.5

main22726-54311i2L..LN5#,6#..ARL,EUR,GEN198308-199108

C.W=13.5

main22726-54530i2L..LN56..5F..ARL198408-198808

main22726-5B370i2L..LN51,56199508-199807

22728GUIDE, RETURN SPRING

main22728-54010iL,2L..LN5#,6#198308-198406

22739BOLT, GOVERNOR LINK SUPPORT

main22739-54020iL,2L,3L..LN5#,6#198308-199807

22740SHAFT SUB-ASSY, GOVERNOR ADJUSTING

main22302-54380i2L..LN56198308-198402

main22302-54510i2L..LN56198402-198406

main22302-54511i2L..LN56198406-198808

main22740-54010iL..LN50,55198308-198406

main22740-54310i2L..LN60;2L..LN65..GEN198308-198406

main22740-54320i2L..LN60;2L..LN65..GEN198406-199807

main22740-54490iL..LN50,55198406-198808

22740ARING, O(FOR GOVERNOR ADJUSTING SHAFT)

main22193-54770i2L,3L..LN5#,6#199106-199807

main90099-14048iL,2L..LN5#,6#198308-199106

sub22193-54770

22741HOLDER SUB-ASSY, FLYWEIGHT

main22741-54020iL,2L,3L..LN5#,6#198308-199807

22745FLYWEIGHT, DISTRIBUTIVE PUMP

main22745-54010iL,2L,3L..LN5#,6#198308-199807

22751WIRE SUB-ASSY, FUEL CUT SOLENOID

main22751-54110iL,2L..LN5#,6#198308-198607

sub22751-54150

main22751-54311i2L..LN5#,65..(DLX,STD)..(EUR,GEN,SA)198607-199508

L(*TAC)

main22751-6A220i2L..LN5#,6#198607-199508

W(*TAC)

main22751-6A220i2L,3L..LN5#,67199508-199807

22753AWASHER, FLYWEIGHT, NO.1

main22753-54010iL,2L,3L..LN5#,6#198308-199807

22753BWASHER, FLYWEIGHT, NO.2

main22753-54020i2L,3L..LN5#,6#199106-199807

main22753-54290iL,2L..LN5#,6#198308-199106

sub22753-54020

22774GASKET, GOVERNOR COVER

main22774-54010iL,2L..LN5#,6#198308-199106

sub22774-54270

main22774-54270i2L,3L..LN5#,6#199106-199807

22776SCREW, SMOKE SET ADJUSTING

main22776-54110iL,2L,3L..LN5#,6#198308-199807

22776ARING, O(FOR SMOKE SET SCREW)

main22193-54771i2L,3L..LN5#,67199508-199807

main90099-14047iL,2L..LN5#,6#198308-199508

sub22193-54771

22787PLUG, GOVERNOR SLEEVE

main22787-54010i2L..LN56,65198707-199508

L=5.9,MALAYSIA SPEC,L=5.9

main22787-54010i2L..LN56,65198712-199508

L=5.9,HONG KONG SPEC

main22787-54011i2L..LN56,65198707-199508

L=6.1,MALAYSIA SPEC,L=6.1

main22787-54011i2L..LN56,65198712-199508

L=6.1,HONG KONG SPEC

main22787-54012i2L..LN56,65198707-199508

L=6.3,MALAYSIA SPEC,L=6.3

main22787-54012i2L..LN56,65198712-199508

L=6.3,HONG KONG SPEC

main22787-54018iL,2L..LN5#,6#198308-198406

L=4.3,L=4.3

main22787-54019iL,2L..LN5#,6#198308-198406

L=4.5,L=4.5

main22787-54020iL,2L..LN5#,6#198308-198406

L=4.7,L=4.7

main22787-54021iL,2L..LN5#,6#198308-198406

L=4.9,L=4.9

main22787-54022iL,2L..LN5#,6#198308-198406

L=5.1,L=5.1

main22787-54023iL,2L..LN5#,6#198308-198406

L=5.3,L=5.3

main22787-54024iL,2L..LN5#,6#198308-198406

L=5.5,L=5.5

main22787-54025iL,2L..LN5#,6#198308-198406

L=5.7,L=5.7

main22787-54026iL,2L..LN5#,6#198406-199508

L=3.3,L=3.3

main22787-54027iL,2L,3L..LN5#,6#198406-199807

L=3.4,L=3.4

main22787-54028iL,2L..LN5#,6#198406-199508

L=3.5,L=3.5

main22787-54029iL,2L,3L..LN5#,6#198406-199807

L=3.6,L=3.6

main22787-54030iL,2L..LN5#,6#198406-199508

L=3.7,L=3.7

main22787-54031iL,2L,3L..LN5#,6#198406-199807

L=3.8,L=3.8

main22787-54032iL,2L..LN5#,6#198406-199508

L=3.9,L=3.9

main22787-54033iL,2L,3L..LN5#,6#198406-199807

L=4.0,L=4.0

main22787-64640i2L,3L..LN5#,67199508-199807

L=4.1,L=4.1

main22787-64641i2L,3L..LN5#,67199508-199807

L=3.0,L=3.0

main22787-64643i2L,3L..LN5#,67199508-199807

L=3.2,L=3.2

main22787-64680i2L,3L..LN5#,67199508-199807

L=4.2,L=4.2

8301

2217254020CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-54020

2217254190CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-54190

2217254200CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-54200

2217258200CLIP, CONNECTOR SUPPORT, SOLENOID

main22172-58200

2236554040RING, E(FOR INJECTION PUMP LEVER)

main22365-54040

2239554010BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-54010

2239558200BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-58200

2272254010NUT, GOVERNOR SHAFT ROCK

main22722-54010

9009210601

main90092-10601

9009300803

main90093-00803

9009904576

main90099-04576

9009904946

main90099-04946

9009905140

main90099-05140

9009905161

main90099-05161

9009914050

main90099-14050

9009918022

main90099-18022

9020108106

main90201-08106

9338116016

main93381-16016

9451100600

main94511-00600

9671219015

main96712-19015

97 parts on this diagram · 6 diagrams in section
