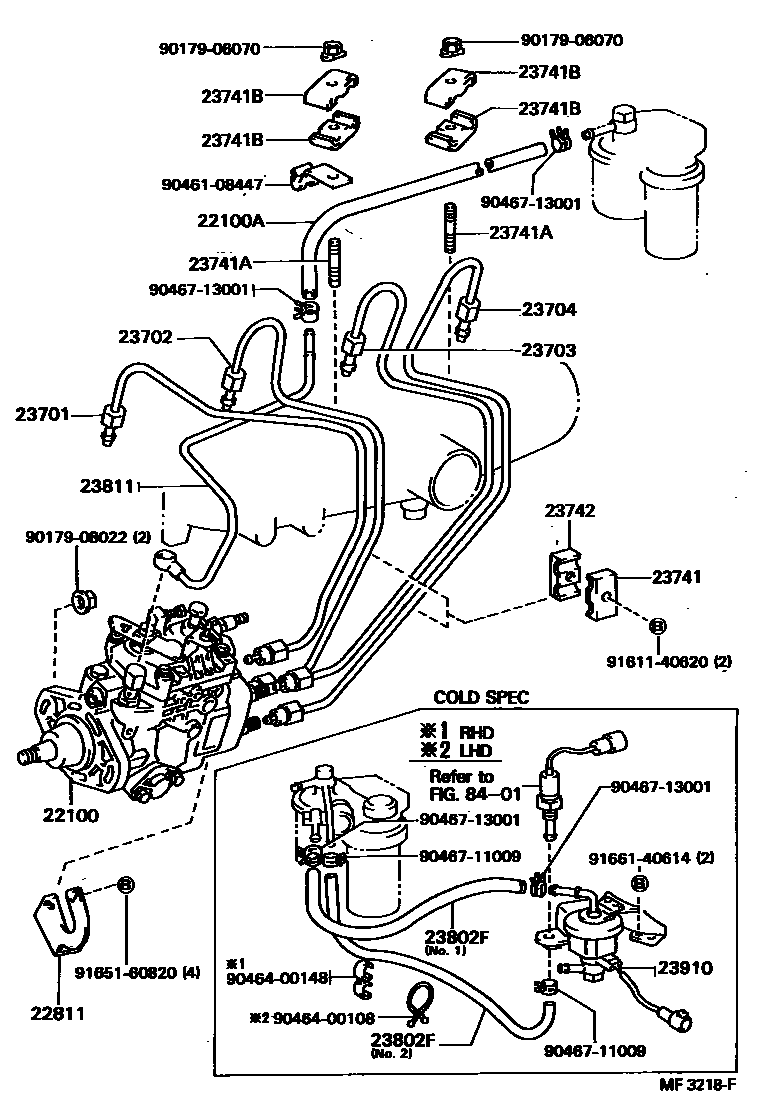

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54131iL..LN50,55..(DLX,STD)..(EUR,GEN)198308-198406

sub22100-54132

sub90099-05166

main22100-54132iL..LN50,55..(DLX,STD)..(EUR,GEN)198406-198408

sub22100-54231

main22100-54141iL..LN50,55..(DLX,STD)..GEN198308-198310

HIGH ALTITUDE SPEC

sub22100-54142

main22100-54142iL..LN50,55..SA198401-198406

sub22100-54143

sub90099-05166

main22100-54142iL..LN50,55..(DLX,STD)..GEN198310-198406

HIGH ALTITUDE SPEC

sub22100-54143

sub90099-05166

main22100-54143iL..LN50,55..(DLX,STD)..GEN198406-198408

HIGH ALTITUDE SPEC

sub22100-54202

main22100-54200iL..LN50,55..T1..RCB..GEN198308-198310

W(*HAC & *TAC)

sub22100-54201

main22100-54201iL..LN50,55..T1..RCB..GEN198310-198406

W(*HAC & *TAC)

sub22100-54202

sub90099-05166

main22100-54201iL..LN50,55..SA198401-198406

W(*TAC)

sub22100-54202

sub90099-05166

main22100-54202iL..LN50,55..SA198406-198408

W(*HAC & *TAC)

main22100-54202iL..LN55..RHD..T3198406-198408

W(*TAC)

main22100-54230iL..LN50,55..T1..RCB..GEN198308-198406

W(*TAC)

sub22100-54231

sub90099-05166

main22100-54231iL..LN55..ARL198406-198408

W(*TAC)

main22100-54310i2L..LN56..EUR..IV;2L..LN56..TW..EUR;2L..LN56..LHD..GEN;2L..LN51,60,65..EUR,GEN;2L..LN56..RHD..STD..(EUR,GEN)198308-198607

sub22100-54340

main22100-54311i2L..LN5#,65..(DLX,STD)..(EUR,GEN)198607-199108

sub22100-54341

main22100-54340i2L..LN5#,60,65..(DLX,STD)..GEN198308-198607

W(*TAC)

main22100-54340i2L..LN56..SR5198404-198408

THAILAND SPEC

main22100-54341i2L..LN5#,65..(DLX,STD)..GEN198607-199108

W(*TAC)

main22100-54341i2L..LN56..SR5198607-198912

main22100-54350i2L..LN5#,6#..(DLX,STD)..(GEN,SA)198408-198501

W(*HAC)

sub22100-54360

main22100-54350i2L..LN6#..GEN198308-198408

HIGH ALTITUDE SPEC

sub22100-54360

main22100-54351i2L..LN5#..(DLX,STD)..GEN198607-199108

W(*HAC)

sub22100-54361

main22100-54351i2L..LN5#..SA198607-199110

sub22100-54361

main22100-54360i2L..LN5#,65..(DLX,STD)..GEN198308-198607

W(*HAC & *TAC)

main22100-54360i2L..LN5#..SA198408-198607

W(*TAC)

main22100-54360i2L..LN5#,60,65..(DLX,STD)..(GEN,SA)198501-198607

W(*HAC)

main22100-54361i2L..LN5#,65..GEN,SA198607-199508

W(*HAC & *TAC)

main22100-54380i2L..LN56198308-198402

main22100-54441i2L..LN56,65198712-199508

HONG KONG SPEC

main22100-54441i2L..LN56,65198707-199508

MALAYSIA SPEC

main22100-54510i2L..LN56..4FC198402-198607

main22100-54511i2L..LN56..4FC198607-198808

main22100-54530i2L..LN56..5F..ARL;2L..LN56..LHD..RCB..EUR..CBU198408-198607

main22100-54531i2L..LN56..5F..ARL198607-198808

main22100-5B740i3L..LN57,67..RCB199508-199807

W(*HAC & *TAC)

main22100-5B770i2L..LN51,56199508-199807

W(*HAC & *TAC)

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-54050i2L,3L..LN5#,67199508-199807

main95332-08040iL,2L..LN5#,6#198308-198702

L=400(*H,L=320)

sub95333-08040

main95333-08040i2L..LN5#,6#198702-199508

L=400(*H,L=320)

sub95337-08040

22811STAY, INJECTION PUMP, NO.1

main22811-54040iL,2L..LN5#,6#198308-198808

sub22811-54041

main22811-54041i2L,3L..LN5#,6#198808-199807

sub22811-54042

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54051iL,2L..LN5#,6#..ARL,EUR,GEN198308-198311

main23701-54072i2L..LN5#,65198903-199508

main23701-54082iL,2L..LN5#,6#198311-198903

sub23701-54072

main23701-54140i2L,3L..LN5#,67199508-199807

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54050iL,2L..LN5#,6#..ARL,EUR,GEN198308-198311

main23702-54071i2L..LN5#,65198903-199508

main23702-54081iL,2L..LN5#,6#198311-198903

sub23702-54071

main23702-54140i2L,3L..LN5#,67199508-199807

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050iL,2L..LN5#,6#198308-199508

main23703-54100i2L,3L..LN5#,67199508-199807

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050iL,2L..LN5#,6#198308-199508

main23704-54100i2L,3L..LN5#,67199508-199807

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010iL,2L,3L..LN5#,6#198308-199607

main23741-54030i2L,3L..LN5#,67199607-199807

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06095i2L,3L..LN5#,67199508-199807

L=37,OD=6

main90116-06275iL,2L..LN5#,6#198308-199508

sub90116-06095

23741BCLAMP, INJECTION PIPE

main23741-54010iL,2L,3L..LN5#,6#198308-199807

23742CLAMP, INJECTION PIPE, NO.2

main23742-54010iL,2L,3L..LN5#,6#198308-199607

23802FHOSE, FUEL

main95332-06030iL,2L..LN55,56,65..RHD..EUR198403-198508

NO.2,COLD SPEC,*H,L=240

sub95333-06030

main95332-06030iL,2L..LN55,65..RHD..EUR198308-198403

NO.2,COLD SPEC,*H,L=260

sub95333-06030

main95332-06040i2L..LN56..EUR..IV;L,2L..LN55,65..LHD..EUR198308-198508

NO.2,COLD SPEC,*H,L=340

sub95333-06040

main95332-08020iL,2L..LN55,65..EUR198308-198508

NO.1,COLD SPEC,L=200

sub95333-08020

main95332-08030iL,2L..LN55,56,65..RHD..EUR198403-198508

NO.1,COLD SPEC,*H,L=220

sub95333-08030

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54051iL,2L..LN5#,6#198308-199508

main23811-54151i2L,3L..LN5#,67199508-199807

23910HEATER ASSY, FUEL

main23910-54030i2L..LN56..EUR..IV;2L..LN56..RHD..EUR;L,2L..LN55,65..EUR198308-198508

COLD SPEC

8401

9017906070

main90179-06070

9017908022

main90179-08022

9046108447

main90461-08447

9046400108

main90464-00108

9046400148

main90464-00148

9046711009

main90467-11009

9046713001

main90467-13001

9161140620

main91611-40620

9165160820

main91651-60820

9166140614

main91661-40614

25 parts on this diagram · 3 diagrams in section
