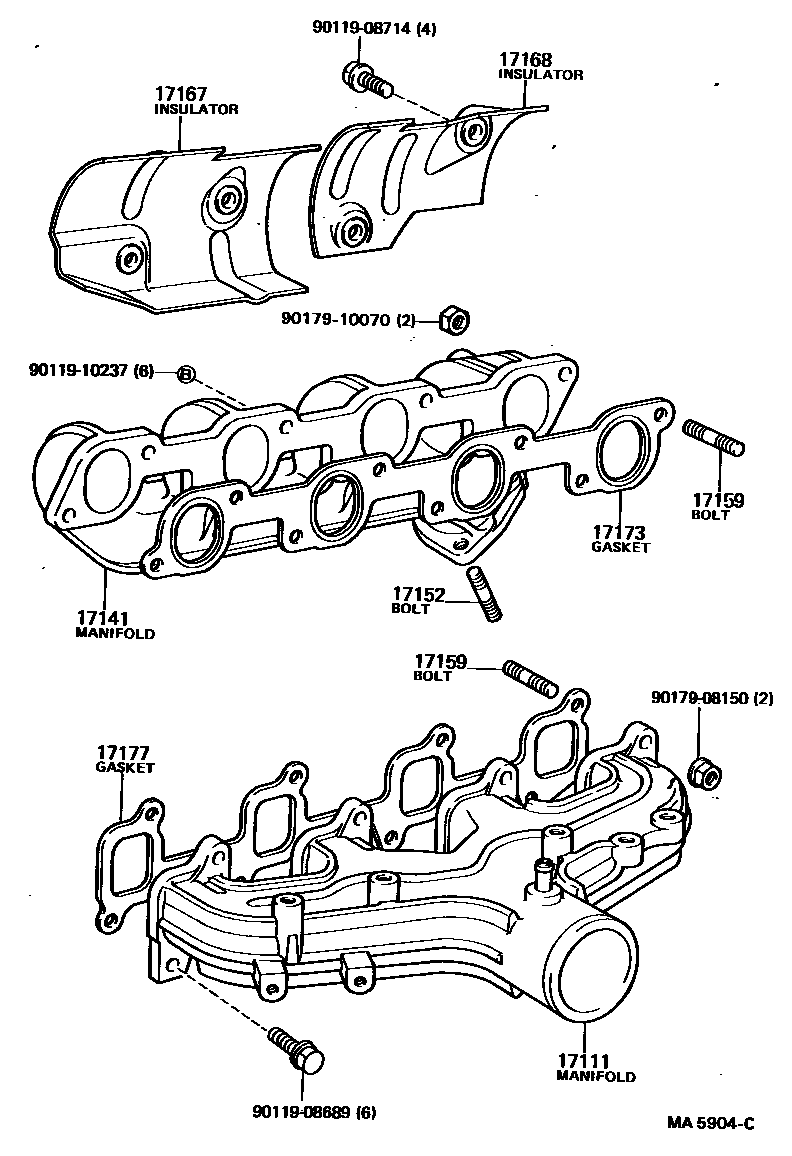

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17111MANIFOLD, INTAKE

main17101-35040i22REC..RN61198712-198808

main17101-35050i22REC..RN61198808-198903

main17101-54030i2L..LN56,6#..ARL,EUR198308-199508

main17101-54040i2L..LN56..LHD..EUR..CBU;L,2L..LN5#,6#..ARL,GEN,SA198308-199508

main17101-54110i2L,3L..LN5#,67199508-199807

main17111-35040i22R..RN5#198601-198808

main17111-35100i22R..RN58,67199407-199408

main17111-35110i22R..RN58,67199408-199807

main17111-71010i1YC..YN55198308-198708

*NSW

main17111-71010i2YC,4Y,4YC..YN56,58,6#..ARL198708-198903

main17111-71020i4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y..YN50,51,52,55,56,57,6#..4F,4FC,4H,5F198308-199807

main17111-73011i4YE..YN63198608-198903

17141MANIFOLD, EXHAUST

main17141-35100i22REC..RN61198601-198903

main17141-35130i22R..RN67;22R..RN58..SR5198606-199807

main17141-54012iL..LN50,55..ARL,EUR,GEN198308-198311

sub17141-54040

sub90116-10091

main17141-54040i2L..LN51,56,6#198308-199508

main17141-54110i2L,3L..LN5#,67199508-199602

main17141-54111i2L,3L..LN5#,67199602-199807

main17141-71020i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

main17141-72010i4YE..YN63198608-198903

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10058i1Y#,2Y#,3Y,4Y#..YN5#,6#198308-198909

main90116-10087i22R#..RN5#,61198601-199807

main90116-10088iL,2L,3L..LN5#,6#198308-199807

main90116-10146i4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y..YN51,55,56,57,67..4F,4H,5F199001-199807

main90116-10148i1Y,2Y,3Y,4Y..YN5#,67198909-199001

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08053iL,2L..LN5#,6#198308-198504

INTAKE MANIFOLD SIDE

main90116-08172i22R..RN67;22R..RN58..SR5198601-199807

INTAKE MANIFOLD SIDE

main90116-08220i2L,3L..LN5#,6#198504-199807

INTAKE MANIFOLD SIDE

main90116-10063i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F198308-199807

main90116-10064i22R#..RN5#,61198601-199807

EXHAUST MANIFOLD SIDE LWR

main90116-10067i22R..RN67;22R..RN58..SR5198601-199807

EXHAUST MANIFOLD SIDE UPR

main90116-10088iL..LN50,55..ARL,EUR,GEN198308-198311

EXHAUST MANIFOLD SIDE

main90116-10091iL..LN50,55198308-198706

EXHAUST MANIFOLD SIDE

sub90116-10141

main90116-10141i2L..LN5#,6#198706-199807

EXHAUST MANIFOLD SIDE

main92122-60825i22REC..RN61198712-198903

L=37,S=12&12

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-54011iL,2L..LN5#,6#198308-198401

sub17167-54040

main17167-54040iL,2L..LN5#,6#198401-198411

sub17167-54041

main17167-54041i2L..LN5#,6#198411-199103

sub17167-54042

main17167-54042i2L..LN5#,65199103-199508

main17167-54120i2L,3L..LN5#,67199508-199807

main17167-71020i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

main17167-73010i4YE..YN63198608-198710

sub17167-73011

main17167-73011i4YE..YN63198710-198903

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main12521-72010i1Y#,3Y,4Y..YN50,52,55,57,6#..ARL,GEN,ME,SA198308-199807

W/O HOT AIR INTAKE

main12521-72010i1YC,3Y..YN55,57..ARL198308-198608

CYCLONE TYPE

main12521-72010i4YE..YN63198608-198903

main12521-72010i1Y#,3Y..YN50,55,57..ARL,GEN198608-199807

CYCLON TYPE

main17167-35090i22R#..RN5#,61198601-198808

sub17167-35180

main17167-35180i22REC..RN61198808-199807

main17168-54011iL,2L..LN5#,6#198308-199103

sub17168-54012

main17168-54012i2L..LN51,56,65199103-199807

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-35060i22R#..RN5#,61198606-198808

sub17173-35120

main17173-35090i22R..RN5#198601-198606

sub17173-35091

main17173-35120i22R..RN67;22R..RN58..SR5198808-199807

main17173-54011iL,2L..LN5#,6#198308-198912

sub17173-54012

main17173-54012i2L..LN5#,65198912-199508

main17173-54030i2L,3L..LN5#,67199508-199807

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-35030i22REC..RN61198712-199807

sub17177-35050

main17177-35040i22R..RN5#198601-198808

sub17177-35060

main17177-35060i22R..RN67;22R..RN58..SR5199407-199807

main17177-54011iL,2L..LN5#,6#198308-198411

sub17177-54012

main17177-54012i2L..LN5#,6#198411-199508

main17177-54020i2L,3L..LN5#,67199508-199807

sub17177-54021

9011908689

main90119-08689

9011908714

main90119-08714

9011910237

main90119-10237

9017908150

main90179-08150

9017910070

main90179-10070

13 parts on this diagram · 7 diagrams in section
