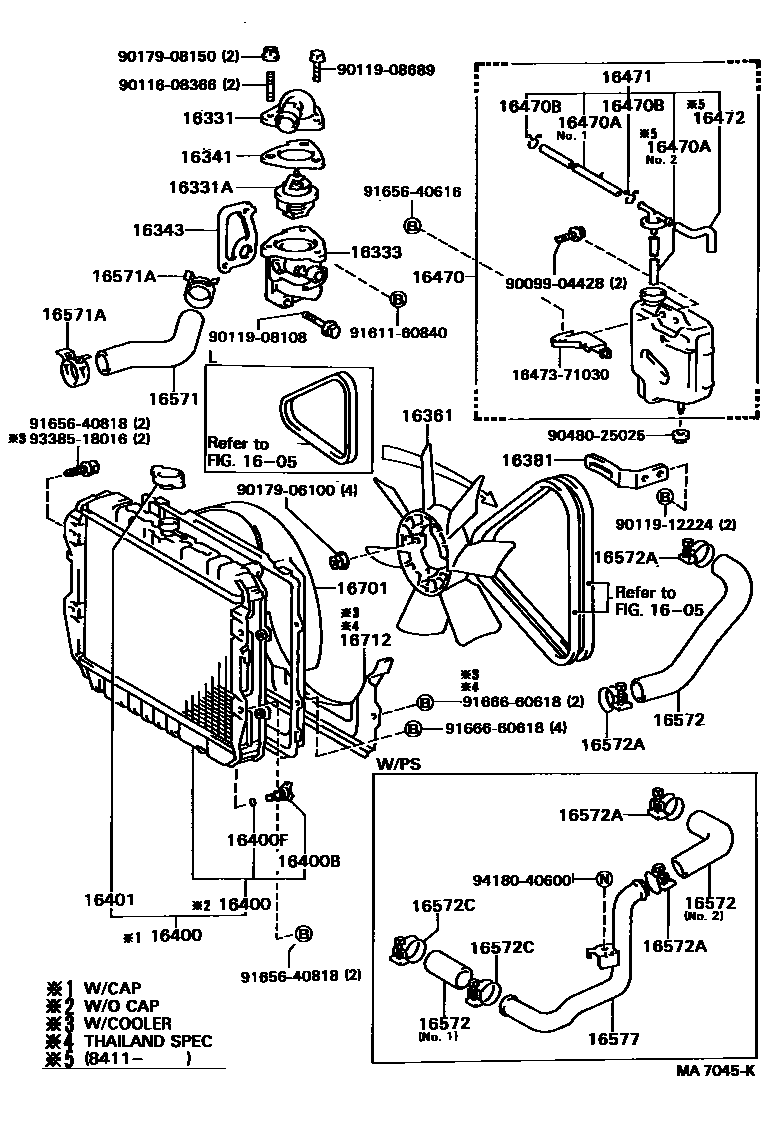

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1605

16331OUTLET, WATER

main16331-35040i22REC..RN61198712-198903

sub16331-35041

main16331-35050i22R..RN5#198601-198808

sub16331-35051

main16331-35051i22R..RN67;22R..RN58..SR5199407-199807

main16331-54030iL,2L..LN5#,6#198308-199508

main16331-54180i2L,3L..LN5#,67199508-199807

main16331-71010i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

main16331-73010i4YE..YN63198608-198903

16331ATHERMOSTAT

main16340-54010i2L,3L..LN5#,67199508-199807

*WAX 88-100

main16340-54040i2L,3L..LN5#,67199508-199807

*WAX 82-95,THAILAND SPEC

main90916-03046i2Y,4Y..YN5#,67198308-199807

*WAX 82-95

main90916-03055i22R..RN5#198601-198701

*WAX 88-100

sub90916-03078

main90916-03062iL,2L..LN5#,6#198308-198805

*WAX 88-100

sub90916-03072

main90916-03069i1Y#,2Y#,3Y,4Y#..YN5#,6#198502-199201

*WAX 82-95

sub90916-03046

main90916-03072i2L..LN5#,6#198805-199508

*WAX 88-100

sub90916-03099

main90916-03078i22R..RN67;22R..RN58..SR5198701-199807

*WAX 88-100

16333HOUSING, WATER OUTLET

main16333-54050iL,2L..LN5#,6#198308-199508

main16333-54200i2L,3L..LN5#,67199508-199807

16341GASKET, WATER OUTLET

main16341-35010i22R#..RN5#,61198601-199807

main16341-54011iL,2L..LN5#,6#198308-198808

sub16341-54030

main16341-54030i2L..LN5#,6#198808-199508

sub16341-54040

main16341-71010i1Y#,2Y#,3Y,4Y#..YN5#,6#198308-198912

sub16341-71011

main16341-71011i4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y..YN51,55,56,57,67..4F,4H,5F198912-199807

16343GASKET, WATER OUTLET HOUSING

main16343-54011iL,2L..LN5#,6#198308-198912

sub16343-54021

main16343-54021i2L..LN5#,65198912-199508

main16343-54040i2L,3L..LN5#,67199508-199807

16361FAN

main16361-38010i1YC,2Y,3Y,4Y..YN55,56,57,60,63,65,67..ARL,EUR198308-199807

main16361-44032i1Y,2Y,3Y,4Y..YN5#,6#..MTM..(GEN,ME,SA)198308-199807

main16361-54010i2L..LN65..EUR;2L..LN56..EUR..IV;2L..LN56..RHD..EUR198308-198508

sub16361-54020

main16361-54020i2L..LN5#,6#..ARL,GEN,SA;2L..LN56..LHD..EUR..CBU198408-199508

main16361-54040i2L,3L..LN5#,67199508-199807

16381BAR, FAN BELT ADJUSTING

main16381-35010i22R..RN67;22R..RN58..SR5198601-199807

main16381-35021i22REC..RN61198712-198903

main16381-54011iL,2L..LN5#,6#198308-199508

main16381-54060i2L,3L..LN5#,67199508-199807

sub16381-54061

main16381-71010i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

main16381-73011i4YE..YN63198608-198903

16400RADIATOR ASSY

main16400-35330i22R..RN67;22R..RN58..SR5198508-199807

main16400-35350i4Y..YN67..SA;4Y..YN58..4F;4Y..YN58..SR5198608-199807

main16400-35360i4YC..YN58..4FC..CBU198708-198808

main16400-35370i22R#..RN5#,61198601-198903

main16400-54240iL..LN50,55198404-198408

W/CAP

sub16400-54250

main16400-54250i2L..LN56..4FC198404-198508

W/CAP

main16400-54251i2L..LN56..4FC198508-198808

W/CAP

main16400-54260i2L..LN6#..STD198404-198408

W/CAP

main16400-54290i2L..LN65..5F;2L..LN5#..MTM198408-198508

W/CAP

sub16400-54250

main16400-54340i2L..LN6#198408-198508

W/CAP

sub16400-54260

main16400-54380i2L..LN60..ARL198403-198408

W/CAP

main16400-54390i2L..LN60..ARL198403-198508

W/PS,W/CAP

main16400-54391i2L..LN61198508-199807

W/PS,W/CAP

main16400-54530i2L..LN5#..MTM198508-199508

W/CAP

sub16400-54251

main16400-54540i2L..LN61,65198508-199807

W/CAP

main16400-54732i3L..LN67199508-199807

W/O CAP

main16400-5B180i2L,3L..LN5#199508-199807

W/O CAP

main16400-5B430i3L..LN57199605-199807

main16400-71070i2Y..YN56198404-198508

sub16400-71071

main16400-71071i2Y..YN56..EUR198508-198808

sub16400-35360

main16400-71080i1Y,3Y..YN50,52,55,57,6#..ME198404-198508

sub16400-71081

main16400-71081i3Y..YN57,65..MTM..(ARL,EUR,GEN)198508-199807

main16400-71090i1Y#..YN50,55..STD198404-198508

sub16400-71091

main16400-71091i1Y..YN50,55..STD198508-199807

sub16400-71081

main16400-71110i3Y..YN57..4FC198404-198508

sub16400-71111

main16400-71111i3Y..YN57..4FC198508-198808

main16400-73200i4Y..YN6#..ARL,GEN,ME198508-199807

sub16400-35350

main16400-73250i4YE..YN63198608-198903

main16410-54240iL..LN50,55198308-198404

W/O CAP

sub16400-54240

main16410-54250i2L..LN56198308-198404

W/O CAP

sub16400-54250

main16410-54260i2L..LN6#..STD198308-198404

W/O CAP

sub16400-54260

main16410-71040i2Y..YN56198308-198404

sub16400-71070

main16410-71050i3Y..YN57,6#..MTM..(ARL,EUR,GEN)198308-198404

sub16400-71080

main16410-71060i1Y#..YN50,55..STD198308-198404

sub16400-71090

main16410-71080i3Y..YN57..4FC198308-198404

sub16400-71110

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i22R#..RN5#,6#198308-199807

main90910-09099i3L..LN57199605-199807

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96711-19007i22R#..RN5#,6#198308-199807

16401CAP SUB-ASSY, RADIATOR

main16401-36011iL,2L..LN5#,6#198308-198508

main16401-63010i22R#..RN5#,6#198508-199807

16470TANK ASSY, RADIATOR RESERVE

main16470-35050i22REC..RN61198712-198903

main16470-54060iL,2L..LN5#,6#198308-198508

main16470-54270i2L,3L..LN5#,67199508-199807

main16470-71030i22R..RN67;22R..RN58..SR5198308-199807

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12049iL,2L..LN5#,6#198308-198411

NO.1

sub90445-12080

main90445-12078i1Y#,2Y#,3Y,4Y#..YN5#,6#198411-199807

L=1000(*H,L=220),NO.2

main90445-12078i2L..LN5#,6#198411-198508

L=1000(*H,L=400),NO.1

main90445-12078i22REC..RN61198712-198903

L=600(*H,L=230),NO.2

main90445-12078i2L..LN5#,6#198411-199807

L=1000(*H,L=350),NO.1

main90445-12078i2L,3L..LN5#,67199508-199807

L=1000(*H,L=430),NO.1

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085iL,2L,3L..LN5#,6#198308-199807

16471CAP SUB-ASSY, RESERVE TANK

main16405-35010i22REC..RN61198712-198903

main16405-54070iL,2L..LN5#,6#198308-198508

main16405-54240i2L,3L..LN5#,67199508-199807

main16405-71010i22R..RN50,55198308-199807

16472HOSE, BREATHER

main85338-71030i22REC..RN61198411-199807

16571HOSE, RADIATOR, INLET

main16571-35070i22R..RN5#198601-199807

main16571-35080i22REC..RN61198712-198903

sub16571-35180

main16571-54130iL,2L..LN5#,6#198308-199508

main16571-54440i2L,3L..LN5#,67199508-199807

main16571-71030i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F198308-199807

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i2L..LN5#,6#198308-198901

sub90467-37003

main90467-37003i22REC..RN61198808-199807

16572HOSE, RADIATOR, OUTLET

main16572-35060i22R#..RN5#,61198601-198903

RADIATOR SIDE

main16572-35120i22R..RN67;22R..RN58..SR5199407-199807

RADIATOR SIDE

main16572-54100iL,2L..LN5#198308-199508

main16572-54120i2L..LN6#198308-199508

main16572-54130i2L..LN65..RHD..(EUR,GEN)198403-199508

W/PS(NO.2)

main16572-54250i2L,3L..LN5#199508-199807

main16572-54270i3L..LN67199508-199807

NO.1

main16572-54390i3L..LN57199605-199807

NO.1

main16572-71030i1Y#,2Y,3Y..YN5#,6#198308-198506

sub16572-71031

main16572-71031i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F198506-199807

main16573-35030i22R..RN67;22R..RN58..SR5199407-199807

CHAIN COVER SIDE

main16573-38020i22R#..RN5#,61198601-198903

CHAIN COVER SIDE

main16573-54060i2L..LN65..RHD198403-199508

W/PS(NO.1)

main16573-54081i3L..LN67199508-199807

NO.2

main16573-54100i3L..LN57199605-199807

NO.2

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37001i1Y#,2Y#,3Y,4Y#..YN5#,6#198308-198901

TYPE A

sub90467-37003

main90467-37002i2L,3L..LN5#,67199508-199807

RADIATOR SIDE

sub90467-37005

main90467-37002i4Y..YN6#;4Y..YN58..4F;4Y..YN58..SR5;1Y#,2Y#,3Y,4YC,4YE..YN5#,63..4F,4FC,4H,5F198608-199807

TYPE B

sub90467-37005

main90467-37003i4Y..YN58..4F;4Y..YN58..SR5;1Y,2Y,3Y,4Y#..YN50,51,55,56,57,6#..4F,4FC,4H,5F198901-199807

TYPE A

main90467-38001i22R..RN67;22R..RN58..SR5198808-199807

sub90466-38001

main90467-38001i2L..LN6#198808-199508

RADIATOR SIDE

sub90466-38001

main90467-41001i2L,3L..LN5#,67199508-199807

WATER PUMP SIDE

main96111-10460i22R#..RN5#,61198601-198808

main96111-10460iL,2L..LN5#,6#198308-199508

RADIATOR SIDE

main96111-10500iL,2L..LN5#,6#198308-199508

WATER PUMP SIDE

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main90467-37002i3L..LN57199508-199807

sub90467-37005

main90467-38001i22REC..RN61198808-199807

PIPE SIDE

sub90466-38001

main90467-38001i2L..LN6#..RHD198808-199508

W/PS

sub90466-38001

main90467-41006i22R..RN67;22R..RN58..SR5199407-199807

CHAIN COVER SIDE

sub90467-41002

main96111-10460i2L..LN60,61..ARL198403-198808

W/PS

main96111-10460i22R#..RN5#,61198601-198808

PIPE SIDE

main96111-10490i22R#..RN5#,61198601-198903

CHAIN COVER SIDE

16577PIPE, RADIATOR, NO.7

main16577-35030i22R#..RN5#,61198601-198903

sub16577-35070

main16577-35070i22R..RN67;22R..RN58..SR5199407-199807

main16577-54080i2L..LN60,61..ARL198403-199508

W/PS

main16577-54121i3L..LN67199508-199807

main16577-54150i3L..LN57199605-199807

16701SHROUD SUB-ASSY, FAN

main16711-35020i22R..RN67;22R..RN58..SR5199407-199807

main16711-35030i22R#..RN5#,61198601-198903

main16711-54110iL,2L..LN5#198308-199508

main16711-54120i2L..LN6#198308-199508

main16711-54270i2L..LN51,56199508-199807

main16711-54290i3L..LN67199508-199807

main16711-54420i3L..LN57199605-199807

main16711-71030i3Y,4Y,4YE..YN57,6#..ARL,EUR198308-199807

main16711-73060i3Y,4Y..YN57,67..GEN198508-199807

16712SHROUD, FAN, NO.2

main16712-54050i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67..ARL,GEN,ME,SA;1Y#,2Y,3Y,4YC,4YE..YN5#,60,63,65..(4F,4FC,4H,5F)..(ARL,GEN,ME,SA)198308-199807

W/COOLER OR THAILAND SPEC

main16712-54050i22R..RN67;22R..RN58..SR5198601-199807

W/COOLER

main16712-54080i2L..LN5#198308-199508

W/COOLER OR THAILAND SPEC

main16712-54090i2L..LN6#198308-199508

W/COOLER

main16712-54190i2L..LN51,56199508-199807

W/COOLER

main16712-54200i3L..LN67199508-199807

W/COOLER

main16712-54290i3L..LN57199605-199807

W/COOLER

1647371030SUPPORT(FOR RADIATOR RESERVE TANK)

main16473-71030

9009904428

main90099-04428

9011608366

main90116-08366

9011908108

main90119-08108

9011908689

main90119-08689

9011912224

main90119-12224

9017906100

main90179-06100

9017908150

main90179-08150

9048025025

main90480-25025

9161160840

main91611-60840

9165640616

main91656-40616

9165640818

main91656-40818

9166660618

main91666-60618

9338518016

main93385-18016

9418040600

main94180-40600

40 parts on this diagram · 6 diagrams in section
