WATER PUMP

0001 1 0002 1 0003 1 0004 1

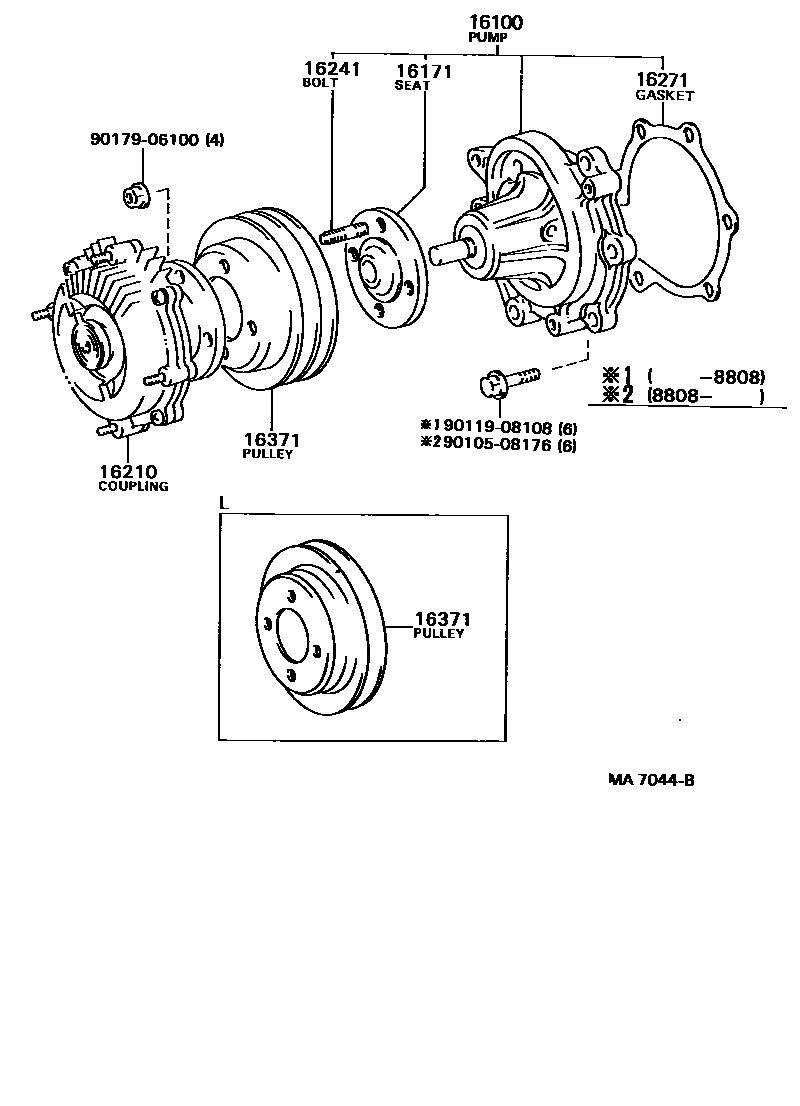

16100PUMP ASSY, ENGINE WATER

main16100-39345i22R#..RN5#,61198601-198812

sub16100-39346

main16100-39346i22R..RN67;22R..RN58..SR5198812-199807

main16100-59127iL..LN50,55198308-198408

sub16100-59128

main16100-59137i2L..LN51,56,6#198308-199001

sub16100-59138

main16100-59138i2L..LN5#,65199001-199304

sub16100-59139

main16100-59139i2L..LN5#,65199304-199508

main16100-59155i2L,3L..LN5#,67199508-199701

sub16100-59255

main16100-59255i2L,3L..LN5#,67199701-199807

sub16100-59256

main16100-79035i1Y#,2Y,3Y,4Y#..YN5#,6#198308-198704

sub16100-79036

main16100-79036i1Y#,2Y#,3Y,4Y#..YN5#,6#198704-199611

sub16100-79037

main16100-79037i2Y,4Y..YN5#199611-199807

16171SEAT, WATER PUMP PULLEY

main16171-35010i22R#..RN5#,61198601-199807

main16171-41170i2L,3L..LN5#,67199508-199807

main16171-54011iL,2L..LN5#,6#198308-199508

16210COUPLING ASSY, FLUID

main16210-31010i3Y..YN57..4FC..GEN198308-199807

main16210-38060i22R#..RN5#,61198601-199807

main16210-54070iL,2L..LN5#,6#198308-199508

main16210-54150i2L,3L..LN5#,67199508-199807

main16210-73010i4YE..YN63198608-198903

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16192-70010i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC,4YE..YN5#,60,63,65..4F,4FC,4H,5F198308-199807

main16193-13020iL,2L..LN5#,6#198308-199508

main16241-28020i22R#..RN5#,61198601-199807

main92122-40816i2L,3L..LN5#,67199508-199605

main92122-60818i2L,3L..LN5#,67199605-199807

16271GASKET, WATER PUMP

main16271-54012iL,2L..LN5#,6#198308-198912

sub16271-54013

main16271-54014i2L..LN5#,65198912-199508

main16271-54020i2L,3L..LN5#,67199508-199807

sub16271-54030

16371PULLEY, FAN

main16173-35020i22R#..RN5#,61198601-199807

main16371-54010iL..LN50,55198308-198408

main16371-54020i2L..LN51,56,6#198308-199508

main16371-71010i4Y..YN58..4F;4Y..YN58..SR5;4Y..YN62,63,67;1Y#,2Y#,3Y,4YC..YN5#,60,65..4F,4FC,4H,5F198308-199807

sub16371-71021

main16371-73011i4YE..YN63198608-198903

9010508176

main90105-08176

9011908108

main90119-08108

9017906100

main90179-06100
