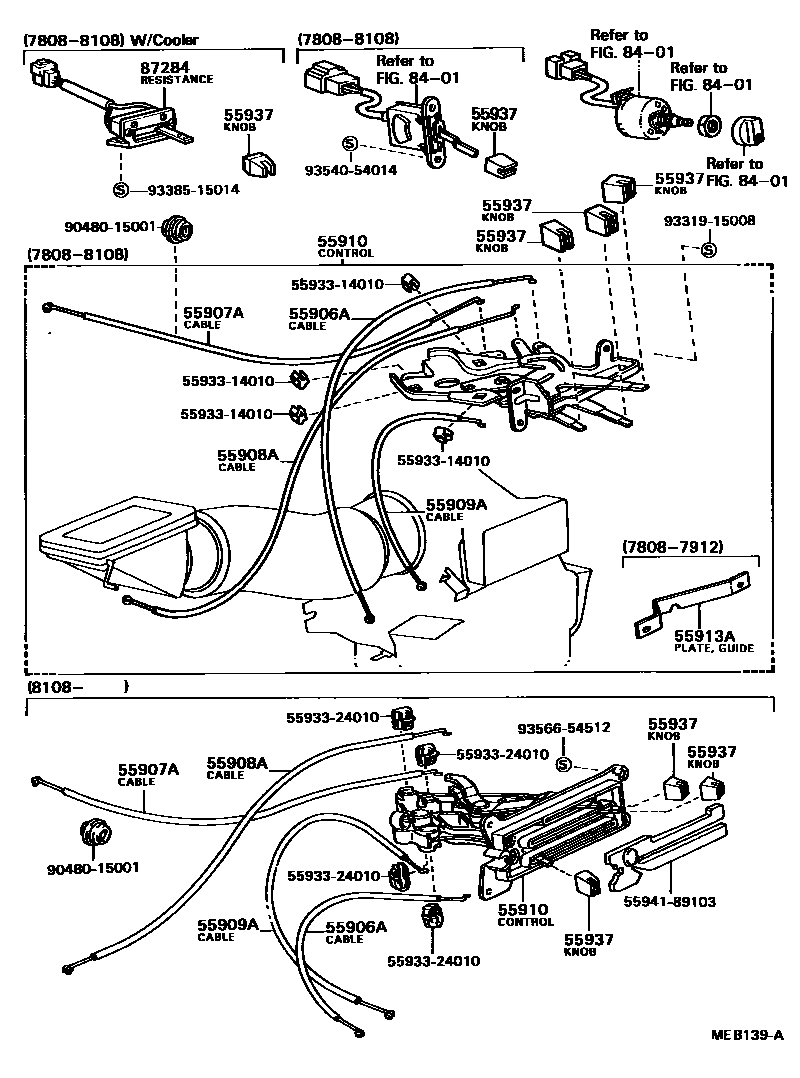

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-89104iLN3#,4#,RN3#,4#197808-198108

L=500

main55906-89105iLN3#,4#,RN31,36,41,46..RHD198108-198312

L=500

main55906-89106iLN3#,4#,RN3#,4#..LHD198108-198307

L=500

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-89107iLN3#,4#,RN3#,4#..RHD197808-198108

L=440

main55907-89108iLN3#,4#,RN3#,4#..LHD..(EUR,GEN)197808-198108

L=390

main55907-89109iRN31,41..RHD..ECB198108-198312

L=465

main55907-89110iLN30,40,RN30,31,40,41..LHD..(EUR,GEN,ME)198108-198307

L=400

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-89102iLN3#,4#,RN3#,4#197808-198108

L=720

main55908-89103iLN3#,4#,RN3#,4#198108-198312

L=690

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-89103iLN3#,4#,RN3#,4#197808-198108

L=365

main55909-89104iLN30,40,RN30,41..(4F,5F)..ECB198108-198312

L=400

main55909-89105iLN3#,4#,RN3#,4#..LHD198110-198307

L=400

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-89109iLN3#,4#,RN3#,4#..RHD197808-198108

main55910-89110iLN3#,4#,RN3#,4#..LHD..(EUR,GEN)197808-198108

main55910-89111iLN3#,4#,RN3#,4#..RHD..(GEN,SA)197808-198108

W/BOOST VENTILATOR

main55910-89112iLN3#,4#,RN3#,4#..LHD..(GEN,PHL)197808-198108

W/BOOST VENTILATOR

main55910-89113iLN3#,4#,RN30,36,40,46..RHD..STD198108-198312

main55910-89114iLN30,40,RN30,31,40,41..LHD..(EUR,GEN,ME)198108-198307

main55910-89115iLN3#,4#,RN3#,4#..RHD..GEN198108-198307

W/BOOST VENTILATOR

main55910-89116iLN3#,4#,RN3#,4#..LHD..(GEN,ME,PHL)198108-198307

W/BOOST VENTILATOR

55913APLATE, HEATER CONTROL LEVER GUIDE

main55913-89104iRN46..ARL..IV3;RN46..RHD..(EUR,GEN);LN30,40,RN3#,40,41..RHD197808-197912

main55913-89105iLN30,40,RN3#,4#..LHD197808-197912

55937KNOB, HEATER CONTROL LEVER

main55905-12070iLN3#,4#,RN3#,4#198108-198312

main55905-20140iLN3#,4#,RN3#,4#197808-198108

sub55905-12070

8401

87284RESISTOR SUB-ASSY, VARIABLE

main88622-89101iLN3#,4#,RN31,41;RN30,36,40,46..ARL,GEN,PHL,SA197808-198108

5593314010GUIDE, LEVER, NO.2

main55933-14010

5593324010GUIDE, LEVER, NO.2

main55933-24010

5594189103BRACKET, HEATER CONTROL

main55941-89103

9048015001

main90480-15001

9331915008

main93319-15008

9338515014

main93385-15014

9354054014

main93540-54014

9356654512

main93566-54512

17 parts on this diagram · 4 diagrams in section
