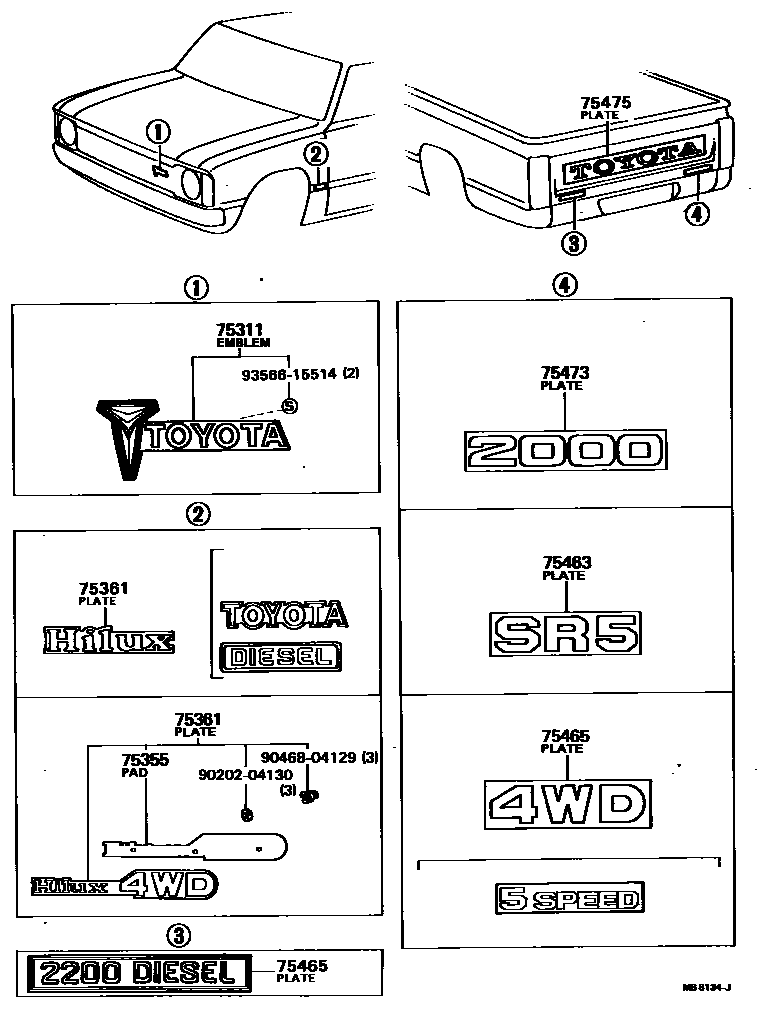

EMBLEM & NAME PLATE

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-39045iLN3#,4#,RN3#,4#197808-198108

T-TOYOTA

main75311-39105iLN30,40,RN30,31,40,41198108-198403

T-TOYOTO

main75311-39115iLN36,46,RN36,46198108-198307

T-TOYOTA

75355PAD, FRONT FENDER ORNAMENT

main75365-95111iLN36,46,RN36,46197901-198307

75361PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)

main75351-89104iRN41..DLX,STD;RN41..SR5..GEN;LN30,40,RN30,31,40197808-198108

HILUX

main75351-89105iRN41..SR5..ARL197808-198108

TOYOTA

main75351-89108iLN30,40198101-198108

DIESEL

main75351-89109iLN30,40,RN30,31,40,41198108-198403

HILUX

main75351-89111iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)198108-198403

DIESEL

main75351-95113iLN36,46,RN36,46197901-198307

HILUX 4WD

main75351-95114iLN36,46;RN46..ARL..CBU198103-198108

2200DIESEL

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75371-12010-01iRN31,41..SR5..(ARL,GEN)..CBU197808-198307

SR-5,BLACK&WHITE,BLACK

sub75371-12010

main75371-12010-08iRN31,41..SR5..(ARL,GEN)..CBU197808-198307

SR-5,WHITE&CLEAR,IVORY

sub75371-12010

75465PLATE, REAR NAME, NO.5 (MECHANISM)

main75371-89101-01iLN30,40..5F,5H197911-198403

5-SPEED,BLACK,BLACK

sub75371-89101

sub75474-89104

main75371-89101-08iLN30,40..5F,5H197911-198403

5-SPEED,WHITE,IVORY

sub75371-89101

sub75474-89104

main75471-89105iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)197909-198403

2200DIESEL

main75475-95110iLN36,46,RN36,46..CBU197901-198307

4WD

sub75471-89113

75473PLATE, REAR BODY NAME, NO.3 (FOR DISPLACEMENT INDICATION)

main75473-89105-04iRN31,41..(DLX,STD)..(ARL,GEN)..CBU197808-198312

2000,BLUE & WHITE,BLUE

main75473-89105-06iRN31,41..(DLX,STD)..(ARL,GEN)..CBU197808-198312

2000,ORANGE & BLACK,BROWN

main75473-89105-16iRN31,41..DLX,STD197808-198312

2000,ORANGE & WHITE,BROWN

75475PLATE, TAIL GATE

main75471-89106-01iRN31,41..LHD..DLX..CBU198008-198307

TOYOTA,BLACK,BLACK

main75471-89106-02iRN30,40..LHD..GEN..ECB..CBU198008-198307

TOYOTA,RED,RED/MAROON

main75471-89106-08iRN31,41..LHD..DLX..CBU198008-198307

TOYOTA,WHITE,IVORY

9020204130

main90202-04130

9046804129

main90468-04129

9356615514

main93566-15514

10 parts on this diagram · 1 diagram in section
