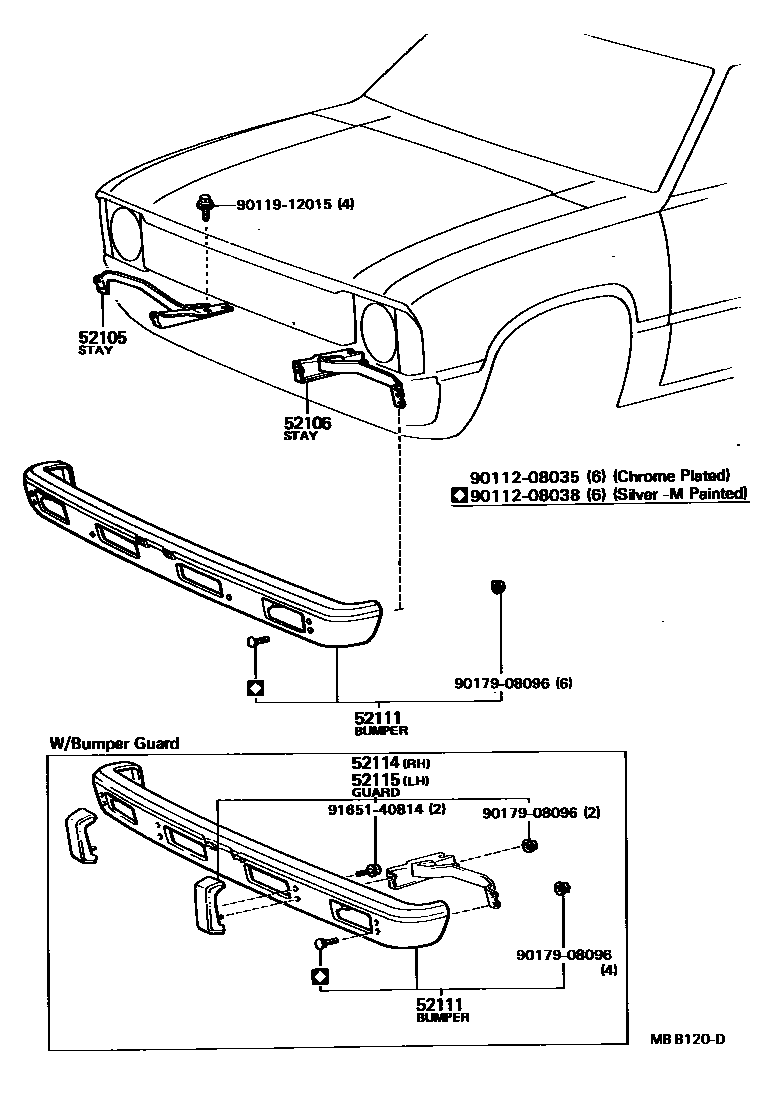

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-89102iLN30,40,RN30,31,40,41197808-198108

main52011-89104iLN30,40,RN30,31,40,41198108-198403

main52011-95110iLN36,46,RN36,46197901-198108

main52011-95113iLN36,46,RN36,46198108-198307

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-89102iLN30,40,RN30,31,40,41197808-198108

main52012-89104iLN30,40,RN30,31,40,41198108-198403

main52012-95110iLN36,46,RN36,46197901-198108

main52012-95113iLN36,46,RN36,46198108-198307

52111BUMPER ASSY, FRONT

main52111-39055iLN30,40,RN30,31,40,41..STD197808-198108

W/O BUMPER GUARD,SILVER-M

sub52111-89108

main52111-39065iLN30,40,RN30,31,40,41197808-198108

CHROME PLATED

sub52111-89109

main52111-39085iRN36,46..LHD..GEN197901-197903

CHROME PLATED

sub52111-39086

main52111-39086iLN36,46,RN36,46..LHD..GEN197903-198108

CHROME PLATED

sub52111-95115

main52111-39095iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197903

BLACK

sub52111-39096

main52111-39096iLN36,46,RN36,46197903-198108

BLACK

sub52111-95114

main52111-39135iRN41..LHD..DLX;RN30,31,40..LHD..4F..GEN..ECB197910-198108

W/BUMPER GUARD,SILVER-M

sub52111-89111

main52111-39145iRN41..LHD..DLX;RN30,31,40..LHD..4F..GEN..ECB197910-198108

W/BUMPER GUARD,CHROME PLATED

sub52111-89112

main52111-39235iLN40,RN30,40..LHD..EUR198008-198108

W/*HC,SILVER-M

main52111-39275iLN30,40,RN30,31,40,41..STD..(ARL,GEN,PHL,SA)198108-198307

W/O BUMPER GUARD,SILVER

sub52111-89117

main52111-39305iRN31,41..SR5198108-198312

W/O BUMPER GUARD,BLACK

sub52111-89120

main52111-39325iLN40,RN30,40..LHD..EUR198108-198307

W/O BUMPER GUARD,W/*HC,BLACK

sub52111-89122

main52111-39335iLN30,40,RN30,31,40,41..(DLX,STD)..(ARL,SA)198108-198307

W/O BUMPER GUARD,CHROME PLATED

sub52111-89123

main52111-39345iLN30,40,RN30,40..RHD..4F..RCB..CBU198108-198403

W/BUMPER GUARD,CHROME PLATED

sub52111-89124

main52111-39355iLN36,46,RN36,46..STD198108-198307

BLACK

sub52111-95118

main52111-39375iLN36,46,RN36,46..GEN,ME198108-198307

CHROME PLATED

sub52111-95120

main52111-39395iLN36,46..LHD..EUR198108-198307

W/*HC,BLACK

sub52111-95122

52114GUARD, BUMPER, FRONT RH

main52401-39025iRN41..LHD..DLX;RN30,31,40..LHD..4F..GEN..ECB197910-198108

main52401-39035iLN40,RN41..RHD..SR5198108-198403

52115GUARD, BUMPER, FRONT LH

main52401-39025iRN41..LHD..DLX;RN30,31,40..LHD..4F..GEN..ECB197910-198108

main52401-39035iLN30,40,RN30,31,40,41..LHD..(GEN,ME)198108-198403

9011208035

main90112-08035

9011208038

main90112-08038

9011912015

main90119-12015

9017908096

main90179-08096

9165140814

main91651-40814

10 parts on this diagram · 3 diagrams in section
