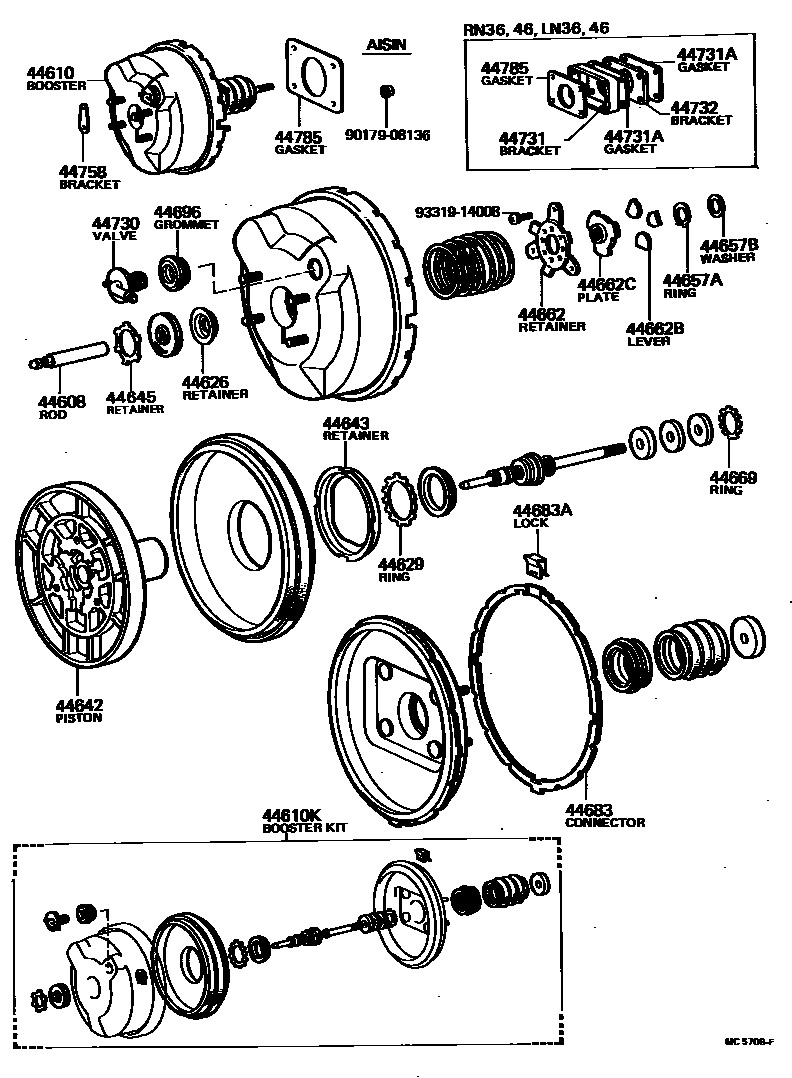

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0004 1 0005 1

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-35100iLN3#,4#,RN30,36,40,46;RN31,41..(SR5,STD)..(ARL,SA)¥940197808-198403

AISIN

main44608-14040iLN30,40,RN30,40,41..RHD..GEN¥1,630197808-198307

JKC

44610BOOSTER ASSY, BRAKE

main44610-35100iRN30,40..RHD197808-197911

7.5 INCHES,FR DRUM,AISIN

main44610-35101iRN30,40..RHD¥40,500197911-198307

7.5 INCHES,FR DRUM,AISIN

main44610-35110iRN30,40..4H..EUR197808-197911

7.5 INCHES,FR DISC,AISIN

main44610-35111iRN30,40..4H..EUR¥40,500197911-198403

7.5 INCHES,FR DISC,AISIN

main44610-35120iRN30,40..RHD..(GEN,SA)197808-198108

6 INCHES,FR DRUM,JKC

main44610-35121iRN30,40..RHD..GEN198108-198307

6 INCHES,FR DRUM,JKC

main44610-35130iRN36,46..LHD..GEN¥39,800197901-198108

6 INCHES,FR DRUM BRAKE

main44610-35130iRN30,40..LHD..GEN¥39,800197808-198307

6 INCHES,FR DRUM,AISIN

main44610-35140iRN31,41..RHD..GEN197808-198307

7.5 INCHES,FR DRUM,JKC

main44610-35150iRN31,41..RCB¥44,400197808-198312

7.5 INCHES,FR DISC,AISIN

main44610-35160iRN30,31,40,41..LHD¥46,000197808-198307

7.5 INCHES,FR DRUM,JKC

main44610-35170iRN30,40..4F..EUR¥46,000197808-198307

7.5 INCHES,FR DISC,AISIN

main44610-35190iRN36,46..LHD..(GEN,ME)¥44,500197901-198307

7.5 INCHES,FR DRUM,AISIN

main44610-35200iRN36,46..LHD¥44,500197901-198307

7.5 INCHES,FR DISC,AISIN

main44610-35250iRN36..RHD;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..RHD..(EUR,GEN,SA)¥41,700197901-198307

7.5 INCHES,FR DISC,AISIN

main44610-35260iRN36,46..RHD..GEN197901-198307

7.5 INCHES,FR DRUM,AISIN

main44610-35280iRN36,46..RHD..GEN197901-198108

6 INCHES,FR DRUM,AISIN

main44610-35290iLN30,40..RHD¥40,500198008-198403

7.5 INCHES,FR DISC,AISIN

main44610-35300iLN30,40..RHD..(GEN,SA)197909-198307

6 INCHES,FR DRUM,JKC

main44610-35310iLN3#,4#..LHD..GEN¥38,600197909-198307

6 INCHES,FR DRUM,AISIN

main44610-35320iLN30,40..RHD..STD..(EUR,GEN,SA)¥44,500197909-198307

7.5 INCHES,FR DRUM,AISIN

main44610-35330iLN30,40..LHD¥46,400197909-198307

7.5 INCHES,FR DRUM,JKC

main44610-35350iRN31,41..STD..ARL197904-198108

7.5 INCHES,FR DRUM,AISIN

main44610-35350iRN31,41..ARL,SA198108-198307

7.5INCHES,AISIN

main44610-35360iLN40..5F..EUR198008-198307

7.5 INCHES,FR DISC,AISIN

main44610-35370iLN30,40..LHD..GEN198108-198307

7.5INCHES,FR DISC,JKC

main44610-35380iLN36,46..RHD198103-198108

6 INCHES

main44610-35390iLN36,46..RHD..GEN198103-198307

7.5 INCHES,FR DRUM

main44610-35400iLN36,46..LHD..GEN¥44,500198103-198307

7.5 INCHES,FR DRUM

main44610-35410iLN46..TW..ARL;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..RHD..(EUR,GEN)198103-198307

7.5 INCHES,FR DISC

main44610-35420iLN36,46..LHD198103-198307

7.5 INCHES,FR DISC

44610KBOOSTER KIT, BRAKE

main04443-35060iRN30,40..LHD..(EUR,GEN,ME)¥11,700197808-198307

7.5 INCHES,AISIN

main04443-35061iRN30,40..RHD¥11,800197911-198403

7.5 INCHES,AISIN

main04443-35070iRN30,40..RHD..(GEN,SA)197808-197911

6 INCHES,JKC

main04443-35071iRN30,40..RHD..GEN198108-198307

6 INCHES,JKC

main04443-35080iRN30,40..LHD..GEN¥11,500197808-198307

6 INCHES,AISIN

main04443-35080iRN36,46..LHD..GEN¥11,500197901-198108

6 INCHES

main04443-35090iRN30,31,40,41..LHD¥13,600197808-198307

7.5 INCHES,JKC

main04443-35100iRN31..RHD;RN41..RHD..SR5..GEN;RN41..RHD..(DLX,STD)197808-198307

7.5 INCHES,JKC

main04443-35110iRN31,41..RCB197808-198312

7.5 INCHES,AISIN

main04443-35130iRN36,46..LHD¥12,700197901-198307

7.5 INCHES

main04443-35140iRN36..RHD;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..RHD..(EUR,GEN,SA)197901-198307

7.5 INCHES

main04443-35160iRN36,46..RHD..GEN197901-198108

6 INCHES

main04443-35220iLN30,40..RHD;LN40..5F..EUR¥11,800197909-198403

7.5 INCHES,AISIN

main04443-35230iLN30,40..RHD..(GEN,SA)¥13,600197909-198307

6 INCHES,JKC

main04443-35240iLN30,40..LHD..GEN¥10,300197909-198307

6 INCHES,AISIN

main04443-35250iLN30,40..LHD¥14,100197909-198307

7.5 INCHES,JKC

main04443-35260iLN30,40..LHD..GEN¥12,800198108-198307

7.5INCHES,JKC

main04443-35270iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)¥11,700198103-198307

7.5 INCHES,AISIN

44626RETAINER, BOOSTER ROD CUP

main44626-60010iRN30,36,40;RN46..EUR,GEN;RN46..ARL..IV3;RN31,41..SR5..(ARL,SA)¥160197808-198403

AISIN

44629RING, CIRCULAR INTERNAL

main44629-30090iRN30,36,40;RN46..EUR,GEN;RN46..ARL..IV3;RN31,41..SR5..(ARL,SA)¥300197808-198403

AISIN

44642PISTON, BRAKE BOOSTER

main44642-14130iLN30,40,RN30,40..RHD..(GEN,SA)197808-198307

6 INCHES,JKC

main44642-14170iRN31,41..SR5..(ARL,SA)¥7,800197808-198403

7.5 INCHES,AISIN

main44642-14170iLN40..5F..EUR¥7,800198008-198307

7.5 INCHES,JKC

main44642-14190iLN30,40,RN30,40..LHD..GEN¥7,400197808-198307

6 INCHES,AISIN

main44642-20140iLN30,40..LHD..GEN¥15,400198108-198307

7.5INCHES,FR DISC,JKC

main44642-28030iLN30,40,RN30,31,40,41..LHD197808-198307

7.5 INCHES,JKC

44643RETAINER, DIAPHRAGM

main44643-60010iLN3#,4#,RN30,36,40,46;RN31,41..(SR5,STD)..(ARL,SA)¥620197808-198403

AISIN

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iLN3#,4#,RN3#,4#..ARL,EUR,GEN,ME,SA¥440197808-198403

AISIN

main44645-22020iRN31,41..(GEN,SA)..ECB¥220197808-198307

JKC

44657ARING, SNAP(FOR BOOSTER AIR VALVE STOPPER)

main96150-01600iLN30,40,RN30,31,40,41..ARL,EUR,GEN,ME,SA¥260197808-198403

AISIN

44657BWASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)

main44645-20100iLN3#,4#,RN3#,4#..ARL,EUR,GEN,ME,SA¥250197808-198403

AISIN

44662RETAINER, REACTION, NO.1

main44662-20100iRN31,41..RCB¥610197808-198403

7.5 INCHES,FR DISC,AISIN

main44662-20100iLN36,46,RN36,46¥610197901-198307

FR DISC

main44662-35100iLN30,40,RN30,40..LHD..GEN¥620197808-198307

6 INCHES,AISIN

main44662-35100iLN30,40,RN30,40..LHD..(GEN,PHL)¥620197808-198307

7.5 INCHES,FR DRUM,AISIN

main44662-35100iLN36,46,RN36,46..GEN¥620197901-198307

FR DRUM

main44662-35100iLN30,40,RN30,40..LHD..GEN¥620198108-198307

7.5INCHES,AISIN

44662BLEVER, REACTION

main44661-35100iRN31,41..RCB¥470197808-198403

AISIN

44662CPLATE, REACTION, NO.1

main44607-35100iRN31,41..ARL,SA197808-198307

FR DRUM

main44607-35100iLN36,46,RN36,46..GEN197901-198307

7.5 INCHES,FR DRUM

main44607-35100iRN31,41..ARL,SA198108-198307

SINGLE MASTER CYLINDER

main44607-35130iLN36,46,RN36,46..GEN197901-198108

6 INCHES

main44607-35130iRN30,40..LHD..GEN197808-198307

SINGLE MASTER CYLINDER

main44653-12100iLN36,46,RN36,46197901-198307

7.5 INCHES,FR DISC

main44653-20150iRN31,41..SR5..(ARL,SA)¥610197808-198403

FR DISC

44669RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER)

main44669-60010iLN3#,4#,RN30,36,40,46;RN31,41..(SR5,STD)..(ARL,SA)¥270197808-198403

AISIN

44683CONNECTOR, BOOSTER BODY

main44682-20100iLN36,46,RN36,46..GEN¥1,450197808-198307

6 INCHES BOOSTER

main44682-20150iLN30,40,RN30,40..RHD¥1,540197808-198403

7.5 INCHES,AISIN

44683ALOCK, CONNECTOR

main44683-20100iLN3#,4#,RN3#,4#..ARL,EUR,GEN,ME,SA¥450197808-198403

AISIN

44696GROMMET, CHECK VALVE

main90480-24438iRN31,41..(GEN,SA)..ECB¥530197808-198307

JKC

sub90480-24517¥580

main90480-24439iRN36..RHD;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..RHD..(EUR,GEN,SA)¥390197808-198312

AISIN

main90480-24439iRN36,46..LHD..GEN¥390197901-198108

6 INCHES

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20010iRN36,46..LHD¥2,300197901-198307

7.5 INCHES

main44730-20010iRN30,40..RHD¥2,300197911-198403

main44730-20030iRN31,41..SR5..(ARL,SA)¥2,160197808-198312

AISIN

main44730-20030iRN36..RHD;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..RHD..(EUR,GEN,SA)¥2,160197901-198307

7.5 INCHES

main44730-20040iRN31,41..RHD..(GEN,SA)..ECB¥2,780197808-198307

JKC

main44730-20040iRN36,46..RHD..GEN¥2,780197901-198108

6 INCHES

main44730-20060iRN30,40¥2,920197808-198307

AISIN

main44730-20060iRN36,46..LHD..GEN¥2,920197901-198108

6 INCHES

main44730-22090iRN30,31,40,41..LHD¥2,300197808-198307

JKC

main44730-60040iLN3#,40;LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN46..T1..(EUR,GEN)¥5,500197909-198403

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-35060iLN36,46,RN36,46197901-198307

7.5 INCHES

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-35011iLN36,46,RN36,46¥250197901-198307

7.5 INCHES

44732BRACKET, BRAKE BOOSTER, REAR

main44732-35040iLN36,46,RN36,46¥780197901-198307

7.5 INCHES

44758BRACKET, VACUUM CHECK VALVE

main44758-20060iRN30,31,40,41..LHD¥640197808-198307

7.5 INCHES

main44758-22030iRN31..RHD;RN41..RHD..SR5..GEN;RN41..RHD..(DLX,STD)197808-198312

7.5 INCHES

main44758-35030iRN30,40..LHD¥210197808-198307

6 INCHES

main44758-35030iRN41..ARL¥210197808-198108

main44758-35040iRN36,46..LHD197901-198307

7.5 INCHES

main44758-35060iRN30,40..RHD¥270197911-198403

44785GASKET, BRAKE BOOSTER

main44785-35010iRN30,31,40,41¥240197808-197909

sub44785-35011¥250

main44785-35011iRN36;RN46..EUR,GEN;RN46..ARL..IV3¥250197901-198403

9017908136

main90179-08136¥170

9331914008

main93319-14008¥80

25 parts on this diagram · 4 diagrams in section
