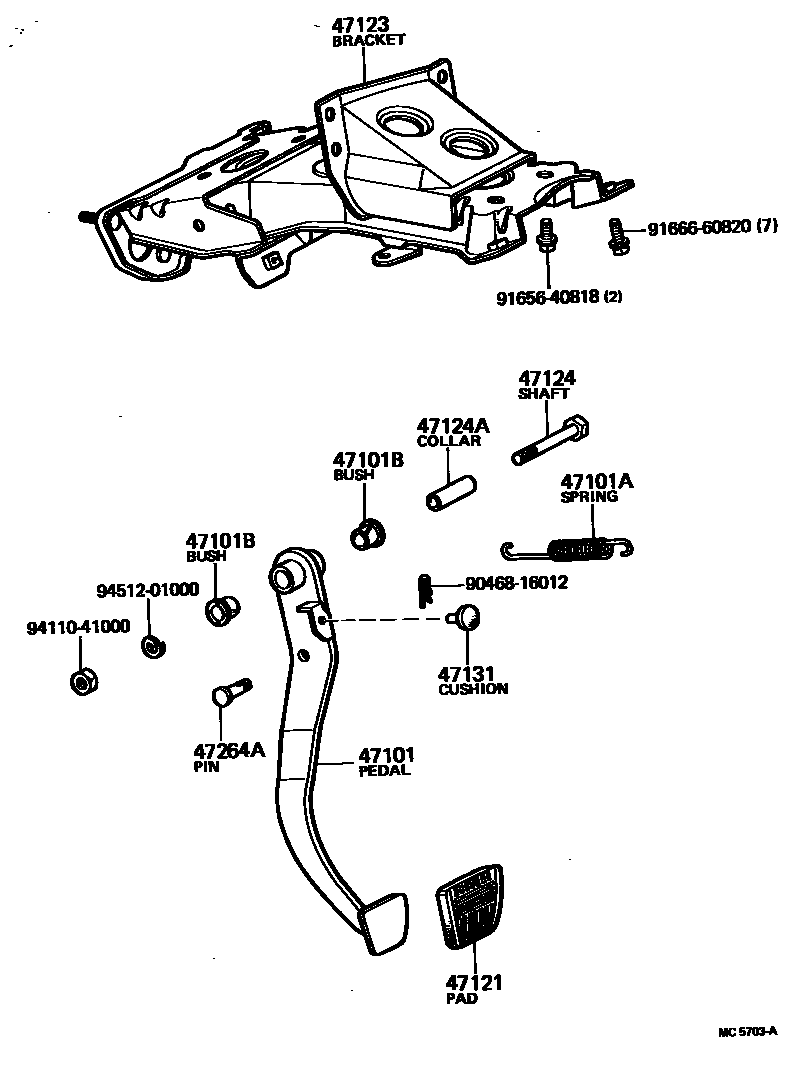

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-35150iLN3#,4#,RN3#,4#..RHD197808-198403

main47101-35160iLN30,40,RN3#,4#..LHD197808-198008

main47101-35180iLN3#,4#,RN3#,4#..LHD198008-198307

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14021iLN3#,4#,RN3#,4#197808-198403

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iLN3#,4#,RN3#,4#197808-198403

47121PAD, BRAKE PEDAL

main31321-14010iLN3#,4#,RN3#,4#197808-198403

47123BRACKET, BRAKE PEDAL

main55106-89111iRN46..ARL..IV3;RN3#,40,41..RHD;RN46..RHD..(EUR,GEN)197808-198008

main55106-89112iLN30,40,RN3#,4#..LHD197808-198008

main55106-89113iLN30,40..RHD197909-198008

main55106-89114iLN3#,4#,RN3#,4#..LHD198008-198307

main55106-89115iRN46..ARL..IV3;RN3#,40,41..RHD;RN46..RHD..(EUR,GEN)198008-198108

main55106-89116iLN30,40..RHD198008-198103

sub55106-89117

main55106-89117iLN3#,4#,RN3#,4#..RHD198108-198403

47124SHAFT, BRAKE PEDAL

main90101-10480iLN3#,4#,RN3#,4#..LHD197808-198307

sub91552-81090

main91121-51060iLN3#,4#,RN3#,4#..RHD197808-198403

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-35020iLN3#,4#,RN3#,4#..LHD197808-198307

main90387-10003iLN3#,4#,RN3#,4#..RHD197808-198403

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iLN3#,4#,RN3#,4#197808-198403

47264APIN(FOR PUSH ROD)

main90249-10048iLN3#,4#,RN3#,4#197808-198403

9046816012

main90468-16012

9165640818

main91656-40818

9166660820

main91666-60820

9411041000

main94110-41000

9451201000

main94512-01000

14 parts on this diagram · 2 diagrams in section
