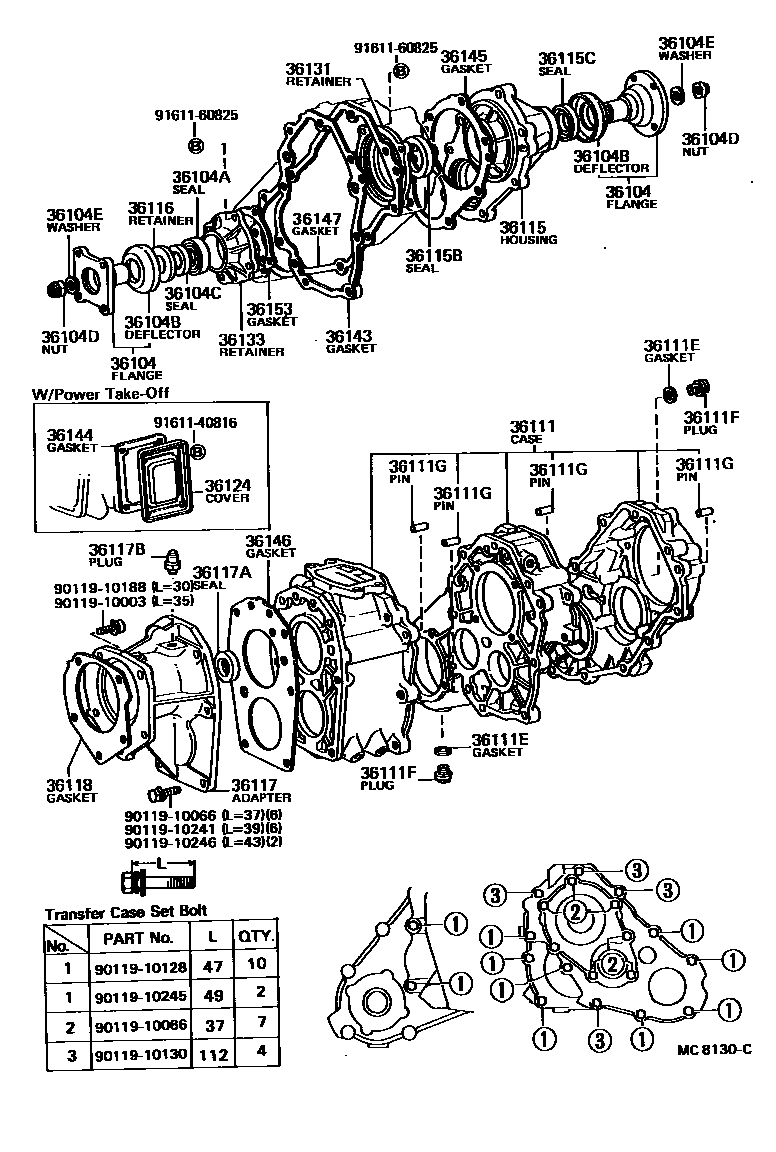

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1

36104FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT)

main33309-35010iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197908

RR DRIVE

main33309-35011iLN36,46,RN36,46197908-198307

RR DRIVE

main33309-35020iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197908

FR DRIVE

main33309-35021iLN36,46,RN36,46197908-198307

FR DRIVE

36104ASEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT)

main90311-38016iLN36,46,RN36,46197901-198307

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-35020iLN36,46,RN36,46197901-198307

36104CSEAL, DUST (FOR TRANSFER OUTPUT SHAFT)

main90303-38010iLN36,46,RN36,46197901-198307

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-20001iLN36,46,RN36,46197901-198307

36104EWASHER, PLATE (FOR TRANSFER OUTPUT SHAFT)

main90201-20005iLN36,46,RN36,46197901-198307

36111CASE, TRANSFER

main36103-35010iLN36,46,RN36,46197901-198111

W/O POWER TAKE-OFF

sub36103-35011

main36103-35011iLN36,46,RN36,46198111-198302

W/O POWER TAKE-OFF

sub36103-35012

main36103-35012iLN36,46,RN36,46198302-198307

W/O POWER TAKE-OFF

sub36103-35013

main36103-35020iLN36,46,RN36,46..STD197901-198111

W/POWER TAKE-OFF

sub36103-35021

main36103-35021iLN36,46,RN36,46..STD198111-198302

W/POWER TAKE-OFF

sub36103-35022

main36103-35022iLN36,46,RN36,46..STD198302-198307

W/POWER TAKE-OFF

sub36103-35023

36111EGASKET (FOR TRANSFER CASE)

main12157-10010iLN36,46,RN36,46197901-198108

main90430-18007iLN36,46,RN36,46198108-198307

sub90430-18008

36111FPLUG (FOR TRANSFER CASE)

main90341-18002iLN36,46,RN36,46197901-198305

FILLER PLUG

main90341-18006iLN36,46,RN36,46198305-198307

FILLER PLUG

main90341-18081iLN36,46,RN36,46197901-198307

DRAIN PLUG

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10113iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197911

L=22,OD=10

main90250-10232iLN36,46,RN36,46197911-198307

L=15,OD=8

36115HOUSING, TRANSFER EXTENSION

main36115-35010iLN36,46,RN36,46197901-198307

36115BSEAL, TYPE V OIL (FOR TRANSFER EXTENSION HOUSING)

main90312-48001iLN36,46,RN36,46197901-198307

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-38140iLN36,46,RN36,46197901-198307

36116RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL

main33145-30010iLN36,46,RN36,46197901-198307

36117ADAPTER, TRANSFER

main36117-35010iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198009

sub36117-35011

main36117-35011iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA198009-198307

main36117-35020iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198307

main36117-35030iRN36,46..ME,SA;RN46..RHD..T1..GEN..CBU198109-198307

HEAVY DUTY

36117ASEAL, OIL(FOR TRANSFER ADAPTER)

main90310-32001iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198003

sub90311-32009

main90311-32009iLN36,46,RN36,46198003-198307

36117BPLUG, BREATHER(FOR TRANSFER ADAPTER)

main90930-03031iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198307

main90930-03075iRN36,46..ME,SA;RN46..RHD..T1..GEN..CBU198109-198307

W/HEAVY DUTY ADAPTER

36118GASKET, TRANSFER ADAPTER

main33142-26010iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-197905

main33142-35030iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198307

main33142-35040iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197905-198307

36124COVER, TRANSFER POWER TAKE-OFF

main33161-25010iLN36,46,RN36,46197901-198307

36131RETAINER, TRANSFER OUTPUT SHAFT FRONT BEARING

main36131-35010iLN36,46,RN36,46197901-198307

36133RETAINER, TRANSFER FRONT DRIVE GEAR BEARING

main36133-35010iLN36,46,RN36,46197901-198307

36143GASKET, TRANSFER CASE, FRONT

main36143-35010iLN36,46,RN36,46197901-198307

36144GASKET, TRANSFER POWER TAKE-OFF COVER

main33162-25010iLN36,46,RN36,46197901-198307

36145GASKET, TRANSFER EXTENSION HOUSING

main36145-35010iLN36,46,RN36,46197901-198307

36146GASKET, TRANSFER REDUCTION CASE

main36146-35010iLN36,46,RN36,46197901-198307

36147GASKET, TRANSFER CASE

main36141-35010iLN36,46,RN36,46197901-198307

36153GASKET, FRONT DRIVE GEAR BEARING RETAINER

main36153-35010iLN36,46,RN36,46197901-198307

9011910003

main90119-10003

9011910066

main90119-10066

9011910128

main90119-10128

9011910130

main90119-10130

9011910188

main90119-10188

9011910241

main90119-10241

9011910245

main90119-10245

9011910246

main90119-10246

9161140816

main91611-40816

9161160825

main91611-60825
