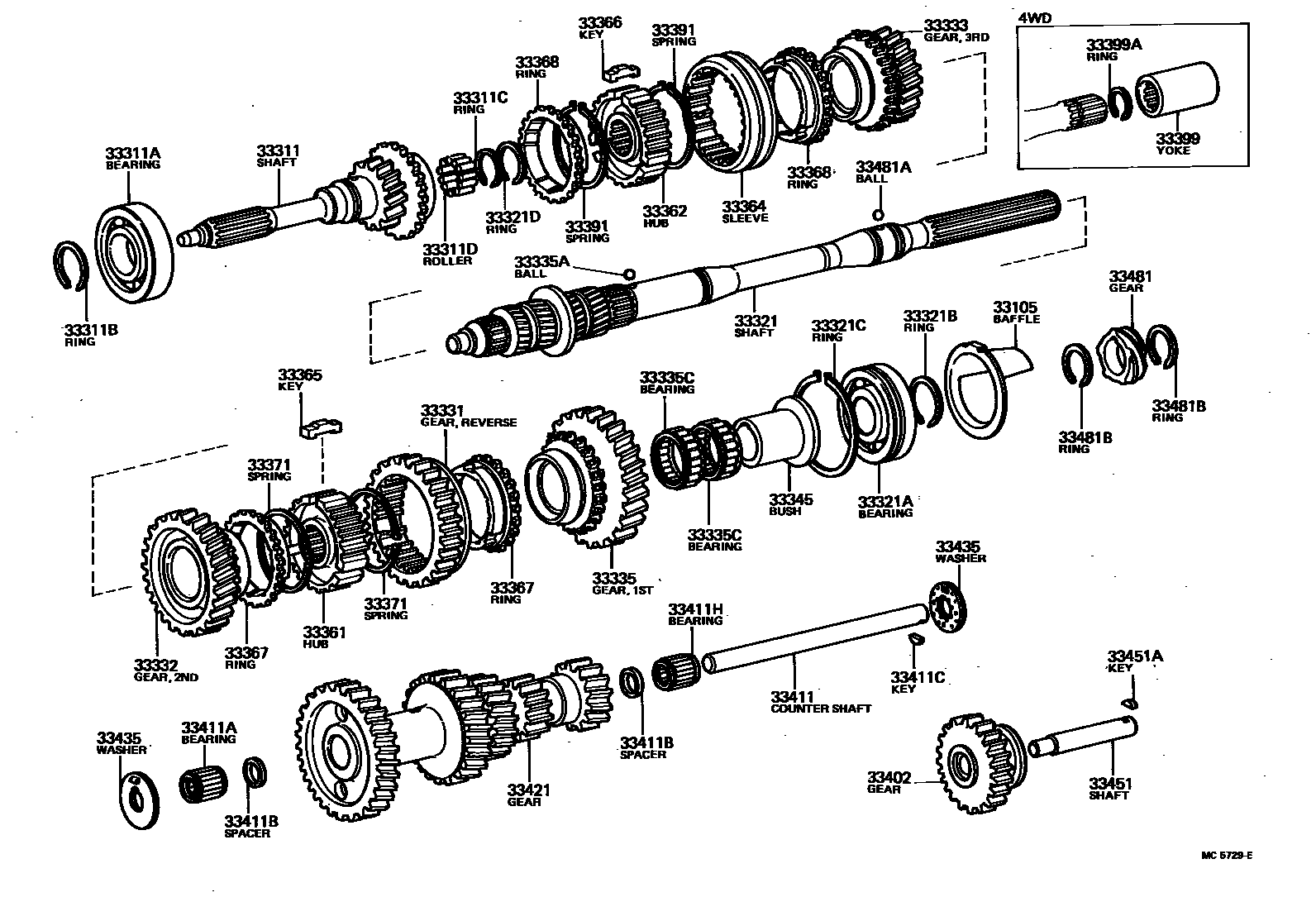

TRANSMISSION GEAR (MTM)

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1

33105BAFFLE SUB-ASSY, EXTENSION HOUSING OIL

main33143-26020iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

33311SHAFT, INPUT

main33301-20020iRN31,41..SR5197808-198201

sub33301-30041

main33301-30041iRN31,41..SR5198201-198312

main33301-35030iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198310

N=27

sub33301-35031

main33301-35030iLN40..ECB198310-198312

sub33301-35031

main33311-26020iRN30,40197808-198403

main33311-35040iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H197808-198403

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-32005iLN36,46,RN31,41..5F197808-198312

main90363-32010iLN30,40..5F,5H197901-198211

sub90365-32011

main90363-32016iLN30,40..5F..RCB198310-198403

sub90363-32017

main90363-32018iLN40..ECB;LN30,40..4F198211-198403

NACHI

sub90363-32019

main90363-32019iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198211-198403

NSK

main90365-32011iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198201-198211

main97163-06207iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

sub90363-35026

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-30214iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN);LN30,40,RN31,41..5F,5H197808-198403

T=2.05,MARK 0,T=2.05-2.10

main90520-30215iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN);LN30,40,RN31,41..5F,5H197808-198403

T=2.10,MARK 1,T=2.10-2.15

main90520-30216iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN);LN30,40,RN31,41..5F,5H197808-198403

T=2.15,MARK 2,T=2.15-2.20

main90520-30217iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN);LN30,40,RN31,41..5F,5H197808-198403

T=2.20,MARK 3,T=2.20-2.25

main90520-30218iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN);LN30,40,RN31,41..5F,5H197808-198403

T=2.25,MARK 4,T=2.25-2.30

main90520-30219iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN);LN30,40,RN31,41..5F,5H197808-198403

T=2.30,MARK 5,T=2.30-2.35

main90520-33107iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=2.30-2.35,MARK 11,T=2.30-2.35

main90520-33168iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=2.05,MARK 1,T=2.05-2.10

main90520-33169iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=2.10,MARK 2,T=2.10-2.15

main90520-33170iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=2.15,MARK 3,T=2.15-2.20

main90520-33171iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=2.20,MARK 4,T=2.20-2.25

main90520-33172iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=2.25,MARK 5,T=2.25-2.30

33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)

main90521-33001iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

main90521-33006iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

33311DBEARING, INPUT SHAFT

main90361-06047iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main90364-19043iRN31,41..SR5197808-198312

sub90364-19006

33321SHAFT, OUTPUT

main33321-20071iRN31,41..SR5197808-198312

main33321-35070iRN3#,4#..DLX,STD197808-197809

main33321-35071iLN30,40,RN30,31,40,41..4F,4H197809-198403

main33321-35080iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198307

main33321-35090iLN30,40..5F,5H197911-198101

sub33321-35091

sub90520-25005

sub90520-25006

sub90520-25009

sub90520-25010

sub90520-25011

sub90520-25012

sub90520-25013

sub90520-25014

sub90520-25015

sub90520-25016

sub90520-25017

main33321-35091iLN30,40..5F,5H198101-198312

sub33321-35092

main33321-35092iLN30,40..5F198312-198403

main33321-35101iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198103-198307

sub33321-28010

33321ABEARING (FOR OUTPUT SHAFT REAR)

main97104-06228iRN31,41..SR5197808-198312

main97183-06306iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-25005iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198101-198403

T=2.67-2.72,MARK A,T=2.67-2.72

main90520-25006iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198101-198403

T=2.73-2.78,MARK B,T=2.73-2.78

main90520-25009iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198101-198403

T=2.79-2.84,MARK C,T=2.79-2.84

main90520-25010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198101-198403

T=2.85-2.90,MARK D,T=2.85-2.90

main90520-25011iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198101-198403

T=2.91-2.96,MARK E,T=2.91-2.96

main90520-25012iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198101-198403

T=2.97-3.02,MARK F,T=2.97-3.02

main90520-25013iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198101-198403

T=3.03-3.08,MARK G,T=3.03-3.08

main90520-25014iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198101-198403

T=3.09-3.14,MARK H,T=3.09-3.14

main90520-25015iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198101-198403

T=3.15-3.20,MARK J,T=3.15-3.20

main90520-25016iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198101-198403

T=3.21-3.26,MARK K,T=3.21-3.26

main90520-25017iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198101-198403

T=3.27-3.32,MARK L,T=3.27-3.32

main90520-25270iRN31,41..SR5197808-198312

T=2.43-2.48,MARK 10,T=2.43-2.48

main90520-25271iLN30,40,RN31,41..5F,5H197808-198312

T=2.49-2.54,MARK 11,T=2.49-2.54

main90520-25272iRN31,41..SR5197808-198312

T=2.55-2.60,MARK 12,T=2.55-2.60

main90520-25273iRN31,41..SR5197808-198312

T=2.61-2.66,MARK 13,T=2.61-2.66

main90520-25277iLN30,40,RN31,41..5F,5H197808-198312

T=1.89-1.94

main90520-25278iRN31,41..SR5197808-198312

T=1.95-2.00

main90520-25279iRN31,41..SR5197808-198312

T=2.01-2.06

main90520-25280iRN31,41..SR5197808-198312

T=2.07-2.12

main90520-25281iRN31,41..SR5197808-198312

T=2.13-2.18

main90520-25282iLN30,40,RN31,41..5F,5H197808-198312

T=2.19-2.24

main90520-25283iLN30,40,RN31,41..5F,5H197808-198312

T=2.25-2.30

main90520-25284iRN31,41..SR5197808-198312

T=2.31-2.36,MARK 8,T=2.31-2.36

main90520-25285iRN31,41..SR5197808-198312

T=2.37-2.42,MARK 9,T=2.37-2.42

main90520-28242iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=1.50-1.55,MARK A,T=1.5

main90520-28243iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=1.60-1.65,MARK B,T=1.6

main90520-28244iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=1.70-1.75,MARK C,T=1.7

main90520-28245iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=1.80-1.85,MARK D,T=1.8

main90520-28246iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=1.90-1.95,MARK E,T=1.9

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-26179iRN31,41..SR5197808-198307

T=1.50,OD=31.3

sub90520-26061

main90520-68002iLN30,40..5F,5H197911-198008

sub90520-68193

main90520-68181iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=1.35,MARK 1,T=1.35-1.45

main90520-68182iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=1.45,MARK 2,T=1.45-1.55

main90520-68183iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=1.55,MARK 3,T=1.55-1.65

main90520-68184iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=1.65,MARK 4,T=1.65-1.75

main90520-68185iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=1.75,MARK 5,T=1.75-1.85

main90520-71221iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198008-198403

T=1.65,ID=71.1

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90520-28010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

T=1.85-1.90,MARK D-1,T=1.85-1.90

main90520-28011iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

T=1.95-2.00,MARK E-1,T=1.95-2.00

main90520-28012iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

T=1.75-1.80,MARK C-1,T=1.75-1.80

main90520-28013iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

T=2.05-2.10,MARK F-1,T=2.05-2.10

main90520-28242iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=1.50-1.55,MARK A,T=1.50-1.55

main90520-28243iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=1.60-1.65,MARK B,T=1.60-1.65

main90520-28244iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

T=1.70-1.75,MARK C,T=1.70-1.75

main90520-28245iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197808-198403

T=1.80-1.85,MARK D,T=1.80-1.85

main90520-28246iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

T=1.90-1.95,MARK E,T=1.90-1.95

main90520-28248iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

T=2.00-2.05,MARK F,T=2.00-2.05

main90520-30214iRN31,41..SR5197808-198312

T=2.05,MARK 0,T=2.05-2.10

main90520-30215iRN31,41..SR5197808-198312

T=2.10,MARK 1,T=2.10-2.15

main90520-30216iRN31,41..SR5197808-198312

T=2.15,MARK 2,T=2.15-2.20

main90520-30217iRN31,41..SR5197808-198312

T=2.20,MARK 3,T=2.20-2.25

main90520-30218iRN31,41..SR5197808-198312

T=2.25,MARK 4,T=2.25-2.30

main90520-30238iRN31,41..SR5197808-198312

T=2.00-2.05

33331GEAR, REVERSE

main33331-20031iRN31,41..SR5197808-198312

N=39

main33331-26010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

N=34

main33331-28010iLN30,40..5F..RCB198310-198403

sub33331-28011

main33331-35040iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

N=34

33332GEAR, 2ND

main33033-20030iRN31,41..SR5197808-198201

N=31

sub33033-20031

main33033-35010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

N=28

main33033-35030iRN31,41..SR5198201-198312

N=31

main33332-26030iRN30,40197808-198403

N=29

main33332-35030iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H197808-198403

N=28

33333GEAR, 3RD

main33034-20020iRN31,41..SR5197808-198312

N=25

main33034-28010iLN30,40..5F..RCB198310-198403

sub33034-35030

main33034-35010iLN30,40..5F,5H197911-198008

N=27

sub33034-35H00

main33034-35011iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198008-198312

sub33034-28010

main33333-26010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

N=22

33335GEAR, 1ST

main33032-20040iRN31,41..SR5198208-198312

main33032-28010iLN30,40..5F..RCB198310-198403

sub33032-35010

main33032-31011iRN31,41..SR5197808-198201

N=34

sub33032-31012

main33032-35010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

N=33

main33032-35020iRN31,41..SR5198201-198208

main33335-26010iRN30,40197808-198403

N=33

main33335-35010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H197808-198403

N=32

33335ABALL, 1ST SHIFT RESTRICT

main90360-06004iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-37050iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main90364-39002iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

main90364-43004iRN31,41..SR5198304-198312

main90364-43042iRN31,41..SR5197808-198304

sub90364-43004

33345BUSH, 1ST GEAR

main33345-26010iRN3#,4#..DLX,STD197808-197809

sub33345-26011

main33345-26011iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197809-198403

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-20030iRN31,41..SR5198201-198312

main33361-26011iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

sub33361-26012

main33361-31011iRN31,41..SR5197808-198201

main33361-35020iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-26011iLN30,40,RN30,31,40,41..4F,4H197808-198403

main33362-28010iRN36;RN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA197901-198307

sub33362-26011

main33362-31011iRN31,41..SR5197808-198312

main33362-35020iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-20011iRN31,41..SR5197808-197903

sub33364-20H00

main33364-20012iRN31,41..SR5197903-198208

sub33364-20013

main33364-20013iRN31,41..SR5198208-198312

main33364-26010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main33364-35010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-26010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main33365-31010iRN31,41..SR5197808-197903

main33365-31011iRN31,41..SR5197903-198201

main33365-35020iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

sub33365-35021

main33366-20011iRN31,41..SR5198201-198312

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-20010iRN31,41..SR5197808-197903

main33366-20011iRN31,41..SR5197903-198312

main33366-26010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main33366-35020iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

33367RING, SYNCHRONIZER, NO.1

main33367-26021iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198204

sub33367-26022

main33367-26022iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H198204-198403

sub33367-26023

main33368-20012iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN);LN30,40,RN31,41..5F,5H197808-198403

33368RING, SYNCHRONIZER, NO.2

main33367-14010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

main33367-26021iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198203

sub33367-26022

main33367-26022iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H198203-198403

sub33367-26023

main33368-20012iRN31,41..SR5197808-198312

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-14010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H198203-198403

main33371-14031iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN);LN30,40,RN31,41..5F,5H197903-198403

main33371-20010iRN31,41..SR5197808-197903

main33371-30013iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198203

sub33371-14010

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14010iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198403

main33371-14031iRN31,41..SR5198108-198312

main33371-20010iRN31,41..SR5197808-198108

main33371-30013iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198203

sub33371-14010

33399YOKE, TRANSMISSION SLEEVE (MTM)

main33399-35010iRN36;RN46..EUR,GEN;RN46..ARL..IV3197901-198008

main33399-35011iLN36,46,RN36,46198008-198307

33399ARING, SHAFT SNAP (FOR TRANSMISSION SLEEVE YOKE)

main90520-25005iLN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198108-198307

main90520-26002iLN36,46,RN36,46197901-198307

sub90520-26013

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-20031iRN31,41..SR5197808-198312

N=31

main33402-26010iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

N=23

main33402-28010iLN30,40..5F..RCB198310-198403

sub33402-28011

main33402-35030iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)197911-198312

N=28

33411COUNTERSHAFT

main33411-30021iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90364-19068iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main90365-25002iRN31,41..SR5197808-198312

main90365-25004iLN30,40..5F..RCB198310-198403

sub90365-25010

main90365-25007iLN40..ECB197911-198312

33411BSPACER(FOR COUNTER GEAR BEARING)

main90560-19450iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)

main90280-03005iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main90363-20075iRN31,41..SR5197808-198312

main90364-19068iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main90365-18002iLN3#,4#..5F,5H197911-198308

33421GEAR, COUNTER

main33421-20050iRN31,41..SR5197808-198201

N=29,26,22,15

main33421-20060iRN31,41..SR5198208-198312

main33421-26021iRN30,40197808-198403

N=33,27,20,14,14

main33421-35051iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN31,36,41..4F,4H197808-198403

N=32,27,21,14,15

main33421-35070iLN30,40..5F,5H197911-198008

N=45,31,20,14,14

sub33421-35900

main33421-35071iLN46..TW;LN30,40..5F,5H;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)198008-198308

sub33421-35H02

main33421-35072iLN40..ECB198308-198312

main33421-35090iRN31,41..SR5198201-198208

33435WASHER, COUNTER GEAR CASE SIDE THRUST

main33441-26011iRN46..EUR,GEN;RN46..ARL..IV3;RN3#,40,41..DLX,STD197808-197903

RR,T=2.25

main33441-26012iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197903-198403

RR,T=2.25

main33441-26021iRN46..EUR,GEN;RN46..ARL..IV3;RN3#,40,41..DLX,STD197808-197903

RR,T=2.35

main33441-26022iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197903-198403

RR,T=2.35

main33441-26031iRN46..EUR,GEN;RN46..ARL..IV3;RN3#,40,41..DLX,STD197808-197903

RR,T=2.45

main33441-26032iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197903-198403

RR,T=2.45

main33441-26041iRN46..EUR,GEN;RN46..ARL..IV3;RN3#,40,41..DLX,STD197808-197903

RR,T=2.55

main33441-26042iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197903-198403

RR,T=2.55

main33441-26051iRN46..EUR,GEN;RN46..ARL..IV3;RN3#,40,41..DLX,STD197808-197903

RR,T=2.65

main33441-26052iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197903-198403

RR,T=2.65

main33441-26061iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

FR,T=2.21

main90560-38331iRN31,41..SR5197808-198312

T=1.95-2.05

main90560-38332iRN31,41..SR5197808-198312

T=2.10-2.20

main90560-38333iRN31,41..SR5197808-198312

T=2.25-2.35

main90560-38334iRN31,41..SR5197808-198312

T=2.40-2.50

33451SHAFT, REVERSE IDLER GEAR

main33451-14020iRN31,41..SR5197808-198312

main33451-28010iLN30,40..5F..RCB198310-198403

sub33451-28011

main33451-30020iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

main33451-35020iLN40..ECB197911-198312

33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)

main90280-03005iRN46..ARL..IV3;LN46..T1..ARL..CBU;RN46..EUR,GEN,ME,SA;LN30,40,RN3#,40,41..4F,4H197808-198403

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-20020iRN30,40197808-197809

N=5

main33481-20030iRN31..DLX..IV3;RN31,41..4H..GEN197808-197809

N=6

main33481-20070iRN31,41..LHD..SR5197808-198312

N=5,MARK 5X17-19,N=5

main33481-20070iRN41..ARL197808-198108

N=5,MARK 5X17-19,N=5,W/185R14C-8 TIRE

main33481-22010iRN31,41..SR5..GEN..ECB197808-198403

N=6,MARK 6X18-20,N=6

main33481-25020iLN40,RN31,41..ARL198108-198307

N=5,MARK 5X17-19,N=5,W/185R14 TIRE

main33481-25020iRN30,40197809-198403

N=5,MARK 5X17-19,N=5

main33481-26010iLN30,40..4F197809-198403

N=6,MARK 6X18-20,N=6

main33481-30040iRN41..SR5..ARL198108-198403

N=6,MARK 6X21-23,N=6

main33481-30040iRN31,41..SR5..GEN..ECB198009-198108

N=6,MARK 6X21-23,N=6,DEFF R=4.875

33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)

main90280-03005iRN3#,4#..DLX,STD197808-197809

main90360-06004iRN31,41..SR5197808-198403

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-26179iRN31,41..SR5197808-198403

T=1.50,OD=31.3

sub90520-26061

main90520-28009iLN30,40,RN30,31,40,41..4F,4H197808-198403

T=1.50,OD=33.8

42 parts on this diagram · 6 diagrams in section
