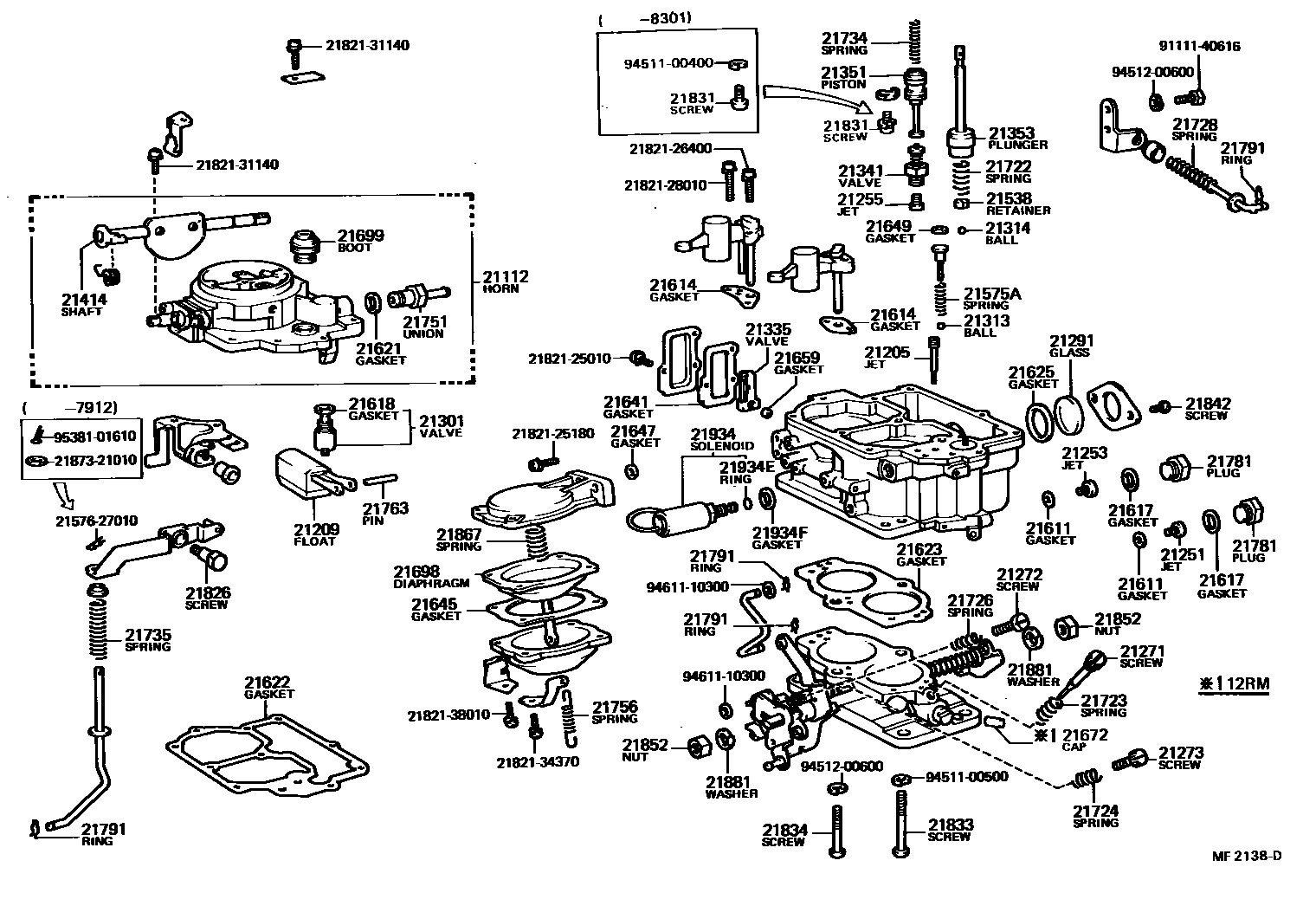

CARBURETOR

0001 1 0002 1 0003 1 0004 1 0005 1

21112HORN, AIR

main21012-34510i18R..RN36,46..EUR197808-197908

main21012-34510i18R..RN36,46..RHD197904-197908

HONG KONG SPEC

main21012-34512iL..LN46..T1..ARL..CBU197908-198202

HONG KONG SPEC

main21012-34512i18R..RN36,46..EUR197908-198307

main21012-34530i18R..RN31,36,41,46..GEN,SA197808-197908

main21012-34531i18R..RN31,36,41,46..GEN,ME,SA197908-198312

main21012-34560i18R..RN31,36,41,46..ARL197901-197908

main21012-34561iL..LN46..T1..ARL..CBU197908-198307

main21012-34570i18R..RN36,46197901-197908

main21012-34571iL..LN46..T1..ARL..CBU197908-198307

main21112-31410i12R#..RN30,40197808-198403

21205JET SUB-ASSY, SLOW

main21205-15010i12R#..RN30,40..GEN,ME,PHL,SA197808-198403

main21205-26390i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

main21205-31430i12R..RN30,40..ARL197808-198307

main21205-34400i18R..RN31,36,41,46..GEN,ME,SA197808-198312

main21205-36120iL..LN46..T1..ARL..CBU197904-198202

HONG KONG SPEC

main21205-36120iL..LN46..T1..ARL..CBU197808-198307

21209FLOAT SUB-ASSY

main21209-33080i12R#..RN30,40197808-198403

main21209-36120iL..LN46..T1..ARL..CBU197808-198312

21251JET, 1ST MAIN

main21251-34400i18R..RN31,36,41,46..GEN,ME,SA197808-198312

main21251-36110i18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA)197904-198202

HONG KONG SPEC

main21251-36110iL..LN46..T1..ARL..CBU197808-198307

main90999-41099i12R..RN30,40..ARL197808-198307

main90999-41101i12R#..RN30,40..EUR,GEN,ME,PHL,SA197808-198403

main90999-41106i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

21253JET, 2ND MAIN

main21253-34400i18R..RN31,36,41,46..GEN,ME,SA197808-198312

main21253-36110i18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA)197904-198202

HONG KONG SPEC

main21253-36110iL..LN46..T1..ARL..CBU197808-198307

main90999-42162i12R#..RN30,40197808-198403

main90999-42165i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

21255JET, POWER

main21302-36110iL..LN46..T1..ARL..CBU197904-198202

HONG KONG SPEC

sub21302-73140

main21302-36110iL..LN46..T1..ARL..CBU197808-198307

sub21302-73140

main21302-44122i18R..RN31,36,41,46..GEN,ME,SA197808-198312

sub21302-72210

main90999-43047i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

main90999-43053i12R#..RN30,40197808-198403

21271SCREW, IDLE ADJUSTING

main21207-34420i18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA)197904-198202

HONG KONG SPEC

main21207-34420i18R..RN36,46..EUR197901-198307

main21271-31250i12R..RN30,40..GEN,ME,SA197808-198403

main21271-31330i12R..RN30,40..RHD197808-198202

HONG KONG SPEC

main21271-31330i12R..RN30,40..EUR197808-198307

main21271-31430i12R..RN30,40..ARL198301-198307

main21271-34400iL..LN46..T1..ARL..CBU197808-198312

main21271-38010i12RM..RN30,40197808-198307

21272SCREW, 1ST IDLE ADJUSTING

main21273-30052i12R#..RN30,40197808-198403

sub21272-61140

main21833-36110iL..LN46..T1..ARL..CBU197808-198312

sub21841-36120

21273SCREW, THROTTLE ADJUSTING

main21273-34401i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main21844-33010i12R#..RN30,40197808-198403

21291GLASS, LEVEL GAGE

main21291-34320i12R#..RN30,40197912-198403

main21291-36120i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main21291-60200i12R#..RN30,40197808-197912

21301VALVE SUB-ASSY, NEEDLE

main21301-14010i12R#..RN30,40197907-198403

main21301-26350i12R#..RN30,40197808-197907

main21301-34400i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)

main21313-11020i12R#..RN30,40197808-198403

21314BALL, STEEL, NO.2(FOR PUMP PLUNGER)

main21314-11020i12R#..RN30,40197808-198403

21335VALVE, THERMOSTATIC

main21038-34400i18R..RN31,36,41,46..GEN,SA197808-198312

main21038-36120i18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA)197904-198202

HONG KONG SPEC

main21038-36120iL..LN46..T1..ARL..CBU197808-198307

main21335-33010i12R#..RN30,40197808-197912

main21335-44400i12R#..RN30,40197912-198403

21341VALVE, POWER

main21304-30010i12R#..RN30,40197808-198403

21351PISTON, POWER

main21351-33080i12R#..RN30,40197808-198403

21353PLUNGER, PUMP

main21353-33010i12R#..RN30,40197808-198403

sub21353-16510

main21353-44101iL..LN46..T1..ARL..CBU197808-198312

21414SHAFT, CHOKE

main21054-31280i12R#..RN30,40197808-198403

21538RETAINER, BALL CHECK

main21538-31010i12R#..RN30,40197808-198403

21575ASPRING(FOR STOPPER, B)

main21864-26020i12R#..RN30,40197808-198403

21611GASKET, MAIN JET

main21611-22010i12R#..RN30,40197808-198403

main21611-40021iL..LN46..T1..ARL..CBU197808-198312

21614GASKET, VENTURI

main21614-33010i12R#..RN30,40197808-198403

1ST

sub21614-16280

main21614-33080i12R#..RN30,40197808-198403

2ND

sub21615-16280

main21614-36120i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

1ST

sub21614-34600

main21639-36120i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

2ND

sub21639-34600

21617GASKET, MAIN PASSAGE PLUG

main21617-30010i12R#..RN30,40197808-198403

main21633-44150i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

21618GASKET, NEEDLE VALVE SEAT

main21618-14010i12R#..RN30,40197907-198403

main21618-24030i12R#..RN30,40197808-197907

main21643-36110i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

21621GASKET, UNION NIPPLE

main21633-24030i12R#..RN30,40197808-198403

main21637-36120iL..LN46..T1..ARL..CBU197808-198312

21622GASKET, AIR HORN

main21622-26510i12R#..RN30,40197808-198403

sub21622-15310

main21622-36120i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

sub21622-34600

21623GASKET, BODY FLANGE

main21623-31400i12R#..RN30,40197808-198403

21625GASKET, LEVEL GAGE

main21625-36120iL..LN46..T1..ARL..CBU197808-198312

main21655-60200i12R#..RN30,40197808-198403

21641GASKET(FOR THERMOSTATIC VALVE COVER)

main21626-36120iL..LN46..T1..ARL..CBU197808-198312

sub21626-34600

main21641-23012i12R#..RN30,40197808-198403

21645GASKET, DIAPHRAGM, CAP

main21638-36120i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main21645-33080i12R#..RN30,40197808-198403

sub21645-41010

21647GASKET, DIAPHRAGM HOUSING CAP

main21649-33080i12R#..RN30,40197808-198403

21649GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)

main21641-33011i12R#..RN30,40197808-198403

21659RING, O(FOR THERMOSTATIC VALVE)

main21641-24030i12R#..RN30,40197808-198403

main21655-31100iL..LN46..T1..ARL..CBU197808-198312

21672CAP

main21582-36110i18R..RN31,36,41,46..GEN,SA197808-197904

main21672-31140i12RM..RN30,40197808-198307

main90339-03005i18R..RN31,41..T1..ARL197808-198307

21698DIAPHRAGM

main21669-31400i12R#..RN30,40197808-198403

21699BOOT(FOR PUMP PLUNGER)

main21656-36110i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main21699-21061i12RM..RN30,40197808-198403

sub21699-28150

main21699-28150i12R..RN30,40..ARL198301-198307

21722SPRING, PUMP DAMPING

main21722-22010i12R#..RN30,40197808-198403

main21735-36120iL..LN46..T1..ARL..CBU197808-198312

21723SPRING, IDLE ADJUSTING

main21723-21030i12R#..RN30,40197808-198403

main21723-30030i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

21724SPRING, THROTTLE ADJUSTING

main21724-30030i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main21726-40010i12R#..RN30,40197808-198403

21726SPRING, 1ST IDLE ADJUSTING

main21723-21030i12R#..RN30,40197808-198403

main21723-30030i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

21728SPRING, THROTTLE VALVE RETURN

main21864-31400i12R#..RN30,40197808-198403

21734SPRING, POWER PISTON

main21734-33081i12R#..RN30,40197808-198403

21735SPRING, PUMP ARM

main21722-36120iL..LN46..T1..ARL..CBU197808-198312

main21735-21032i12R#..RN30,40197808-198403

21751UNION, NIPPLE

main21751-24290i12R#..RN30,40197808-198403

sub21751-10050

main21751-36110i18R..RN31,36,41,46197808-197908

main21751-36200iL..LN46..T1..ARL..CBU197908-198312

21756SPRING, BACK(FOR THROTTLE SHAFT)

main21727-36120iL..LN46..T1..ARL..CBU197808-198312

main21756-31400i12R#..RN30,40197808-198403

21763PIN, FLOAT LEVER

main21763-26350i12R#..RN30,40197808-198403

main21768-36110iL..LN46..T1..ARL..CBU197808-198312

21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)

main21776-44310i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main21781-15230i12R#..RN30,40198301-198403

main21781-30020i12R#..RN30,40197808-198301

sub21781-16510

21791RING, SNAP, NO.1(FOR CARBURETOR LINK)

main21791-60010i12R#..RN30,40197808-198403

sub21791-13011

main21797-44050i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

21826SCREW, PUMP ARM SET

main21826-31012i12R#..RN30,40197808-198403

21831SCREW, POWER PISTON STOP

main21821-15060i12R#..RN30,40198301-198403

main21842-33010i12R#..RN30,40197808-198301

21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)

main21804-36120i18R..RN36..RHD;18R..RN46..ARL..IV3;18R..RN46..RHD..(EUR,GEN,SA)197904-198202

HONG KONG SPEC

main21804-36120iL..LN46..T1..ARL..CBU197808-198307

main21824-31400i12R#..RN30,40197808-198403

main21844-34400i18R..RN31,36,41,46..GEN,ME,SA197808-198312

21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)

main21824-31570i12R#..RN30,40197912-198403

W/O HOLE

main21824-38010i12R#..RN30,40197808-197912

main21824-38010i12R#..RN30,40197912-198403

W/HOLE

21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)

main21832-36120iL..LN46..T1..ARL..CBU197808-198312

main21842-33010i12R#..RN30,40197808-198403

21852NUT, THROTTLE LEVER SET

main21852-30010i12R#..RN30,40197808-198403

main21852-36120i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

21867SPRING, DIAPHRAGM

main21867-31280i12R#..RN30,40197808-198403

21881WASHER, LOCK(FOR THROTTLE SHAFT)

main21881-31030iL..LN46..T1..ARL..CBU197808-198312

sub21881-40030

main21881-60010i12R#..RN30,40197808-198403

21934SOLENOID, THROTTLE VALVE

main21062-38010i12R#..RN30,40197808-197912

main21062-38011i12R#..RN30,40197912-198403

main21391-36110i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

21934ERING, O(FOR SOLENOID VALVE)

main21655-44101i12R#..RN30,40197808-198403

21934FGASKET

main21617-10010i12R#..RN30,40197808-198403

2157627010CLIP, PUMP STRAINER

main21576-27010

2182125010SCREW, 2ND THROTTLE VALVE SET

main21821-25010

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

2182126400SCREW, 2ND THROTTLE VALVE SET

main21821-26400

2182128010SCREW, 2ND THROTTLE VALVE SET

main21821-28010

2182131140SCREW, 2ND THROTTLE VALVE SET

main21821-31140

2182134370SCREW, 2ND THROTTLE VALVE SET

main21821-34370

2182138010SCREW, 2ND THROTTLE VALVE SET

main21821-38010

2187321010WASHER, PLUNGER

main21873-21010

9111140616

main91111-40616

9451100400

main94511-00400

9451100500

main94511-00500

9451200600

main94512-00600

9461110300

main94611-10300

9538101610

main95381-01610

74 parts on this diagram · 5 diagrams in section
