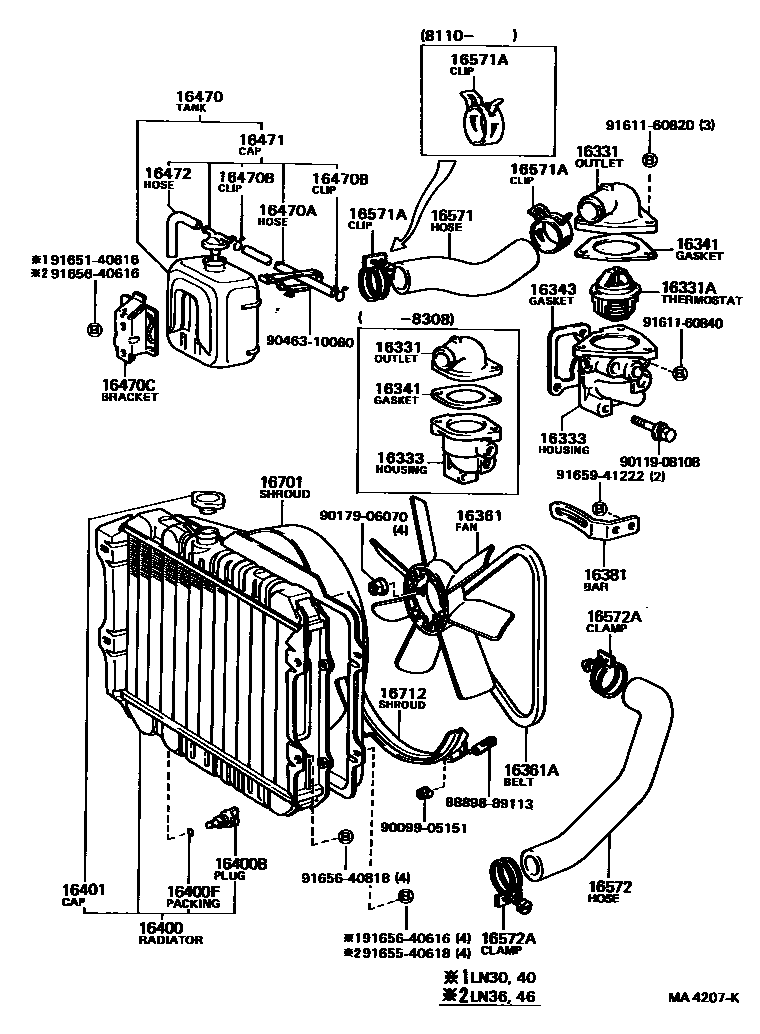

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16331OUTLET, WATER

main16301-36041iL..LN46..T1..ARL..CBU197901-198307

main16331-31082i12R..RN30,40..EUR197808-198307

NEW SOUTH WALES

main16331-31082i12R..RN30,40..RHD197808-198202

HONG KONG SPEC

main16331-31092i12R..RN30,40..ARL,GEN,ME,SA197808-198403

main16331-36012i18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL197808-198312

main16331-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198308

main16331-54030iL..LN30,40198308-198403

16331ATHERMOSTAT

main90916-03020i12R..RN30,40..ARL197808-198307

*NSW,*WAX 82-95,FUJI-THOMSON

main90916-03034i18R..RN46..ARL..IV3;18R..RN31,36,41..ARL197808-198307

*WAX 82-95,FUJI-THOMSON

main90916-03036i18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL197808-198312

*WAX 88-100,FUJI-THOMSON

sub90916-03040

main90916-03037i18R..RN46..ARL..IV3;18R..RN31,36,41..ARL197808-198307

*WAX 82-95,KUZEH

sub90916-03083

main90916-03038i12R..RN30,40..ARL197808-198307

*NSW,*WAX 82-95,KUZEH

sub90916-03083

main90916-03040iL..LN46..T1..ARL..CBU197808-198312

*WAX 88-100,KUZEH

sub90916-03078

main90916-03042iL..LN46..TW;L..LN46..T1..IV3;L..LN46..T1..GEN..CBU;L..LN3#,40..ARL,GEN,SA197909-198110

*WAX 82-95,FUJI-THOMSON

sub90916-03061

main90916-03043iL..LN36,4#..EUR198008-198110

*WAX 88-100

sub90916-03062

main90916-03054i12R#..RN30,40198202-198403

*WAX 82-95,*WAX 82-95

sub90916-03083

main90916-03061iL..LN46..TW;L..LN46..IV3;L..LN46..T1..GEN..CBU;L..LN3#,40..ARL,GEN,SA198110-198308

*WAX 82-95,FUJI-THOMSON

main90916-03062iL..LN36,4#..EUR198110-198403

*WAX 88-100,*WAX 88-100

sub90916-03072

16333HOUSING, WATER OUTLET

main16333-54010iL..LN30,40197909-198008

sub16333-54011

main16333-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198008-198308

main16333-54050iL..LN30,40198308-198403

16341GASKET, WATER OUTLET

main16341-38010iL..LN30,40197808-198201

sub16341-38012

main16341-38011i18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41;18R..RN46..EUR,GEN,ME,SA198201-198403

sub16341-38012

main16341-41010i18R..RN46..ARL..CBU198008-198304

sub16341-38021

main16341-54011iL..LN30,40198308-198403

sub16341-54030

main16341-54020iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198304-198308

sub16341-34010

16343GASKET, WATER OUTLET HOUSING

main16343-54010iL..LN30,40197909-198008

sub16343-54011

main16343-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198008-198403

sub16343-54021

16361FAN

main16361-31021i12R#..RN30,40..ARL,GEN,ME,PHL,SA197808-198403

4 BLADES

main16361-31050i12R#..RN30,40..ARL,GEN,PHL,SA197808-198403

W/COOLER,5 BLADES

main16361-34030iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

7 BLADES

main16361-34030i18R..RN36,46..RHD..GEN198010-198202

HONG KONG SPEC,7 BLADES

main16361-38010i18R..RN46..ARL..IV3;18R..RN46..GEN,ME,SA;18R..RN36..ARL,GEN,ME197808-198312

7 BLADES

main16361-44040i12R..RN30,40..EUR198204-198307

6 BLADES

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02048i18R..RN31,36,41,46197808-198001

L=839

sub99341-50840

main90916-02133i18R..RN46..ARL..CBU198211-198403

L=990

main99321-00840i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197809-198312

L=840

main99332-00890i12R#..RN30,40197808-198403

L=890

main99332-00985iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198204

L=985

main99332-10985iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198204-198207

L=985

main99332-11000i18R..RN46..ARL..CBU198207-198211

L=1000

main99341-50840i18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL198001-198307

L=840

main99521-10839i18R..RN31,41197808-197809

L=839

sub99321-00840

16381BAR, FAN BELT ADJUSTING

main16381-31012i12R#..RN30,40197808-198403

main16381-34030i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main16381-54011i18R..RN46..ARL..CBU197909-198403

16400RADIATOR ASSY

main16400-31230i12R#..RN30,40197808-198403

main16400-34290i18R..RN31,36,41,46197808-198307

FIN PITCH=4.0

main16400-34360i18R..RN31,41197908-198312

FIN PITCH=3.5

main16400-54080iL..LN30,40197909-198101

sub16400-54081

main16400-54081iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198101-198403

sub16400-54082

16400BPLUG, RADIATOR DRAIN COCK

main90910-09054i12R#,18R..RN3#,4#197808-198403

16400FPACKING(FOR RADIATOR DRAIN COCK)

main96710-01007i12R#,18R..RN3#,4#197808-198110

sub96711-19007

main96711-19007i12R#,18R..RN3#,4#198110-198403

16401CAP SUB-ASSY, RADIATOR

main16401-36010i12R#,18R..RN3#,4#197808-197901

sub16401-36011

main16401-36011iL..LN3#,4#197901-198403

16470TANK ASSY, RADIATOR RESERVE

main16470-34120i12R#,18R..RN3#,4#..ARL,EUR,GEN,PHL197808-197811

PAPER ELEMENT AIR CLEANER

sub16470-89103

main16470-89101i12R#..RN30,40..GEN,PHL,SA197808-197811

CYCLONE AIR CLEANER

sub16470-89104

main16470-89103i18R..RN36,46..EUR,GEN197811-198307

PAPER ELEMENT AIR CLEANER

sub16470-89104

main16470-89104iL..LN46..T1..ARL..CBU197811-198403

CYCLONE AIR CLEANER

main16470-89104i12R..RN30,40..4F..EUR198108-198307

W/HEAD LAMP CLEANER

main16470-89105iL..LN4#..RHD..EUR197909-198307

PAPER ELEMENT AIR CLEANER

sub16470-89104

main16470-89106i18R..RN46..ARL..CBU197909-198403

CYCLONE AIR CLEANER

sub16470-89104

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12030iL..LN3#,4#..EUR,GEN197909-198110

PAPER ELEMENT AIR CLEANER

main90445-12065i18R..RN46..ARL..CBU197909-198403

L=600(*H,L=580),CYCLONE AIR CLEANER

sub90445-12078

main90445-12730iL..LN4#..RHD..EUR198110-198307

L=600(*H,L=410),PAPER ELEMENT AIR CLEANER

sub90445-12078

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i12R#,18R..RN3#,4#197808-198403

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16402-31010iL..LN30,40..LHD..GEN197808-198307

PAPER ELEMENT AIR CLEANER

main16402-89101i12R..RN30,40..4F..EUR198108-198307

W/HEAD LAMP CLEANER

sub16402-31010

main16402-89101iL..LN46..T1..ARL..CBU197901-198307

sub16402-31010

main16402-89101i12R#,18R..RN30,31,40,41..GEN,PHL,SA197808-198403

CYCLONE AIR CLEANER

sub16402-31010

16471CAP SUB-ASSY, RESERVE TANK

main16405-89103iL..LN30,40..LHD..GEN197909-198307

PAPER ELEMENT AIR CLEANER

sub16405-89104

main16405-89104iL..LN36,46..LHD..EUR197909-198403

CYCLONE AIR CLEANER

main16405-89105i18R..RN36,46..EUR,GEN198110-198307

PAPER ELEMENT AIR CLEANER

sub16405-89104

main16405-89106iL..LN46..T1..ARL..CBU198110-198403

CYCLONE AIR CLEANER

sub16405-89104

main16405-89106i18R..RN46..ARL..IV3;18R..RN46..GEN,ME,SA;18R..RN36..ARL,GEN,ME198110-198307

W/HEAD LAMP CLEANER

sub16405-89104

main16471-34120i12R#,18R..RN3#,4#..ARL,EUR,GEN,PHL197808-197811

PAPER ELEMENT AIR CLEANER

main16471-89101i18R..RN31,41..GEN197808-197811

CYCLONE AIR CLEANER

main16471-89103i12R#,18R..RN30,31,40,41..ARL,EUR,GEN,PHL197811-198110

PAPER ELEMENT AIR CLEANER

sub16405-89105

main16471-89104i12R..RN30,40..4F..EUR198108-198110

W/HEAD LAMP CLEANER

sub16405-89106

main16471-89104i18R..RN31,41..GEN197811-198110

CYCLONE AIR CLEANER

sub16405-89106

16472HOSE, BREATHER

main85338-22020i12R#,18R..RN3#,4#198110-198403

main85338-89102iL..LN3#,4#197811-198110

16571HOSE, RADIATOR, INLET

main16571-34090iL..LN46..T1..ARL..CBU197808-198312

main16571-54050iL..LN30,40197909-198403

sub16571-54090

main16571-54090iL..LN46..TW;L..LN46..ARL..IV3;L..LN36,46..T1..(EUR,GEN)198106-198307

main16572-31091i12R#..RN30,40197808-198403

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001iL..LN30,40197808-198312

ENGINE SIDE,ID=37

sub90467-37003

main90467-37001i18R..RN31,36,41;18R..RN46..EUR,GEN;18R..RN46..ARL..IV3198011-198403

ID=37

sub90467-37003

main96111-10440i18R..RN46..EUR,GEN;18R..RN46..ARL..IV3;12R#,18R..RN3#,40,41197808-198312

RADIATOR SIDE,ID=44

16572HOSE, RADIATOR, OUTLET

main16571-31024i12R#..RN30,40197808-198403

main16572-34050i18R..RN31,41197808-197901

sub16572-34060

main16572-34060i18R..RN31,36,41,46197901-197904

sub16572-34061

sub96111-10490

main16572-34061i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197904-198312

main16572-54050iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90460-49062i18R..RN31,36,41,46197908-198312

ENGINE SIDE,ID=49

sub96111-10490

main96111-10450i18R..RN36,46197901-197904

RADIATOR SIDE,ID=45

main96111-10460i18R..RN46..ARL..CBU197808-198403

RADIATOR SIDE,ID=46

main96111-10460i12R#..RN30,40197808-198403

main96111-10480iL..LN46..T1..ARL..CBU197808-198307

ENGINE SIDE,ID=48

main96111-10480iL..LN46..TW;L..LN46..ARL..IV3;L..LN36,46..T1..(EUR,GEN)198103-198307

WATER PUMP SIDE,ID=48

main96111-10490i18R..RN31,36,41,46197904-197908

ENGINE SIDE,ID=49

main96111-10500iL..LN30,40197909-198403

WATER PUMP SIDE,ID=50

16701SHROUD SUB-ASSY, FAN

main16071-89101i12R..RN30,40197808-198403

W/COOLER

main16701-89101iL..LN30,40197909-198403

main16701-89102i12R..RN30,40..EUR198204-198307

main16711-89104i12R#..RN30,40..ARL,GEN,ME,PHL,SA197808-198403

main16711-89105i18R..RN31,41197808-198312

main16711-95110i18R..RN36;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197901-198307

main16711-95112i18R..RN46..ARL..CBU198103-198307

16712SHROUD, FAN, NO.2

main16831-89101i18R..RN31,41197808-198312

W/COOLER

main16831-89103iL..LN30,40197909-198403

W/COOLER

main16831-95110iL..LN46..T1..ARL..CBU197901-198307

W/COOLER

main16831-95112i18R..RN46..ARL..CBU198103-198307

W/COOLER

8889889113TUBE SUB-ASSY, EQUALIZER

main88898-89113

9009905151

main90099-05151

9011908108

main90119-08108

9017906070

main90179-06070

9046310060

main90463-10060

9161160820

main91611-60820

9161160840

main91611-60840

9165140616

main91651-40616

9165540618

main91655-40618

9165640616

main91656-40616

9165640818

main91656-40818

9165941222

main91659-41222

36 parts on this diagram · 3 diagrams in section
