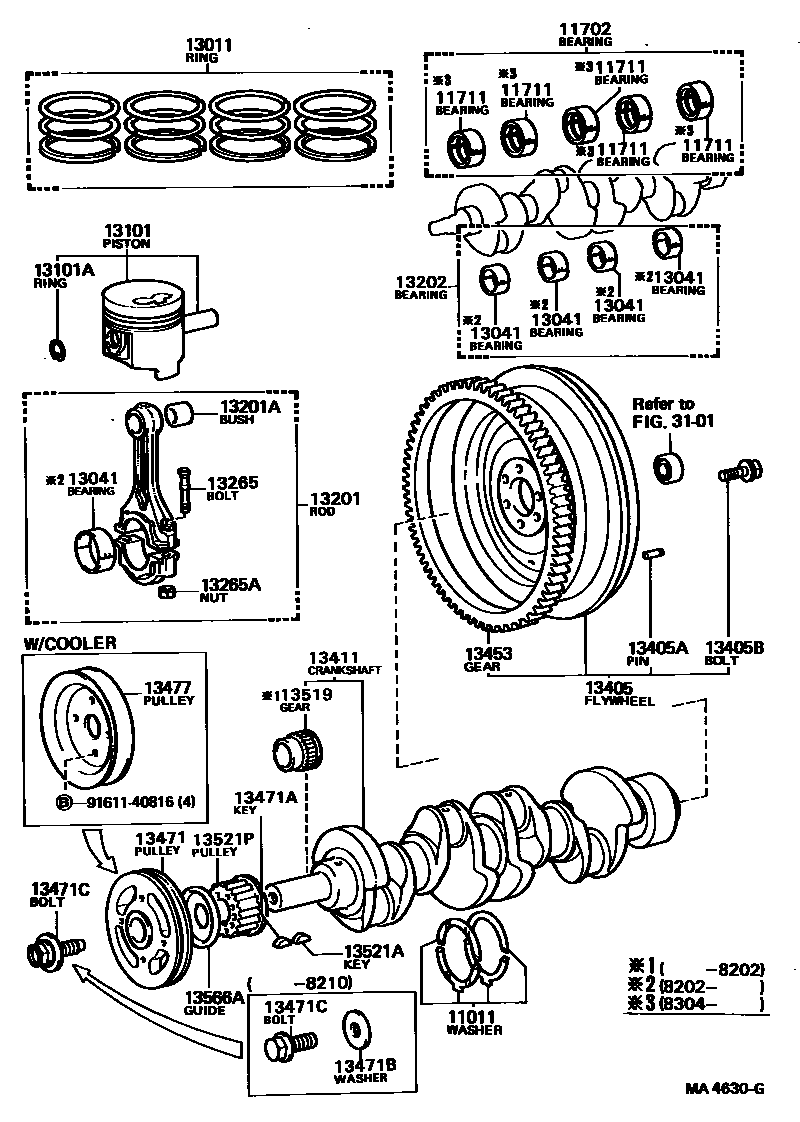

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-31030i12R#..RN30,40197808-198403

STD

main11011-38010iL..LN46..T1..ARL..CBU197808-198312

STD,STD

sub11011-35011

main11011-54010i18R..RN46..ARL..CBU197909-198403

STD,STD

sub11011-54020

main11012-31020i12R#..RN30,40197808-198403

O/S 0.125

main11012-38010iL..LN46..T1..ARL..CBU197808-198312

O/S 0.125,O/S 0.125

sub11012-35021

main11012-54010i18R..RN46..ARL..CBU197909-198403

O/S 0.125,O/S 0.125

sub11012-54020

main11013-31020i12R#..RN30,40197808-198403

O/S 0.250

main11013-38010iL..LN46..T1..ARL..CBU197808-198312

O/S 0.250,O/S 0.250

sub11013-35021

main11013-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

O/S 0.250,O/S 0.250

sub11013-54020

11702BEARING SET, CRANKSHAFT

main11702-31020i12R#..RN30,40197808-198403

STD

main11702-33012iL..LN46..T1..ARL..CBU197808-198312

STD

main11702-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198304

STD

main11703-31020i12R#..RN30,40197808-198403

U/S 0.05

main11703-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198304

U/S 0.05

main11704-31020i12R#..RN30,40197808-198403

U/S 0.25

main11704-33012i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

U/S 0.25

main11704-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198304

U/S 0.25

main11704-54060iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198304-198403

U/S 0.25,U/S 0.25

sub11704-54061

main11705-31020i12R#..RN30,40197808-198403

U/S 0.50

main11705-33012i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

U/S 0.50

main11705-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198304

U/S 0.50

main11705-54060iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198304-198403

U/S 0.50,U/S 0.50

sub11705-54061

11711BEARING, CRANKSHAFT

main11701-54060-01iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198304-198403

MARK"1",MARK 1

sub11701-54061

main11701-54060-02iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198304-198403

MARK"2",MARK 2

sub11701-54061

main11701-54060-03i18R..RN46..ARL..CBU198304-198403

MARK"3",MARK 3

sub11701-54061

13011RING SET, PISTON

main13011-31061i12R#..RN30,40197808-198403

STD

main13011-34030iL..LN46..T1..ARL..CBU197912-198204

STD

main13011-34040iL..LN46..T1..ARL..CBU198204-198312

STD

main13011-38020i18R..RN31,36,41,46197808-197912

STD,STD

sub13011-34030

main13011-54020iL..LN3#,4#197909-198107

STD

sub13011-54021

main13011-54040iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198107-198112

STD

sub13011-54041

main13011-54041i18R..RN46..ARL..CBU198112-198403

STD

sub13011-54042

main13013-31061i12R#..RN30,40197808-198403

O/S 0.50

main13013-34030i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197912-198204

O/S 0.50

main13013-34040iL..LN46..T1..ARL..CBU198204-198312

O/S 0.50

main13013-38010i18R..RN31,36,41,46197808-197912

O/S 0.50,O/S 0.50

sub13013-34030

main13013-54020iL..LN3#,4#197909-198107

O/S 0.50

sub13013-54021

main13013-54040iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198107-198112

O/S 0.50

sub13013-54041

main13013-54041iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198112-198403

O/S 0.50

sub13013-54042

main13014-31061i12R#..RN30,40197808-198403

O/S 0.75

main13015-31061i12R#..RN30,40197808-198403

O/S 1.00

main13015-34030i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197912-198204

O/S 1.00

main13015-34040iL..LN46..T1..ARL..CBU198204-198312

O/S 1.00

main13015-38010i18R..RN31,36,41,46197808-197912

O/S 1.00,O/S 1.00

sub13015-34030

13041BEARING, CONNECTING ROD

main13041-54012-01iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198310

MARK"1",MARK 1

sub13041-54024

sub13041-54013

main13041-54012-02iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198310

MARK"2",MARK 2

sub13041-54024

sub13041-54013

main13041-54012-03iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198310

MARK"3",MARK 3

sub13041-54024

sub13041-54013

main13041-54013-01iL..LN30,40198310-198403

MARK"1",MARK 1

sub13041-54024

main13041-54013-02iL..LN30,40198310-198403

MARK"2",MARK 2

sub13041-54024

main13041-54013-03iL..LN30,40198310-198403

MARK"3",MARK 3

sub13041-54024

13101PISTON SUB-ASSY, W/PIN

main13101-31021i12R#..RN30,40197808-198403

STD

main13101-34030i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198208

STD

main13101-34040iL..LN46..T1..ARL..CBU198208-198312

STD

sub13101-34030

main13101-54010iL..LN3#,4#197909-198107

STD

main13101-54020i18R..RN46..ARL..CBU198107-198109

STD

sub13101-54021

main13101-54021i18R..RN46..ARL..CBU198109-198308

STD

main13101-54040iL..LN30,40198308-198403

STD

main13103-31021i12R#..RN30,40197808-198403

O/S 0.50

main13103-34030i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198208

O/S 0.50

main13103-34040iL..LN46..T1..ARL..CBU198208-198312

O/S 0.50

sub13103-34030

main13103-54010iL..LN3#,4#197909-198107

O/S 0.50

main13103-54020iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198107-198109

O/S 0.50

sub13103-54021

main13103-54021i18R..RN46..ARL..CBU198109-198308

O/S 0.50

main13103-54040iL..LN30,40198308-198403

O/S 0.50

main13104-31021i12R#..RN30,40197808-198403

O/S 0.75

main13105-31021i12R#..RN30,40197808-198403

O/S 1.00

main13105-34030iL..LN46..T1..ARL..CBU197808-198208

O/S 1.00

main13105-34040i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA198208-198312

O/S 1.00

sub13105-34030

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-23051i12R#..RN30,40197808-198403

main90521-25105iL..LN46..T1..ARL..CBU197808-198312

main90521-29003i18R..RN46..ARL..CBU197909-198403

13201ROD SUB-ASSY, CONNECTING

main13201-31010i12R#..RN30,40197808-198403

main13201-34012iL..LN46..T1..ARL..CBU197808-198312

main13201-54010i18R..RN46..ARL..CBU197909-198202

main13201-59015iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198307

sub13201-59016

main13201-59016iL..LN30,40198307-198403

sub13201-59017

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73027i12R#..RN30,40197808-198403

main90999-73072i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main90999-73083i18R..RN46..ARL..CBU197909-198403

13202BEARING SET, CONNECTING ROD

main13202-31020i12R#..RN30,40197808-198403

STD

main13202-33011i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

STD

sub13041-35030

main13202-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198110

STD

sub13202-54011

main13202-54011i18R..RN46..ARL..CBU198110-198202

STD

main13203-31020i12R#..RN30,40197808-198403

U/S 0.05

main13203-54010i18R..RN46..ARL..CBU197909-198110

U/S 0.05

sub13203-54011

main13203-54011i18R..RN46..ARL..CBU198110-198202

U/S 0.05

main13204-31020i12R#..RN30,40197808-198403

U/S 0.25

main13204-33011iL..LN46..T1..ARL..CBU197808-198312

U/S 0.25

sub13204-35040

main13204-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198110

U/S 0.25

sub13204-54011

main13204-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198110-198202

U/S 0.25

main13204-54012iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198310

U/S 0.25

sub13204-54013

main13204-54013iL..LN30,40198310-198403

U/S 0.25,U/S 0.25

sub13204-54024

main13205-31020i12R#..RN30,40197808-198403

U/S 0.50

main13205-33011i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

U/S 0.50

sub13205-35040

main13205-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198110

U/S 0.50

sub13205-54011

main13205-54011i18R..RN46..ARL..CBU198110-198202

U/S 0.50

main13205-54012iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198202-198310

U/S 0.50

sub13205-54013

main13205-54013iL..LN30,40198310-198403

U/S 0.50,U/S 0.50

sub13205-54024

13265BOLT, CONNECTING ROD

main13265-39015i12R#..RN30,40197808-198403

main13265-39025i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main13265-54011iL..LN30,40198308-198403

sub13265-54020

main13265-59025iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198308

sub13265-54011

sub90170-10005

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-09195i12R#..RN30,40197808-198403

main90170-10005i18R..RN46..ARL..CBU197909-198403

sub90179-10123

main90170-10198iL..LN46..T1..ARL..CBU197808-198312

13405FLYWHEEL SUB-ASSY

main13405-39037i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

N=115

main13405-39066i12R#..RN30,40197808-198403

N=125

sub13405-31052

sub90250-08054

sub90913-01012

main13405-59035i18R..RN46..ARL..CBU197909-198403

N=101

sub13405-54013

sub90105-12109

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054iL..LN3#,4#197808-198403

L=23,OD=8,L=23,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-10042iL..LN46..T1..ARL..CBU197808-198312

*10-1.25PX26-18

main90105-12011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

main90913-01012i12R#..RN30,40197808-198403

13411CRANKSHAFT

main13401-54010iL..LN30,40197909-198004

sub13401-54011

main13401-54011i18R..RN46..ARL..CBU198004-198202

sub13401-54012

main13401-54012i18R..RN46..ARL..CBU198202-198304

sub13401-54013

main13401-54013iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198304-198403

main13411-31902i12R#..RN30,40197808-198403

main13411-34905i18R..RN31,36,41,46197808-198006

sub13411-34906

main13411-34906iL..LN46..T1..ARL..CBU198006-198312

13453GEAR, FLYWHEEL RING

main13453-20010iL..LN46..T1..ARL..CBU197808-198312

N=115

main13453-30010i12R#..RN30,40197808-198403

N=125

main13453-54010i18R..RN46..ARL..CBU197909-198403

N=101

13471PULLEY, CRANKSHAFT

main13407-31025i12R#..RN30,40197808-198403

main13471-34013i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

main13471-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05010iL..LN46..T1..ARL..CBU197808-198312

main95161-10519i12R#..RN30,40197808-198403

main95161-20622i18R..RN46..ARL..CBU197909-198403

sub95161-30622

13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)

main90201-14007iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198210

sub90201-14030

main90209-13003i12R#..RN30,40197808-198403

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-12050i12R#..RN30,40197808-198403

main90105-14003iL..LN46..T1..ARL..CBU197808-198312

main90119-14005iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198210-198403

*14-1.5PX40-31

main91511-61435iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198210

sub90105-14089

13477PULLEY, CRANKSHAFT, NO.2

main13477-31010i12R..RN30,40..ARL,GEN,ME,SA197808-198403

W/COOLER

main88451-20060iL..LN46..T1..ARL..CBU197808-198312

W/COOLER

main88451-25010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

W/COOLER

13519GEAR, OIL PUMP DRIVE

main13519-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198202

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-31011i12R#..RN30,40197808-198002

N=25

sub13521-31020

main13521-31020i12R#..RN30,40198002-198403

N=25

main13521-33010iL..LN46..T1..ARL..CBU197808-198312

N=18

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05010iL..LN46..T1..ARL..CBU197808-198312

main95161-10519i12R#..RN30,40197808-198403

main95161-20622iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

sub95161-30622

13521PPULLEY, CRANKSHAFT TIMING

main13521-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198205

N=21

main13521-54020iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198205-198403

N=21

13566AGUIDE, TIMING BELT

main13566-54010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

sub13566-54040

3101

9161140816

main91611-40816

29 parts on this diagram · 3 diagrams in section
