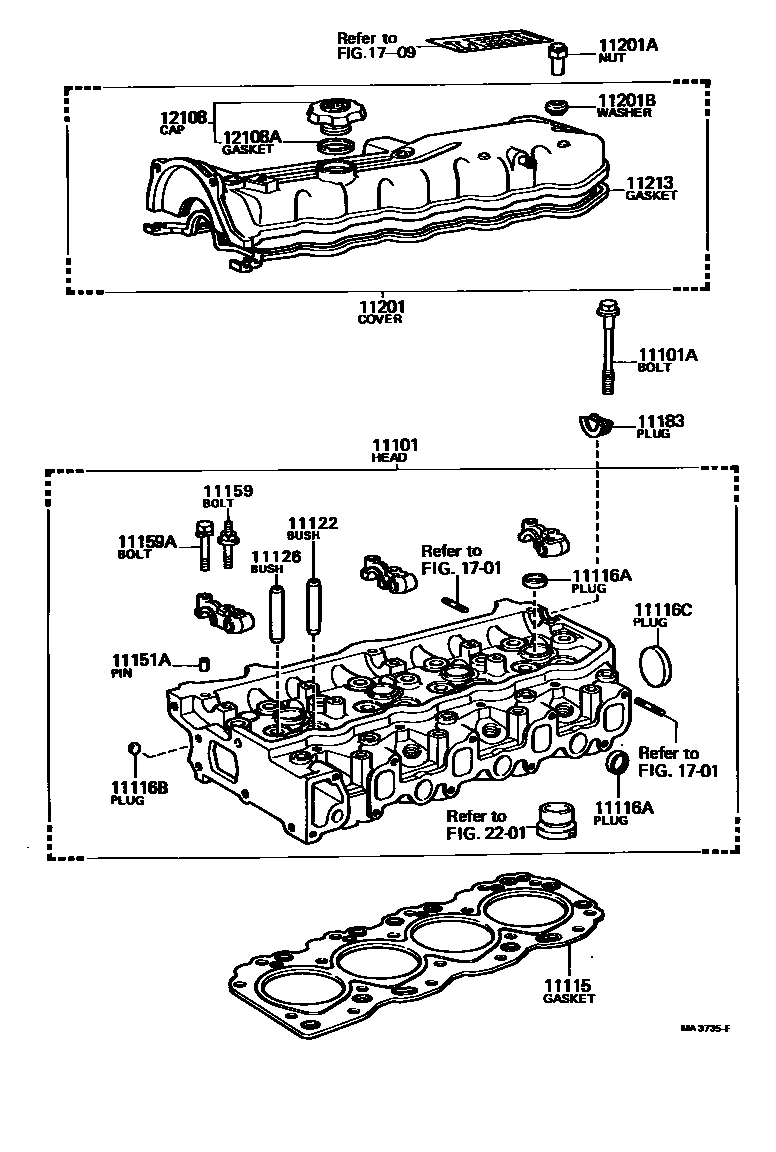

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-39177i12R..RN30,40197808-198403

sub11101-31052

main11101-39305i18R..RN31,36,41,46197808-198007

sub11101-39436

sub23842-34051

main11101-39315i18R..RN31,36,41,46197808-198007

sub11101-39426

sub23842-34051

main11101-39326i12R..RN30,40..ARL197808-198307

NEW SOUTH WALES

sub11101-31081

main11101-39426i18R..RN31,36,41,46198007-198008

sub11101-39427

sub13715-34013

main11101-39427i18R..RN36,41,46198008-198312

sub11101-34113

main11101-39436i18R..RN31,36,41,46198007-198008

sub11101-39437

sub13715-34013

main11101-39437iL..LN46..T1..ARL..CBU198008-198307

main11101-54024iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198204-198308

main11101-54040iL..LN30,40198308-198403

main11101-59075iL..LN30,40197909-198008

sub11101-59076

main11101-59077iL..LN3#,4#198008-198107

sub11101-59078

main11101-59078i18R..RN46..ARL..CBU198107-198204

sub11101-54024

sub90109-08087

sub90170-08184

sub94611-10800

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02060iL..LN46..T1..ARL..CBU197808-198403

*12-1.25PX112-24

sub90910-02090

main90910-02061iL..LN46..T1..ARL..CBU197808-198312

*12-1.25PX80-24

main90910-02065i12R#..RN30,40197808-198403

*12-1.25PX84.5-24

main90910-02066i12R#..RN30,40197808-198403

*12-1.25PX98-24

11115GASKET, CYLINDER HEAD

main11115-31023i12R#..RN30,40197808-198403

sub11115-31024

main11115-36020iL..LN46..T1..ARL..CBU197808-198312

sub11115-36021

main11115-54010i18R..RN46..ARL..CBU197909-198111

sub11115-54011

main11115-54011i18R..RN46..ARL..CBU198111-198403

sub11115-54090

11116APLUG, TIGHT, NO.1

main96411-42500iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

OD=25

main96411-43500i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

OD=35

main96411-45000i12R#..RN30,40197808-198403

OD=50

11116BPLUG, TIGHT, NO.2

main96411-41200i18R..RN46..ARL..CBU197909-198403

OD=12

main96411-42000iL..LN46..T1..ARL..CBU197808-198312

OD=20

main96411-42200i12R#..RN30,40197808-198403

OD=22

11116CPLUG, TIGHT, NO.3

main96411-45000iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

OD=50

11122BUSH, INTAKE VALVE GUIDE

main11122-23010i12R#..RN30,40197808-198403

STD

main11122-33011i18R..RN31,36,41,46197808-198007

STD

main11122-34010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA198007-198312

STD

main11122-54010iL..LN3#,4#197909-198107

STD

sub11122-54011

sub90913-02060

main11122-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198107-198403

STD,STD

main11123-23010i12R#..RN30,40197808-198403

O/S 0.05

main11123-33011i18R..RN31,36,41,46197808-198007

O/S 0.05

main11123-34010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA198007-198312

O/S 0.05

main11123-54010iL..LN3#,4#197909-198107

O/S 0.05

sub11123-54011

sub90913-02060

main11123-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198107-198403

O/S 0.05,O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-23010i12R#..RN30,40197808-198403

STD

main11122-34010iL..LN46..T1..ARL..CBU198007-198312

STD

main11122-54010iL..LN3#,4#197909-198107

STD

sub11122-54011

sub90913-02060

main11122-54011i18R..RN46..ARL..CBU198107-198403

STD,STD

main11123-23010i12R#..RN30,40197808-198403

O/S 0.05

main11123-34010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA198007-198312

O/S 0.05

main11123-54010iL..LN3#,4#197909-198107

O/S 0.05

sub11123-54011

sub90913-02060

main11123-54011i18R..RN46..ARL..CBU198107-198403

O/S 0.05,O/S 0.05

main11126-33011i18R..RN31,36,41,46197808-198007

STD

main11127-33011i18R..RN31,36,41,46197808-198007

O/S 0.05

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-11001iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

L=11,OD=11,L=11,OD=11

11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)

main90116-08054iL..LN30,40197909-198010

L=76,S=13&15

sub90116-08137

main90116-08137i18R..RN46..ARL..CBU198010-198403

L=76.6,S=13&15

main90116-08201iL..LN46..T1..ARL..CBU197808-198312

L=34.7,S=13&13.7

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90119-08191i18R..RN46..ARL..CBU197909-198403

*8-1.25PX55-30

11183PLUG, SEMICIRCULAR

main11183-33010iL..LN46..T1..ARL..CBU197808-198312

main11183-54011iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-39177i18R..RN31,36,41,46197808-197908

sub11201-39178

main11201-39178i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197908-198312

main11201-39195i12R#..RN30,40197808-197911

sub11201-39196

main11201-39196i12R#..RN30,40197911-198403

main11201-54050iL..LN30,40198307-198403

sub11201-54080

main11201-59016iL..LN30,40197909-198008

sub11201-59045

sub23205-87602

sub78109-95A01

sub78183-95A09

sub90461-10560

main11201-59045iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198008-198307

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-06014i12R#..RN30,40197808-198403

main90176-08014iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-10003i12R#..RN30,40197808-198403

main90210-13001iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)197909-198403

11213GASKET, CYLINDER HEAD COVER

main11213-31020i12R#..RN30,40197808-198403

main11213-33010i18R..RN31,36,41;18R..RN46..ARL..IV3;18R..RN46..EUR,GEN,ME,SA197808-198312

sub11213-34020

main11213-34020i18R..RN46..ARL..IV3;18R..RN31,36,41..T1..ARL197808-198307

main11213-54010i18R..RN46..ARL..CBU197909-198304

sub11213-54030

main11213-54030iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198304-198403

12108CAP SUB-ASSY, OIL FILLER

main12180-13010iL..LN46..T1..ARL..CBU197908-198403

main12180-70010iL..LN3#,40;L..LN46..TW;L..LN46..ARL..IV3;L..LN46..T1..(EUR,GEN)198306-198403

sub12108-78010

main12181-12904i18R..RN31,36,41,46197808-197908

sub12180-13010

main12181-31020i12R#..RN30,40197808-197911

12108AGASKET(FOR OIL FILLER CAP)

main90430-37140iL..LN3#,4#197808-198403

1701

1709

2201

21 parts on this diagram · 4 diagrams in section
