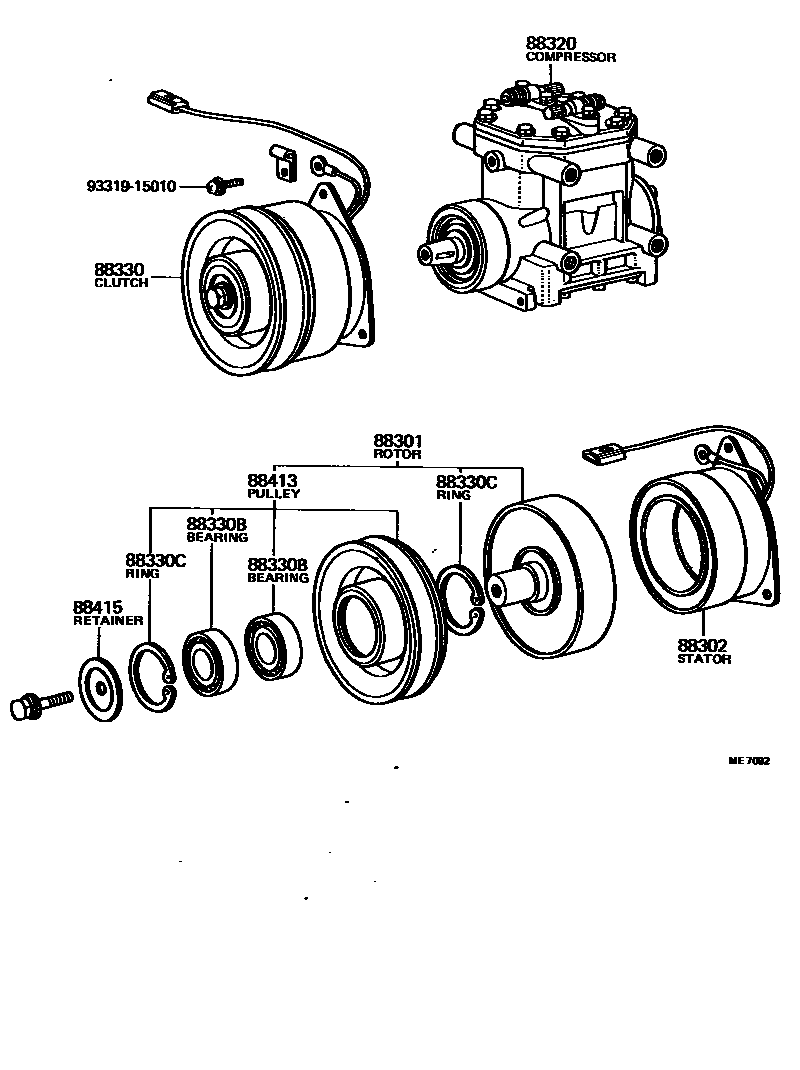

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88401-20060iRN20,25197511-197807

sub88401-36090

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-20070iRN20,25197511-197807

sub88411-20080

88320COMPRESSOR ASSY, COOLER

main88320-20170iRN20,25197511-197807

88330CLUTCH ASSY, MAGNET

main88410-20110iRN20,25197511-197807

88330BBEARING, MAGNET CLUTCH

main90099-10083iRN20,25197511-197807

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-02137iRN20,25197511-197807

88413PULLEY SUB-ASSY, MAGNET CLUTCH

main88402-30250iRN20,25197511-197807

88415RETAINER, MAGNET CLUTCH BEARING, NO.1

main88415-12020iRN20,25197511-197807

9331915010

main93319-15010

9 parts on this diagram · 3 diagrams in section
