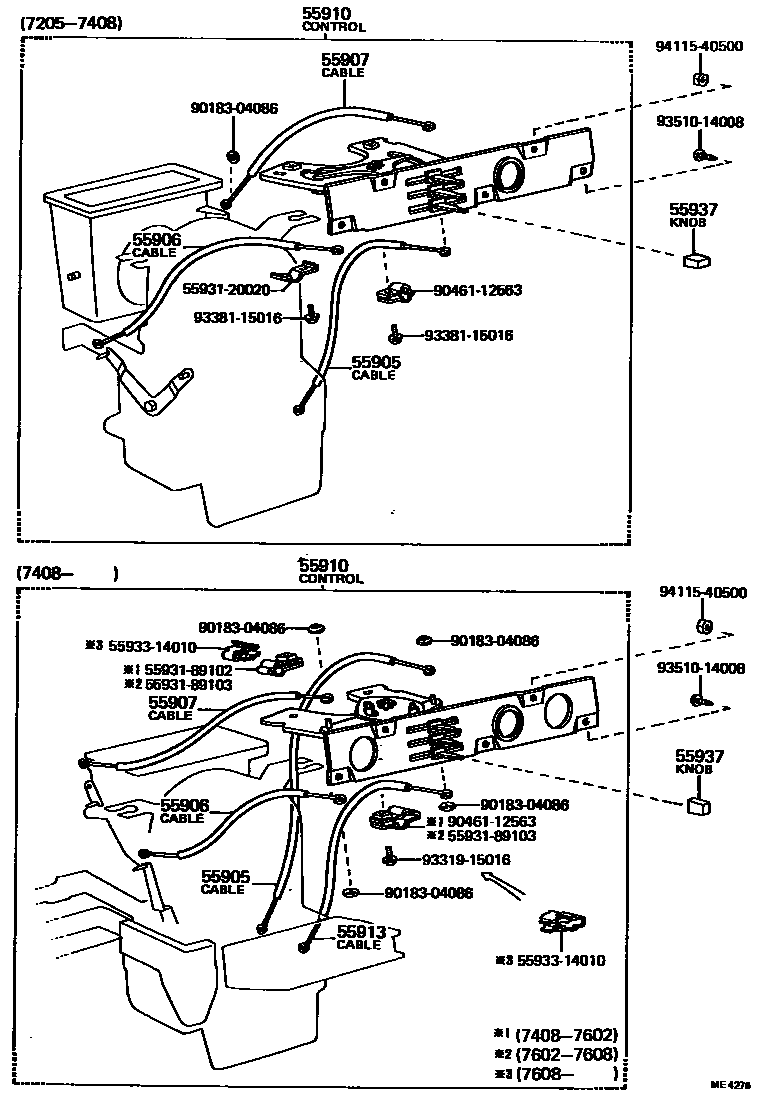

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905CABLE SUB-ASSY, DEFROST CONTROL

main55905-89103iRN2#197205-197408

L=424

main55905-89104iRN2#197408-197702

L=447

main55905-89105iRN20,25197708-197807

L=447

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-89101iRN2#197205-197408

L=319

main55906-89102iRN2#197408-197702

L=210

main55906-89103iRN20,25197708-197807

L=210

55907CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY

main55907-89104iRN2#197205-197408

L=310

main55907-89105iRN2#197408-197702

L=318

main55907-89106iRN20,25197708-197807

L=318

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-89106iRN2#197205-197408

main55910-89107iRN2#197408-197702

main55910-89108iRN20,25197708-197807

55913CABLE SUB-ASSY, BOOST VENT CONTROL

main55099-89102iRN2#197408-197702

L=296

main55099-89103iRN20,25197708-197807

L=296

55937KNOB, HEATER CONTROL LEVER

main55937-22901×3iRN2#197205-197702

5593120020CLAMP, HEATER CONTROL WIRE

main55931-20020

5593189102CLAMP, HEATER CONTROL WIRE

main55931-89102

5593189103CLAMP, HEATER CONTROL WIRE

main55931-89103

5593314010GUIDE, LEVER, NO.2

main55933-14010

9018304086

main90183-04086

9046112563

main90461-12563

9331915016

main93319-15016

9338115016

main93381-15016

9351014008

main93510-14008

9411540500

main94115-40500

16 parts on this diagram · 2 diagrams in section
