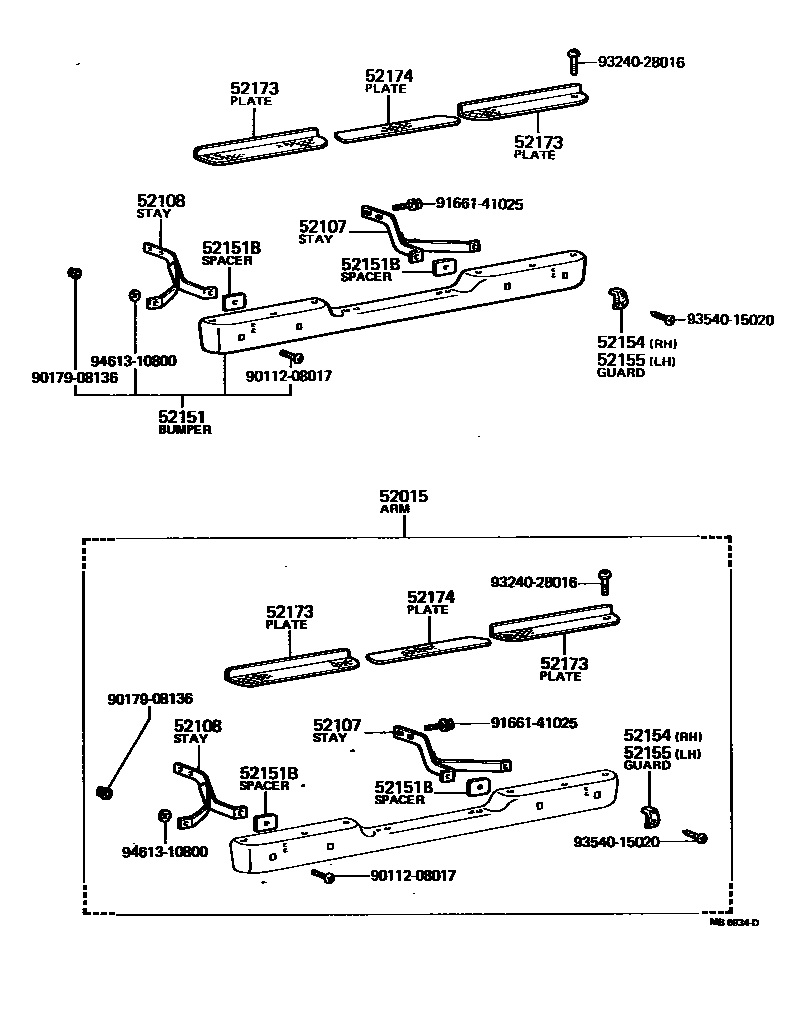

REAR BUMPER & BUMPER STAY

52015ARM SUB-ASSY, REAR BUMPER

main52015-89801iRN20,22..LHD197704-197807

main52015-89802iRN27197704-197807

52107STAY SUB-ASSY, REAR BUMPER, RH

main52015-89102iRN20,22..LHD197704-197807

main52015-89103iRN27197704-197807

52108STAY SUB-ASSY, REAR BUMPER, LH

main52016-89102iRN20,22..LHD197704-197807

main52016-89103iRN27197704-197807

52151BUMPER ASSY, REAR

main52151-89801iRN27197704-197807

sub52150-89102

52151BSPACER(FOR REAR BUMPER SET)

main52188-89101iRN27197704-197807

52154GUARD, BUMPER, REAR RH

main52461-89101iRN27197704-197807

52155GUARD, BUMPER, REAR LH

main52461-89101iRN27197704-197807

52173PLATE, REAR BUMPER, SIDE

main52179-89101iRN27197704-197807

52174PLATE, REAR BUMPER, CENTER

main52179-89102iRN27197704-197807

9011208017

main90112-08017

9017908136

main90179-08136

9166141025

main91661-41025

9324028016

main93240-28016

9354015020

main93540-15020

9461310800

main94613-10800

15 parts on this diagram · 1 diagram in section
