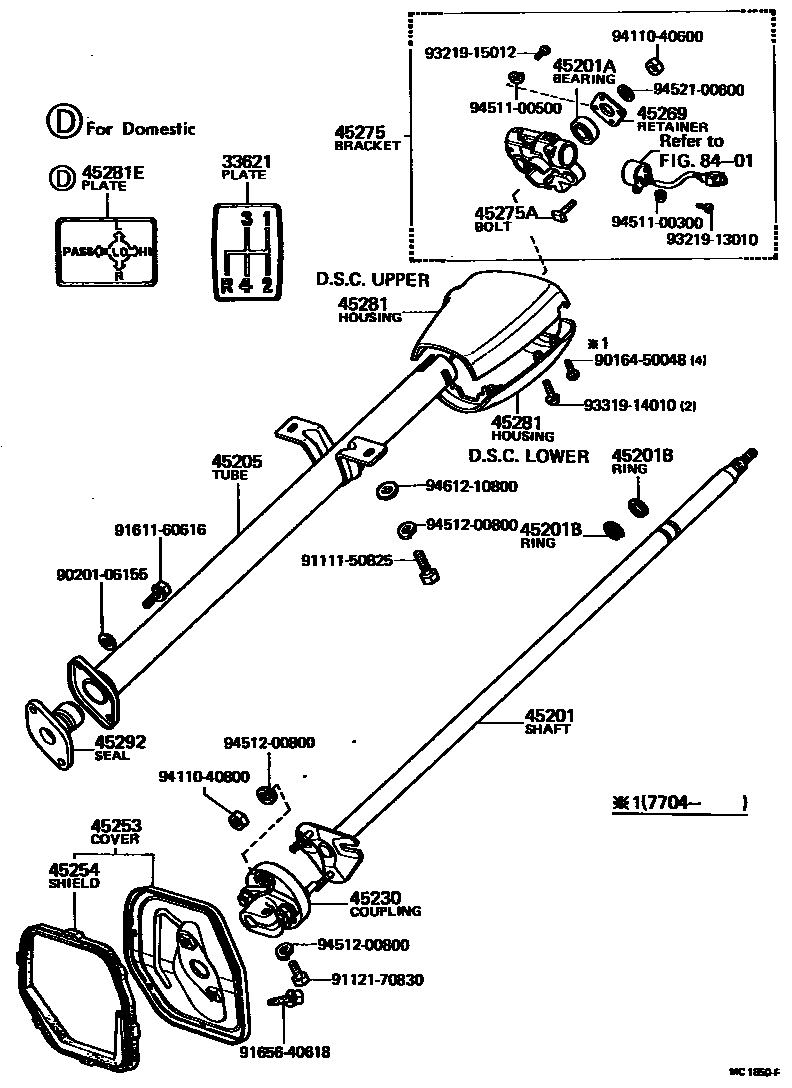

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

33621PLATE, CONTROL LEVER CAUTION

main33621-20010iRN20,22,25..4H197205-197807

45201SHAFT SUB-ASSY, STEERING MAIN

main45201-35070iRN20,25197205-197807

L/STEERING LOCK

sub45201-35080

main45201-35080iRN20,25197205-197807

W/STEERING LOCK

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-18038iRN2#197205-197807

B18Z-1B1 C3

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iRN2#197205-197807

T=1.20

45205TUBE SUB-ASSY, STEERING COLUMN

main45250-35040iRN20,25,27..RHD197205-197807

main45250-35050iRN20,25..LHD197205-197807

45230COUPLING ASSY, FLEXIBLE

main45230-35010iRN2#197205-197408

sub45230-35020

main45230-35020iRN2#197408-197807

45253COVER, STEERING COLUMN HOLE

main55607-89102iRN20,25..4H197205-197408

main55607-89103iRN20,25..LHD197205-197408

main55607-89104iRN2#..RHD..4F197211-197408

main55607-89105iRN20,22,25..4H197408-197807

main55607-89106iRN2#..RHD..4F197408-197807

main55607-89107iRN20,22,25..LHD197408-197807

45254SHIELD, STEERING COLUMN HOLE

main55673-89102iRN2#..RHD197205-197408

main55673-89103iRN20,25..LHD197205-197408

main55673-89104iRN20,22,25..RHD197408-197807

main55673-89105iRN20,22,25..LHD197408-197807

45269RETAINER, MAIN SHAFT BEARING

main45269-60010iRN2#197205-197807

45275BRACKET, STEERING COLUMN, UPPER

main45280-35020iRN20,25197205-197807

L/STEERING LOCK

main45280-35030iRN20,25197205-197807

W/STEERING LOCK

45275ABOLT, HEXAGON(FOR STEERING COLUMN BRACKET)

main90108-06024iRN2#197205-197807

45281HOUSING, STEERING COLUMN

main45286-35020iRN20,25..4H197205-197704

FOR UPPER,L/STEERING LOCK

main45286-35021iRN20,25..4H197704-197807

FOR UPPER,L/STEERING LOCK

main45286-35030iRN2#..LHD197205-197704

FOR UPPER,L/STEERING LOCK

main45286-35031iRN20,22,25..LHD197704-197807

FOR UPPER,L/STEERING LOCK

main45286-35040iRN20,25..RHD..4F197211-197704

FOR UPPER,L/STEERING LOCK

main45286-35041iRN20,25..RHD..4F197704-197807

FOR UPPER,L/STEERING LOCK

main45286-35050iRN2#..4H197205-197704

FOR UPPER,W/STEERING LOCK

main45286-35051iRN20,22,25..4H197704-197807

FOR UPPER,W/STEERING LOCK

main45286-35060iRN20,25..LHD197205-197704

FOR UPPER,W/STEERING LOCK

main45286-35061iRN20,25..LHD197704-197807

FOR UPPER,W/STEERING LOCK

main45286-35070iRN2#..RHD..4F197211-197704

FOR UPPER,W/STEERING LOCK

main45286-35071iRN2#..RHD..4F197704-197807

FOR UPPER,W/STEERING LOCK

main45287-35020iRN2#..4H197205-197704

FOR LOWER

sub45287-35021

main45287-35021iRN20,22,25..4H197704-197807

FOR LOWER

main45287-35030iRN2#..LHD197205-197704

FOR LOWER

sub45287-35031

main45287-35031iRN20,22,25..LHD197704-197807

FOR LOWER

main45287-35040iRN2#..RHD..4F197211-197704

FOR LOWER

sub45287-35041

main45287-35041iRN2#..RHD..4F197704-197807

FOR LOWER

45281EPLATE, SAFETY CAUTION

45292SEAL, MAIN SHAFT LOWER DUST

main45292-35020iRN2#197205-197807

sub45292-35021

8401

9016450048

main90164-50048

9020106155

main90201-06155

9111150825

main91111-50825

9112170830

main91121-70830

9161160616

main91611-60616

9165640618

main91656-40618

9321913010

main93219-13010

9321915012

main93219-15012

9331914010

main93319-14010

9411040600

main94110-40600

9411040800

main94110-40800

9451100300

main94511-00300

9451100500

main94511-00500

9451200800

main94512-00800

9452100600

main94521-00600

9461210800

main94612-10800

31 parts on this diagram · 4 diagrams in section
